Product Description

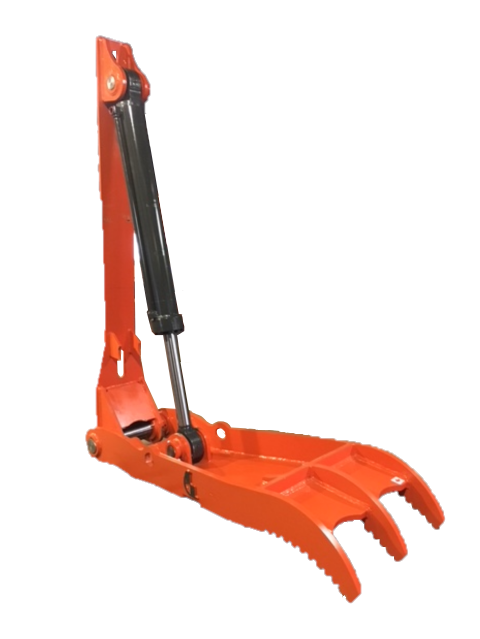

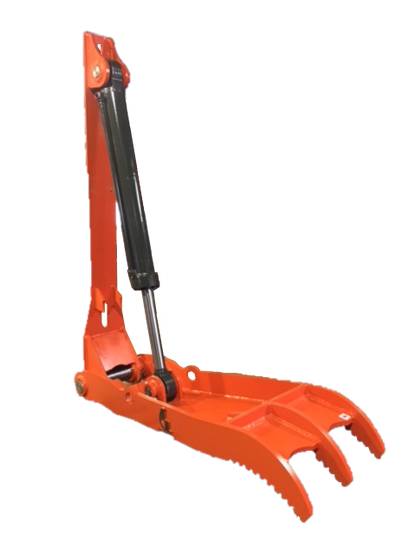

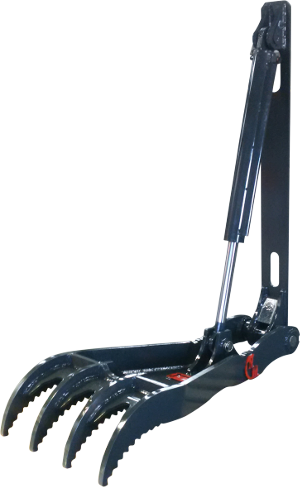

NM Attachments Hydraulic Thumb Weld-On | Model HWO Series | Machine Size 0.75–27.5 Tons | For Excavators
DESCRIPTION
The NM Attachments Hydraulic Thumb Weld-On HWO Series is designed to enhance excavator performance across a range of machine sizes from 0.75 to 27.5 tons. Built from premium structural steel with AR-400 tines, it delivers exceptional durability and resistance to wear in demanding environments like land clearing, demolition, and material handling. Its hydraulic mechanism provides precise and smooth operation, allowing operators to handle materials confidently and efficiently. The weld-on mounting system offers a secure and permanent solution, simplifying installation while ensuring a robust connection to the excavator. This thumb attachment optimizes versatility and productivity on job sites, making it a reliable choice for professionals seeking enhanced control and heavy-duty performance.
Key Features
- Corrosion Resistant: Built to withstand harsh environments and prevent rust.
- AR-400 Hardened Tines: Provides unmatched durability and cutting strength.
- Hydraulic Precision: Ensures smooth and efficient material handling.
- Multiple Tine Options: Available in 2-tine and 4-tine configurations for diverse tasks.
- Machine Size Range: Covers excavators from 1,500 lbs to 55,000 lbs (~0.75–27.5 tons).
- Weld-On Mounting: Simplifies attachment for reliable performance.
- Enhanced Productivity: Optimized for demolition, material handling, and land clearing.
Detailed Specifications
Model: 1.5HMWO
| Feature | Specification |
|---|---|
| Model | 1.5HMWO |
| Part Number | 1.5HMWO |
| Attachment Type | Mechanical Weld-On |
| Tines | N/A |
| Machine Size (lbs) | 1,500–3,000 |
| Machine Size (tons) | ~0.75–1.5 tons |
| Application | Basic gripping, compact machines |
| Mount Type | Weld-on |
Model: 1.5HWO
| Feature | Specification |
|---|---|
| Model | 1.5HWO |
| Part Number | 1.5HWO |
| Attachment Type | Hydraulic Weld-On |
| Tines | N/A |
| Machine Size (lbs) | 1,500–3,000 |
| Machine Size (tons) | ~0.75–1.5 tons |
| Application | Hydraulic thumb control for mini excavators |
| Mount Type | Weld-on |
Model: 2HWO-2T
| Feature | Specification |
|---|---|
| Model | 2HWO-2T |
| Part Number | 2HWO-2T |
| Attachment Type | Hydraulic Weld-On 2 Tines |
| Tines | 2 |
| Machine Size (lbs) | 3,000–6,000 |
| Machine Size (tons) | ~1.5–3 tons |
| Application | Light-duty gripping and sorting |
| Mount Type | Weld-on |
Model: 3HWO-2T
| Feature | Specification |
|---|---|
| Model | 3HWO-2T |
| Part Number | 3HWO-2T |
| Attachment Type | Hydraulic Weld-On 2 Tines |
| Tines | 2 |
| Machine Size (lbs) | 6,000–10,000 |
| Machine Size (tons) | ~3–5 tons |
| Application | Compact excavator thumb for debris and brush |
| Mount Type | Weld-on |
Model: 5HWO-2T
| Feature | Specification |
|---|---|
| Model | 5HWO-2T |
| Part Number | 5HWO-2T |
| Attachment Type | Hydraulic Weld-On 2 Tines |
| Tines | 2 |
| Machine Size (lbs) | 10,000–12,000 |
| Machine Size (tons) | ~5–6 tons |
| Application | Mid-size excavator thumb for material control |
| Mount Type | Weld-on |
Model: 6HWO-2T
| Feature | Specification |
|---|---|
| Model | 6HWO-2T |
| Part Number | 6HWO-2T |
| Attachment Type | Hydraulic Weld-On 2 Tines |
| Tines | 2 |
| Machine Size (lbs) | 12,000–14,000 |
| Machine Size (tons) | ~6–7 tons |
| Application | Utility and site prep gripping |
| Mount Type | Weld-on |
Model: 8HWO-2T
| Feature | Specification |
|---|---|
| Model | 8HWO-2T |
| Part Number | 8HWO-2T |
| Attachment Type | Hydraulic Weld-On 2 Tines |
| Tines | 2 |
| Machine Size (lbs) | 14,000–24,000 |
| Machine Size (tons) | ~7–12 tons |
| Application | General-purpose thumb for mid-size excavators |
| Mount Type | Weld-on |
Model: 13HWO-2T
| Feature | Specification |
|---|---|
| Model | 13HWO-2T |
| Part Number | 13HWO-2T |
| Attachment Type | Hydraulic Weld-On 2 Tines |
| Tines | 2 |
| Machine Size (lbs) | 24,000–33,000 |
| Machine Size (tons) | ~12–16.5 tons |
| Application | Heavy-duty gripping for demolition and sorting |
| Mount Type | Weld-on |
Model: 13HWO-4T
| Feature | Specification |
|---|---|
| Model | 13HWO-4T |
| Part Number | 13HWO-4T |
| Attachment Type | Hydraulic Weld-On 4 Tines |
| Tines | 4 |
| Machine Size (lbs) | 24,000–33,000 |
| Machine Size (tons) | ~12–16.5 tons |
| Application | Enhanced grip for large debris and logs |
| Mount Type | Weld-on |
Model: 20HWO-4T
| Feature | Specification |
|---|---|
| Model | 20HWO-4T |
| Part Number | 20HWO-4T |
| Attachment Type | Hydraulic Weld-On 4 Tines |
| Tines | 4 |
| Machine Size (lbs) | 45,000–55,000 |
| Machine Size (tons) | ~22.5–27.5 tons |
| Application | Maximum strength for large-scale excavation |
| Mount Type | Weld-on |
Host Machines
- KUBOTA KX057
- CAT 304E CR
- CASE CX50C
- JOHN DEERE 50G
- KUBOTA KX018
- KUBOTA KX41
- KUBOTA U15
- KUBOTA U17.
