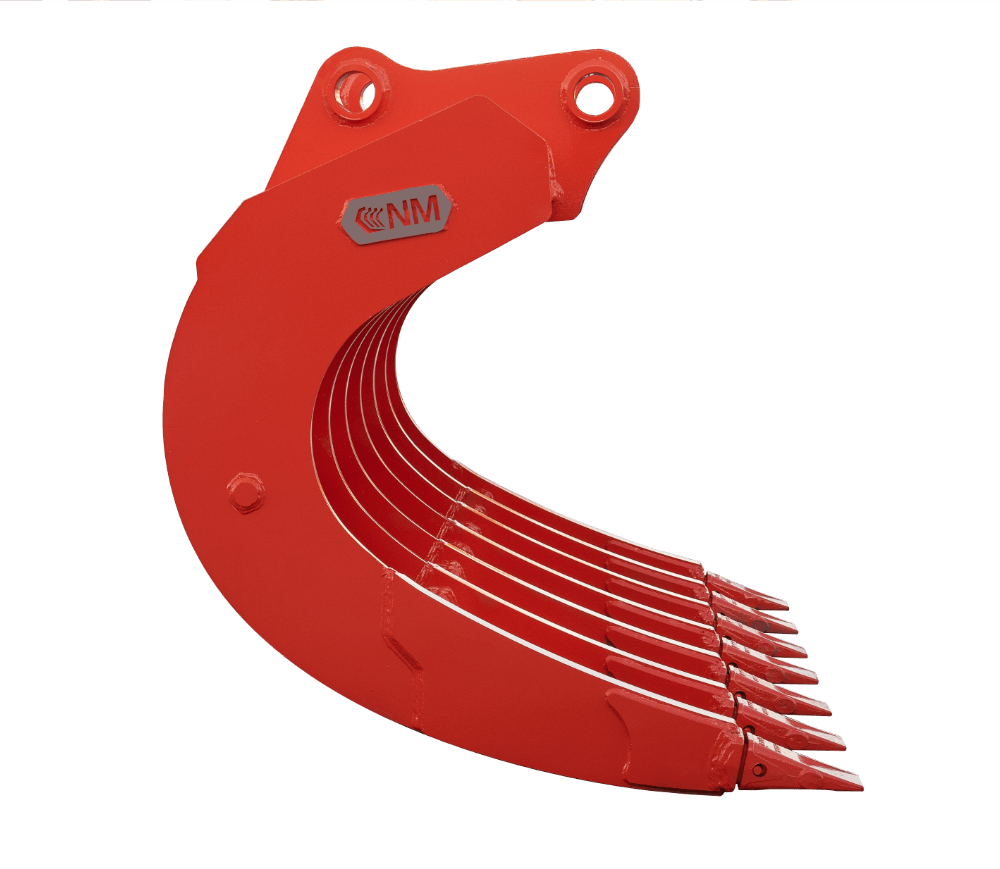

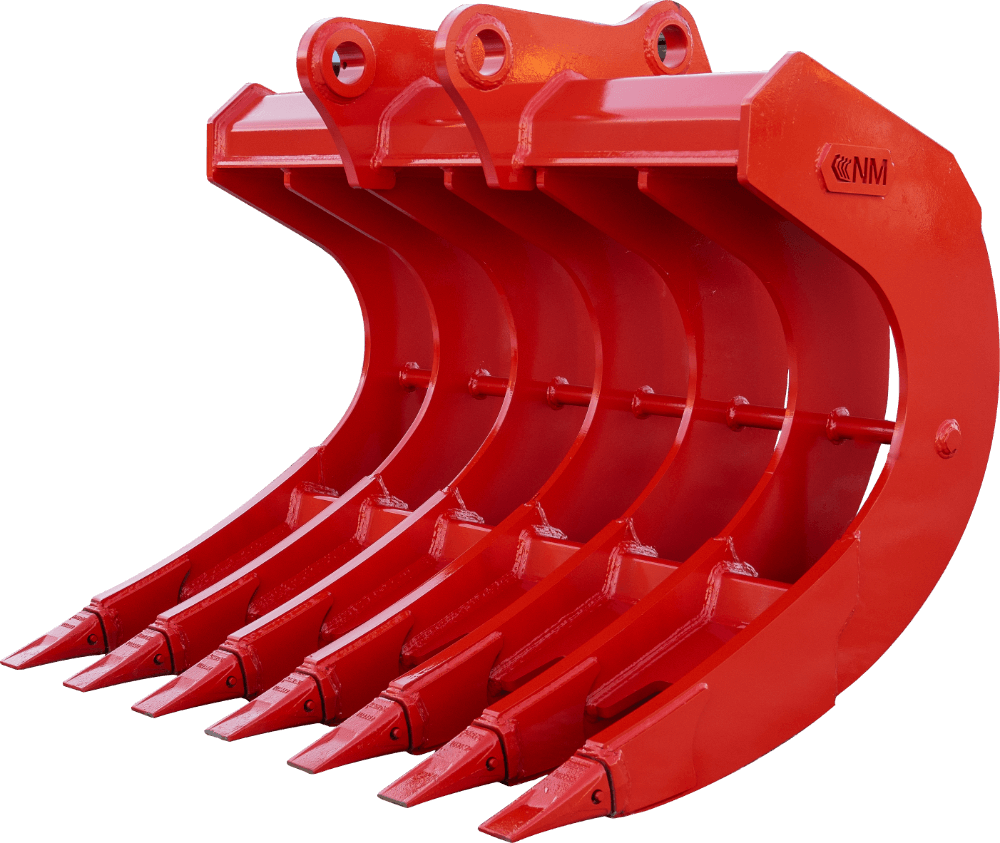

NM Attachments Root Rake | Model RR Series | Widths 30"–72" | Machine Size 3–45 Tons | For Excavators
DESCRIPTION
The NM Attachments RR Series Root Rakes are designed for aggressive land clearing, vegetation removal, and debris handling across a wide range of excavator classes. With working widths from 30" to 72", and tine configurations ranging from 5 to 7 heavy-duty tines, these attachments are built for precision and durability. Constructed from high-grade structural steel and reinforced with AR-400 steel in the tine areas, each rake is optimized for prying, ripping, and sorting brush, stumps, and roots. Standard CAT-style teeth are included, with optional configurations available. Mount specification is required to ensure proper fit with OEM couplers.
Key Features
-
Model Identification: RR Series Model codes like 3RR-30, 15RR-60, and 30RR-72 indicate class, rake width, and compatibility.
-
Working Widths: Available in 30" to 72" widths to suit compact, mid-size, and full-size excavators.
-
Tine Configuration: Models feature 5 to 7 tines, depending on width and class. Some models are available without tines for custom outfitting.
-
Tooth Profile: Standard CAT-style teeth included; other tooth styles available upon request.
-
Tine Spacing: Variable spacing options allow customization for different clearing intensities.
-
Machine Size Range: Designed for excavators from 6,000 to 90,000 lbs (~3–45 tons), covering Class 25 to Class 300.
-
Construction: Materials Frame built from high-grade structural steel; tines made from AR-400 for abrasion resistance.
-
Mount Compatibility: Must specify mount type (e.g., CAT Fusion, ISO, JRB, Deere) for proper fit with OEM couplers.
-
Application: Versatility Ideal for land clearing, fence line removal, orchard cleanup, and storm debris management.
-
Easy Mounting: Compatible with specified excavator mounts (ensure correct mount specification)
-
Multi-Purpose Use: Handles brush, stumps, and roots with efficiency, ideal for site clearing.
Detailed Specifications
3RR-30
| Attribute |
Details |
| Model |
3RR-30 |
| Machine Size (lbs) |
6,000–10,000 |
| Machine Size (Tons) |
~3–5 tons |
| Width |
30" |
| Tines |
5 |
| Weight |
— |
3RR-36
| Attribute |
Details |
| Model |
3RR-36 |
| Machine Size (lbs) |
6,000–10,000 |
| Machine Size (Tons) |
~3–5 tons |
| Width |
36" |
| Tines |
6 |
| Weight |
— |
5RR-30
| Attribute |
Details |
| Model |
5RR-30 |
| Machine Size (lbs) |
10,000–12,000 |
| Machine Size (Tons) |
~5–6 tons |
| Width |
30" |
| Tines |
— |
| Weight |
— |
5RR-36
| Attribute |
Details |
| Model |
5RR-36 |
| Machine Size (lbs) |
10,000–12,000 |
| Machine Size (Tons) |
~5–6 tons |
| Width |
36" |
| Tines |
5 |
| Weight |
— |
6RR-42
| Attribute |
Details |
| Model |
6RR-42 |
| Machine Size (lbs) |
12,000–14,000 |
| Machine Size (Tons) |
~6–7 tons |
| Width |
42" |
| Tines |
— |
| Weight |
— |
6RR-48
| Attribute |
Details |
| Model |
6RR-48 |
| Machine Size (lbs) |
12,000–14,000 |
| Machine Size (Tons) |
~6–7 tons |
| Width |
48" |
| Tines |
6 |
| Weight |
— |
8RR-48
| Attribute |
Details |
| Model |
8RR-48 |
| Machine Size (lbs) |
14,000–24,000 |
| Machine Size (Tons) |
~7–12 tons |
| Width |
48" |
| Tines |
— |
| Weight |
— |
13RR-48
| Attribute |
Details |
| Model |
13RR-48 |
| Machine Size (lbs) |
24,000–33,000 |
| Machine Size (Tons) |
~12–16.5 tons |
| Width |
48" |
| Tines |
— |
| Weight |
— |
13RR-54
| Attribute |
Details |
| Model |
13RR-54 |
| Machine Size (lbs) |
24,000–33,000 |
| Machine Size (Tons) |
~12–16.5 tons |
| Width |
54" |
| Tines |
6 |
| Weight |
— |
15RR-48
| Attribute |
Details |
| Model |
15RR-48 |
| Machine Size (lbs) |
33,000–45,000 |
| Machine Size (Tons) |
~16.5–22.5 tons |
| Width |
48" |
| Tines |
5 |
| Weight |
— |
15RR-54
| Attribute |
Details |
| Model |
15RR-54 |
| Machine Size (lbs) |
33,000–45,000 |
| Machine Size (Tons) |
~16.5–22.5 tons |
| Width |
54" |
| Tines |
— |
| Weight |
— |
15RR-60
| Attribute |
Details |
| Model |
15RR-60 |
| Machine Size (lbs) |
33,000–45,000 |
| Machine Size (Tons) |
~16.5–22.5 tons |
| Width |
60" |
| Tines |
7 |
| Weight |
— |
20RR-60
| Attribute |
Details |
| Model |
20RR-60 |
| Machine Size (lbs) |
45,000–55,000 |
| Machine Size (Tons) |
~22.5–27.5 tons |
| Width |
60" |
| Tines |
— |
| Weight |
3,000 lbs |
25RR-60
| Attribute |
Details |
| Model |
25RR-60 |
| Machine Size (lbs) |
55,000–65,000 |
| Machine Size (Tons) |
~27.5–32.5 tons |
| Width |
60" |
| Tines |
— |
| Weight |
3,800 lbs |
