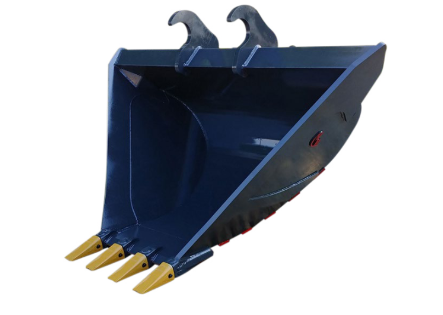

NM Attachments Trapezoid Bucket | Model TB Series | Widths 30"–72" | Machine Size 5–32.5 Tons | For Excavators
DESCRIPTION
The TB Series Trapezoid Buckets from NM Attachments are meticulously engineered to enhance trenching and pipeline excavation by minimizing backfill needs, thus reducing overall project costs. These buckets feature bottom widths ranging from 10" to 24" and top widths between 30" and 72", enabling the formation of accurate trapezoidal trench profiles that improve material efficiency and streamline workflow on site. Manufactured from heavy-duty steel, the buckets offer durability and longevity for demanding conditions, with optional bolt-on cutting edges or teeth for adaptability to various soil types. Designed for excavators weighing between 5 and 32.5 tons (10,000 to 65,000 lbs), each bucket requires mount specification to guarantee proper fitment, ensuring safe, reliable operation and maximum performance during excavation tasks. This combination of precise design and robust construction makes the TB Series ideal for contractors seeking to optimize trench accuracy while lowering labor and material expenses.
Key Features
- Model Identification: TB Series Model codes like 5TB-30, 20TB-663T, and 25TB-2472 indicate excavator class, bucket width, and configuration (e.g., teeth or cutting edge).
- Bucket Dimensions:- Bottom widths: 10"–24", Top widths: 30"–72" Designed to create precise trench profiles that reduce backfill volume and material costs.
- Configuration Options: Available in smooth edge, bolt-on cutting edge, or tooth-equipped variants to suit different soil types and excavation needs.
- Machine Size Range: Compatible with excavators from 10,000 to 65,000 lbs (~5–32.5 tons), covering compact to full-size machines.
- Construction Materials: Built from high-strength structural steel with reinforced welds for long-term durability in demanding trenching environments.
- Mount Compatibility: Requires mount specification for OEM fit—supports CAT Fusion, ISO, JRB, Deere, Volvo, and other coupler systems.
- Application: Versatility Ideal for pipeline installation, ditch shaping, utility excavation, stormwater management, and agricultural drainage.
- Soil Efficiency: Trapezoidal design minimizes excavation volume, reducing the need for backfill and improving fuel efficiency.
- Digging Precision: Angled sidewalls allow for consistent trench depth and slope, improving accuracy and reducing rework.
- Maintenance-Friendly: Design Bolt-on edges and modular tooth systems allow for easy replacement and reduced downtime.
- OEM Loader Support: Compatible with leading excavator brands including Caterpillar, Komatsu, Deere, Volvo, Case, Hyundai, and more.
- Custom Fit: Options Available in multiple widths and depths to match trenching specs and regional soil conditions.
Detailed Specifications
5TB-30
| Attribute | Details |
|---|---|
| Model | 5TB-30 |
| Machine Size (lbs) | 10,000–12,000 |
| Machine Size (Tons) | ~5–6 tons |
| Bottom / Top Width | 10" / 30" |
| Special Features | — |
| Mount Required | Yes – Must specify OEM coupler |
| Application | Trenching, pipeline excavation |
5TB-36
| Attribute | Details |
|---|---|
| Model | 5TB-36 |
| Machine Size (lbs) | 10,000–12,000 |
| Machine Size (Tons) | ~5–6 tons |
| Bottom / Top Width | 16" / 36" |
| Special Features | — |
| Mount Required | Yes |
| Application | Trenching, ditch shaping |
6TB-30
| Attribute | Details |
|---|---|
| Model | 6TB-30 |
| Machine Size (lbs) | 12,000–14,000 |
| Machine Size (Tons) | ~6–7 tons |
| Bottom / Top Width | 10" / 30" |
| Special Features | — |
| Mount Required | Yes |
| Application | Utility trenching |
6TB-36
| Attribute | Details |
|---|---|
| Model | 6TB-36 |
| Machine Size (lbs) | 12,000–14,000 |
| Machine Size (Tons) | ~6–7 tons |
| Bottom / Top Width | 10" / 36" |
| Special Features | — |
| Mount Required | Yes |
| Application | Pipeline trenching |
6TB-48
| Attribute | Details |
|---|---|
| Model | 6TB-48 |
| Machine Size (lbs) | 12,000–14,000 |
| Machine Size (Tons) | ~6–7 tons |
| Bottom / Top Width | 18" / 48" |
| Special Features | — |
| Mount Required | Yes |
| Application | Ditch shaping, trenching |
8TB-36
| Attribute | Details |
|---|---|
| Model | 8TB-36 |
| Machine Size (lbs) | 14,000–24,000 |
| Machine Size (Tons) | ~7–12 tons |
| Bottom / Top Width | 16" / 36" |
| Special Features | — |
| Mount Required | Yes |
| Application | Pipeline trenching |
8TB-48
| Attribute | Details |
|---|---|
| Model | 8TB-48 |
| Machine Size (lbs) | 14,000–24,000 |
| Machine Size (Tons) | ~7–12 tons |
| Bottom / Top Width | 18" / 48" |
| Special Features | — |
| Mount Required | Yes |
| Application | Trenching, ditching |
13TB-48
| Attribute | Details |
|---|---|
| Model | 13TB-48 |
| Machine Size (lbs) | 24,000–33,000 |
| Machine Size (Tons) | ~12–16.5 tons |
| Bottom / Top Width | 18" / 48" |
| Special Features | — |
| Mount Required | Yes |
| Application | Pipeline trenching |
13TB-54
| Attribute | Details |
|---|---|
| Model | 13TB-54 |
| Machine Size (lbs) | 24,000–33,000 |
| Machine Size (Tons) | ~12–16.5 tons |
| Bottom / Top Width | 24" / 54" |
| Special Features | — |
| Mount Required | Yes |
| Application | Trenching, ditch shaping |
15TB-60
| Attribute | Details |
|---|---|
| Model | 15TB-60 |
| Machine Size (lbs) | 33,000–45,000 |
| Machine Size (Tons) | ~16.5–22.5 tons |
| Bottom / Top Width | 24" / 60" |
| Special Features | — |
| Mount Required | Yes |
| Application | Pipeline trenching |
20TB-66
| Attribute | Details |
|---|---|
| Model | 20TB-66 |
| Machine Size (lbs) | 45,000–55,000 |
| Machine Size (Tons) | ~22.5–27.5 tons |
| Bottom / Top Width | 24" / 60" |
| Special Features | — |
| Mount Required | Yes |
| Application | Trenching, ditch shaping |
20TB-663T
| Attribute | Details |
|---|---|
| Model | 20TB-663T |
| Machine Size (lbs) | 45,000–55,000 |
| Machine Size (Tons) | ~22.5–27.5 tons |
| Bottom / Top Width | 24" / 60" |
| Special Features | 3 Teeth |
| Mount Required | Yes |
| Application | Trenching with aggressive edge |
25TB-2472
| Attribute | Details |
|---|---|
| Model | 25TB-2472 |
| Machine Size (lbs) | 55,000–65,000 |
| Machine Size (Tons) | ~27.5–32.5 tons |
| Bottom / Top Width | 24" / 72" |
| Special Features | Bolt-on Cutting Edge |
| Mount Required | Yes |
| Application | High-volume trenching |
