Norwesco

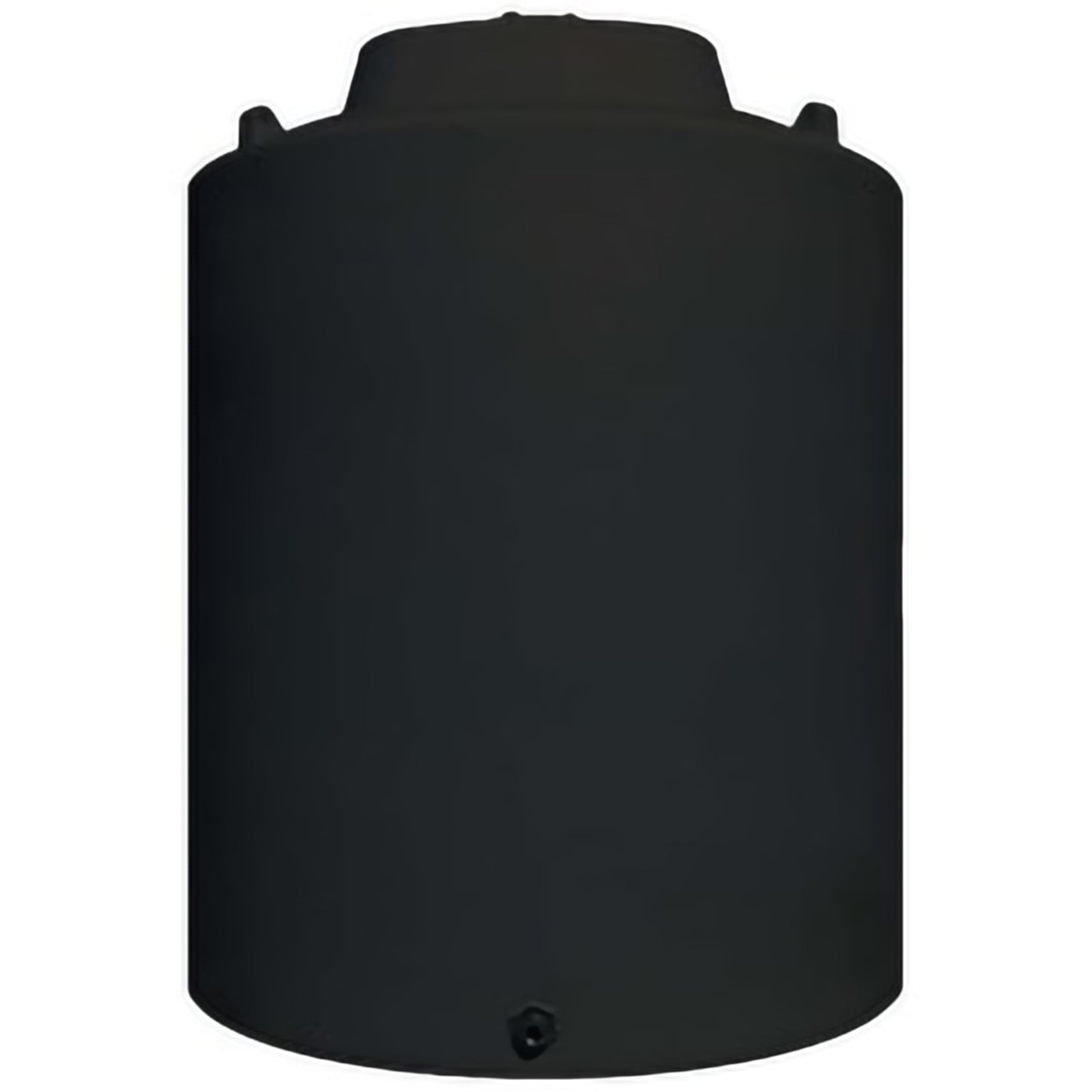

Norwesco 20000 Gallon HDPE Vertical Liquid Storage Tank | Diameter 165" | Lid Size 22" | Specific Gravity 1.9 (Max 15.87 lbs/gal)

Norwesco 20000 Gallon HDPE Vertical Liquid Storage Tank | Diameter 165" | Lid Size 22" | Specific Gravity 1.9 (Max 15.87 lbs/gal)

Regular price $48,170.00
Regular price Sale price $48,170.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Ultra-High Capacity: 20,000-gallon vertical tank with built-in gallon indicator
  • Oversized Footprint: 165″ diameter × 242″ height—engineered for industrial-scale containment
  • Material Build: High Density Linear Polyethylene—durable, chemical-resistant, and UV-stabilized
  • Weight Class: 5,015 lbs—requires heavy-duty handling and reinforced base installation
  • Thermal Rating: Max operating temperature 120°F / 48°C—suitable for warm fluid environments
View full details

Product Description

Norwesco 20000 Gallon HDPE Vertical Liquid Storage Tank | Diameter 165" | Lid Size 22" | Specific Gravity 1.9 (Max 15.87 lbs/gal)

Description

With 82 years of experience in the market, Norwesco leads the industry of polyethylene tanks with impeccable customer trust and expertise. Norwesco offers the highest quality products in the market along with the best reputation and commitment to customer satisfaction. Their wide variety of polyethylene tanks makes them the perfect choice for any industrial or personal project.

Vertical storage tanks are used for industrial, agricultural, and commercial chemical storage purposes. Liquids that can be stored in these tanks include water, calcium chloride, DEF, ethyl alcohol, ferric chloride, ferric sulfate, hydrochloric acid, biodiesel, fertilizer, phosphoric acid, polymers, sodium hydroxide, sodium hypochlorite, sulfuric acid, urea, brine, agricultural chemicals, industrial chemicals, and many more.

The 20,000 Gallon Heavy Duty Vertical Plastic Storage Tank by Norwesco Industries is a leading North American solution for above-ground water and liquid storage applications. Tanks are available in translucent white or blue with gallon markers.

Standard Color: Natural White or Black (Additional Cost & Lead Time)

Constructed with durable, rotationally molded polyethylene resin, ensuring resistance to cracks, chips, and ruptures. Built with materials that meet FDA standards for safe-food grade storage, ensuring compliance and safety. Equipped with UV inhibitors to protect liquid contents from direct sunlight, suitable for both indoor and outdoor use.

Note:

  • If the tank is ordered from Washington Court House, OH, there is no minimum quantity.
  • If the tank is ordered from Saint Bonifacius, MN & Albertville, AL, the minimum quantity to order is 2 tanks.

Vertical Plastic Storage Tanks are designed for storage and are not meant to be pressurized. Norwesco was the first polyethylene tank producer to receive NSF61 certification for potable water tanks, with certified tanks from six manufacturing facilities.

ADD-ONS

3 Inch Full Port M x F Blue Handle Valve

The 3" Full Port M x F Blue Handle Valve is a versatile and durable solution for various fluid control applications. Manufactured from glass-reinforced polypropylene, this valve boasts exceptional strength and durability, ensuring it will never rust or corrode. The self-aligning ball rotates freely against Teflon® seats, providing smooth and reliable operation. Its unique body-to-flange design allows for low torque on/off operation, making it easy to use. Equipped with Viton O-ring stem seal and EPDM O-ring body seal, this valve guarantees leak-proof performance. It is available with either a blue Norwesco handle or a blank yellow handle to suit different preferences. The valve's pressure rating is 125 PSI @ 70°F for sizes 1/2" to 3", and 90 PSI @ 70°F for the 4" size. Each valve is thoroughly tested by air pressure under water to ensure reliability and performance.

Key Features

  • Ultra-High Capacity: 20,000-gallon vertical tank with built-in gallon indicator—ideal for bulk fluid storage
  • Oversized Footprint: 165″ diameter × 242″ height—engineered for industrial-scale containment
  • Material Build: High Density Linear Polyethylene—durable, chemical-resistant, and UV-stabilized
  • Weight Class: 5,015 lbs—requires heavy-duty handling and reinforced base installation
  • Thermal Rating: Max operating temperature 120°F / 48°C—suitable for warm fluid environments
  • Specific Gravity Rating: Supports up to 1.9 SG (15.87 lbs/gal)—compatible with dense liquids
  • Non-Pressurized Use: Designed for gravity-fed or pump-assisted systems only
  • Outlet Configuration: 3″ stainless steel bolted fitting with 3″ reducer and 3″ × 5.5″ siphon tube
  • Access Lid: 22″ lid for easy filling, inspection, and maintenance
  • FDA & NSF Approved: FDA-compliant + NSF/ANSI 61 resin (MN)—safe for potable and regulated use
  • Color Options: Available in Blue or Black—UV-resistant and field-visible
  • Manufacturer: Norwesco—trusted leader in polyethylene tank solutions
  • Warranty Coverage: 3-year manufacturer warranty—protection against defects and material failure
  • Durable Construction: Built with rotationally molded polyethylene resin for maximum resistance to damage.
  • FDA Approved Materials: Ensures safe food-grade storage.
  • UV Inhibitors: Protect liquid contents from harmful UV rays.
  • Translucent White or Blue Color Options: Allows for visibility of liquid levels with gallon markers.
  • Non-Pressurized Design: Suitable for storage purposes only.
  • NSF61 Certified: For potable water tanks, ensuring safety and compliance.
  • Standard Color Options: Natural White or Black with additional cost and lead time for black.
  • Wide Liquid Compatibility: Suitable for a range of liquids including water, chemicals, and industrial fluids.

ADD-ONS

3 Inch Full Port M x F Blue Handle Valve

  • High-Strength Material: Manufactured from glass-reinforced polypropylene for superior strength and durability.
  • Corrosion-Resistant: Will never rust or corrode, making it suitable for a variety of environments.
  • Smooth Operation: Self-aligning ball rotates freely against Teflon® seats.
  • Low Torque On/Off Operation: Unique body-to-flange design allows for easy operation.
  • Leak-Proof Performance: Viton O-ring stem seal and EPDM O-ring body seal ensure a tight seal.
  • Handle Options: Available with blue Norwesco handle or blank yellow handle.
  • Pressure Rating: 125 PSI @ 70°F for sizes 1/2" to 3"; 90 PSI @ 70°F for the 4" size.
  • Thorough Testing: All valves are tested by air pressure under water to ensure reliability.

Detailed Specifications

Attribute Details
Diameter 165"
FDA Approved Yes
Gallon Capacity 20,000
Gallon Indicators 1
Lid Size 22"
Max Temperature 120 F / 48 C
NSF / ANSI 61 Approved Resin MN
Outlet 3" Stainless Steel Bolted Fitting with 3" Reducer and 3" X 5-1/2" Siphon tube
Pressurized Use No
Specific Gravity 1.9 (Max 15.87 lbs/gal)
Dimensions Length: 165", Width: 165", Height: 242"
Weight 5015 lbs
General Material High Density Linear Polyethylene
Manufacturer Norwesco
Manufacturer Part Number 43827
Color Blue, Black
Warranty 3 years

Shipping Info:

Shipping Height 165"
Shipping Length 242"
Shipping Weight 5015 lbs
Shipping Width 165"
Ship Class OVS



The best technology and quality manufacturing make a difference:

  • Finish grade elevation to within 1/8 to 1/4 inches, depending on the laser system used.
  • Unique hydraulic controls automatically raise or lower the grader box.
  • Durable steel plate and heavy wall construction.
  • Digital proportional valve dramatically increases accuracy.
  • Easy to operate: The laser controls are easy to learn and use. As the operator grades, the system's receiver detects laser light from a rotating beacon and transmits a signal to the Level Best hydraulic controls. The hydraulic valve uses the signal from the receiver and automatically lowers or raises the grader box to the required grade. Precise finish grade is attained when the on-grade light remains illuminated. The finish grade elevation is consistently level to plus or minus 1/8 in. or 1/4 in. depending on the laser system used.
  • Durable Steel Construction: Constructed of 3/8" and 1/4" steel plate and heavy-wall steel tubing, the Level Best grading system is built to take daily abuse on a job site.
  • Rugged Casters with Wheel Hub and Tapered Roller Bearing Assemblies.
  • Large, Heavy-Duty Casters withstand years of punishment.
  • Heavy-Duty Wheel Hub and Bearing Assemblies need only annual greasing, reducing maintenance time and costs.
  • Composite Bushings: Epoxy-Fiberglass Composite Bushings in all pivot points eliminate the need for greasing. The inexpensive, replaceable bushings wear instead of your grading box.
  • Flat-Free Tires: These innovative, flat-free tires have the same benefit as foam-filled tires, but without the added weight. This eliminates downtime for tire repairs and leaves less of a tire track.
  • Durable Cutting Edges: Made of long-wearing high-carbon steel, can be reversed for twice the life and replaced in a matter of minutes.
  • Powder Coating: Tough, long-lasting powder-coating ensures that a Level Best grader box will look great for years to come.

This vertical liquid storage tank is the pinnacle of technology and quality manufacturing, providing unmatched reliability and performance for all your storage needs. If you have any further questions or require additional details, feel free to ask!

ADD-ONS

3 Inch Full Port M x F Blue Handle Valve

Attribute Details
Inside Diameter 3"
Dimensions Length: 4", Width: 4", Height: 4"
Weight 4 lbs
Material Polypropylene
Manufacturer Norwesco
Manufacturer Part Number 62047

Shipping Info:

Shipping Height 8"
Shipping Length 6"
Shipping Weight 4 lbs
Shipping Width 6"
Ship Class UPS



 This valve represents the pinnacle of technology and quality manufacturing, ensuring long-lasting performance and reliability for all your fluid control needs. If you require further information or have any additional questions, please feel free to ask!
