Ocmis MRR-58 Micro Rain Agriculture Hose Reel | 656 ft Hose Capacity | High Performance & Durability

Ocmis MRR-58 Micro Rain Agriculture Hose Reel | 656 ft Hose Capacity | High Performance & Durability

Regular price $12,608.39
Regular price Sale price $12,608.39
Sale Sold out
Customizable
Fast
24/7 Support
  • Large Hose Capacity: Supports up to 656 feet of hose for efficient agricultural irrigation.
  • Rotating Base: Ensures precise coverage and enhanced maneuverability.
  • Sime-Hydra Gun: Equipped with adjustable nozzles (12mm, 14mm, 16mm) for customizable water distribution.
  • Low Maintenance: Features a compact turbine drive and mechanical shutoff for reduced upkeep.
  • Heavy-Duty Frame: Galvanized and robust, designed to withstand tough agricultural conditions.
View full details

Product Description

Ocmis MRR-58 Micro Rain Agriculture Hose Reel | 656 ft Hose Capacity | High Performance & Durability

Included Options:

  • Nozzle Sizes: Adjustable nozzles (12mm, 14mm, 16mm) for different irrigation needs.
  • PTO Rewind: Allows for manual rewinding and field adjustments.
  • Turbine Drive: Reduced load loss for efficient irrigation under low flow conditions.

DESCRIPTION

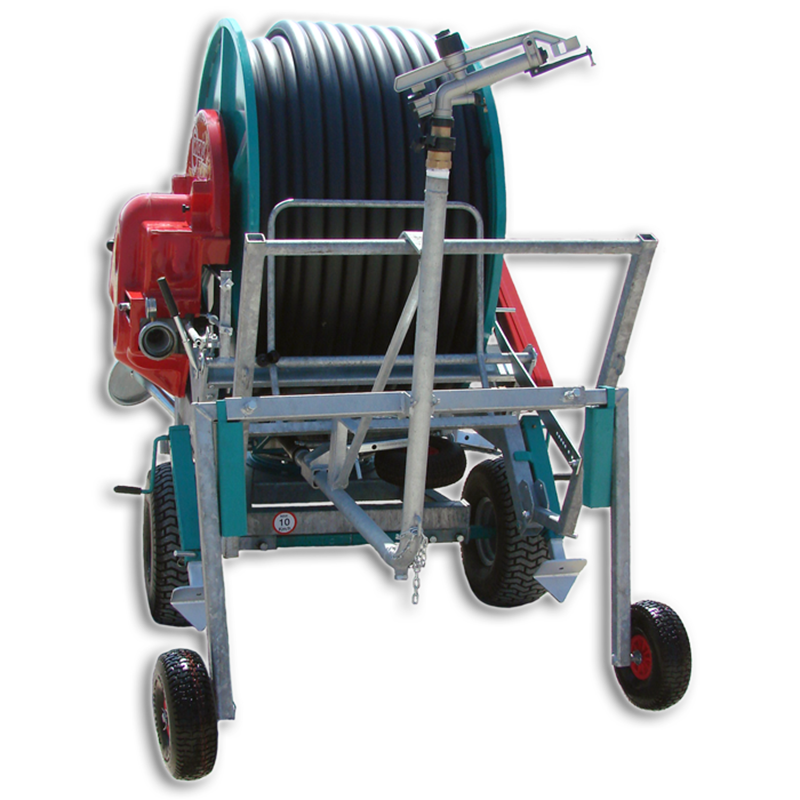

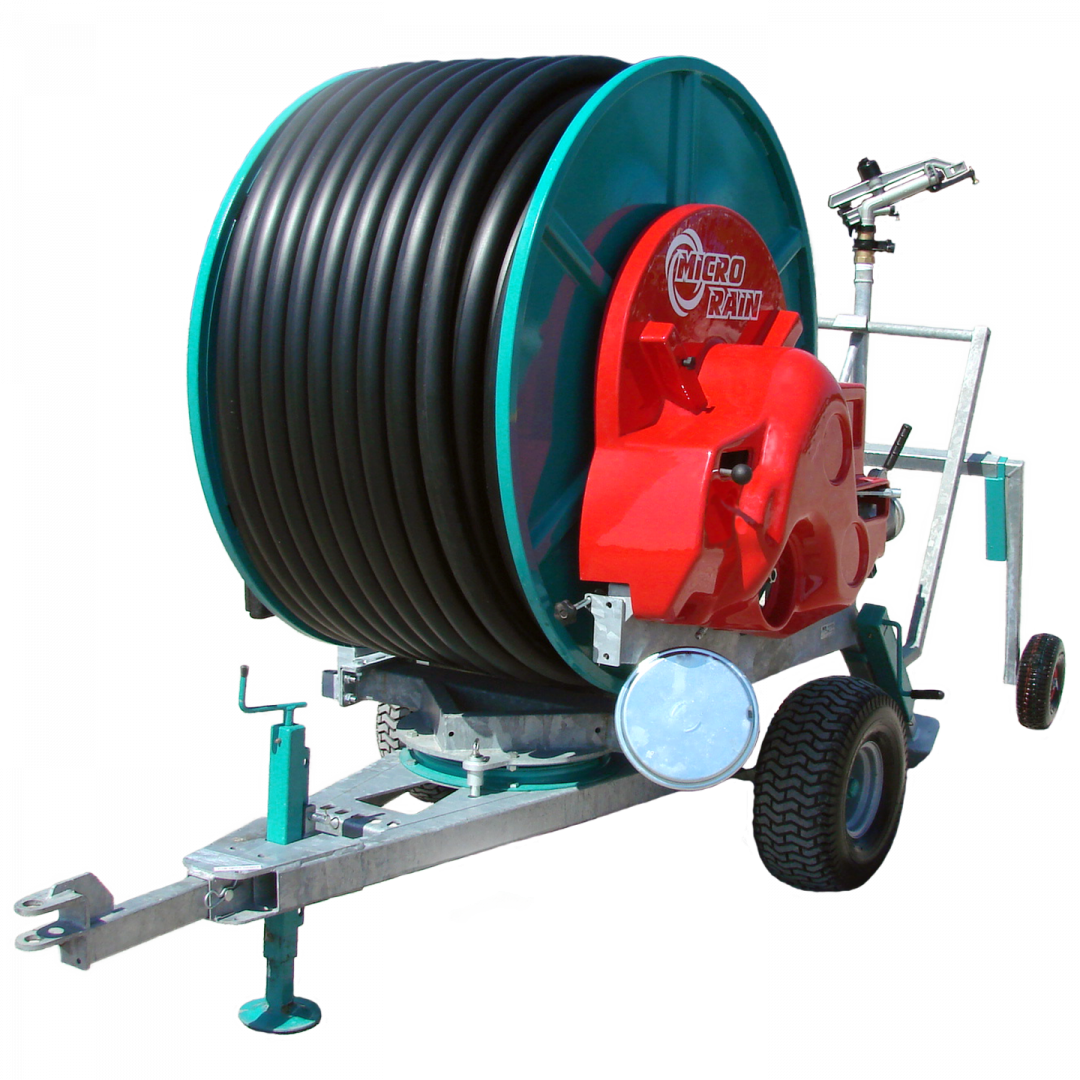

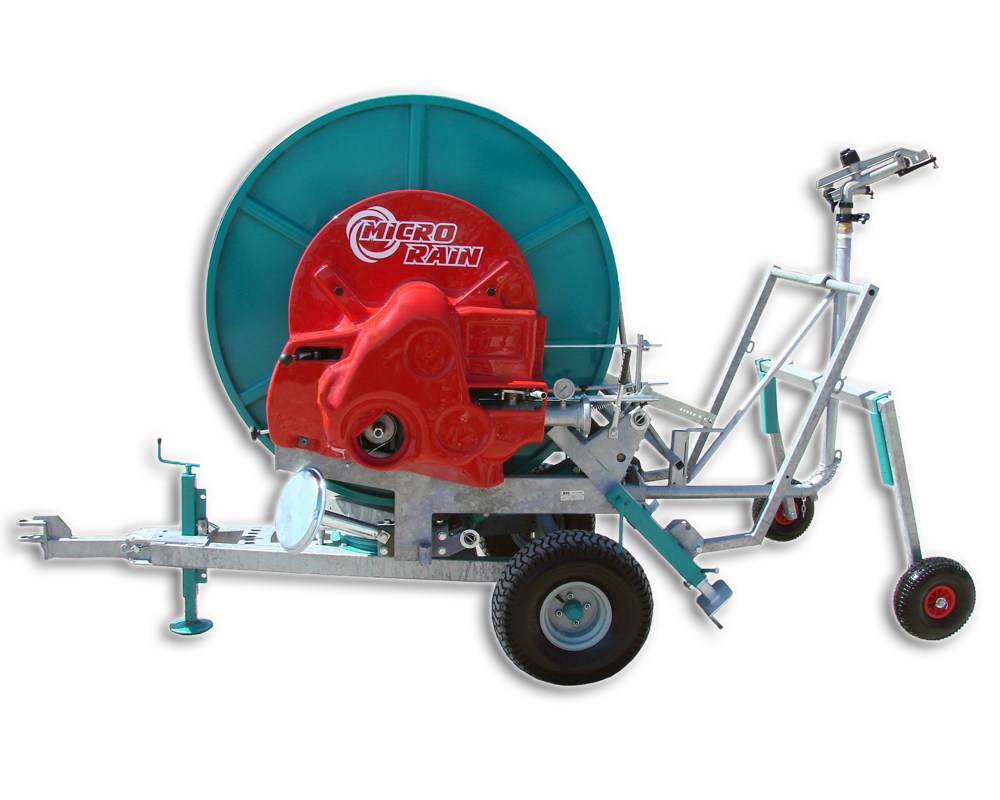

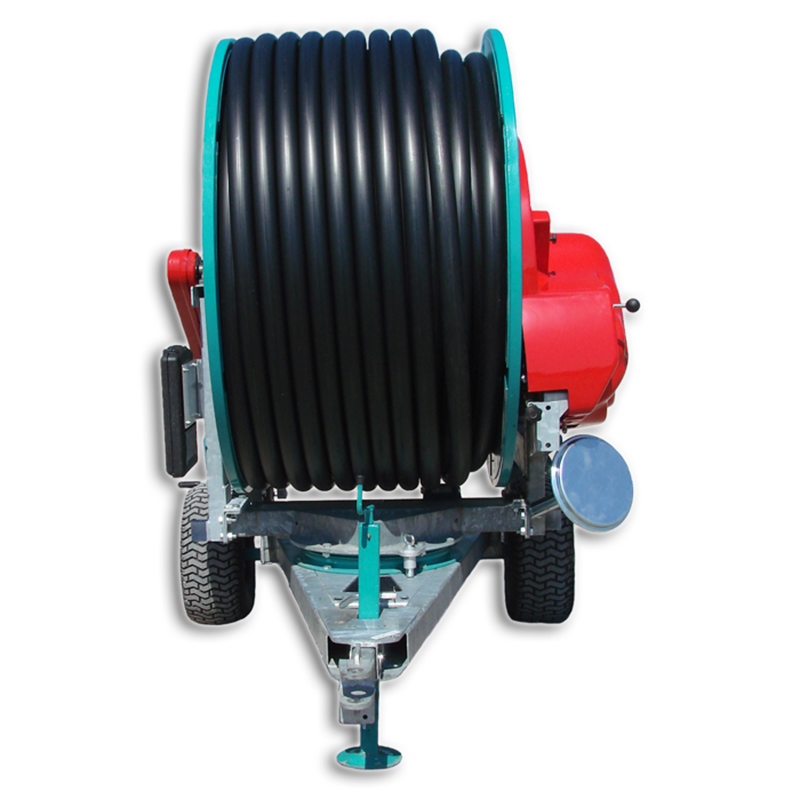

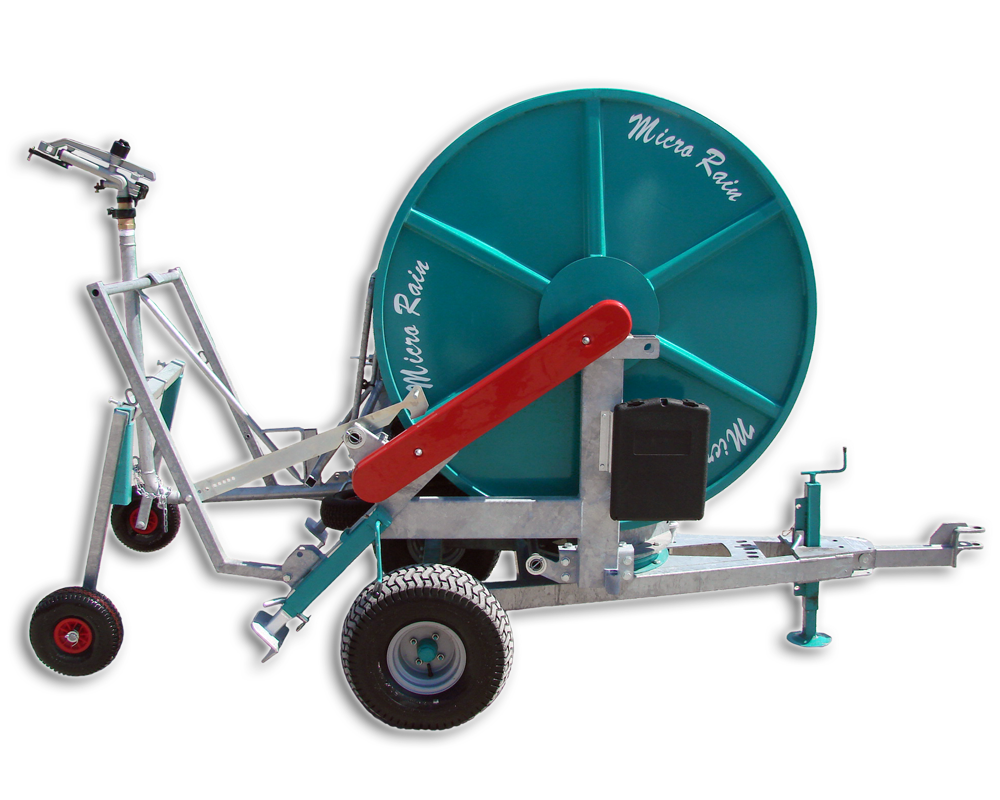

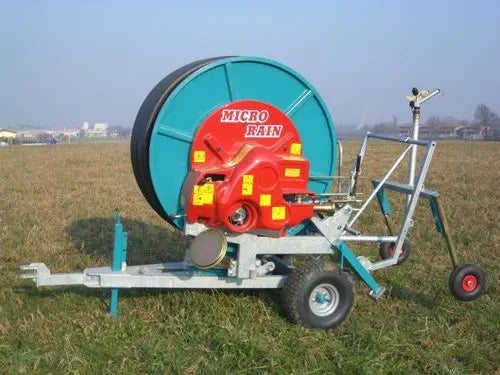

The OCMIS MRR-58 Micro Rain Agriculture Hose Reel is a powerful, high-performing irrigator designed specifically for large-scale agricultural applications. Built to handle a hose capacity of up to 656 feet, the MRR-58 offers efficient and reliable irrigation across vast fields, reducing turbine load loss and providing a wide range of machine speeds, even with low water flow and inlet pressures. This model is equipped with a Sime-Hydra gun and adjustable nozzles (12mm, 14mm, 16mm), making it versatile enough to handle different crop irrigation requirements.

With a robust, galvanized frame and rotating base, this unit is built to withstand the demanding conditions of agricultural environments. The three-wheel chassis provides stability and easy towing behind small powered vehicles. The MRR-58 is designed for ease of use and low maintenance, featuring advanced components like a mechanical water shutoff system, heavy-duty drum gear, and a scroll levelwind system that ensures smooth hose operation.

Key Features

  • High Hose Capacity: Handles up to 656 feet of hose for large agricultural areas.
  • Rotating Base: Provides enhanced maneuverability and precise water coverage.
  • Sime-Hydra Gun: Equipped with adjustable nozzles (12mm, 14mm, 16mm) for flexible spray patterns.
  • Reduced Turbine Load Loss: Optimized to work efficiently with low flow and inlet pressure conditions.
  • Heavy-Duty Galvanized Frame: More robust and durable than the MR58 model for agricultural use.

Detailed Specifications

Specification Measurement
Hose Diameter 1.90 inches (50 mm)
Hose Length 656 feet (200 meters)
Gun Model Sime-Hydra
Nozzle Sizes 12mm, 14mm, 16mm
Chassis Design Three-wheel
Turbine Drive Compact, direct-coupled turbine
Rotating Base Yes
Mechanical Shutoff Yes
PTO Rewind Yes
Machine Length 132 inches
Machine Width 58 inches
Machine Height 75 inches
Machine Weight (Dry) 1,420 lbs.
Palletized Weight 1,730 lbs.
Coverage Large agricultural fields

In Package

  • OCMIS MRR-58 Micro Rain Hose Reel with 656 feet of hose
  • Sime-Hydra Gun with adjustable nozzles (12mm, 14mm, 16mm)
  • Heavy-duty galvanized frame with a rotating base for added flexibility
  • Mechanical water shutoff for easy operation
  • PTO rewind for manual emergency roll-up or small adjustments
  • Levelwind system for accurate tube wrapping
  • Operator’s manual for easy setup and mainte
