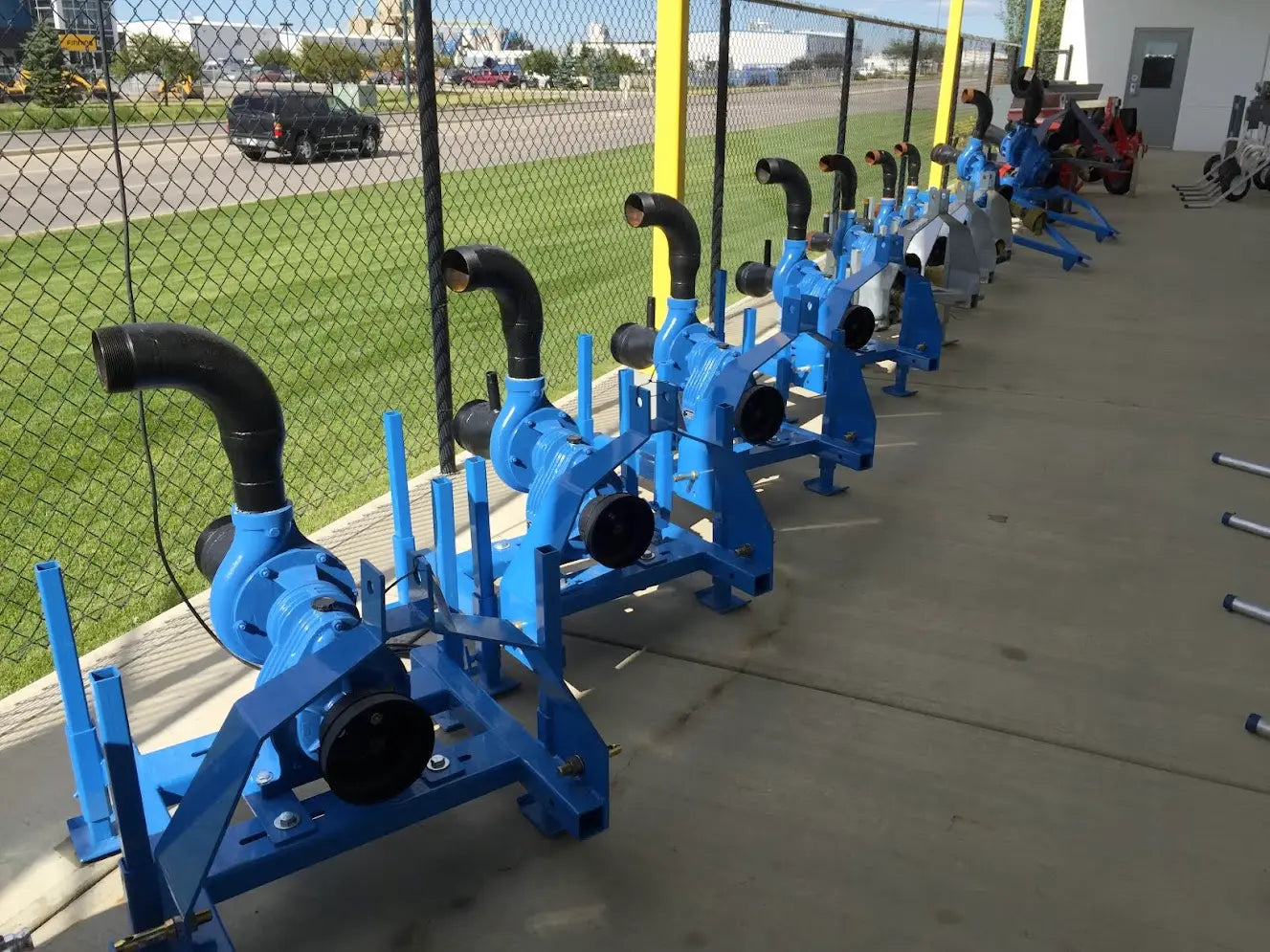

Ocmis TNO 100/120 Fresh Water Tractor Pump – High-Performance Centrifugal Pump For Agricultural Irrigation

Ocmis TNO 100/120 Fresh Water Tractor Pump – High-Performance Centrifugal Pump For Agricultural Irrigation

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • High Flow Capacity: Capable of delivering up to 2500 L/min for extensive irrigation projects.
  • Efficient Fresh Water Lifting: Optimized for immediate and reliable fresh water irrigation.
  • Durable Construction: Built to withstand tough agricultural conditions for long-term use.
  • Customizable Ratios: Multiple ratio and RPM options provide tailored performance for specific requirements.
  • Tractor-Compatible: Easily attaches to tractors, offering flexibility and versatility for irrigation applications.
View full details

How To Get A Quote

***Online pricing not available, Please request a quote: ***

How To Get A Quote:

Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Ocmis TNO 100/120 Fresh Water Tractor Pump – High-Performance Centrifugal Pump For Agricultural Irrigation

Included Options:

  1. Impeller RPM Options: Choose from 3200, 3400, or 3600 RPM depending on specific performance requirements.
  2. Ratio Adjustments: Available in ratios from 1:3.2 to 1:5.7 to accommodate different flow and pump head capacities.
  3. Flow Capacity: Supports water flow rates from 1000 L/min to 2500 L/min.
  4. Pump Head Options: Adjustable pump head heights from 69m to 106m to suit diverse irrigation needs.

DESCRIPTION

The OCMIS TNO 100/120 series tractor pumps are designed for lifting fresh water for large-scale irrigation. These centrifugal pumps are engineered for long-term durability, providing immediate and efficient performance, making them ideal for agricultural applications. The pumps are tractor-compatible, offering flexibility and ease of use in diverse farming environments.

Built with multiple impeller RPM settings and a variety of ratio options, the TNO 100/120 pumps ensure optimal water flow and pressure, catering to specific irrigation needs. Their robust design ensures reliable water delivery for extensive irrigation systems, ensuring efficiency and productivity.

Key Features

  • Centrifugal Design: Efficient water lifting for large irrigation applications.
  • Tractor-Compatible: Easy attachment to tractors for flexible use in the field.
  • Long-Term Durability: Engineered for reliable, long-lasting service in tough agricultural settings.
  • High Water Flow Capacity: Delivers up to 2500 L/min for large-scale irrigation tasks.
  • Optimized Performance: Offers customizable impeller RPM and ratios for specific irrigation needs.

Technical Feature

Parameter Value (cm)
A 550
B 150
C 120
D 256
E 310
F 335
G 270
H 560

Detailed Specifications

Impeller

RPM

Capacity

(L/min)

Pump

Head

 (m)

Absorbed

Power

 (HP)

3200 1000 81.5 31
3200 1500 80.5 37.5
3200 2000 77 46
3200 2500 69 52
3400 1000 94.4 36.5
3400 1500 92.6 47.05
3400 2000 88 55.5
3400 2500 80 62
3600 1000 106 42
3600 1500 104 52.29
3600 2000 99 62.5
3600 2500 92 71.3

In Package

  • OCMIS TNO 100/120 Fresh Water Tractor Pump
  • Pre-installed impeller for immediate use.
  • Flexible connection pipe for seamless integration with existing irrigation systems.
  • Set of nozzles to accommodate different water flow needs.
  • Safety guards to ensure secure operation.
  • Operator’s Manual for setup, usage, and maintenance instructions.
