Product Description

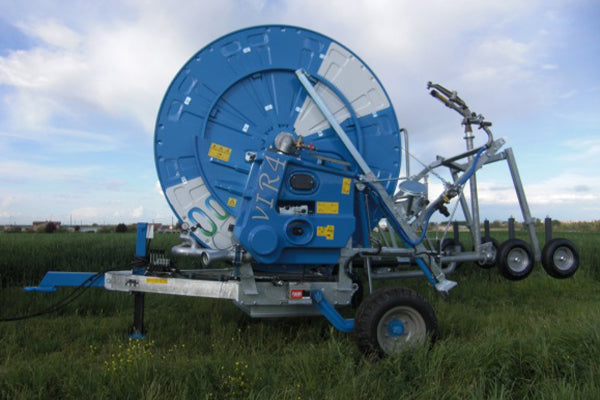

OcmisVIR4 Vario Rain Series Irrigation Reel With Galvanized Double Water Inlet
Included Options:
- ROYAL, REFLEX, or EXPLORER rainguns.
- Nozzle sizes from Ø 16 mm to Ø 40 mm.
- Hose diameters ranging from 75 mm to 120 mm.
- Hose lengths up to 500 meters.
- End hose configurations: A, B, C, D, F, G, H, I, J.
DESCRIPTION
The OCMIS VIR4 Vario Rain Series irrigation reel is a standout in its class, designed for efficient and reliable irrigation across various agricultural settings. Built with a 3-speed VR gearbox, the VIR4 ensures synchronized speeds for optimal performance and water-saving efficiency. This irrigation reel is widely appreciated for its versatility, making it suitable for a range of irrigation needs. Designed with ease of use in mind, the VIR4's user-friendly design helps ensure that even complex irrigation tasks are handled effortlessly.
The VIR4 provides consistent irrigation performance with minimal pressure losses, ensuring reliable water distribution across fields. Constructed with durable, hot-galvanized steel, it offers enhanced resistance to corrosion and wear, even in harsh environments. This irrigation reel also features a polyethylene hose made from unadulterated raw materials, ensuring durability and long service life.
Key Features
- 3-speed synchronized VR gearbox for efficient operation.
- Water-saving design to reduce consumption and maximize efficiency.
- Minimal pressure losses for consistent irrigation performance.
- Galvanized chassis and raingun trolley for durability and longevity.
- User-friendly design for easy operation and control.
- Telescopic hydraulic feet for stable setup.
- Polyethylene hose made from high-quality raw materials.
- Variety of raingun options: ROYAL, EXPLORER, and REFLEX.
- Safety guards made from galvanized steel for enhanced protection.
- Glycerine bath pressure gauge for accurate monitoring.
Technical Features
| Category | Measurement (CM) |
|---|---|
| A | 348 |
| B | 332 |
| C | 293 |
| D | 281 |
| E | 224 |
| F | 243 |
| G | 246 |
Detailed Specifications
| Feature | VIR4 Specification |
|---|---|
| Hydraulic Lifting Device | For easy maneuvering of the trolley |
| Gearbox | 3-Speed VR |
| Turbine | Flanged on gearbox with built-in by-pass |
| Raingun Trolley | Galvanized, mounted on variable track wheels |
| Nozzles (ROYAL Raingun) | Ø 16 to Ø 22 |
| Nozzles (EXPLORER Raingun) | Ø 28 to Ø 40 |
| Nozzles (REFLEX Raingun) | Ø 24 to Ø 32 |
| Speed Equalizer | Included |
| Pressure Gauge | Glycerine bath |
| Safety Guards | Galvanized steel, swaged and painted |
| Chassis and Turret | Hot galvanized |
| Hose Material | Polyethylene, unadulterated raw material |
| Telescopic Hydraulic Feet | For stable positioning |
| Power Take Off | Included |
| Flexible Connection Pipe | Included |
| Winding Handle | Included |
| Tachometer | Included |
| Drawbar Lifting | Mechanical |
| Wheels | 10.0/75-15.3 10PR 6F |
| Reel Coating | Epoxy resin + polyurethane paint |
| Water Inlet | Galvanized double Bauer Ø 108 (110-120 mm hose diameter) |
| Hose Diameter | 75 to 120 mm |
Versions & Performances
|
Hose Diameter / Hose Length |
Raingun / Nozzles (mm) |
End Hose |
|---|---|---|
| 82 mm / 500 m | ROYAL / 16/18/20 | J |
| 90 mm / 380 m | REFLEX / 24/26/28 | B |
| 90 mm / 400 m | REFLEX / 24/26/28 | C |
| 90 mm / 470 m | REFLEX / 24/26/28 | D |
| 90 mm / 500 m | REFLEX / 24/26/28 | C |
| 100 mm / 340 m | REFLEX / 26/28/30 | G |
| 100 mm / 360 m | REFLEX / 26/28/30 | H |
| 100 mm / 390 m | REFLEX / 24/26/28 | J |
| 110 mm / 300 m | REFLEX / 28/30/32 | F |
| 110 mm / 330 m | REFLEX / 28/30/32 | H |
| 110 mm / 350 m | REFLEX / 28/30/32 | I |
| 120 mm / 270 m | EXPLORER / 32/34/36 | A |
In Package
- VIR4 Vario Rain Series irrigation reel.
- Raingun (ROYAL, REFLEX, or EXPLORER) with various nozzle options.
- Tachometer for speed monitoring.
- Hydraulic lifting system.
- Flexible connection pipe for easy setup.
- Safety guards made from galvanized steel.
- Telescopic hydraulic feet for stable setup.
- Glycerine bath pressure gauge for pressure accuracy.
- Speed equalizer for consistent operation.
