Product Description

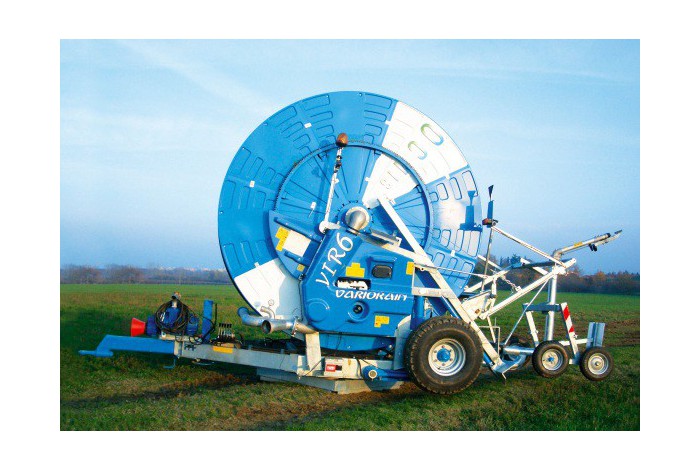

Ocmis VIR6 Vario Rain Series Irrigation Reel With Galvanized Double Water Inlet
Included Options:
- REFLEX or EXPLORER rainguns.
- Nozzle sizes from Ø 24 mm to Ø 40 mm.
- Hose diameters from 100 mm to 140 mm.
- Hose lengths up to 600 meters.
- End hose configurations: B, C, E, H, I, J.
DESCRIPTION
The OCMIS VIR6 Vario Rain Series irrigation reel stands out in the irrigation industry with its cutting-edge technology and efficient design. Equipped with a synchronized gearbox, the VIR6 ensures optimal performance, delivering consistent irrigation across various agricultural applications. It is designed for user-friendliness, making it easy to operate, while its water-saving technology helps conserve precious resources by minimizing water usage. Farmers globally appreciate its versatility, as the VIR6 adapts to different field conditions and irrigation requirements with ease.
The VIR6 is engineered to ensure minimal pressure losses, maintaining reliable and consistent performance throughout the irrigation process. Its galvanized construction, epoxy resin reel coating, and polyethylene hoses provide durability and longevity, even in challenging environments. With its efficient design and operational simplicity, the VIR6 delivers exceptional water-saving benefits and seamless irrigation.
Key Features
- Synchronized gearbox with 4-speed control for efficient operation.
- Water-saving technology to reduce water consumption.
- Minimal pressure losses for consistent irrigation performance.
- Galvanized chassis and turret for increased durability.
- User-friendly design for ease of operation and handling.
- Telescopic hydraulic feet for stable setup.
- Polyethylene hose made from unadulterated raw materials.
- REFLEX and EXPLORER raingun options for versatile irrigation.
- Safety guards made from galvanized steel for added protection.
- Glycerine bath pressure gauge for precise monitoring.
Detailed Specifications
| Feature | VIR6 Specification |
|---|---|
| Hydraulic Lifting Device | Trolley |
| Gearbox | 4 Speed VR |
| Turbine | Flanged with built-in by-pass |
| Raingun Trolley | Galvanized, mounted on variable track wheels |
| Nozzles (REFLEX Raingun) | Ø 24 to Ø 32 |
| Nozzles (EXPLORER Raingun) | Ø 28 to Ø 40 |
| Winding Handle | Included |
| Tachometer | Included |
| Drawbar Lifting | Mechanical |
| Wheels | 11.5/80-15.3 12PR 6F |
| Reel Coating | Epoxy Resin + Polyurethane Paint |
| Water Inlet | Galvanized Double Bauer Ø 133 |
| Telescopic Hydraulic Feet | Included |
| Hose Diameter | 100 mm to 140 mm |
| Hose Material | Polyethylene, unadulterated raw material |
| Sprinkler Pressure | 80 PSI |
| Power Take Off | Included |
| Connection Pipe | Flexible |
| Speed Equalizer | Included |
| Pressure Gauge | Glycerine bath |
| Safety Guards | Steel, galvanized, swaged and painted |
| Chassis and Turret | Hot galvanized |
Versions & Performances
|
Hose Diameter / Hose Length |
Raingun / Nozzles (mm) |
End Hose |
|---|---|---|
| 100 mm / 600 m | REFLEX / 26/28/30 | C |
| 110 mm / 500 m | REFLEX / 28/30/32 | E |
| 110 mm / 550 m | REFLEX / 28/30/32 | C |
| 110 mm / 570 m | REFLEX / 28/30/32 | B |
| 120 mm / 460 m | EXPLORER / 32/34/36 | J |
| 125 mm / 400 m | EXPLORER / 32/34/36 | H |
| 125 mm / 440 m | EXPLORER / 32/34/36 | J |
| 135 mm / 380 m | EXPLORER / 34/36/38 | I |
| 140 mm / 350 m | EXPLORER / 34/36/38 | H |
Performance Summary - 110X550
|
Flow Rate (GPM) |
Inlet Pressure (PSI) |
Sprinkler Pressure (PSI) |
Width 80% (FT) |
|---|---|---|---|
| 138 | 69 | 44 | 194 |
| 213 | 117 | 73 | 252 |
| 250 | 128 | 73 | 268 |
| 303 | 155 | 80 | 281 |
Technical Features
| Category | Measurement (CM) |
|---|---|
| A | 390 |
| B | 395 |
| C | 362 |
| D | 341 |
| E | 248 |
| F | 280 |
| G | 309 |
In Package
- VIR6 Vario Rain Series irrigation reel.
- REFLEX or EXPLORER raingun with various nozzle options.
- Tachometer for accurate monitoring.
- Hydraulic lifting system (trolley).
- Telescopic hydraulic feet for stable setup.
- Safety guards made from galvanized steel.
- Glycerine bath pressure gauge.
- Speed equalizer for consistent operation.
