Product Description

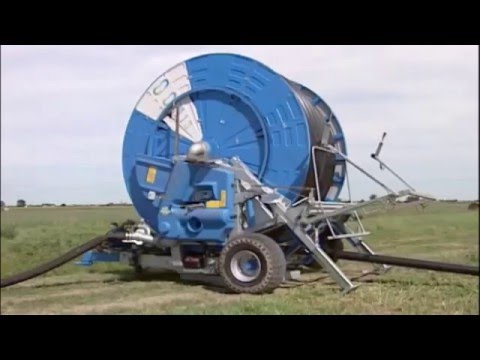

Ocmis VIR7 & VIR7/1 Vario Rain Series Irrigation Reel With Galvanized Double Water Inlet
Included Options:
REFLEX or EXPLORER rainguns.
Nozzle sizes from Ø 24 mm to Ø 40 mm.
Hose diameters ranging from 100 mm to 150 mm.
Hose lengths up to 750 meters.
End hose configurations: A, B, C, D, H, I, J
DESCRIPTION
The OCMIS VIR7 and VIR7/1 Vario Rain Series irrigation reels are premium solutions for agricultural irrigation, known for their efficiency and versatility. Equipped with a 4-speed synchronized gearbox, these reels ensure smooth operation and optimized water usage. The advanced design allows for easy use, making it accessible to a wide range of agricultural professionals. Both models are built to conserve water while providing reliable and consistent irrigation performance, minimizing pressure losses for uniform water distribution across large fields.
Engineered for durability, these irrigation reels feature galvanized chassis and turrets, as well as epoxy-coated reels to withstand harsh environmental conditions. The flexible configuration with REFLEX and EXPLORER rainguns, variable nozzle sizes, and different hose diameters offer high adaptability for various agricultural applications. Whether you're irrigating small fields or large acreages, the VIR7 and VIR7/1 deliver exceptional water-saving benefits and user-friendly operation.
Key Features
Synchronized gearbox with 4-speed VR control for efficient irrigation.
Versatile and adaptable to various field and crop irrigation needs.
User-friendly design for ease of operation and control.
Water-saving technology to reduce water consumption and enhance sustainability.
Minimal pressure losses for consistent and reliable irrigation.
Galvanized chassis and turret for increased durability.
Polyethylene hose made from high-quality raw materials.
Raingun trolley with variable track wheels for flexibility.
Hydraulic lifting system with telescopic hydraulic feet.
Glycerine bath pressure gauge for precise pressure monitoring.
Technical Features
Category
VIR7
(Measurement in CM)
VIR7/1
(Measurement in CM)
A
410
410
B
395
407
C
362
374
D
341
353
E
249
249
F
282
282
G
309
318
Detailed Specifications
Feature
VIR7 & VIR7/1 Specification
Hydraulic Lifting Device
Trolley
Gearbox
4 Speed VR
Turbine
Flanged with built-in by-pass
Raingun Trolley
Galvanized, mounted on variable track wheels
Nozzles (REFLEX Raingun)
Ø 24 to Ø 32
Nozzles (EXPLORER Raingun)
Ø 28 to Ø 40
Winding Handle
Included
Tachometer
Included
Drawbar Lifting
Mechanical
Wheels
11.5/80-15.3 12PR 6F
Reel Coating
Epoxy resin + polyurethane paint
Water Inlet
Galvanized double Bauer Ø 133 (135-140 mm hose diameter)
Telescopic Hydraulic Feet
Included
Power Take Off
Included
Connection Pipe
Flexible
Speed Equalizer
Included
Pressure Gauge
Glycerine bath
Safety Guards
Galvanized, steel, swaged and painted
Chassis and Turret
Hot galvanized
Hose Material
Polyethylene, made from raw material
Versions & Performances - VIR7
Hose Diameter / Hose Length
Raingun / Nozzles (mm)
End Hose
100 mm / 650 m
REFLEX / 26/28/30
A
110 mm / 600 m
REFLEX / 24/26/28
A
120 mm / 540 m
EXPLORER / 30/32/34
A
125 mm / 450 m
EXPLORER / 32/34/36
D
125 mm / 500 m
EXPLORER / 32/34/36
B
135 mm / 400 m
EXPLORER / 34/36/38
J
140 mm / 380 m
EXPLORER / 36/38/40
J
150 mm / 300 m
EXPLORER / 36/38/40
A
Versions & Performances - VIR7/1
Hose Diameter /
Hose Length
Raingun /
Nozzles (mm)
End
Hose
110 mm / 700 m
REFLEX / 24/26/28
D
110 mm / 750 m
REFLEX / 24/26/28
C
120 mm / 620 m
EXPLORER / 30/32/34
J
125 mm / 550 m
EXPLORER / 32/34/36
H
125 mm / 600 m
EXPLORER / 32/34/36
J
135 mm / 460 m
EXPLORER / 34/36/38
B
140 mm / 450 m
EXPLORER / 36/38/40
A
150 mm / 350 m
EXPLORER / 36/38/40
I
Performance Summary - 125X500
Flow
Rate
(GPM)
Inlet
Pressure
(PSI)
Sprinkler
Pressure
(PSI)
Width
80%
(FT)
275
101
65
278
333
118
73
294
378
127
73
304
448
149
80
325
Performance Summary - 125X600
Flow
Rate
(GPM)
Inlet
Pressure
(PSI)
Sprinkler
Pressure
(PSI)
Width
80%
(FT)
235
104
65
257
289
124
73
294
333
135
73
294
378
149
73
304
In Package
VIR7 / VIR7/1 irrigation reel.
Raingun (REFLEX or EXPLORER) with various nozzle options.
Tachometer for performance monitoring.
Hydraulic lifting system (trolley).
Telescopic hydraulic feet.
Winding handle.
Safety guards made of steel, galvanized and painted.
Glycerine bath pressure gauge.
Speed equalizer for consistent operation.
