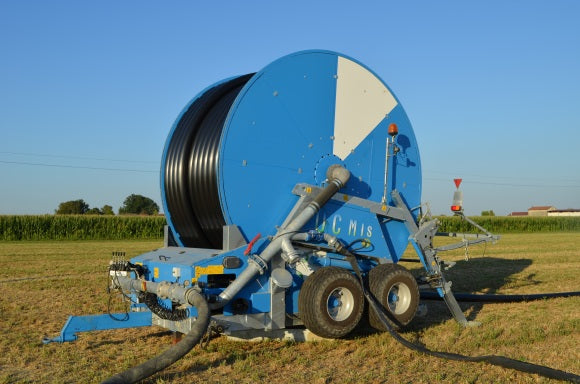

Ocmis VIR8 Vario Rain Series Irrigation Reel With Galvanized Double Water Inlet
Ocmis VIR8 Vario Rain Series Irrigation Reel With Galvanized Double Water Inlet
Couldn't load pickup availability
Couldn't load pickup availability
How To Get A Quote
***Online pricing not available, Please request a quote: ***
How To Get A Quote:
Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Ocmis VIR8 Vario Rain Series Irrigation Reel With Galvanized Double Water Inlet
Included Options:
- Raingun models: REFLEX or EXPLORER
- Nozzle sizes ranging from Ø 22 mm to Ø 40 mm
- Hose diameters ranging from 100 mm to 140 mm
- Hose lengths up to 730 meters
- End hose configurations: G, I, J, H, B, C,E
DESCRIPTION
The OCMIS VIR8 Vario Rain Series is a premier irrigation reel designed for large-scale agricultural applications. Built with a synchronized gearbox featuring 4-speed control, the VIR8 ensures consistent and efficient irrigation while minimizing water usage. The system is widely appreciated by farmers for its versatility and adaptability to various crop types and field conditions. Its user-friendly design simplifies operation, while the water-saving technology helps conserve resources, making it both cost-effective and environmentally responsible. With minimal pressure losses, the VIR8 delivers reliable irrigation performance, ensuring optimal water distribution across fields.
Constructed with durability in mind, the VIR8 reel includes a galvanized chassis and turret, epoxy resin-coated reel, and polyethylene hoses, which are engineered to withstand the toughest agricultural environments. The inclusion of a hydraulic lifting system, multiple raingun options, and a tachometer makes it a comprehensive solution for modern irrigation needs. This reel is suitable for farmers seeking an efficient, easy-to-use, and robust irrigation system that will enhance productivity while conserving water.
Key Features
- Synchronized gearbox with 4-speed VR control for efficient operation.
- Water-saving design to help conserve vital water resources.
- Minimal pressure loss for consistent and reliable irrigation performance.
- Galvanized chassis and turret for enhanced durability.
- User-friendly design that simplifies operation for all users.
- Hydraulic lifting device (trolley) for easy maneuvering.
- Telescopic hydraulic feet for secure and stable setup.
- Polyethylene hose made from high-quality, unadulterated raw materials.
- REFLEX and EXPLORER raingun options with variable nozzle sizes.
- Glycerine bath pressure gauge for accurate pressure monitoring.
Detailed Specifications
| Feature | VIR8 Specification |
|---|---|
| Hydraulic Lifting Device | Trolley |
| Gearbox | 4 Speed VR |
| Turbine | Flanged with built-in by-pass |
| Raingun Trolley | Galvanized, variable track wheels |
| Nozzles (REFLEX raingun) | Ø 24 to Ø 32 |
| Nozzles (EXPLORER raingun) | Ø 28 to Ø 40 |
| Tachometer | Included |
| Drawbar Lifting | Mechanical |
| Wheels | 11.5/80-15.3 12PR 6F |
| Reel Coating | Epoxy resin with polyurethane paint |
| Water Inlet | Galvanized double Bauer Ø 133 |
| Telescopic Hydraulic Feet | Included |
| Hose Diameter | 100 mm to 140 mm |
| Hose Material | Polyethylene, unadulterated raw material |
| Sprinkler Pressure | 80 PSI |
| Power Take Off | Included |
| Connection Pipe | Flexible |
| Speed Equalizer | Included |
| Pressure Gauge | Glycerine bath |
| Safety Guards | Galvanized, swaged steel |
| Chassis and Turret | Hot galvanized |
Technical Dimensions
| Category | Measurement (cm) |
|---|---|
| A | 446 |
| B | 402 |
| C | 370 |
| D | 347 |
| E | 250 |
| F | 305 |
| G | 317.5 |
| H | 236 |
Versions & Performances
|
Hose Diameter / Hose Length |
Raingun / Nozzles (mm) |
End Hose |
|---|---|---|
| 100 mm / 650 m | REFLEX / 22/24/26 | G |
| 110 mm / 670 m | REFLEX / 22/24/26 | G |
| 110 mm / 700 m | REFLEX / 24/26/28 | I |
| 110 mm / 730 m | REFLEX / 24/26/28 | J |
| 120 mm / 600 m | EXPLORER / 28/30/32 | H |
| 120 mm / 640 m | EXPLORER / 26/28/30 | J |
| 125 mm / 550 m | EXPLORER / 32/34/36 | G |
| 125 mm / 620 m | EXPLORER / 28/30/32 | J |
| 135 mm / 500 m | EXPLORER / 32/34/36 | B |
| 140 mm / 400 m | EXPLORER / 34/36/38 | E |
| 140 mm / 450 m | EXPLORER / 34/36/38 | C |
| 140 mm / 470 m | EXPLORER / 34/36/38 | B |
In Package
- VIR8 Vario Rain Series irrigation reel
- Raingun with included nozzles
- Tachometer for performance monitoring
- Hydraulic lifting system (trolley)
- Flexible connection pipe
- Safety guards (galvanized, swaged steel)
- Telescopic hydraulic feet
- Glycerine bath pressure gauge
- Speed equalizer for controlled operation
