Product Description

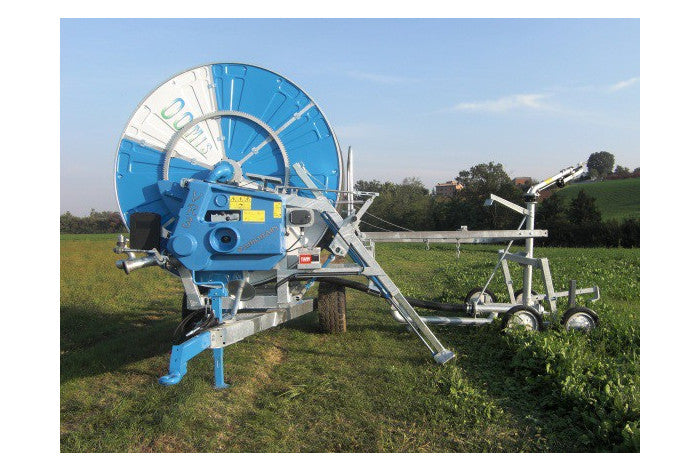

Ocmis VR3 Vario Rain Series Irrigation Reel With Galvanized Double Water Inlet
Included Options:
- ROYAL, REFLEX, or EXPLORER rainguns.
- Nozzle sizes from Ø 16 mm to Ø 40 mm.
- Hose diameters ranging from 75 mm to 120 mm.
- Hose lengths up to 500 meters.
- End hose configurations: A, B, D, G, H, I, J
DESCRIPTION
The OCMIS VR3 Vario Rain Series irrigation reel is an exceptional choice for efficient and reliable irrigation. Equipped with a 3-speed synchronized VR gearbox, the VR3 ensures smooth and optimal operation, making it a versatile solution for various agricultural applications. Designed for ease of use, the VR3 offers user-friendly features, allowing agriculturalists to easily manage their irrigation needs. This irrigation reel is recognized for its water-saving capabilities, reducing water consumption while maintaining consistent and reliable performance without significant pressure losses.
Constructed with durability in mind, the VR3 features a hot-galvanized chassis, reinforced with epoxy resin and polyurethane paint for long-term use. Its polyethylene hose, made from high-quality raw materials, guarantees resilience in the field. With the flexibility to accommodate different raingun and nozzle options, the VR3 can be customized to fit specific irrigation requirements, ensuring crops receive the water they need with minimal waste.
Key Features
- 3-speed synchronized VR gearbox for efficient irrigation.
- Water-saving design to reduce water consumption.
- Minimal pressure losses for consistent irrigation performance.
- Hot-galvanized chassis and raingun trolley for enhanced durability.
- User-friendly design for easy operation.
- Telescopic hydraulic feet for stable setup.
- Polyethylene hose made from unadulterated raw materials.
- Variety of raingun options: ROYAL, EXPLORER, and REFLEX.
- Safety guards made from galvanized steel for enhanced protection.
- Glycerine bath pressure gauge for accurate readings.
Technical Features
| Category | Measurement (CM) |
|---|---|
| A | 310 |
| B | 298 |
| C | 261 |
| D | 242 |
| E | 214 |
| F | 214 |
| G | 224 |
| H | 284 |
Detailed Specifications
| Feature | VR3 Specification |
|---|---|
| Hydraulic Lifting Device | For easy maneuvering of the trolley |
| Gearbox | 3-Speed VR |
| Turbine | Flanged with built-in by-pass |
| Raingun Trolley | Galvanized, mounted on variable track wheels |
| Nozzles (ROYAL Raingun) | Ø 16 to Ø 22 |
| Nozzles (EXPLORER Raingun) | Ø 28 to Ø 40 |
| Nozzles (REFLEX Raingun) | Ø 24 to Ø 32 |
| Speed Equalizer | Included |
| Pressure Gauge | Glycerine bath |
| Safety Guards | Galvanized steel, swaged, painted |
| Chassis and Turret | Hot galvanized |
| Hose Material | Polyethylene, unadulterated raw material |
| Telescopic Hydraulic Feet | Included |
| Power Take Off | Included |
| Flexible Connection Pipe | Included |
| Winding Handle | Included |
| Tachometer | Included |
| Drawbar Lifting | Mechanical |
| Wheels | 10.0/75-15.3 10PR 6F |
| Reel Coating | Epoxy resin + polyurethane paint |
| Water Inlet | Galvanized double Bauer Ø 108 (110-120 mm hose diameter) |
| Hose Diameter | 75 mm to 120 mm |
Versions & Performances
Performance Summary - 90X380
|
Flow Rate (GPM) |
Inlet Pressure (PSI) |
Sprinkler Pressure (PSI) |
Width 80% (FT) |
|---|---|---|---|
| 169 | 111 | 65 | 220 |
| 213 | 136 | 73 | 252 |
| 250 | 154 | 73 |
268 |
| 262 | 168 | 80 | 273 |
| 275 | 160 | 65 | 262 |
In Package
- VR3 Vario Rain Series irrigation reel.
- ROYAL, REFLEX, or EXPLORER raingun with various nozzle options.
- Tachometer for speed monitoring.
- Hydraulic lifting system (trolley).
- Flexible connection pipe for easy setup.
- Safety guards made from galvanized steel.
- Telescopic hydraulic feet for stable setup.
- Glycerine bath pressure gauge for pressure accuracy.
- Speed equalizer for consistent operation.
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

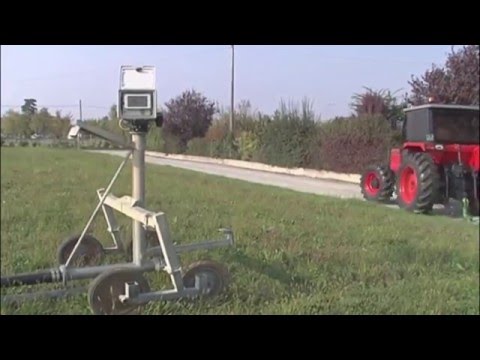

Videos
