Product Description

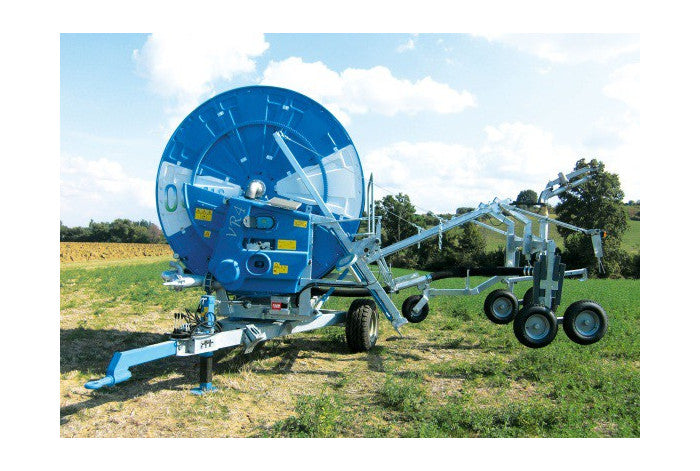

Ocmis VR4 Vario Rain Series Irrigation Reel With Galvanized Double Water Inlet
Included Options:
- ROYAL, REFLEX, or EXPLORER rainguns.
- Nozzle sizes from Ø 16 mm to Ø 40 mm.
- Hose diameters ranging from 75 mm to 120 mm.
- Hose lengths up to 500 meters.
- End hose configurations: A, B, C, D, F, G, H, I, J
DESCRIPTION
The OCMIS VR4 Vario Rain Series irrigation reel is a top-tier solution for agricultural irrigation, designed to deliver efficient water distribution with minimal pressure losses. Equipped with a 3-speed synchronized VR gearbox, the VR4 ensures smooth and efficient operation, making it adaptable to various irrigation needs. Farmers globally appreciate its user-friendly design, which allows for ease of operation, even in complex field conditions. Its water-saving technology conserves valuable resources, while its durable construction ensures longevity and consistent performance.
Engineered with hot-galvanized steel components, the VR4 Vario Rain Series offers corrosion resistance and enhanced durability. The flexible raingun options (ROYAL, EXPLORER, and REFLEX) provide versatility to match different irrigation demands. This reel is built to minimize water consumption while maintaining high performance, ensuring that crops receive the proper irrigation without significant pressure drops.
Key Features
- 3-speed synchronized VR gearbox for efficient operation.
- Water-saving design to reduce water consumption.
- Minimal pressure losses for consistent irrigation performance.
- Galvanized chassis and raingun trolley for durability and longevity.
- User-friendly design for easy operation and control.
- Telescopic hydraulic feet for stable setup.
- Polyethylene hose made from high-quality raw materials.
- Variety of raingun options: ROYAL, EXPLORER, and REFLEX.
- Safety guards made from galvanized steel for enhanced protection.
- Glycerine bath pressure gauge for accurate monitoring.
Detailed Specifications
| Feature | VR4 Specification |
|---|---|
| Hydraulic Lifting Device | For easy maneuvering of the trolley |
| Gearbox | 3-Speed VR |
| Turbine | Flanged with built-in by-pass |
| Raingun Trolley | Galvanized, mounted on variable track wheels |
| Nozzles (ROYAL Raingun) | Ø 16 to Ø 22 |
| Nozzles (EXPLORER Raingun) | Ø 28 to Ø 40 |
| Nozzles (REFLEX Raingun) | Ø 24 to Ø 32 |
| Speed Equalizer | Maintains consistent speed |
| Pressure Gauge | Glycerine bath |
| Safety Guards | Steel, swaged, galvanized and painted |
| Chassis and Turret | Hot galvanized |
| Hose Material | Polyethylene, made from raw material |
| Telescopic Hydraulic Feet | For stable positioning |
| Power Take Off | Included |
| Flexible Connection Pipe | Included |
| Winding Handle | Included |
| Tachometer | Included |
| Drawbar Lifting | Mechanical |
| Wheels | 10.0/75-15.3 10PR 6F |
| Reel Coating | Epoxy resin + polyurethane paint |
| Water Inlet | Galvanized double Bauer Ø 108 (110-120 mm hose diameter) |
| Hose Diameter | 75 to 120 mm |
Versions & Performances
|
Hose Diameter / Hose Length |
Raingun / Nozzles (mm) |
End Hose |
|---|---|---|
| 82 mm / 500 m | ROYAL / 16/18/20 | J |
| 90 mm / 380 m | REFLEX / 24/26/28 | B |
| 90 mm / 400 m | REFLEX / 24/26/28 | C |
| 90 mm / 470 m | REFLEX / 24/26/28 | D |
| 90 mm / 500 m | REFLEX / 24/26/28 | C |
| 100 mm / 340 m | REFLEX / 26/28/30 | G |
| 100 mm / 360 m | REFLEX / 26/28/30 | H |
| 100 mm / 390 m | REFLEX / 24/26/28 | J |
| 110 mm / 300 m | REFLEX / 28/30/32 | F |
| 110 mm / 330 m | REFLEX / 28/30/32 | H |
| 110 mm / 350 m | REFLEX / 28/30/32 | I |
| 120 mm / 270 m | EXPLORER / 32/34/36 | A |
Technical Features
| Category | Measurement (CM) |
|---|---|
| A | 334 |
| B | 327 |
| C | 289 |
| D | 270 |
| E | 224 |
| F | 232 |
| G | 246 |
| H | 315 |
In Package
- VR4 Vario Rain Series irrigation reel.
- Raingun (ROYAL, REFLEX, or EXPLORER) with various nozzle options.
- Tachometer for speed monitoring.
- Hydraulic lifting system.
- Flexible connection pipe for easy setup.
- Safety guards made from galvanized steel.
- Telescopic hydraulic feet for stable setup.
- Glycerine bath pressure gauge for pressure accuracy.
- Speed equalizer for consistent operation.
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

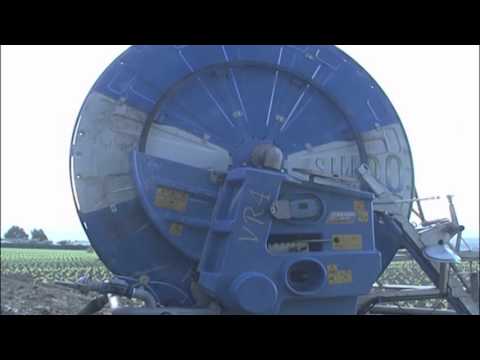

Videos
