Product Description

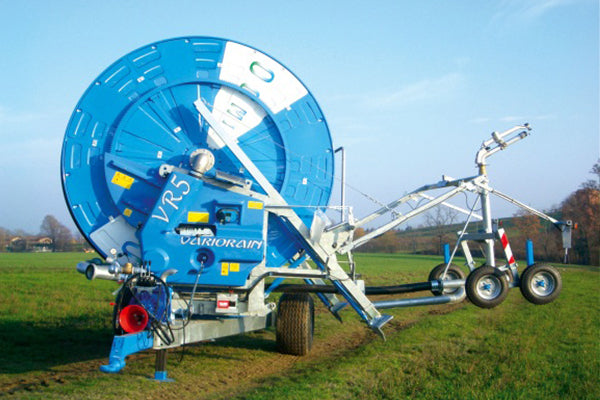

Ocmis VR5 & VR5R Vario Rain Series Irrigation Reel With Galvanized Double Water Inlet
Included Options:
- REFLEX or EXPLORER rainguns.
- Nozzle sizes from Ø 24 mm to Ø 40 mm.
- Hose diameters ranging from 100 mm to 140 mm.
- Hose lengths up to 470 meters.
- End hose configurations: A, C, F, G, H, I, J
DESCRIPTION
The OCMIS VR5 & VR5R Vario Rain Series irrigation reels stand out in the irrigation industry due to their superior efficiency and adaptability. Equipped with a synchronized 4-speed VR gearbox, these irrigation reels ensure smooth and consistent operation while minimizing water consumption. The system is designed to deliver reliable irrigation performance, with minimal pressure drops, making it a perfect solution for various agricultural needs. These reels are widely appreciated by farmers for their user-friendly design, which makes them easy to operate, even in demanding field conditions.
Built to last, the VR5 & VR5R models feature a hot-galvanized chassis, epoxy-coated reel, and polyethylene hoses made from unadulterated raw materials for enhanced durability. The telescopic hydraulic feet and flexible raingun trolley ensure stability during operation, while the integrated safety guards provide additional protection. With multiple raingun options and customizable configurations, the VR5 & VR5R can handle different irrigation demands with ease.
Key Features
- Synchronized 4-speed VR gearbox for efficient irrigation.
- Water-saving technology for reduced water consumption.
- Minimal pressure losses for consistent performance.
- Hot-galvanized chassis and reel for enhanced durability.
- User-friendly design for ease of operation.
- Telescopic hydraulic feet for stable setup.
- Polyethylene hose made from unadulterated raw materials.
- REFLEX and EXPLORER raingun options with variable nozzle sizes.
- Safety guards made from swaged galvanized steel for protection.
- Glycerine bath pressure gauge for precise monitoring.
Technical Features - VR5
| Category | Measurement (CM) |
|---|---|
| A | 359 |
| B | 363 |
| C | 322 |
| D | 303 |
| E | 230 |
| F | 248 |
| G | 280 |
| H | 340 |
Technical Features - VR5R
| Category | Measurement (CM) |
|---|---|
| A | 359 |
| B | 366 |
| C | 325 |
| D | 306 |
| E | 230 |
| F | 248 |
| G | 286 |
| H | 340 |
Detailed Specifications
| Feature | VR5 & VR5R Specification |
|---|---|
| Hydraulic Lifting Device | Trolley |
| Gearbox | 4 Speed VR |
| Turbine | Flanged with built-in by-pass |
| Raingun Trolley | Galvanized, mounted on variable track wheels |
| Nozzles (REFLEX Raingun) | Ø 24 to Ø 32 |
| Nozzles (EXPLORER Raingun) | Ø 28 to Ø 40 |
| Winding Handle | Included |
| Tachometer | Included |
| Drawbar Lifting | Mechanical |
| Wheels | 11.5/80-15.3 12PR 6F |
| Reel Coating | Epoxy resin + polyurethane paint |
| Water Inlet | Galvanized double Bauer Ø 133 (135-140 mm hose diameter) |
| Telescopic Hydraulic Feet | Included |
| Hose Diameter | 100 mm to 140 mm |
| Hose Material | Polyethylene, made from unadulterated raw material |
| Power Take Off | Included |
| Connection Pipe | Flexible |
| Speed Equalizer | Included |
| Pressure Gauge | Glycerine bath |
| Safety Guards | Steel, swaged, galvanized, and painted |
| Chassis and Turret | Hot galvanized |
Versions & Performances - VR5
|
Hose Diameter / Hose Length |
Raingun / Nozzles (mm) |
End Hose |
|---|---|---|
| 100 mm / 450 m | REFLEX / 26/28/30 | G |
| 100 mm / 500 m | REFLEX / 24/26/28 | I |
| 110 mm / 400 m | REFLEX / 26/28/30 | G |
| 110 mm / 450 m | REFLEX / 26/28/30 | I |
| 110 mm / 470 m | REFLEX / 26/28/30 | J |
| 120 mm / 400 m | EXPLORER / 32/34/36 | I |
| 125 mm / 320 m | EXPLORER / 32/34/36 | F |
| 125 mm / 350 m | EXPLORER / 32/34/36 | H |
| 125 mm / 380 m | EXPLORER / 32/34/36 | I |
| 135 mm / 300 m | EXPLORER / 34/36/38 | A |
| 140 mm / 290 m | EXPLORER / 36/38/40 | A |
Versions & Performances - VR5R
|
Hose Diameter / Hose Length |
Raingun / Nozzles (mm) |
End Hose |
|---|---|---|
| 125 mm / 420 m | EXPLORER / 32/34/36 | C |
| 125 mm / 450 m | EXPLORER / 32/34/36 | A |
| 135 mm / 350 m | EXPLORER / 34/36/38 | I |
Performance Summary - 125X380
| Flow Rate (GPM) | Inlet Pressure (PSI) | Sprinkler Pressure (PSI) | Width 80% (FT) |
|---|---|---|---|
| 378 | 115 | 73 | 304 |
| 427 | 127 | 73 | 310 |
| 448 | 133 | 80 | 325 |
| 479 | 131 | 73 | 320 |
Performance Summary - 110X450
| Flow Rate (GPM) | Inlet Pressure (PSI) | Sprinkler Pressure (PSI) | Width 80% (FT) |
|---|---|---|---|
| 169 | 93 | 65 | 220 |
| 250 | 118 | 73 | 268 |
| 289 | 128 | 73 | 273 |
| 333 | 128 | 73 | 283 |
In Package
- VR5 / VR5R Vario Rain Series irrigation reel.
- REFLEX or EXPLORER raingun with various nozzle options.
- Tachometer for speed monitoring.
- Hydraulic lifting system (trolley).
- Flexible connection pipe for easy setup.
- Safety guards made from galvanized steel.
- Telescopic hydraulic feet for stable setup.
- Glycerine bath pressure gauge for pressure accuracy.
- Speed equalizer for consistent operation.
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

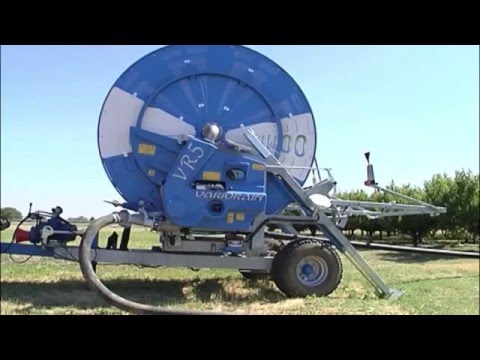

Videos
