Product Description

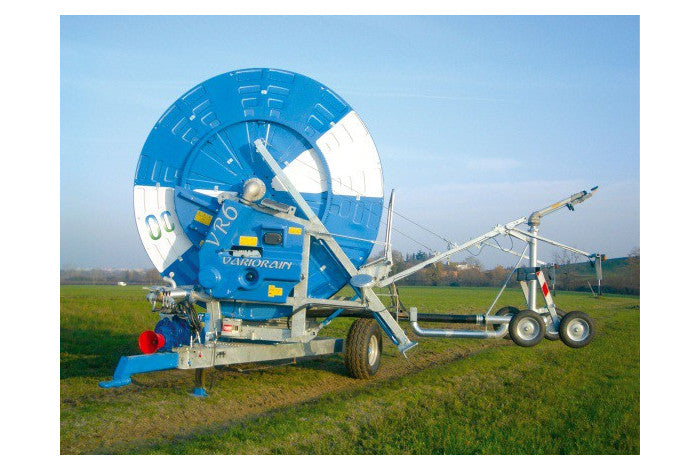

Ocmis VR6 Vario Rain Series Irrigation Reel With Galvanized Double Water Inlet
Included Options:
- REFLEX or EXPLORER rainguns.
- Nozzle sizes from Ø 24 mm to Ø 40 mm.
- Hose diameters ranging from 100 mm to 140 mm.
- Hose lengths up to 600 meters.
- End hose configurations: B, C, E, H, I, J
DESCRIPTION
The OCMIS VR6 Vario Rain Series irrigation reel is a premium choice for agricultural irrigation, designed to provide efficient water distribution with minimal pressure losses. Built with a 4-speed synchronized VR gearbox, the VR6 ensures smooth operation and consistent irrigation performance. It is highly versatile, making it suitable for a wide range of agricultural applications. Farmers appreciate its ease of use and the system's ability to save water by minimizing waste while delivering reliable irrigation. The VR6 is engineered for durability, featuring a galvanized chassis and epoxy resin reel coating to ensure long-lasting performance.
With a user-friendly design, the VR6 provides consistent performance without significant pressure drops. The built-in water-saving technology ensures optimal water usage, making it a great option for those looking to conserve resources while maintaining high irrigation efficiency.
Key Features
- 4-speed synchronized VR gearbox for efficient and smooth operation.
- Water-saving design to reduce consumption and maximize efficiency.
- Minimal pressure losses for consistent irrigation performance.
- Hot-galvanized chassis and turret for enhanced durability.
- User-friendly design for ease of operation and control.
- Telescopic hydraulic feet for stable setup.
- Polyethylene hose made from unadulterated raw materials.
- REFLEX and EXPLORER raingun options with various nozzle sizes.
- Safety guards made from galvanized steel for additional protection.
- Glycerine bath pressure gauge for precise monitoring.
Technical Features
| Category | Measurement (CM) |
|---|---|
| A | 375 |
| B | 395 |
| C | 360 |
| D | 330 |
| E | 230 |
| F | 248 |
| G | 309 |
| H | 350 |
Detailed Specifications
| Feature | VR6 Specification |
|---|---|
| Hydraulic Lifting Device | Trolley |
| Gearbox | 4 Speed VR |
| Turbine | Flanged with built-in by-pass |
| Raingun Trolley | Galvanized, mounted on variable track wheels |
| Nozzles (REFLEX Raingun) | Ø 24 to Ø 32 |
| Nozzles (EXPLORER Raingun) | Ø 28 to Ø 40 |
| Winding Handle | Included |
| Tachometer | Included |
| Drawbar Lifting | Mechanical |
| Wheels | 11.5/80-15.3 12PR 6F |
| Reel Coating | Epoxy resin + polyurethane paint |
| Water Inlet | Galvanized double Bauer Ø 133 |
| Telescopic Hydraulic Feet | Included |
| Hose Diameter | 100 mm to 140 mm |
| Hose Material | Polyethylene, unadulterated raw material |
| Sprinkler Pressure | 80 PSI |
| Power Take Off | Included |
| Connection Pipe | Flexible |
| Speed Equalizer | Included |
| Pressure Gauge | Glycerine bath |
| Safety Guards | Steel, swaged, galvanized, and painted |
| Chassis and Turret | Hot galvanized |
Versions & Performances
|
Hose Diameter / Hose Length |
Raingun / Nozzles (mm) |
End Hose |
|---|---|---|
| 100 mm / 600 m | REFLEX / 24/26/28 | C |
| 110 mm / 500 m | REFLEX / 26/28/30 | E |
| 110 mm / 550 m | REFLEX / 24/26/28 | C |
| 110 mm / 570 m | REFLEX / 24/26/28 | B |
| 120 mm / 460 m | EXPLORER / 32/34/36 | J |
| 125 mm / 400 m | EXPLORER / 32/34/36 | H |
| 125 mm / 440 m | EXPLORER / 32/34/36 | J |
| 135 mm / 380 m | EXPLORER / 34/36/38 | I |
| 140 mm / 350 m | EXPLORER / 36/38/40 | H |
Performance Summary - 125X400
|
Flow Rate (GPM) |
Inlet Pressure (PSI) |
Sprinkler Pressure (PSI) |
Width 80% (FT) |
|---|---|---|---|
| 396 | 125 | 80 | 315 |
| 406 | 112 | 65 | 304 |
| 448 | 133 | 80 | 324 |
| 502 | 143 | 87 | 326 |
In Package
- VR6 Vario Rain Series irrigation reel.
- REFLEX or EXPLORER raingun with various nozzle options.
- Tachometer for speed monitoring.
- Hydraulic lifting system (trolley).
- Flexible connection pipe for easy setup.
- Safety guards made from galvanized steel.
- Telescopic hydraulic feet for stable setup.
- Glycerine bath pressure gauge for pressure accuracy.
- Speed equalizer for consistent operation.
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

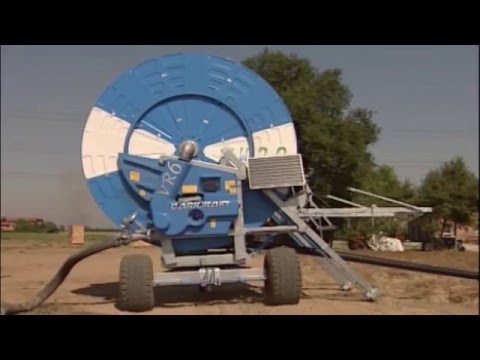

Videos
