Rinieri Orchard Pruner with Discs ORS 7-8 ORSX-5 | 16" Disc Diameter | 93"-108" Cutting Width for Tractor
Description

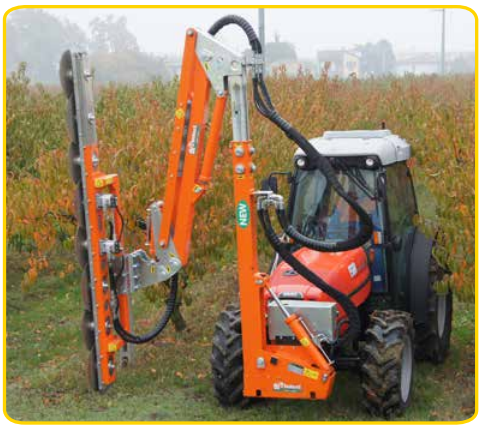

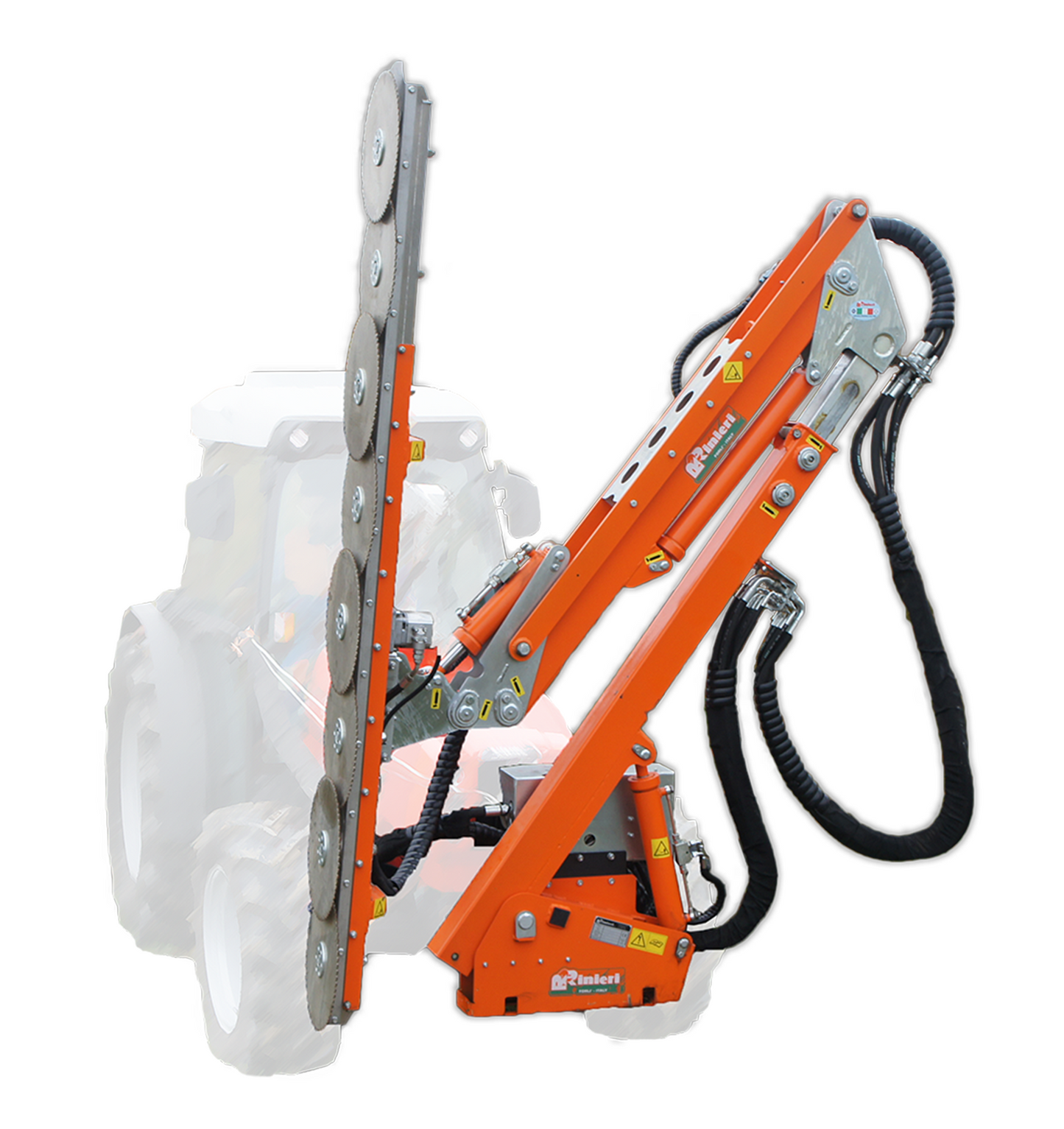

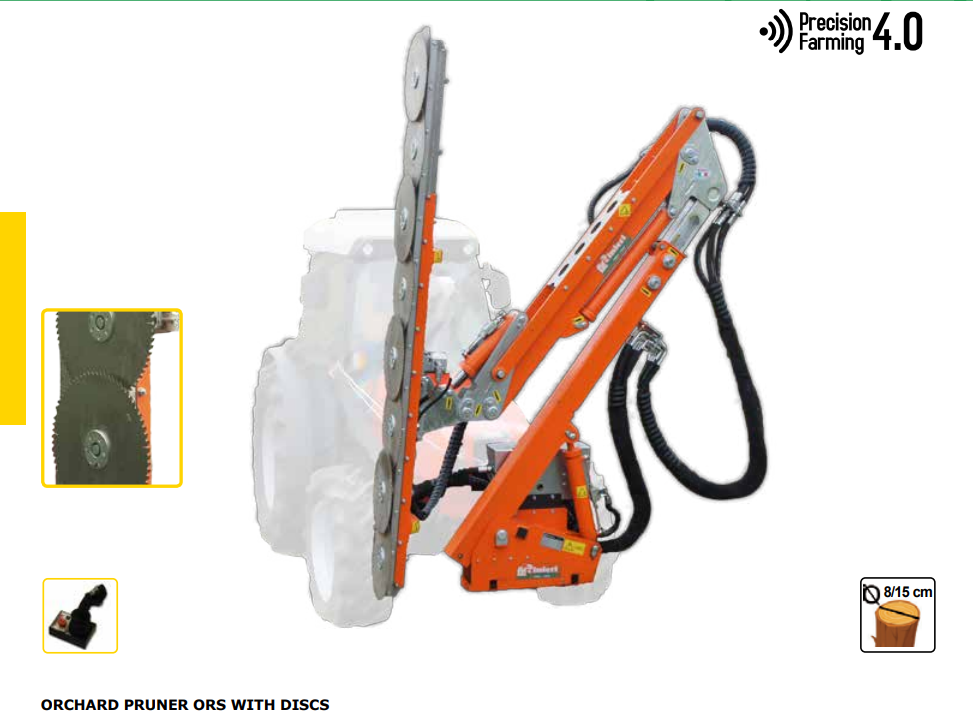

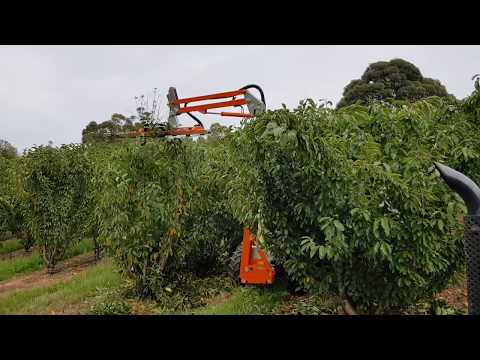

The Orchard Pruner with Discs ORS is designed for traditional orchards, including “V” type cultivations such as olives, peaches, and plums. With its robust frame featuring a parallelogram side shift system, this pruner is suitable for trees up to 6 meters high. Choose between the standard 40 cm discs for branches up to 10 cm in diameter, or the heavy-duty 60 cm discs for cutting branches up to 15 cm in diameter. The proportional joystick ensures precise control, making it an excellent tool for maintaining orchards and fields.
Features
- Adaptable Pruning: Suitable for traditional “V” type orchards, capable of handling branches up to 15 cm in diameter.
- Versatile Cutting Bars: Options for standard 40 cm discs and heavy-duty 60 cm discs to match different pruning needs.
- Stable Operation: Parallelogram side shift system allows for consistent cutting angle adjustment, unaffected by other movements.
- Precision Control: Proportional joystick distributor for accurate and easy operation.
- Durable Construction: Built for high performance and longevity in traditional orchards and field applications.
Specifications
|
Component |
Details |
|
Proportional Distributor |
4+1 |
|
Hydraulic Lifting |
57.1 inches |
|
Hydraulic Tilting Column |
Yes |
|
Parallelogram System |
On second arm |
|
Hydraulic Tilting of Cutting Bar |
Yes |
|
Manual Adjustment of Cutting Bar Position |
Yes |
|
Disc Bars |
Ø 15.7 inches (40 cm) or Ø 23.6 inches (60 cm) |
|
Safety |
Anti-cavitation valve for motors, Hydraulic stand for storage |
|
Hydraulic Kit |
80 Lit/min pump, 90L oil tank, gearbox, oil cooler, cardan joint |
|
Socket |
12V |

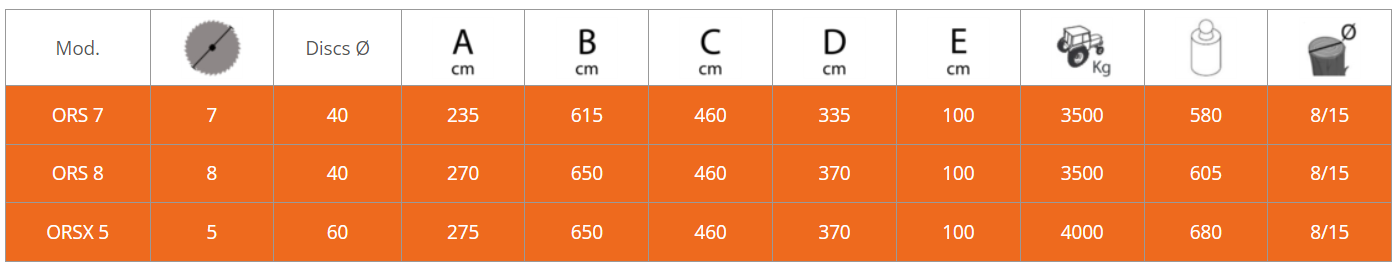

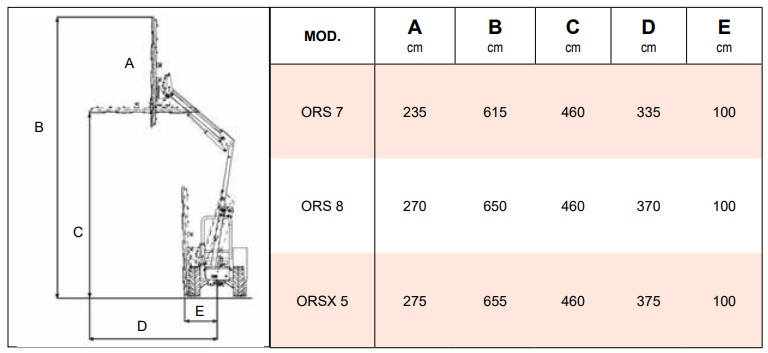

Model & Performance Chart
|
Specs |
Model |
||
|
ORS 7 |
ORS 8 |
ORSX 5 |
|
|
Discs n° |
7 |
8 |
5 |
|
Disc Diameter |
15.7 inches |
15.7 inches |
23.6 inches |
|

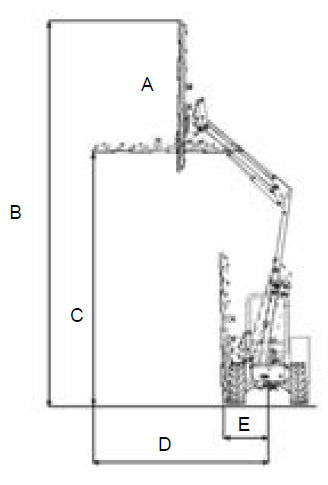

A (inches) |
92.5 |
106.3 |
108.3 |
|
B (inches) |
24.2 |
25.6 |
25.6 |
|
C (inches) |
18.1 |
18.1 |
18.1 |
|
D (inches) |
13.2 |
14.6 |
14.6 |
|
E (inches) |
3.9 |
3.9 |
3.9 |
|
Min Tractor Weight (lbs) |
7716 |
7716 |
8818 |
|
Machine Weight (lbs) |
1279 |
1334 |
1499 |
|
Cutting Power (kW) |
8/15 |
8/15 |
8/15 |
What's Included
- Orchard Pruner with Discs ORS
- Hydraulic lifting and tilting components
- 1 or 2 cutting bars (Ø 15.7 inches or Ø 23.6 inches)
- Proportional joystick distributor (4+1)
- Anti-cavitation valve for motor protection
- Hydraulic stand for safe storage
- Independent hydraulic kit (80 Lit/min pump, 90L oil tank, gearbox, oil cooler, cardan joint)
- User Manual & Setup Guide
Note:
Price does not include coupling frame for the tractor
