ORSI Boom Mower 3PT | Model CUT 029 | Cutting Width Flail Head 31-1/2″ | 10′ 2″ Max Reach | 16–35 HP | For Mini Tractors

Product Description

ORSI Boom Mower 3PT | Model CUT 029 | Cutting Width Flail Head 31-1/2″ | 10′ 2″ Max Reach | 16–35 HP | For Mini Tractors

DESCRIPTION

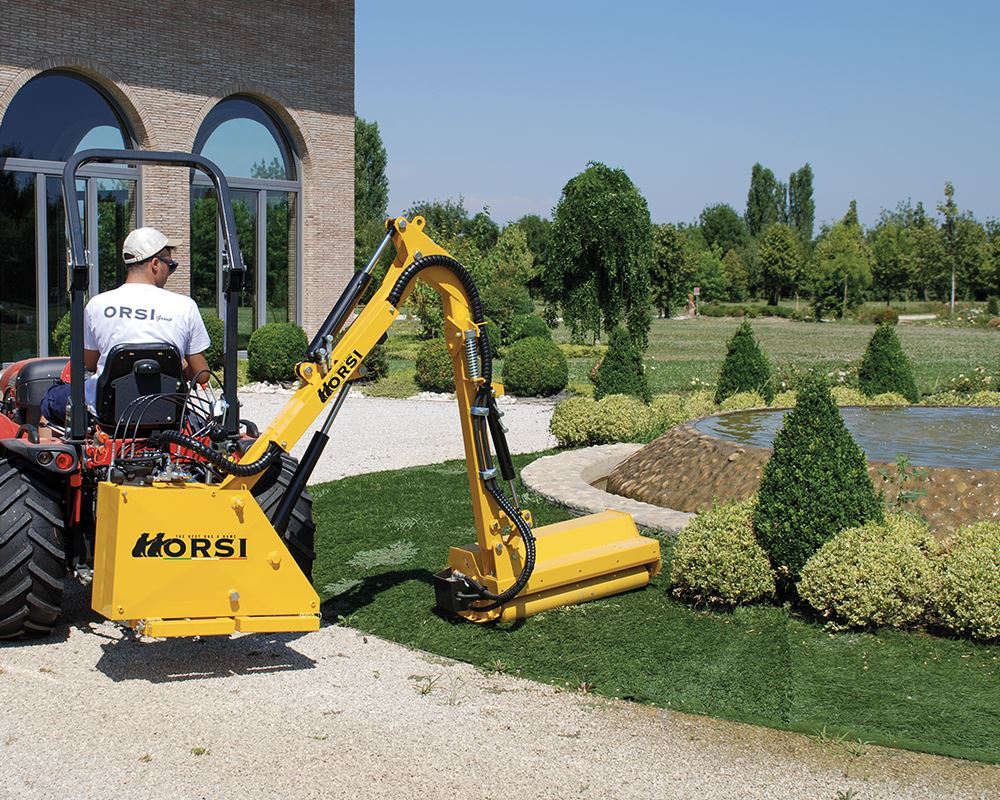

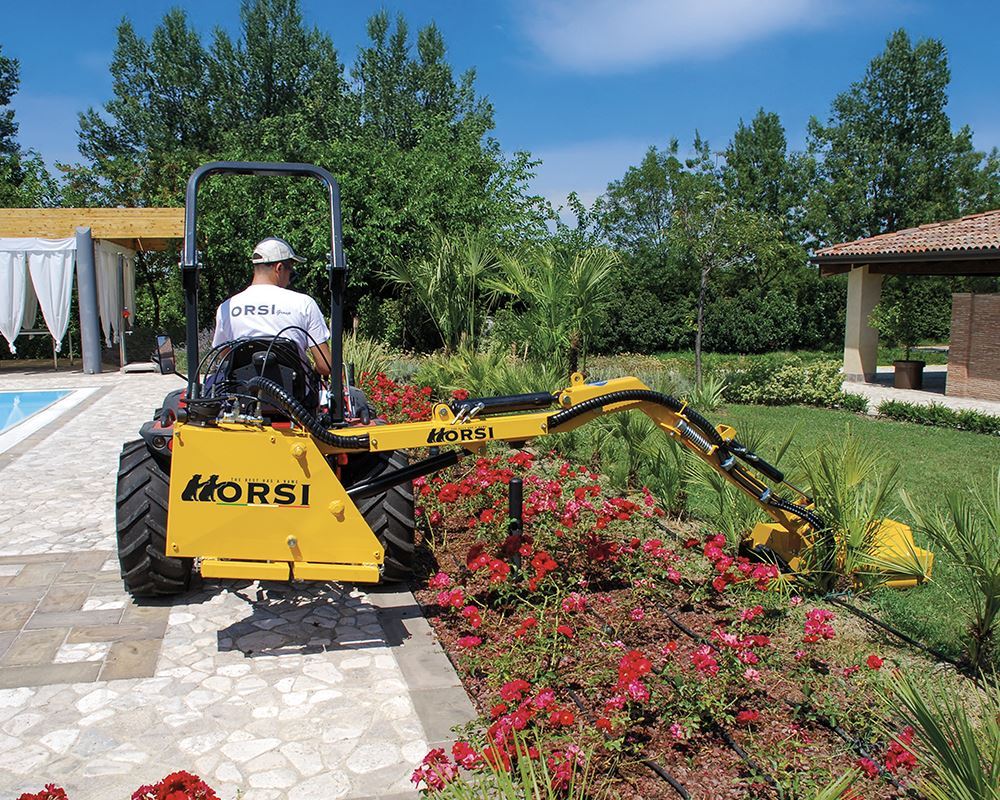

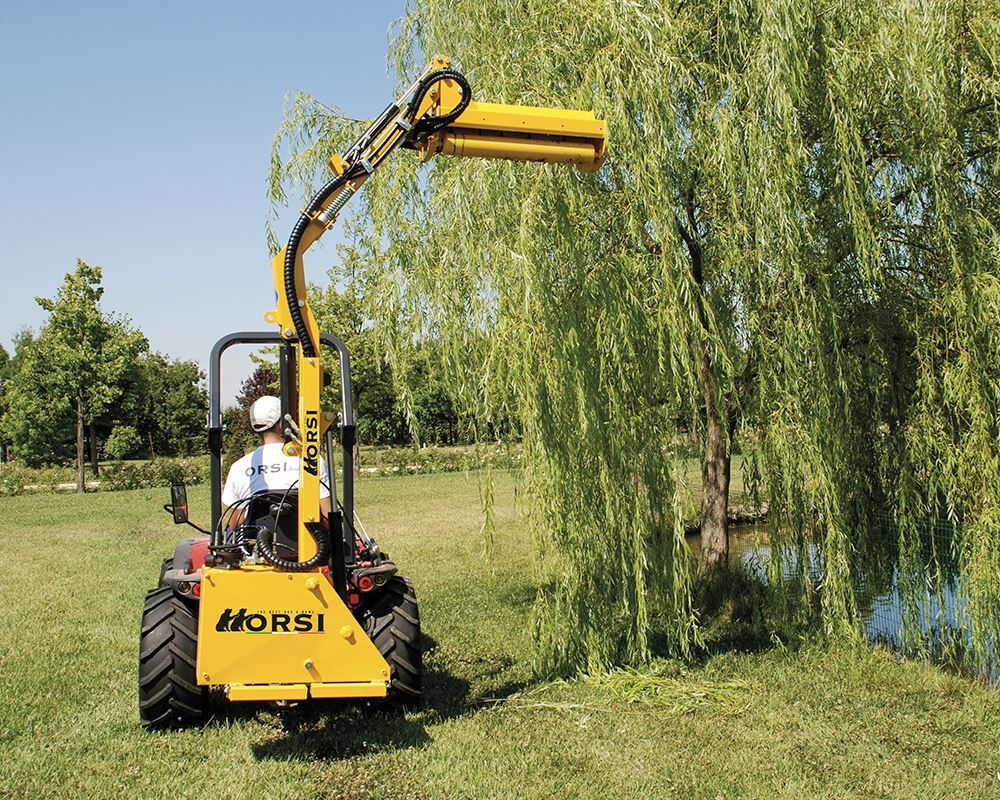

The ORSI CUT 029 Boom Mower is a compact and lightweight hydraulic reach mower designed for mini tractors with 16–35 HP and a minimum weight of 1,764 lbs. With a 10′ 2″ horizontal reach and a 12′ 3″ vertical reach, it is ideal for maintaining grass, ditches, and hedges. Its reduced dimensions and weight make it suitable for front, rear, and reversible drive mounting. The mower features mechanical safety with a return spring on the second arm for added protection. It can be equipped with various end tools, including a cutting head, hedge bars, and a disc hedge cutter, offering versatility for different applications.

Key Features

• Compact Design – Lightweight and compact, perfect for mini tractors with front, rear, or reversible drive mounting.
• Wide Reach – Offers a 10′ 2″ horizontal reach and a 12′ 3″ vertical reach, ideal for grass, ditches, and hedges.
• Mechanical Safety – Equipped with a return spring on the second arm for enhanced safety during operation.
• Versatile End Tools – Compatible with cutting heads, hedge bars, and disc hedge cutters for various tasks.
• Durable Boom Construction – Built with a 80x80x4 mm boom, ensuring strength and reliability.
• Cutting Capacity – Handles branches up to 1″ in diameter, suitable for light-duty tasks.
• Standard Cutting Head – Includes a 31-1/2″ wide cutting head for efficient mowing.
• Tractor Compatibility – Designed for mini tractors with 16–35 HP and a minimum weight of 1,764 lbs..

Feature	Description	Photo (if available)
FLOATING GROUND SELF-LEVELING SYSTEM	The Floating Ground Self-Leveling System ensures the cutting head automatically adapts to ground contours, delivering consistent, clean cuts even on uneven terrain maximizing efficiency and operator comfort.
TWO WAY HEAD OPERATION	The Two-Way Head Operation allows the cutting head to function in both forward and reverse directions, enhancing versatility and access in tight or complex mowing environments.
HEAT EXCHANGER	The Heat Exchanger system features a 7kW oil cooler with thermostat, ensuring optimal hydraulic performance and extended operation without overheating.
Oscillating bearinfs with double fifth wheel couplings	Oscillating bearinfs with double fifth wheel couplings
