Product Description
Paladin Broom Front Mounted Hydraulic Sweeper | Working Width 72" | 32" Brush Diameter | Manual 30° Angle | 40–80 HP | For Tractors
DESCRIPTION

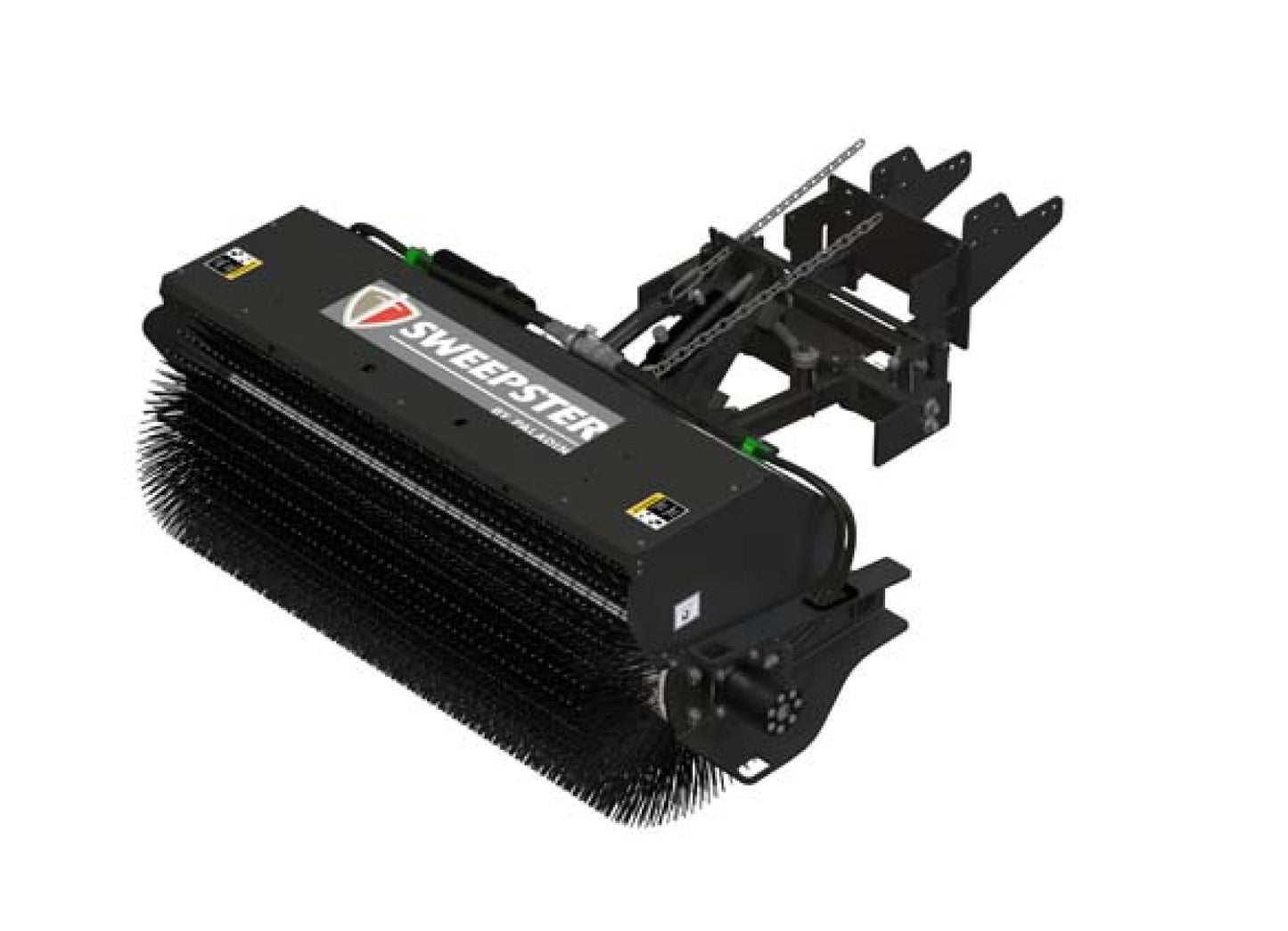

The Paladin Hydraulic Sweeper is a versatile front-mounted broom designed for compact and mid-sized utility tractors ranging from 40 to 80 horsepower (HP). Featuring a large 72" working width and rugged 32" brush diameter, this sweeper handles tough cleanup jobs—from road debris and construction dust to snow and landfill refuse. Its hydraulic drive system is compatible with tractor circuits delivering 10–18 GPM at 2000–3500 PSI, with models offered in single-motor (AH) or dual-motor (CH) configurations. The brush core is reversible for even wear, and the sweeper manually angles 30° left or right to optimize material flow. Maintenance is simple, with the drive slipping out of the brush core without removing hydraulic hoses.
Key Features
- Hydraulic Drive Options: Runs off onboard hydraulics or optional pump kit.
- Sweep Width: 72" coverage with 32" brush diameter.
- Manual 30° Angling: Directs swept material left or right for cleanup control.
- Brush Core Design: Reversible construction extends bristle life.
- Maintenance-Friendly: Drive unit slips out without disconnecting hoses.
- Motor Options: AH (single motor) or CH (dual motor) configurations.
- Hydraulic Specs: Operates between 10–18 GPM @ 2000–3500 PSI.
- Mount Style: Front-mounted for better operator visibility.
- Applications: Road sweeping, snow removal, landfills, construction sites.
-
Tractor Compatibility: Ideal for 40–80 HP utility tractors.
Detailed Specification
| Specification | Value |
|---|---|
| Model Number | QC32M6SM18/28-4612 |
| Brush Diameter | 32" |
| Working Width | 72" |
| Sweep Width Range | 5'–9' (depending on AH or CH model) |
| Angle Adjustment | Manual 30° Left / Right |
| Hydraulic Flow Range | 10–18 GPM |
| Operating Pressure | 2000–3500 PSI |
| Horsepower Range | 40–80 HP |
| Mount Style | Front |
| Machine Type | Utility Tractor |
| Applications | Cleanup, Construction, Snow, Road Sweep |
