Paladin Scrap Grapple Bucket | Working Width 74"–82" | Severe-Duty Solid Bottom | Routed Hydraulic Lines w/ Hose Saver | 15–25 GPM | For Skid-Steer Loaders

Product Description

Paladin Scrap Grapple Bucket | Working Width 74"–82" | Severe-Duty Solid Bottom | Routed Hydraulic Lines w/ Hose Saver | 15–25 GPM | For Skid-Steer Loaders

DESCRIPTION

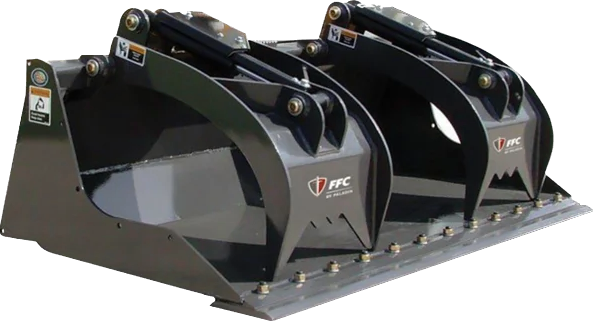

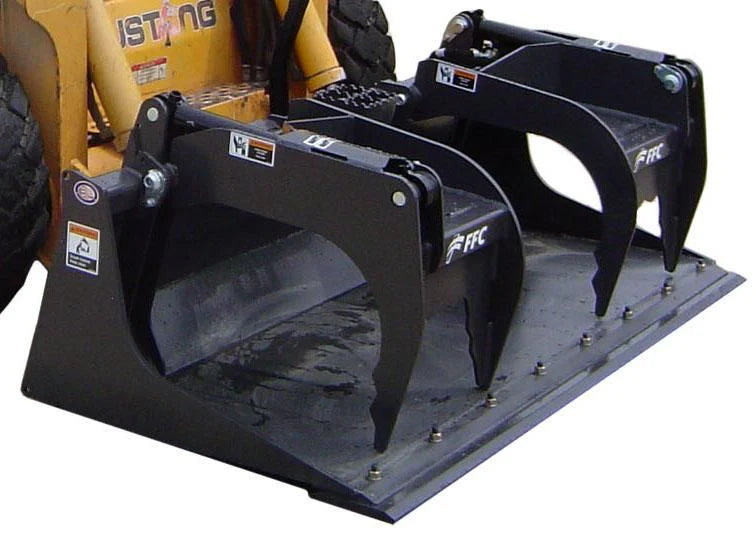

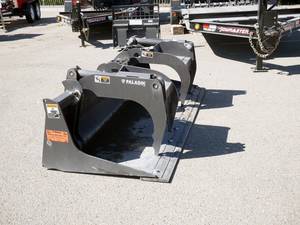

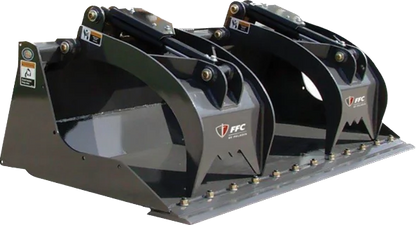

The Paladin SXD Severe-Duty Scrap Grapple Bucket Series is built to conquer the harshest demolition and cleanup tasks on construction, recycling, and industrial job sites. With available widths of 74", 78", and 82", these solid-bottom grapple buckets feature a reinforced shell and patented grapple system designed for secure handling of concrete, scrap, brush, and loose debris.

Each unit includes 78" hydraulic hoses with ½" quick disconnects routed straight back for cleaner line management and is protected by a built-in hose saver spring. Designed for 15–25 GPM hydraulic systems, these grapples are plug-and-play compatible with most standard SSL platforms. Optional bolt-on edges (BOE) are not included, allowing for tighter ground contact when scraping compacted debris.

Key Features

• Severe-Duty Build: Welded steel frame with reinforced grapple arms and bottom pan resists high-impact loads and deformation.
• Solid/Flat Bottom Design: Retains fine debris and improves scraping performance for site cleanup.
• Twin Clamp Hydraulic Grapples: Securely grip irregular materials like scrap, brush, and concrete chunks.
• Routed Hydraulic Lines: Includes 78" hoses with ½" QDs routed straight back for reduced exposure and clean hose layout.
• Hose Saver Spring: Protects hydraulic hoses from fatigue, stress, and snagging in rugged conditions.
• Optional Cylinder Guards: Shield key components for added durability in severe-duty environments.
• Patented Pivot & Grapple Pins: 1.5" x 8.625" heat-treated greasable pivot pins enhance wear resistance. 1.5" x 27.125" grapple pins minimize torsional force during operation.
• Reinforced End Plates: .375" thick side plates provide structural strength under heavy use.
• Cushioned Sleeved Cylinders: 2.5" bore x 8" stroke x 1.75" rod design ensures smooth clamping action with reduced shock loads.
• No Bolt-On Edge (BOE): Improves floor contact and material scooping efficiency; edge drilled for optional FFC® bolt-on cutting edge.
• Optional Cutting Edge: .75" x 8" double bevel edge available for enhanced scraping and surface finish.
• Multiple Widths: Available in 74", 78", and 82" to match various machine sizes and job demands.
• Hydraulic System Compatibility: Optimized for skid-steers operating between 15–25 GPM.
• Common Applications: Perfect for scrap loading, concrete debris removal, demolition cleanup, and recycling site tasks.
