Product Description
Pequea HRMCR8, HRMCR10, HRMCR12 Hay Rake V Rake | 17'-23' Working Width | For Tractor
DESCRIPTION

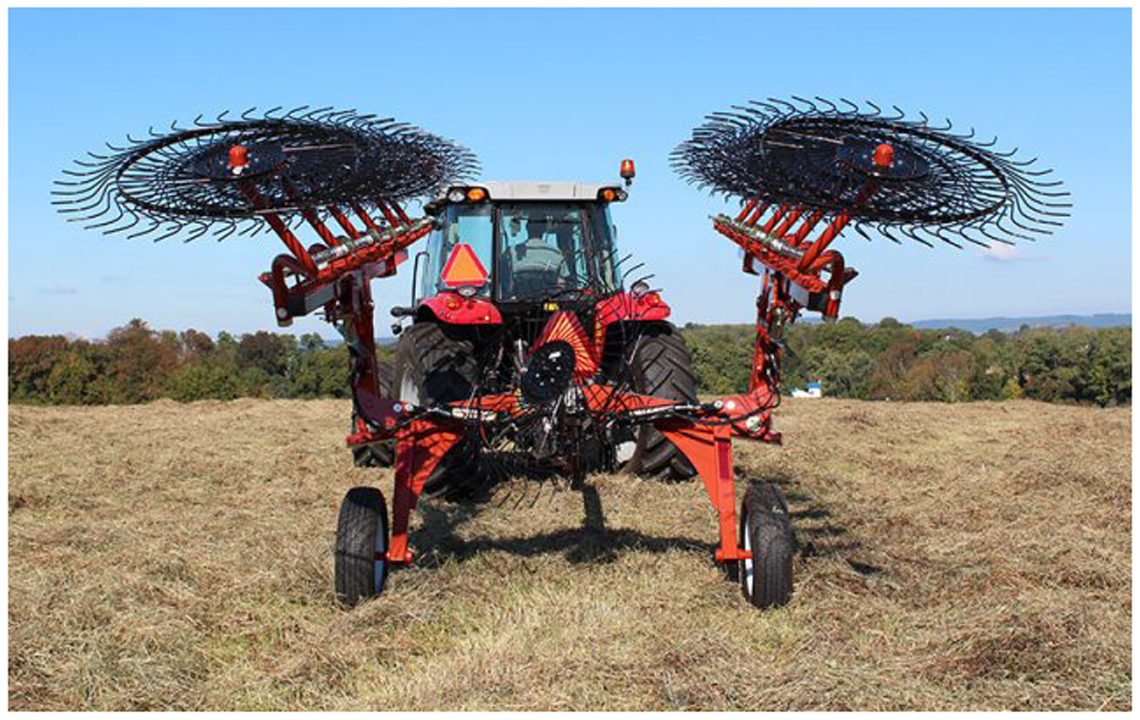

The Pequea HRMCR Mid-Cap Rake series offers versatile and efficient raking solutions for agricultural professionals. Available in 8-wheel (HRMCR8), 10-wheel (HRMCR10), and 12-wheel (HRMCR12) models, this carted-style V rake easily adapts to various field conditions and is built to grow with your operation. With modular designs, the rakes allow seamless transitions from an 8 to a 10 or 12-wheel setup, offering an adaptable tool for any raking task. Each model includes essential features like single-sided raking, spring tension adjustments, and hydraulic control for on-the-go windrow width modifications.
These Mid-Cap Rakes are engineered for durability and ease of use, with features such as individual compression springs for precise wheel control and optional hydraulic wheel beam adjustments. Designed to streamline the raking process, these rakes provide optimal performance and user-friendly handling, ensuring efficient, quality raking for small to mid-size farms.
Key Features
- Single-Sided Raking: Manual or electric controls allow lifting of one arm at a time, providing raking flexibility.
- Modular Design: Upgrade from 8 to 10 or 12 wheels with bolt-on extensions for versatility and growth.
- Windrow Control: Hydraulic beam option for on-the-go windrow width adjustments, ensuring precise control.
- Spring Tension Adjustment: Cotter pin mechanism for easy, tool-free tension adjustments for each wheel.
- Individual Compression Springs: Provides independent wheel control for adaptable performance in various field conditions.
- Compact Transport: Folds down to a manageable transport width of 12' 2", making it easy to move between fields.
- Heavy-Duty Frame: Durable construction suited for rugged terrain and long-lasting use.
- Optional Kicker Wheel: Enhances raking performance by lifting missed hay, available for all models.
- Hydraulic Compatibility: Supports hydraulic wheel beam adjustments to streamline operations.
- Large Wheel Diameter: Each rake wheel features a 52" or 55" diameter for effective coverage.
Model Specifications
| Specification | HRMCR8 Details |
|---|---|
| Part Number | HRMCR8 |
| Manufacturer | Pequea |
| Category | Tractor Attachments |
| SubCategory | Hay Rake V Rake |
| Industry | Agricultural |
| Number of Rake Wheels | 8 |
| Wheel Diameter | 52" |
| Tines per Wheel | 40 |
| Working Width | 17'-19' |
| Windrow Width | 3'-5' |
| Transport Height | 8' 3" |
| Transport Width | 12' 2" |
| Overall Length | 21' |
| Wheel Tread Width | 7' |
| Tine Diameter | 0.273" (7mm) |
| Specification | HRMCR10 Details |
|---|---|
| Part Number | HRMCR10 |
| Manufacturer | Pequea |
| Category | Tractor Attachments |
| SubCategory | Hay Rake V Rake |
| Industry | Agricultural |
| Number of Rake Wheels | 10 |
| Wheel Diameter | 55" |
| Tines per Wheel | 40 |
| Working Width | 19'-21' |
| Windrow Width | 3'-5' |
| Transport Height | 8' 10" |
| Transport Width | 12' 2" |
| Overall Length | 23' |
| Wheel Tread Width | 7' |
| Tine Diameter | 0.283" (7mm) |
| Specification | HRMCR12 Details |
|---|---|
| Part Number | HRMCR12 |
| Manufacturer | Pequea |
| Category | Tractor Attachments |
| SubCategory | Hay Rake V Rake |
| Industry | Agricultural |
| Number of Rake Wheels | 12 |
| Wheel Diameter | 55" |
| Tines per Wheel | 40 |
| Working Width | 21'-23' |
| Windrow Width | 3'-5' |
| Transport Height | 9' 5" |
| Transport Width | 12' 2" |
| Overall Length | 23' |
| Wheel Tread Width | 7' |
| Tine Diameter | 0.283" (7mm) |
FEATURES
|
SINGLE SIDED RAKING The MCR’s single sided raking option brings versatility to raking. Turn manual valves or order the electric option and lift one arm up at a time without leaving the tractor. |
|
SPRING TENSION Easily adjust spring tension for each wheel by simply removing a cotter pin– no tools necessary.
|
|
BOLT ON EXTENSION The MCR’s bolt-on extensions allow customers to upgrade from an 8 to a 10 or 12 wheel rake. THIS WILL HELP THE DEALER SAVE ON HOW MANY RAKES THEY NEED TO STOCK
|
|
WINDROW CONTROL Change the windrow width on the go with the MCR’s hydraulic beam option. These cylinders mount on the wheel beam and allow for total raking control.
|
In Package
- 1x Pequea HRMCR V Rake Unit (HRMCR8, HRMCR10, or HRMCR12 based on selection)
- Single-Sided Raking Option: Manual or electric operation
- Individual Compression Springs for each rake wheel
- Transport Configuration with foldable frame
- Operator’s manual with maintenance guidelines
Available Options
- Bolt-On Extensions: Upgrade to 10 or 12 wheels (for HRMCR8 or HRMCR10).
- Kicker Wheel: Optional addition for enhanced raking performance.
- Hydraulic Beam Control: Allows for adjustable windrow widths on the go.
