Product Description

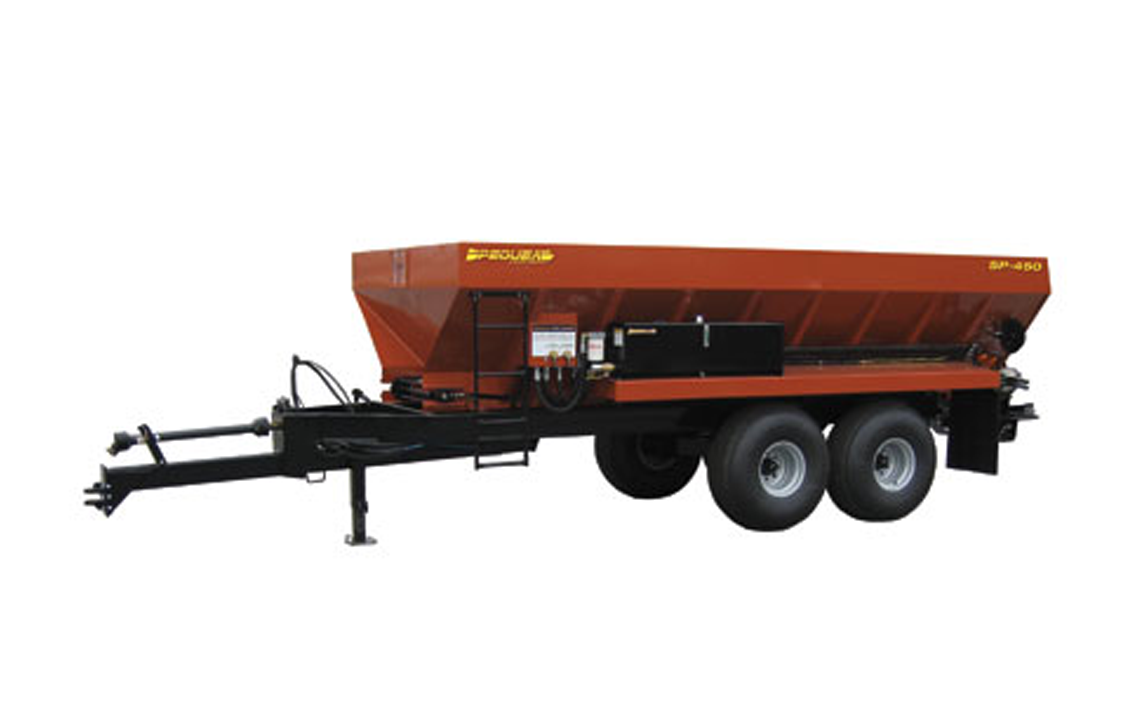

Pequea SP Series Litter/Lime Spreaders | Available in 450, 490, 530, and 580 Cubic Feet Capacities | For Tractor
DESCRIPTION
The Pequea SP Series Litter/Lime Spreaders are designed for durability, efficiency, and versatility in agricultural applications. Offered in four sizes—450, 490, 530, and 580 cubic feet—the SP Series combines high-capacity hauling with precision spreading. Equipped with heavy-duty tandem axles and 10-ply tires, these spreaders handle rugged terrain with ease. Each model includes adjustable flow control valves for both apron and spinner speeds, ensuring a consistent and effective spread pattern. Built with reinforced spinner frames, poly floors, and large spinner paddles, the SP Series guarantees a long-lasting, low-maintenance solution for spreading lime, litter, and other materials.
With flexible configuration options, including truck mounts, and over 15 different customizations, the SP Series can be tailored to any farm’s specific needs. Each model’s robust construction and heavy-duty chain drive system make the SP Series an essential tool for both small and large agricultural operations.
Key Features
- Adjustable Spread Control: Easy-to-use flow control valves for precise apron and spinner speed adjustments.
- High Capacity: Offers up to 580 cubic feet, reducing refill frequency.
- Durable Build: Fully welded hopper with heavy-duty 88K chain for consistent performance.
- Tandem Axle: Heavy-duty tandem axle ensures stability across varied terrains.
- Large Spinner Discs: 25" spinner discs with reinforced paddles for an even spread.
- Poly Floor Construction: 3/4" x 6" tongue and groove poly floor reduces maintenance and enhances durability.
- Versatile Configurations: Available in truck-mount configurations and multiple sizes.
- Sight Window: Standard sight window for monitoring material levels without stopping.
- Heavy-Duty Tires: Equipped with 21.5L x 16.1 10-ply tires for increased load-bearing capacity.
- Optional Accessories: Over 15 customizable options, including alternative hopper lengths and other features.
Detailed Specifications
Model Specifications
| Specification | SP400 (450 Cu. Ft.) |
|---|---|
| Part Number | SP400/(830258) |
| Hopper Length | 16' |
| Hopper Width (Top) | 96" |
| Overall Height | 90" |
| Overall Length | 26' |
| Overall Width | 97" |
| Struck Capacity | 10.7 cu. yd. |
| Heaped Capacity | 16.7 cu. yd. |
| Payload Capacity | 20,000 lbs |
| Base Weight | 6,000 lbs |
| Chain Width | 35" |
| Spinner Disc Diameter | 25" |
| Spinner Disc Thickness | 1/4" |
| Number of Spinner Paddles | 6, bolt-on reinforced adjustable |
| Floor | 3/4" x 6" tongue and groove poly |
| Specification | SP450 (490 Cu. Ft.) |
|---|---|
| Part Number | SP450/(830258) |
| Hopper Length | 18' |
| Hopper Width (Top) | 96" |
| Overall Height | 90" |
| Overall Length | 28' |
| Overall Width | 97" |
| Struck Capacity | 13.3 cu. yd. |
| Heaped Capacity | 18.1 cu. yd. |
| Payload Capacity | 20,500 lbs |
| Base Weight | 6,200 lbs |
| Chain Width | 35" |
| Spinner Disc Diameter | 25" |
| Spinner Disc Thickness | 1/4" |
| Number of Spinner Paddles | 6, bolt-on reinforced adjustable |
| Floor | 3/4" x 6" tongue and groove poly |
| Specification | SP500 (530 Cu. Ft.) |
|---|---|
| Part Number | SP500/(830258) |
| Hopper Length | 20' |
| Hopper Width (Top) | 96" |
| Overall Height | 90" |
| Overall Length | 30' |
| Overall Width | 98" |
| Struck Capacity | 14.8 cu. yd. |
| Heaped Capacity | 19.6 cu. yd. |
| Payload Capacity | 24,000 lbs |
| Base Weight | 6,400 lbs |
| Chain Width | 35" |
| Spinner Disc Diameter | 25" |
| Spinner Disc Thickness | 1/4" |
| Number of Spinner Paddles | 6, bolt-on reinforced adjustable |
| Floor | 3/4" x 6" tongue and groove poly |
| Specification | SP550 (580 Cu. Ft.) |
|---|---|
| Part Number | SP550/(830258) |
| Hopper Length | 22' |
| Hopper Width (Top) | 96" |
| Overall Height | 90" |
| Overall Length | 32' |
| Overall Width | 99" |
| Struck Capacity | 16.6 cu. yd. |
| Heaped Capacity | 21.5 cu. yd. |
| Payload Capacity | 27,000 lbs |
| Base Weight | 6,600 lbs |
| Chain Width | 35" |
| Spinner Disc Diameter | 25" |
| Spinner Disc Thickness | 1/4" |
| Number of Spinner Paddles | 6, bolt-on reinforced adjustable |
| Floor | 3/4" x 6" tongue and groove poly |
In Package
- 1x Pequea SP Series Litter/Lime Spreader (Selected Model: SP400, SP450, SP500, or SP550)
- 1x Tandem Axle with 21.5L x 16.1 x 10-Ply Tires
- Adjustable Flow Control Valves for Apron and Spinner
- Sight Window for Hopper
- Operator’s Manual
Available Options
- Alternative Hopper Lengths: Available in 16', 18', 20', and 22' lengths.
- Truck Mount Configuration: Customize for truck-mounted applications.
- Additional Accessories: Over 15 optional accessories for specific needs.
