Product Description
PH Outdoors Faunamaster Sprayer | Model FMS-70 | Overall Width 15.6" | Capacity 18.5 Gallons | 25-100+ HP | For ATVs & UTVs
DESCRIPTION

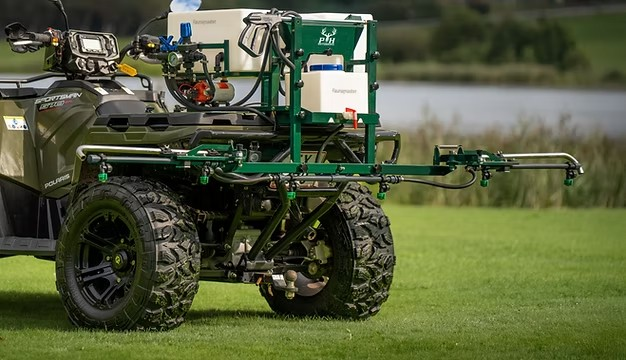

The Faunamaster Sprayer 70 is the ultimate solution for professionals seeking reliability, efficiency, and cost-effectiveness in one robust product. Designed specifically for use on quads and UTVs, this innovative and durable sprayer ensures long-lasting performance even in the most demanding conditions. The spray boom's spring-loaded system effectively prevents damage by sliding off obstacles, minimizing risks to the sprayer and its surroundings.
Key Features
- 18.5-Gallon Spray Tank Capacity Ideal for applying fertilizers, herbicides, and pesticides across food plots, pastures, and conservation areas
- 10-Liter Clean Water Tank Provides convenient handwashing or rinsing during field operations
- 118-Inch (3 Meter) Adjustable Spray Boom Spring-loaded design resists damage from obstacles and folds for compact transport
- 10-Meter Hose Reel with Spray Lance Enables spot spraying in hard-to-reach areas like fence lines and tree bases
- Compact Dimensions (34.3" L × 15.6" W × 16.5" H) Lightweight and maneuverable for mounting on ATVs and UTVs
- Dry Weight: ~19.4 lbs (8.8 kg) Easy to handle and install without heavy lifting equipment
- Power Supply: 12V, 6.0 AMP (Max 12 AMP Pump) Operates from vehicle battery with on-demand pump activation
- Spray Pressure: 120 PSI / 8.3 BAR Ensures consistent spray coverage and effective liquid distribution
- Horsepower Compatibility: 25–100+ HP Suitable for a wide range of ATV and UTV platforms
- Built-In Mixing System Maintains uniform spray liquid consistency during use
- Lechler® Precision Nozzles (Germany) Delivers accurate spray patterns and efficient coverage
- Quick Assembly (Approx. 30 Minutes) Ships complete with minimal setup required before use
Detailed Specifications
| Feature | Specification |
|---|---|
| Spray Tank Capacity | 70 liters (~18.5 gallons) |
| Clean Water Tank | 10 liters (~2.6 gallons) |
| Spray Boom Width | 118 in (3 meters) |
| Hose Reel Length | 393.7 in (10 meters) |
| Overall Length | 34.3 in |
| Overall Width | 15.6 in |
| Overall Height | 16.5 in |
| Dry Weight | ~19.4 lbs (8.8 kg) |
| Horsepower | 25-100+ HP |
