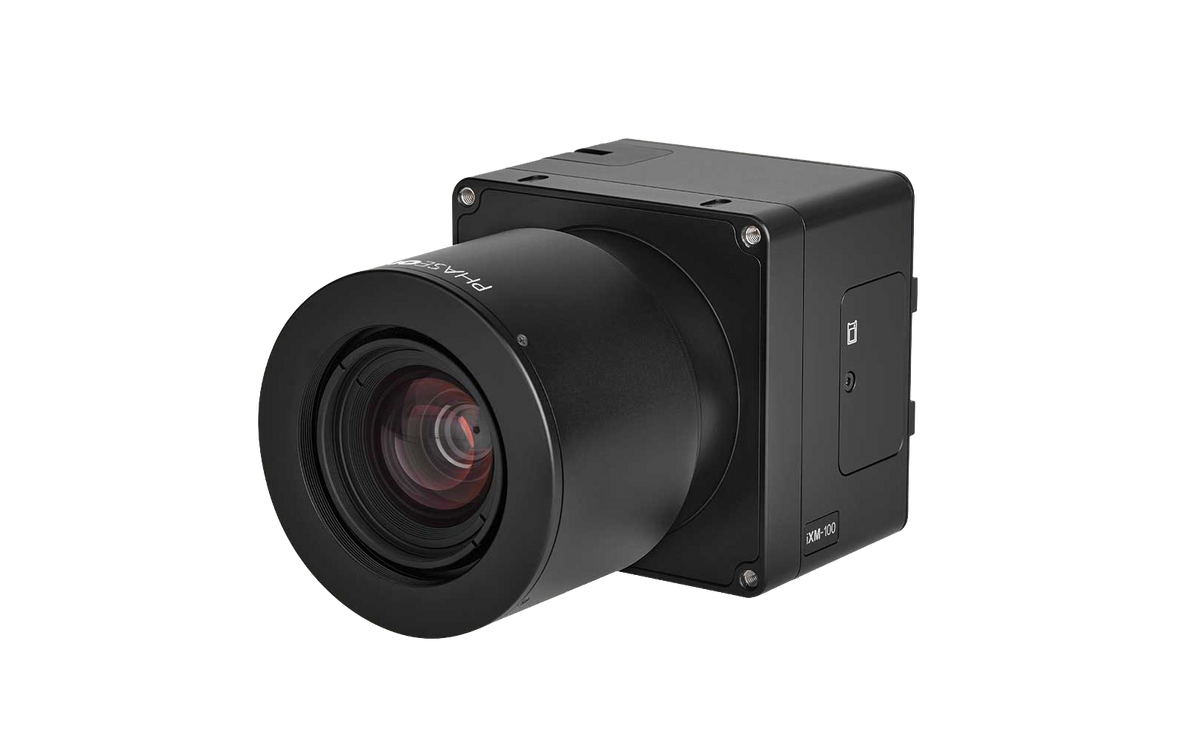

Phase One 100MP Camera | Model iXM-100 | 3.76µm Pixel Size | For UAV and Drone Imaging
DESCRIPTION
A REVOLUTION IN UAV AND DRONE CAMERAS
Phase One Industrial developed the iXM series – revolutionary and uniquely designed cameras for UAV-based aerial imagery that redefine the boundaries of technological innovation.
OUR MOST INNOVATIVE CAMERA TO DATE
A breakthrough medium-format camera driven by the world's fastest imaging sensor. Engineered for UAV-based imaging missions, the iXM 100MP is a high-productivity metric aerial camera with a range of high-resolution lenses.
The camera incorporates the first medium-format sensor with backside-illumination technology, which enables high light sensitivity and extension of the dynamic range.
Fast, highly responsive, robust, and easily integrated with UAVs, the iXM 100MP delivers superior quality aerial imaging and flexible operation to satisfy diverse mapping, surveying, and inspection applications.
Four new Phase One RSM lenses, with focal lengths ranging from 35mm to 150mm, seamlessly fit the new sensor, ensuring exceptional sharpness across the image.
INSPECTION
The iXM's large-area sensor delivers a close-and-detailed look at all an object's parts. This enables predictive maintenance for inspection missions of power lines, wind turbines, roads, bridges, and pipelines as well as forestry and agriculture. It not only reduces the costs and the risky operations of ground teams, but also increases the speed and precision of collecting data.
With the motorized-lens functionality, the camera captures sharp and highly detailed images of multi-distance or 3D objects. The 80 mm and 150 mm lenses are ideal for a wide range of inspection applications.
MAPPING
Phase One Industrial offers a precision-driven solution that simplifies surveying and mapping processes. It provides professionals with unlimited aerial data, while saving time, money, and human resources.
Our metric cameras, with a selection of 35mm and 80mm RSM lenses, enable the user to effortlessly execute photogrammetry and mapping missions, capture high-resolution images, and create 2D and 3D maps. The iXM camera is a superior geosystem compared to other systems available on the market today.
CHOICE OF RSM LENSES
Five new Phase One RSM lenses, with focal lengths ranging from 35mm to 300mm AF, were specifically created to fit the pixel and sensor size while maintaining sharpness across the image. The lenses have high optical resolution, offering new uses for both inspection and mapping applications. The lenses’ integrated leaf shutter offers high capture speed for an array of flight conditions.
SUPERIOR STORAGE CAPABILITIES AND CONNECTIVITY
The iXM supports super-fast storage capabilities. It also provides full control – over a wireless link – for defining:
ISO
Shutter speed
Aperture
Advanced functionalities
Focus distance
Upload flight plans
BACKSIDE-ILLUMINATED SENSOR
The iXM is equipped with the first medium-format sensor to implement backside-illumination technology for enhanced light sensitivity and extended dynamic range.
RSM Lenses for Precision: A selection of five high-resolution lenses (35mm to 300mm AF) specifically tailored for aerial inspection and mapping.

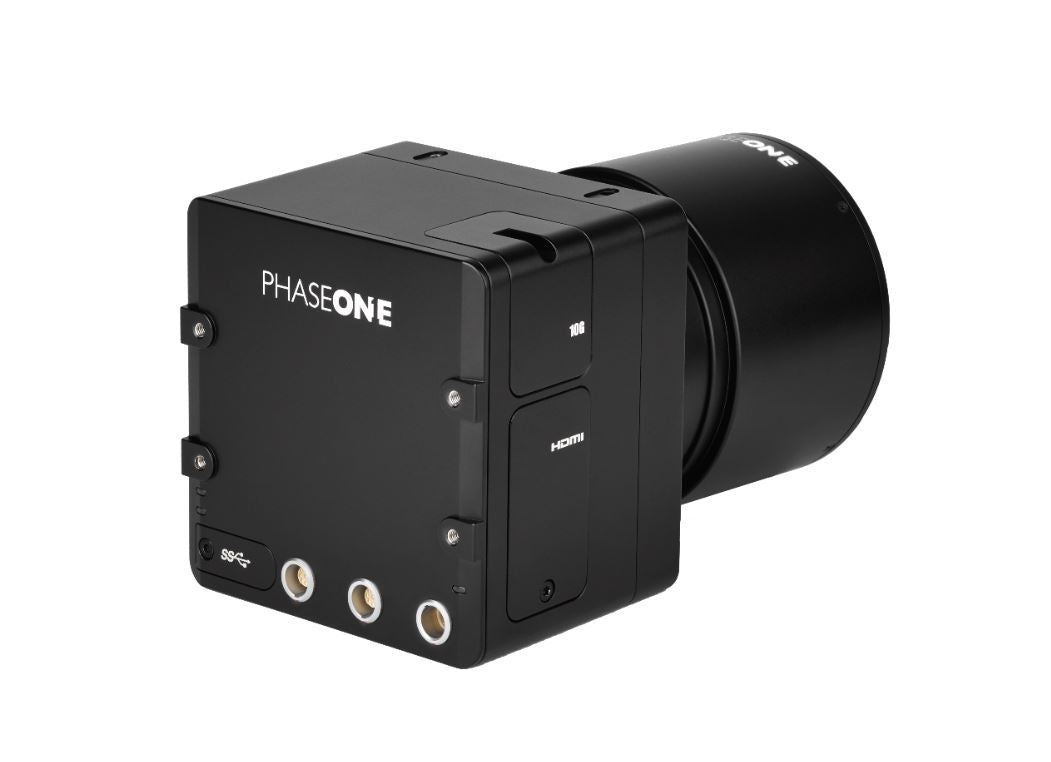

Flexible Connectivity: USB-C and 10G Ethernet connections enable versatile use with large UAVs and various aerial platforms.
Remote Control Integration: Full control over ISO, shutter speed, aperture, and more via wireless link, including upload of flight plans.
Built for Inspection and Mapping: Ideal for capturing high-resolution imagery for predictive maintenance, 2D and 3D mapping, and surveying.
Detailed Specifications
Specification
Details
Short Description
Phase One 100MP Camera iXM-100
SKU
72187
Manufacturer
Phase One
UPC
Does Not Apply
Compatible With
Phase One
Sensor Resolution
11664x8750 for iXM 100MP
Pixel Size
3.76µm
Capture Rate
3 fps
Lenses Available
RSM lenses (35mm, 80mm, 150mm, 300mm)
Connectivity
USB-C, 10G Ethernet, HDMI
Drone Compatibility
DJI M600 PRO
In Package
iXM-100 Camera (Qty: 1)
Manuals & Documents
