Product Description

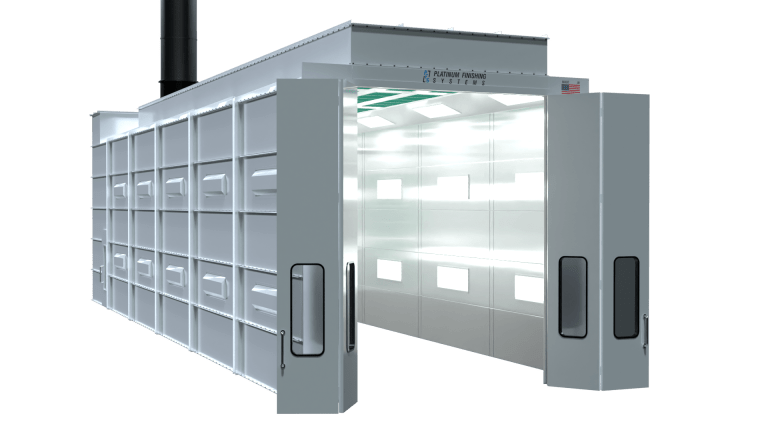

Platinum Finishing Paint Booth Systems Industrial Size Gold Edition Truck Semi Down Draft Paint Booth
Included Options:
- Tri-fold Doors
- Upgraded LED lighting
- Double Wall insulated panels
- Viewing windows
- Filtration systems
- Cooling systems (on applicable models)
- Heating systems (on applicable models)
- Humidity Controls (on applicable models)
- Motor upgrades
- Roof height extensions
- Powder coating
DESCRIPTION
Our Semi-Downdraft Truck Booth draws in fresh, filtered air from the intake plenum. This filtered air is then directed downward along the length of the booth, passes through an exhaust plenum at the rear, and is discharged upward through an exhaust stack. This booth configuration can include convenient drive-through doors and is also available in a reverse flow design.
Standard Industrial Semi Down Draft Paint Booth Package Included:
Industrial Booths are equipped with the following:
Our booths meet the rigorous safety standards outlined in NFPA-33, the highest-level safety code in the USA for the spray application of flammable or combustible materials.
These models have undergone thorough testing and hold certification as ETL-Certified Booths by Intertek/ETL (Edison Testing Labs). They are also recognized by OSHA (Occupational Safety & Health Administration) as NRTLs (Nationally Recognized Testing Laboratories). This certification is often required by local authorities to ensure safe operation and regulatory compliance.
Rest assured, ETL certification is included with your purchase!
ETL Certification included with your purchase
Key Features
- Doors: 15' high x 11' wide entrance doors with tempered glass windows and personnel access.
- Filters: 20" x 20" fiberglass and blanket-type filters for optimal air filtration.
- Panels: Air-tight 18GA galvanized prime steel fastened with 5/16" bolts.
- Lighting: LED or T8 lighting options available, with four-tube 4’ fixtures.
- Fans: Tube axial fans with non-sparking blades and motor sizes tailored to booth dimensions.
- Compliance: Exceeds NFPA 33, OSHA 1910, and ETL standards for safety and efficiency.
- Custom Options: Powder coating, tri-fold doors, roof extensions, heating systems, and more.
- Assembly instructions.
- UL approved components.
- We can customize to meet your requirements
- Doors: 15' high x 11' wide entrance doors with tempered glass windows & Personnel Door.
- Filters: 20" x 20" Fiber Glass and Blanket Type filters
- Panels: Air-tight, 18 gauge galvanized prime steel fastened with 5/16" bolts.
- Lighting: LED Lighting or T8 Lighting four tube 4’Light fixtures ETL listed
- Fans: Tube Axial Fans with non-sparking blades Motor Sizes Vary with booth size.
- Meets NFPA 33 & OSHA 1910 guidelines (check your local codes for local permit requirements)
- Optional : Powder coating, height extension, LED lighting.
- All quality components proudly made in the USA!
- Optional : Heater 1.0MBTU burner with spray, bake and cool downs
Why Choose PFS Semi Down Draft Booths?
The Industrial Semi-Downdraft paint booth strikes the perfect balance between cost and quality, making it an excellent choice for coating cars, trucks, vans, and specialty vehicles. This spray booth pulls air from a filtered intake plenum, guiding it through the booth and expelling it through the exhaust plenum at the rear.
PFS designs and manufactures all paint booth models in-house, ensuring efficiency and compliance with industry standards. Whether you’re using solvent-based, waterborne, or a combination of coatings, PFS has the solution for you. We can craft a custom booth tailored to your precise needs and requirements, all while exceeding NFPA, OSHA, and ETL requirements.
At PFS, we design and manufacture all paint booth models in-house to ensure efficiency and compliance. Whether you’re working with solvent-based, waterborne, or a combination of coatings, PFS has you covered. We can create a custom solution tailored to your specific needs and requirements.
Rest assured, all our booths exceed NFPA, OSHA, and ETL requirements, guaranteeing safety and quality.
- ETL listed manufacturer
- Best pricing in the industry
- Lowest lead times in the industry
- Fully customizable paint booths
- Certified in all US states
- Exceed all local and national codes
- Modular paint booths can be expanded
- National service and installation
Design and Construction
At PFS, all our paint booths are crafted from durable 18GA galvanized steel and precision-machined using CNC equipment. This ensures a perfect fit and finish, accompanied by straightforward assembly instructions. Our booths feature a hassle-free assembly process with nut, bolt, and self-tapper components for easy installation.
Moreover, our paint booths undergo a powder coating process, making them resistant to corrosion and UV damage. This not only enhances durability but also results in a brilliant white finish, improving visibility both inside and outside the booth.
Quality Products
All our spray booths are proudly crafted in-house at our Santa Rosa, CA facility. We oversee every step of the manufacturing process, guaranteeing the industry’s finest spray booth quality at competitive prices. Each element of your booth is meticulously designed and tailored to precise specifications.
What’s more, we hold ETL listings and approvals across all jurisdictions, streamlining the approval process and ensuring a faster return on investment (ROI).
Air Filtration
PFS employs a cutting-edge “high-velocity” exhaust system, which is enhanced by fiberglass exhaust filters to create a pristine, dust-free environment. Every booth we ship comes equipped with standard 20×20 heavy-duty fiberglass exhaust filters and tacky intake filters.
Fans and Motors
Our belt-driven tube axial fans feature a streamlined belt tunnel that draws in outside air to ventilate the drive compartment efficiently. The steel housing undergoes an iron phosphate process for rust protection and is finished with a durable acrylic epoxy paint. The factory-installed cast-iron sheave is directly assembled on the fan shaft. When you order the complete fan with drive package, motors and belts are packed separately.
Rest assured, these fan and motor packages are engineered for exceptional longevity, surpassing any other combination in the market.
Parts and Accessories
PFS paint booths are shipped complete with all essential components, including nuts, bolts, gaskets, caulking, tempered glass for light covers, detailed instruction manuals, assembly drawings, wiring diagrams, parts manuals, and a comprehensive parts list that outlines every included item.
Made in the USA
At PFS, we take pride in our in-house manufacturing of paint booths and enclosures, ensuring top-notch quality and competitive pricing. We are committed to ongoing innovation and design enhancements to meet local and national codes and requirements. Contact us today to discuss a custom solution for your next project!
Detailed Specifications
| Feature | Details |
|---|---|
| Dimensions | Industrial size; customizable dimensions available |
| Doors | 15' x 11' entrance doors with tempered glass |
| Panels | 18GA galvanized prime steel |
| Lighting | LED or T8 lighting, ETL-listed |
| Air Filtration | 20"x20" fiberglass exhaust and tacky intake filters |
| Fans | AMCA-certified axial fans, 3-phase/1-phase motors |
| Optional Features | Heating, extended height, upgraded lighting, etc. |
| Safety Compliance | NFPA 33, OSHA 1910, ETL certified |
| Power Requirements | 208/230/460v compatible motors |
In Package
- Fully assembled paint booth panels
- Intake and exhaust filtration system (20"x20" fiberglass filters)
- Tube axial fans with non-sparking blades
- Detailed assembly instructions and wiring diagrams
- All necessary nuts, bolts, gaskets, and caulking for installation
- Tempered glass light covers
- Standard safety and regulatory certification documents (ETL-certified)
