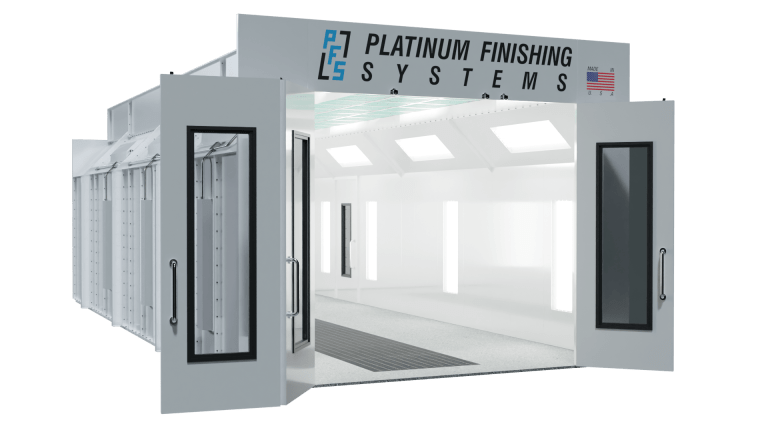

Platinum Finishing Paint Booth Systems Industrial Size Platinum Plus Full-Down Draft
Platinum Finishing Paint Booth Systems Industrial Size Platinum Plus Full-Down Draft
Couldn't load pickup availability
Couldn't load pickup availability
How To Get A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Platinum Finishing Paint Booth Systems Industrial Size Platinum Plus Full-Down Draft
Included Options:
- Tri-fold Doors
- Upgraded LED lighting
- Double Wall insulated panels
- Viewing windows
- Filtration systems
- Cooling systems (on applicable models)
- Heating systems (on applicable models)
- Humidity Controls (on applicable models)
- Motor upgrades
- Roof height extensions
- Powder coating
DESCRIPTION
Gold Edition: Truck Semi Down Draft Paint Booth
Our Semi-Downdraft Truck Booth draws in fresh, filtered air from the intake plenum. This filtered air is then directed downward along the length of the booth, passes through an exhaust plenum at the rear, and is discharged upward through an exhaust stack. This booth configuration can include convenient drive-through doors and is also available in a reverse flow design.
Standard Industrial Semi Down Draft Paint Booth Package Included:
Industrial Booths are equipped with the following:
Our booths meet the rigorous safety standards outlined in NFPA-33, the highest-level safety code in the USA for the spray application of flammable or combustible materials.
These models have undergone thorough testing and hold certification as ETL-Certified Booths by Intertek/ETL (Edison Testing Labs). They are also recognized by OSHA (Occupational Safety & Health Administration) as NRTLs (Nationally Recognized Testing Laboratories). This certification is often required by local authorities to ensure safe operation and regulatory compliance.
Rest assured, ETL certification is included with your purchase!
ETL Certification included with your purchase
Key Features
- Certified Safety: Meets NFPA-33 safety standards and OSHA 1910 guidelines. ETL-Certified for assured quality and safety.
- Premium Construction: Built with 18GA galvanized prime steel and precision CNC machining for durability and ease of assembly.
- Customizable Options: Fully customizable with optional features like powder coating, height extension, upgraded lighting, and heating systems.
- Advanced Air Filtration: Includes heavy-duty 20"x20" fiberglass exhaust filters and tacky intake filters for a pristine, dust-free environment.
- Made in the USA: Proudly manufactured in Santa Rosa, CA, ensuring top-notch quality and compliance with all national and local codes.
- Assembly instructions.
- UL approved components.
- We can customize to meet your requirements
- Doors: 15' high x 11' wide entrance doors with tempered glass windows & Personnel Door.
- Filters: 20" x 20" Fiber Glass and Blanket Type filters
- Panels: Air-tight, 18 gauge galvanized prime steel fastened with 5/16" bolts.
- Lighting: LED Lighting or T8 Lighting four tube 4’Light fixtures ETL listed
- Fans: Tube Axial Fans with non-sparking blades Motor Sizes Vary with booth size.
- Meets NFPA 33 & OSHA 1910 guidelines (check your local codes for local permit requirements)
- Optional: Powder coating, height extension, LED lighting.
- All quality components proudly made in the USA!
- Optional: Heater 1.0MBTU burner with spray, bake and cool downs
Rest assured, all our booths exceed NFPA, OSHA, and ETL requirements, guaranteeing safety and quality.
- ETL listed manufacturer
- Best pricing in the industry
- Lowest lead times in the industry
- Fully customizable paint booths
- Certified in all US states
- Exceed all local and national codes
- Modular paint booths can be expanded
- National service and installation
Design and Construction
At PFS, all our paint booths are crafted from durable 18GA galvanized steel and precision-machined using CNC equipment. This ensures a perfect fit and finish, accompanied by straightforward assembly instructions. Our booths feature a hassle-free assembly process with nut, bolt, and self-tapper components for easy installation.
Moreover, our paint booths undergo a powder coating process, making them resistant to corrosion and UV damage. This not only enhances durability but also results in a brilliant white finish, improving visibility both inside and outside the booth.
Quality Products
All our spray booths are proudly crafted in-house at our Santa Rosa, CA facility. We oversee every step of the manufacturing process, guaranteeing the industry’s finest spray booth quality at competitive prices. Each element of your booth is meticulously designed and tailored to precise specifications.
What’s more, we hold ETL listings and approvals across all jurisdictions, streamlining the approval process and ensuring a faster return on investment (ROI).
Air Filtration
PFS employs a cutting-edge “high-velocity” exhaust system, which is enhanced by fiberglass exhaust filters to create a pristine, dust-free environment. Every booth we ship comes equipped with standard 20×20 heavy-duty fiberglass exhaust filters and tacky intake filters.
Fans and Motors
Our belt-driven tube axial fans feature a streamlined belt tunnel that draws in outside air to ventilate the drive compartment efficiently. The steel housing undergoes an iron phosphate process for rust protection and is finished with a durable acrylic epoxy paint. The factory-installed cast-iron sheave is directly assembled on the fan shaft. When you order the complete fan with drive package, motors and belts are packed separately.
Rest assured, these fan and motor packages are engineered for exceptional longevity, surpassing any other combination in the market.
Parts and Accessories
PFS paint booths are shipped complete with all essential components, including nuts, bolts, gaskets, caulking, tempered glass for light covers, detailed instruction manuals, assembly drawings, wiring diagrams, parts manuals, and a comprehensive parts list that outlines every included item.
Made in the USA
At PFS, we take pride in our in-house manufacturing of paint booths and enclosures, ensuring top-notch quality and competitive pricing. We are committed to ongoing innovation and design enhancements to meet local and national codes and requirements. Contact us today to discuss a custom solution for your next project!
Why choose PFS Semi Down Draft Booths?
The Industrial Semi-Downdraft paint booth strikes the perfect balance between cost and quality, making it an excellent choice for coating cars, trucks, vans, and specialty vehicles. This spray booth pulls air from a filtered intake plenum, guiding it through the booth and expelling it through the exhaust plenum at the rear.
PFS designs and manufactures all paint booth models in-house, ensuring efficiency and compliance with industry standards. Whether you’re using solvent-based, waterborne, or a combination of coatings, PFS has the solution for you. We can craft a custom booth tailored to your precise needs and requirements, all while exceeding NFPA, OSHA, and ETL requirements.
At PFS, we design and manufacture all paint booth models in-house to ensure efficiency and compliance. Whether you’re working with solvent-based, waterborne, or a combination of coatings, PFS has you covered. We can create a custom solution tailored to your specific needs and requirements.
Detailed Specifications
| Feature | Specification |
|---|---|
| Doors | 15' high x 11' wide entrance doors with tempered glass windows and personnel door |
| Filters | 20"x20" fiberglass exhaust filters and blanket-type intake filters |
| Lighting | LED or T8 four-tube 4’ light fixtures, ETL listed |
| Fans | Tube axial fans with non-sparking blades |
| Motor Options | 3-phase and 1-phase motors (208/230/460v) |
| Panels | 18GA galvanized steel with air-tight assembly |
| Optional Features | Powder coating, height extension, tri-fold doors, heating systems, LED lighting |
| Certification | ETL, NFPA-33, OSHA compliant |
