Product Description

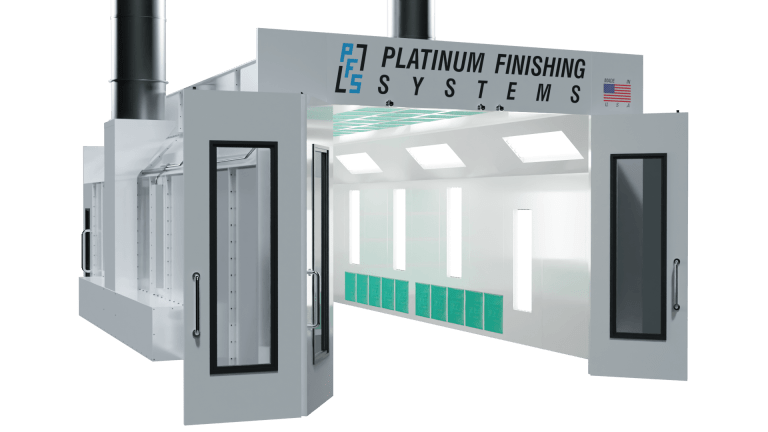

Platinum Finishing Paint Booth Systems Platinum Edition Side Down Draft Paint Booth
Included Options:
- Tri-fold Doors
- Upgraded LED lighting
- Double Wall insulated panels
- Viewing windows
- Filtration systems
- Cooling systems (on applicable models)
- Heating systems (on applicable models)
- Humidity Controls (on applicable models)
- Motor upgrades
- Roof height extensions
- Powder coating
DESCRIPTION
Side Downdraft paint booths provide an ideal solution for those avoiding pit installation. These booths intake air through a filtered plenum and exhaust it through the booth's sides.
Standard Side Down Draft Paint Booth Package Included:
Booths are equipped with the following:
Our booths meet the rigorous safety standards outlined in NFPA-33, the highest-level safety code in the USA for the spray application of flammable or combustible materials.
These models have undergone thorough testing and hold certification as ETL-Certified Booths by Intertek/ETL (Edison Testing Labs). They are also recognized by OSHA (Occupational Safety & Health Administration) as NRTLs (Nationally Recognized Testing Laboratories). This certification is often required by local authorities to ensure safe operation and regulatory compliance.
Rest assured, ETL certification is included with your purchase!
ETL Certification included with your purchase
Key Features
- Durable Build: Constructed with 18-gauge galvanized steel for longevity and corrosion resistance.
- Advanced Airflow: Intake air enters from filtered plenum and is exhausted from booth sides.
- Energy-Efficient Lighting: Includes LED or T8 lighting fixtures for bright, energy-saving illumination.
- Enhanced Safety: Certified to meet NFPA-33, OSHA, and ETL standards.
- Customizable Options: Powder coating, LED lighting upgrades, height extensions, and more.
- User-Friendly Design: Easy assembly with nut-and-bolt construction and clear instructions.
- Assembly instructions.
- UL approved components.
- Air Flow Type: Air enters the booth from the filtered front doors and is exhausted from the rear exhaust chamber.
- Construction: 18 Gauge Galvanized Steel pre punched holes for nut and bolt assembly.
- Filters: 20" x 20" FiberGlass Exhaust filters
- Lighting: LED Lighting or T8 Lighting four tube 4’ Light fixtures ETL listed.
- Doors: Double Wall doors (with observation Windows) & (1) Personnel Door.
- Fans: Tube Axial Fans with non-sparking blades motor sizes vary with booth size.
- Optional: Powder coating,, LED lighting, height extensions, double wall panels.
- Optional: Heater: 1.0MBTU burner with spray, bake and cool down
Why Choose PFS Side Down Draft Booths?
The Side Downdraft paint booth is a highly effective and popular configuration. It draws intake air through the filtered ceiling and exhausts it from the sides of the booth. This versatile booth is suitable for cars, trucks, vans, parts, and more. Tri-fold doors are available for accommodating larger items.
PFS designs and manufactures all paint booth models in-house, ensuring efficiency and compliance with industry standards. Whether you’re using solvent-based, waterborne, or a combination of coatings, PFS offers comprehensive solutions. We can create a custom booth tailored to your specific needs and requirements, all while exceeding NFPA, OSHA, and ETL requirements.
- ETL listed manufacturer
- Best pricing in the industry
- Lowest lead times in the industry
- Fully customizable paint booths
- Certified in all US states
- Exceed all local and national codes
- Modular paint booths can be expanded
- National service and installation
Design and Construction
At PFS, all our paint booths are crafted from durable 18GA galvanized steel and precision-machined using CNC equipment. This ensures a perfect fit and finish, accompanied by straightforward assembly instructions. Our booths feature a hassle-free assembly process with nut, bolt, and self-tapper components for easy installation.
Moreover, our paint booths undergo a powder coating process, making them resistant to corrosion and UV damage. This not only enhances durability but also results in a brilliant white finish, improving visibility both inside and outside the booth.
Quality Products
All our spray booths are proudly crafted in-house at our Santa Rosa, CA facility. We oversee every step of the manufacturing process, guaranteeing the industry’s finest spray booth quality at competitive prices. Each element of your booth is meticulously designed and tailored to precise specifications.
What’s more, we hold ETL listings and approvals across all jurisdictions, streamlining the approval process and ensuring a faster return on investment (ROI).
Air Filtration
PFS employs a cutting-edge “high-velocity” exhaust system, which is enhanced by fiberglass exhaust filters to create a pristine, dust-free environment. Every booth we ship comes equipped with standard 20×20 heavy-duty fiberglass exhaust filters and tacky intake filters.
Fans and Motors
Our belt-driven tube axial fans feature a streamlined belt tunnel that draws in outside air to ventilate the drive compartment efficiently. The steel housing undergoes an iron phosphate process for rust protection and is finished with a durable acrylic epoxy paint. The factory-installed cast-iron sheave is directly assembled on the fan shaft. When you order the complete fan with drive package, motors and belts are packed separately.
Rest assured, these fan and motor packages are engineered for exceptional longevity, surpassing any other combination in the market.
Parts and Accessories
PFS paint booths are shipped complete with all essential components, including nuts, bolts, gaskets, caulking, tempered glass for light covers, detailed instruction manuals, assembly drawings, wiring diagrams, parts manuals, and a comprehensive parts list that outlines every included item.
Made in the USA
At PFS, we take pride in our in-house manufacturing of paint booths and enclosures, ensuring top-notch quality and competitive pricing. We are committed to ongoing innovation and design enhancements to meet local and national codes and requirements. Contact us today to discuss a custom solution for your next project!
Detailed Specifications
| Feature | Details |
|---|---|
| Construction Material | 18-Gauge Galvanized Steel |
| Airflow Design | Side Downdraft |
| Filter Type | 20"x20" Fiberglass Exhaust Filters |
| Lighting | LED or T8, ETL-Certified |
| Door Options | Double-wall doors with observation windows, 1 personnel door |
| Fan Type | Tube Axial Fans with non-sparking blades |
| Optional Features | Powder coating, heating system, height extensions, upgraded lighting |
In Package
- Platinum Edition Side Downdraft Paint Booth
- Filters: 20"x20" heavy-duty fiberglass exhaust filters.
- Doors: Pre-installed double-wall doors with observation windows and personnel door.
- Lighting: High-efficiency LED or T8 lighting fixtures.
- Fans and Motors: Tube axial fans with spark-resistant blades.
- Assembly Components: Nuts, bolts, gaskets, caulking, and detailed instruction manuals.
- Safety Certifications: NFPA-33, OSHA, and ETL compliance documentation.
