Product Description

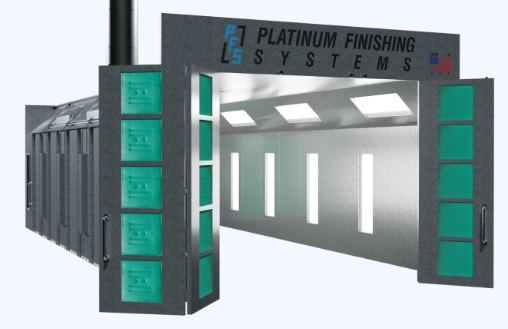

Platinum Finishing Paint Booth Systems Silver Edition Cross Flow Paint Booth
Included Options:
- Tri-fold Doors
- Upgraded LED lighting
- Double Wall insulated panels
- Viewing windows
- Filtration systems
- Cooling systems (on applicable models)
- Heating systems (on applicable models)
- Humidity Controls (on applicable models)
- Motor upgrades
- Roof height extensions
- Powder coating
DESCRIPTION
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Our Crossflow paint booths offer an economical solution and are ideal for integration into existing buildings. Air flows horizontally through the booth, ultimately exiting through the rear exhaust plenum.
Standard Cross Flow Paint Booth Package Included:
Booths are equipped with the following:
Our booths meet the rigorous safety standards outlined in NFPA-33, the highest-level safety code in the USA for the spray application of flammable or combustible materials.
These models have undergone thorough testing and hold certification as ETL-Certified Booths by Intertek/ETL (Edison Testing Labs). They are also recognized by OSHA (Occupational Safety & Health Administration) as NRTLs (Nationally Recognized Testing Laboratories). This certification is often required by local authorities to ensure safe operation and regulatory compliance.
Rest assured, ETL certification is included with your purchase!
ETL Certification included with your purchase
Key Features
- Air Flow: Crossflow design with intake from filtered front doors and rear exhaust chamber.
- Construction: 18-gauge galvanized steel for enhanced durability and corrosion resistance.
- Filters: Standard 20"x20" fiberglass exhaust filters for optimal air filtration.
- Lighting: LED or T8 lighting fixtures for high visibility and energy efficiency.
- Doors: Includes double-wall filtered doors and a personnel access door.
- Optional Upgrades: Powder coating, roof height extensions, and advanced LED lighting.
- Compliance: Fully certified by ETL, OSHA, and NFPA for safe and compliant use.
- Assembly instructions.
- UL approved components.
- Air Flow Type: Air enters the booth from the filtered front doors and is exhausted from the rear exhaust chamber.
- Construction: 18 Gauge Galvanized Steel pre punched holes for nut and bolt assembly.
- Filters: 20" x 20" FiberGlass Exhaust filters
- Lighting: LED Lighting or T8 Lighting four tube 4’ Light fixtures ETL listed.
- Doors: Double Wall doors (filtered ) & (1) Personnel Door.
- Fans: Tube Axial Fans with non-sparking blades motor sizes vary with booth size.
- Options: Powder coating
Why Choose PFS Cross Flow Booths?
The Automotive Crossflow design is a highly sought-after choice in the industry. It combines efficient airflow with high-visibility LED lighting, making it ideal for your auto body and repair shop. Crossflow paint booths feature filtered front doors that draw in intake air and exhaust it through the rear plenum, accommodating cars, trucks, vans, parts, and more. Our available tri-fold doors provide ample space for larger vehicles and parts.
At PFS, we design and manufacture all paint booth models in-house to ensure efficiency and compliance. Whether you’re working with solvent-based, waterborne, or a combination of coatings, PFS has you covered. We can create a custom solution tailored to your specific needs and requirements.
Rest assured, all our booths exceed NFPA, OSHA, and ETL requirements, guaranteeing safety and quality.
- ETL listed manufacturer
- Best pricing in the industry
- Lowest lead times in the industry
- Fully customizable paint booths
- Certified in all US states
- Exceed all local and national codes
- Modular paint booths can be expanded
- National service and installation
Design and Construction
At PFS, all our paint booths are crafted from durable 18GA galvanized steel and precision-machined using CNC equipment. This ensures a perfect fit and finish, accompanied by straightforward assembly instructions. Our booths feature a hassle-free assembly process with nut, bolt, and self-tapper components for easy installation.
Moreover, our paint booths undergo a powder coating process, making them resistant to corrosion and UV damage. This not only enhances durability but also results in a brilliant white finish, improving visibility both inside and outside the booth.
Quality Products
All our spray booths are proudly crafted in-house at our Santa Rosa, CA facility. We oversee every step of the manufacturing process, guaranteeing the industry’s finest spray booth quality at competitive prices. Each element of your booth is meticulously designed and tailored to precise specifications.
What’s more, we hold ETL listings and approvals across all jurisdictions, streamlining the approval process and ensuring a faster return on investment (ROI).
Air Filtration
PFS employs a cutting-edge “high-velocity” exhaust system, which is enhanced by fiberglass exhaust filters to create a pristine, dust-free environment. Every booth we ship comes equipped with standard 20×20 heavy-duty fiberglass exhaust filters and tacky intake filters.
Fans and Motors
Our belt-driven tube axial fans feature a streamlined belt tunnel that draws in outside air to ventilate the drive compartment efficiently. The steel housing undergoes an iron phosphate process for rust protection and is finished with a durable acrylic epoxy paint. The factory-installed cast-iron sheave is directly assembled on the fan shaft. When you order the complete fan with drive package, motors and belts are packed separately.
Rest assured, these fan and motor packages are engineered for exceptional longevity, surpassing any other combination in the market.
Parts and Accessories
PFS paint booths are shipped complete with all essential components, including nuts, bolts, gaskets, caulking, tempered glass for light covers, detailed instruction manuals, assembly drawings, wiring diagrams, parts manuals, and a comprehensive parts list that outlines every included item.
Made in the USA
At PFS, we take pride in our in-house manufacturing of paint booths and enclosures, ensuring top-notch quality and competitive pricing. We are committed to ongoing innovation and design enhancements to meet local and national codes and requirements. Contact us today to discuss a custom solution for your next project!
Detailed Specifications
| Specification | Details |
|---|---|
| Airflow Type | Crossflow |
| Material | 18-gauge galvanized steel |
| Filters | 20"x20" fiberglass exhaust filters |
| Lighting Options | LED or T8 four-tube fixtures (ETL listed) |
| Doors | Double-wall doors with filters; 1 personnel door |
| Fan Type | Tube axial fans with non-sparking blades |
| Motor Options | 3-phase and 1-phase motors; 208/230/460v compatibility |
| Optional Features | Tri-fold doors, powder coating, roof height extensions, insulated panels |
| Certifications | NFPA-33, ETL, OSHA |
| Warranty | 12-month warranty on manufacturing defects |
In Package
- Complete paint booth with crossflow design
- LED or T8 lighting fixtures (4-tube)
- 20"x20" fiberglass exhaust filters
- Double-wall filtered doors with observation windows
- Personnel access door
- Tube axial fans with motors (size varies by booth dimensions)
- Assembly instructions and wiring diagrams
- Detailed parts list and manuals
