PowerHouse Lithium

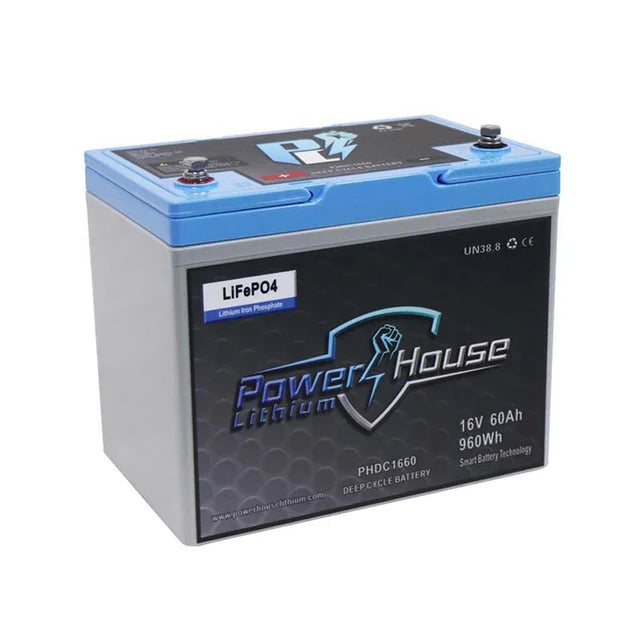

PowerHouse Lithium 16V 60Ah Deep Cycle Battery | Model PH1660 | 960Wh | For Marine Electronics

PowerHouse Lithium 16V 60Ah Deep Cycle Battery | Model PH1660 | 960Wh | For Marine Electronics

Regular price $599.99
Regular price Sale price $599.99
Sale Sold out
Customizable
Fast
24/7 Support
  • Battery Capacity: 16V, 60Ah, 960Wh lithium battery.
  • Dimensions: 10.23" L × 6.62" W × 8.26" H.
  • Weight: 20.9 lbs for lightweight marine installation.
  • Discharge Current: 40A continuous, 80A peak output.
  • Compatibility: Selected Garmin, Lowrance, Humminbird marine electronics and fish finders.
View full details

Product Description

PowerHouse Lithium 16V 60Ah Deep Cycle Battery | Model PH1660 | 960Wh | For Marine Electronics


DESCRIPTION

PowerHouse Lithium 16V 60Ah Deep Cycle Battery (Model PH1660) delivers reliable, dedicated power for marine electronics, fish finders, and sonar systems. Designed for enhanced signal clarity and performance, its advanced 16V lithium technology helps compatible devices operate up to 20% more efficiently compared to 12V systems, potentially extending runtime while reducing amperage draw and operating heat. With 960Wh energy capacity, this battery can power two fish finders and one additional device for approximately 10–16 hours, depending on equipment and usage. Integrated Bluetooth monitoring and a smart Battery Management System (BMS) allow convenient battery status monitoring and performance management through your smartphone. Featuring a compact Group 24 design, 40A continuous discharge, and 80A peak discharge, it is compatible with selected Garmin, Lowrance, and Humminbird marine electronics. An excellent dedicated power solution for anglers seeking dependable, efficient marine electronics performance.

Key Features

  • 16V Lithium Technology Delivers dedicated 16V power for compatible marine electronics, helping improve signal clarity, sonar returns, and overall system efficiency compared to conventional 12V setups.
  • 60Ah Deep Cycle Capacity Provides 60Ah of energy storage with 960Wh capacity, supporting extended operation of fish finders, sonar displays, and other compatible marine electronics.
  • Up to 20% More Efficiency Helps compatible marine electronics operate up to 20% more efficiently than 12V systems, potentially extending equipment runtime on a single charge.
  • 10–16 Hours Runtime Powers two fish finders and one additional compatible device for approximately 10–16 hours, depending on equipment specifications, power consumption, and operating conditions.
  • Bluetooth Battery Monitoring Features built-in Bluetooth connectivity for convenient battery monitoring through your smartphone, keeping important battery information accessible while on the water.
  • Smart Battery Management System Integrated smart BMS continuously monitors battery operation and manages performance to support reliable, optimized power delivery throughout your fishing trips.
  • Reduced Amperage Draw Operates compatible electronics with lower amperage draw compared to 12V configurations, helping reduce heat generation and supporting cooler-running equipment.
  • Enhanced Sonar Performance Supplies dedicated power to compatible fish finders and sonar electronics, helping deliver improved display clarity and signal returns.
  • 40A Continuous Discharge Supports a continuous discharge rate of 40A, providing consistent power delivery for compatible marine electronic equipment.
  • 80A Peak Discharge Capability Offers up to 80A peak discharge capability for handling higher short-duration power demands within the battery's operating specifications.
  • Group 24 Compatibility Features a compact Group 24 battery case measuring 10.23 x 6.62 x 8.26 inches, designed for installations requiring a compatible Group 24 battery tray.
  • Multiple Brand Compatibility Designed for selected Garmin, Lowrance, and Humminbird electronics, including compatible fish finders, chartplotters, and LiveScope sonar systems.
  • Advanced Temperature Protection Supports charging temperatures from 23°F to 140°F and discharge temperatures from -4°F to 149°F, providing defined operating temperature ranges.
  • Convenient Marine Installation Includes M8 terminal bolt connections and supports dedicated marine electronics installations. A compatible Group 24 tray is required; a suitable battery switching installation kit is needed for dual-source switching.
  • Lightweight Battery Design Weighs just 20.9 lb, offering a compact, lightweight deep-cycle power solution for marine electronics installations where space and battery weight matter.

Detailed Specifications

Specification Details
Brand PowerHouse Lithium
Product Name 16V 60Ah Deep Cycle Battery
Model PH1660
SKU PH1660
Battery Type Lithium Deep Cycle Battery
Nominal Voltage 16V
Voltage Range 15.3V–16.8V
Battery Capacity 60Ah
Energy Capacity 960Wh
Case Size Group 24
Dimensions (L x W x H) 10.23 x 6.62 x 8.26 inches
Weight 20.9 lb
Battery Management System Yes – Smart BMS
Bluetooth Connectivity Yes
Cell Type Cylindrical
Maximum Charge Current 40A
Continuous Discharge Current 40A
Peak Discharge Current 80A
Pack Charge Cutoff 18.25V
Pack Discharge Cutoff 12.5V
Terminal Bolt Size M8
Charging Temperature Range 23°F to 140°F
Discharging Temperature Range -4°F to 149°F
Estimated Runtime 10–16 hours (2 graphs + 1 additional device)
Compatible Brands Garmin, Lowrance, Humminbird
Required Battery Tray Group 24 Battery Tray
Application Marine Electronics, Fish Finders, Sonar Systems, Chartplotters
