PowerHouse Lithium

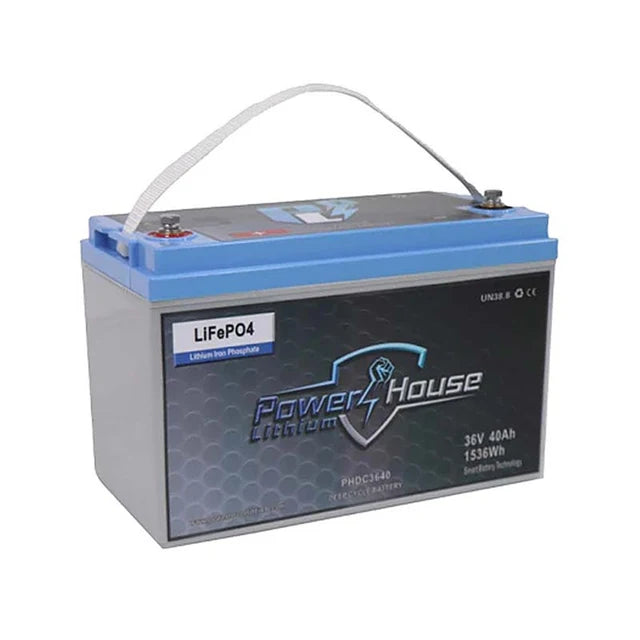

PowerHouse Lithium 36V 40Ah Deep Cycle Battery | Model PH3640 | 1536Wh | Trolling Motor

PowerHouse Lithium 36V 40Ah Deep Cycle Battery | Model PH3640 | 1536Wh | Trolling Motor

Regular price $974.99
Regular price Sale price $974.99
Sale Sold out
Customizable
Fast
24/7 Support
  • Battery Capacity: 36V, 40Ah, 1,536Wh.
  • Continuous Discharge: 60A, 120A peak output.
  • Dimensions: 13" L × 6.77" W × 8.46" H.
  • Battery Weight: 31.9 lbs, Group 31 case.
  • Compatibility: For 36V trolling motors and marine electronics.
View full details

Product Description

PowerHouse Lithium 36V 40Ah Deep Cycle Battery | Model PH3640 | 1536Wh | Trolling Motor


DESCRIPTION

Power your fishing adventures with the PowerHouse Lithium 36V 40Ah Deep Cycle Battery (Model PH3640), engineered for dependable performance and efficient energy storage. Featuring advanced Lithium Iron Phosphate (LiFePO4) technology, this lightweight 31.9 lb battery delivers 38.4V nominal voltage, 40Ah capacity, and 1,536Wh of energy for demanding 36V trolling motors. Its integrated Bluetooth-enabled Smart Battery Management System (BMS) continuously monitors battery performance, allowing convenient smartphone monitoring. With a 60A continuous discharge rate and 120A peak discharge capability, it provides reliable power for marine electronics and compatible equipment. Designed with a compact Group 31 case, M8 terminal bolts, and a maximum 40A charging current, this deep cycle lithium battery offers an efficient, modern alternative to traditional sealed lead-acid batteries. Upgrade your marine power system with lightweight, intelligent lithium performance.

Key Features

  • Advanced LiFePO4 Technology: Features Lithium Iron Phosphate chemistry for efficient, dependable deep-cycle power and improved energy performance.
  • 36V Deep Cycle Power: Delivers 38.4V nominal voltage for compatible 36V trolling motors and marine power applications.
  • 40Ah Energy Capacity: Provides 1,536Wh of stored energy to support power-hungry trolling motors and compatible equipment.
  • Bluetooth Smart Monitoring: Connect to the integrated Bluetooth system to conveniently monitor battery performance from your smartphone.
  • Intelligent Battery Management: Built-in Smart BMS continuously monitors battery operation and helps optimize performance.
  • 60A Continuous Discharge: Supports sustained power demands with a maximum continuous discharge rate of 60A.
  • 120A Peak Discharge: Delivers up to 120A peak discharge capability for demanding short-duration power requirements.
  • Lightweight 31.9 lb Design: Weighs just 31.9 lb, offering a more manageable marine power solution than comparable traditional lead-acid batteries.
  • Group 31 Compatibility: Features a Group 31 case format and requires a compatible Group 31 battery tray.
  • Compact Battery Dimensions: Measures 13 x 6.77 x 8.46 inches for convenient installation in compatible battery compartments.
  • 40A Maximum Charging: Supports a maximum charging current of 40A for efficient battery replenishment with compatible charging equipment.
  • Wide Voltage Operating Range: Features a 30V–43.8V voltage range for dependable operation within specified battery limits.
  • Durable Cylindrical Cells: Uses cylindrical lithium battery cells designed for consistent energy delivery.
  • Temperature-Controlled Operation: Supports charging temperatures from 23°F to 140°F and discharging temperatures from -4°F to 149°F.
  • Marine Electronics Applications: Suitable for compatible 36V trolling motor systems and marine power setups requiring a dedicated deep-cycle battery.

Detailed Specifications

Specification Details
Brand Power House Lithium
Product Name 36V 40Ah Deep Cycle Battery
Model PH3640
SKU PH3640
Battery Type Deep Cycle Lithium Battery
Battery Chemistry Lithium Iron Phosphate (LiFePO4)
Nominal Voltage 38.4V
Voltage Range 30V–43.8V
Battery Capacity 40Ah
Energy Capacity 1,536Wh
Battery Management System Yes
Bluetooth Connectivity Yes
Continuous Discharge Current 60A
Peak Discharge Current 120A
Maximum Charge Current 40A
Pack Charge Cutoff 43.8V
Pack Discharge Cutoff 30V
Charging Temperature Range 23°F to 140°F
Discharging Temperature Range -4°F to 149°F
Battery Dimensions (L x W x H) 13 x 6.77 x 8.46 inches
Weight 31.9 lb
Case Size Group 31
Terminal Bolt Size M8
Cell Type Cylindrical
Recommended Application 36V Trolling Motors and Marine Electronics
Battery Tray Requirement Group 31 Tray Required
