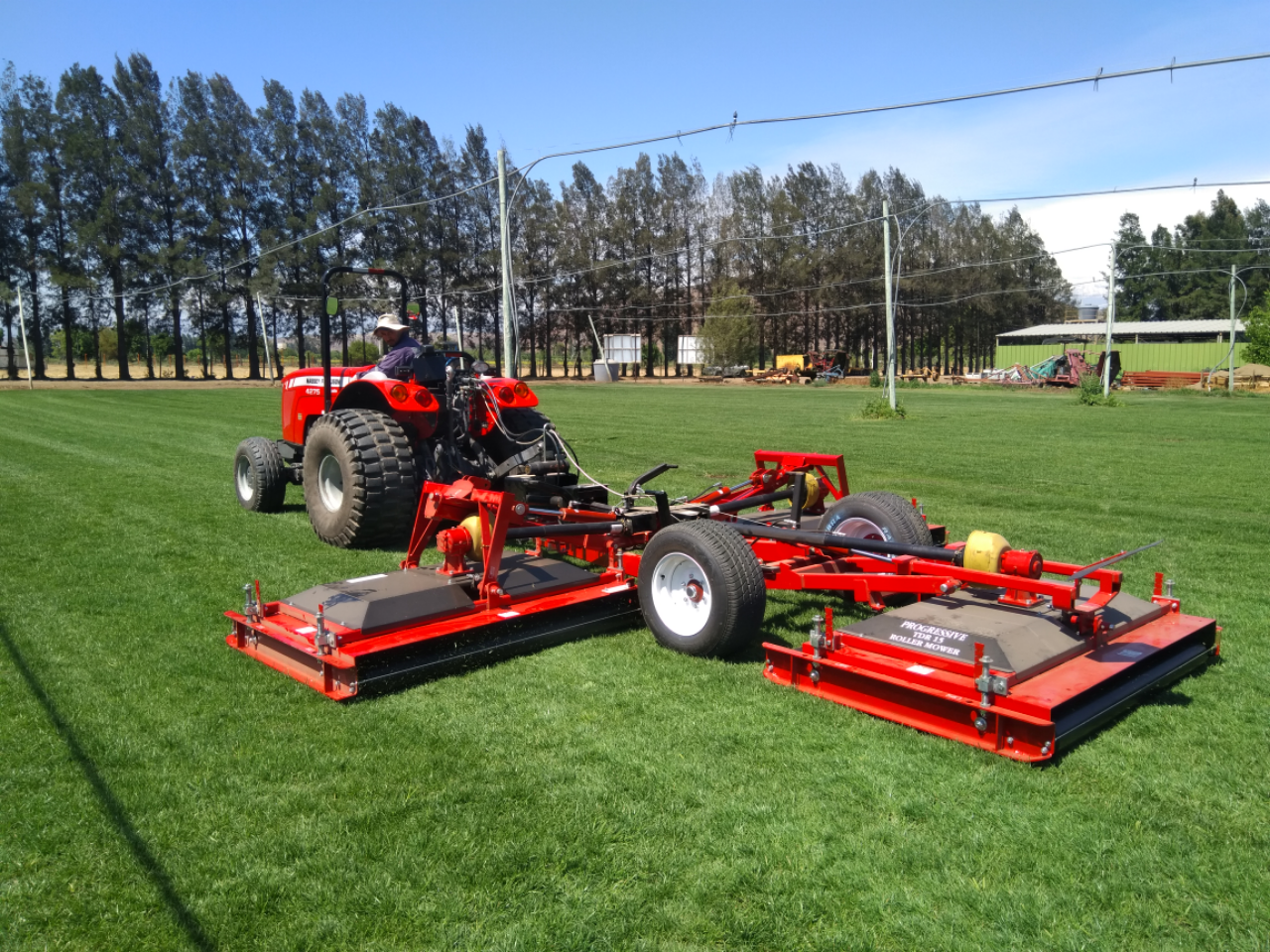

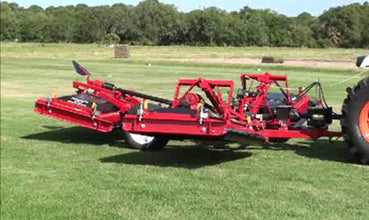

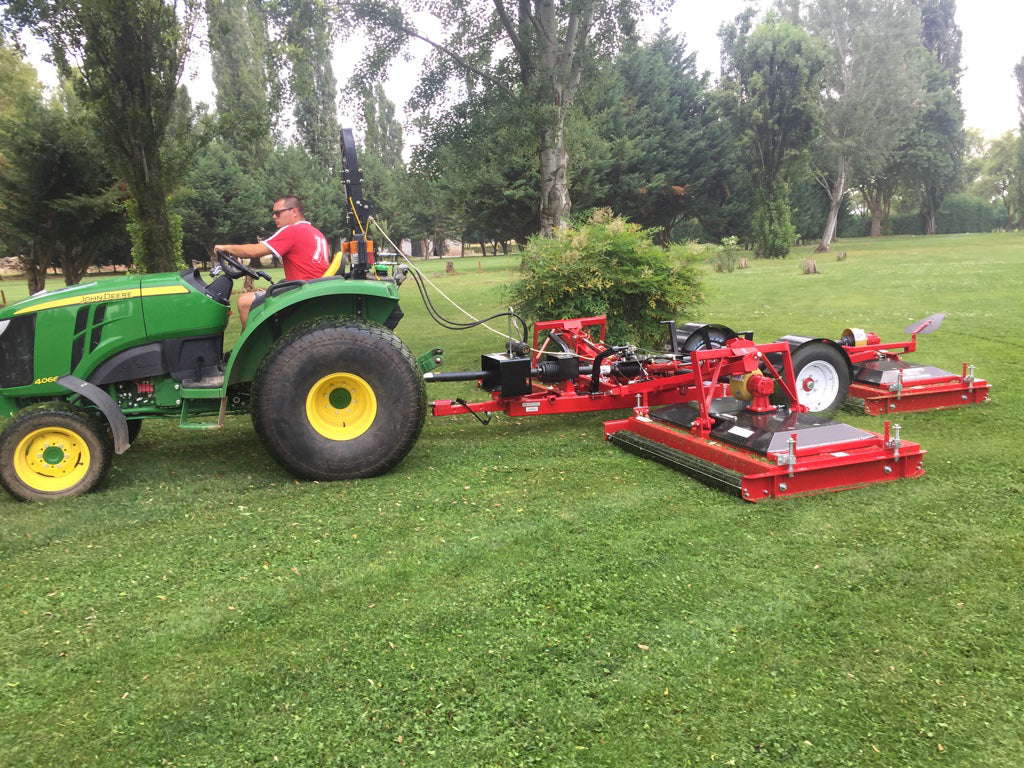

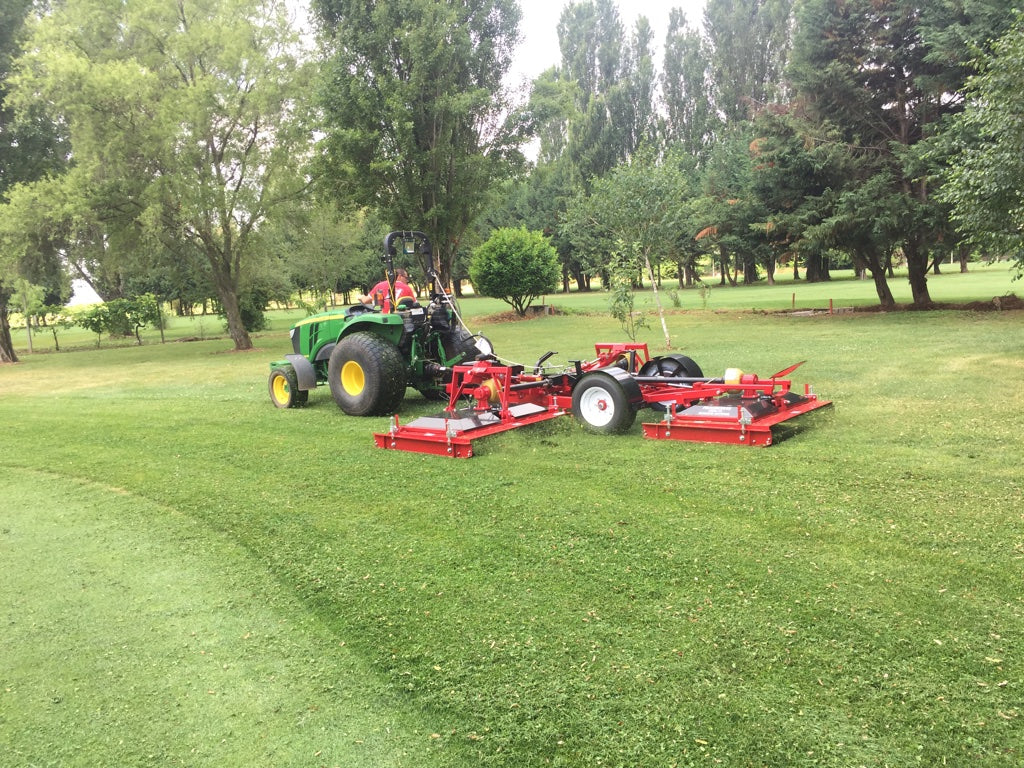

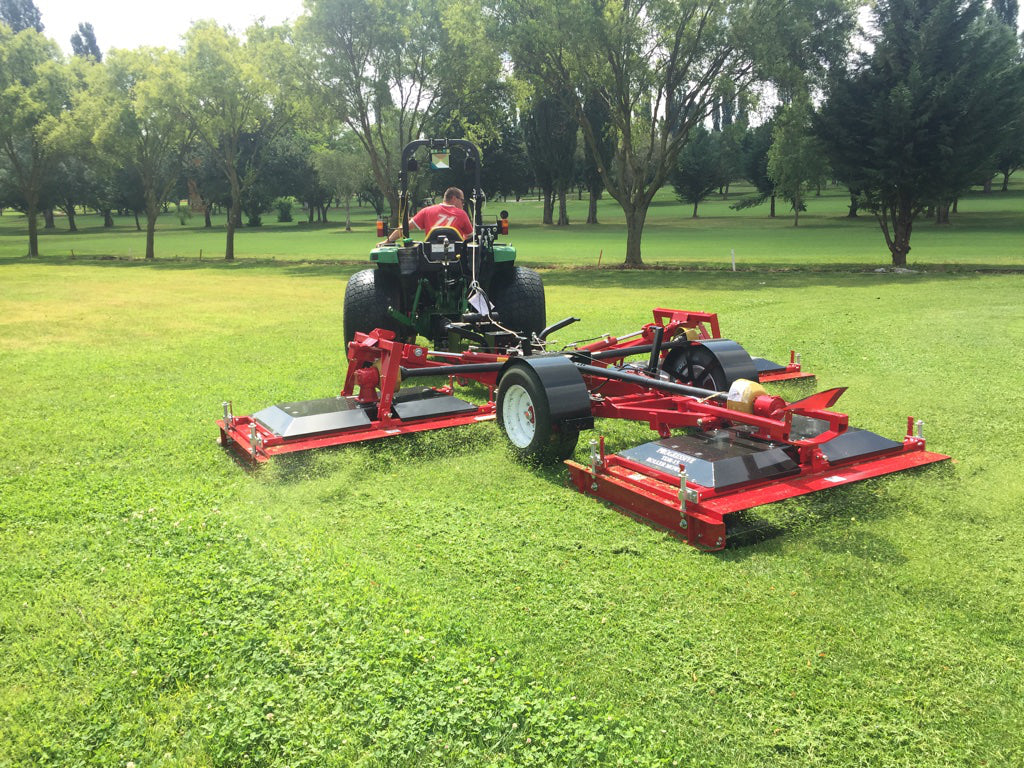

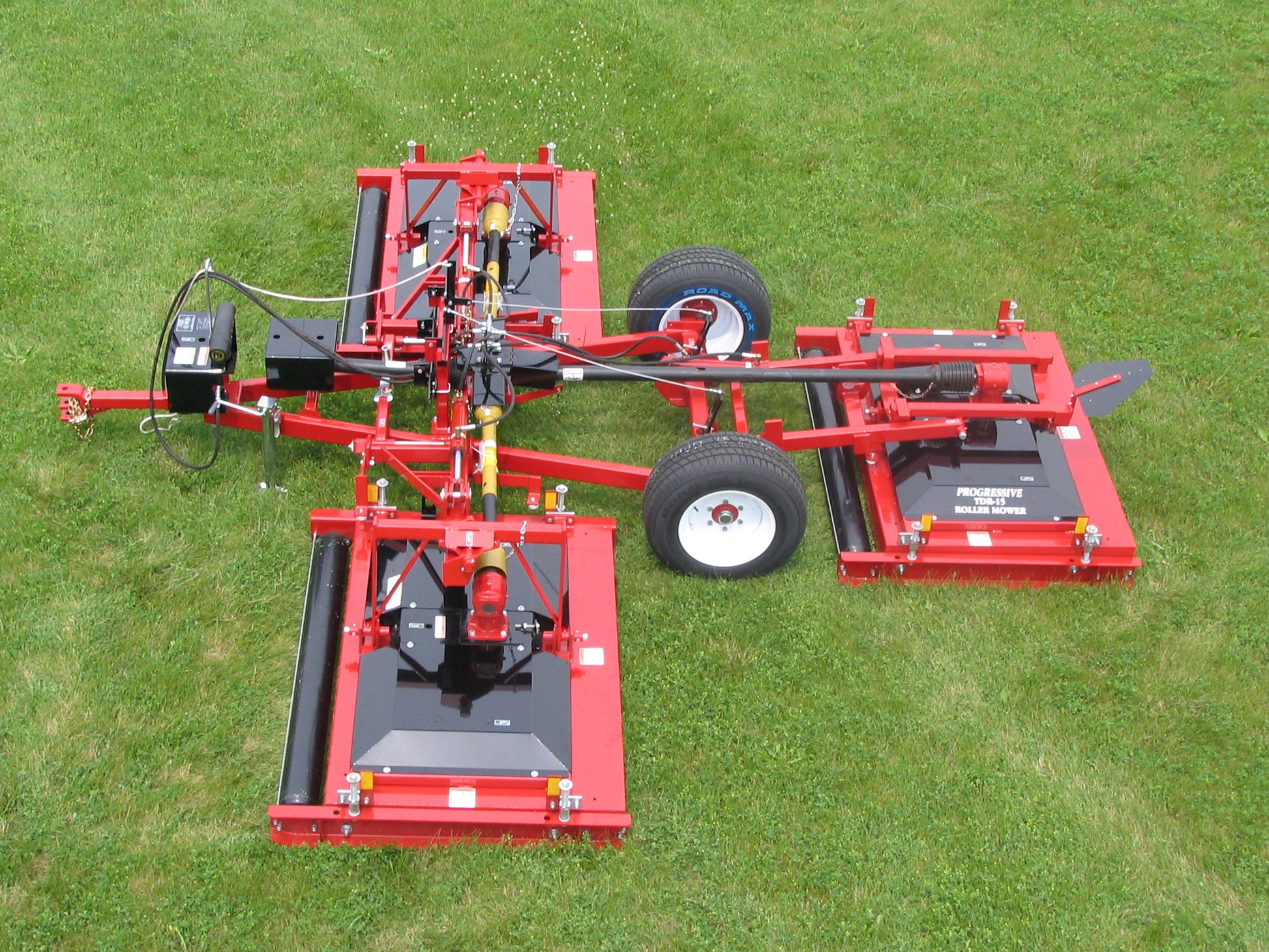

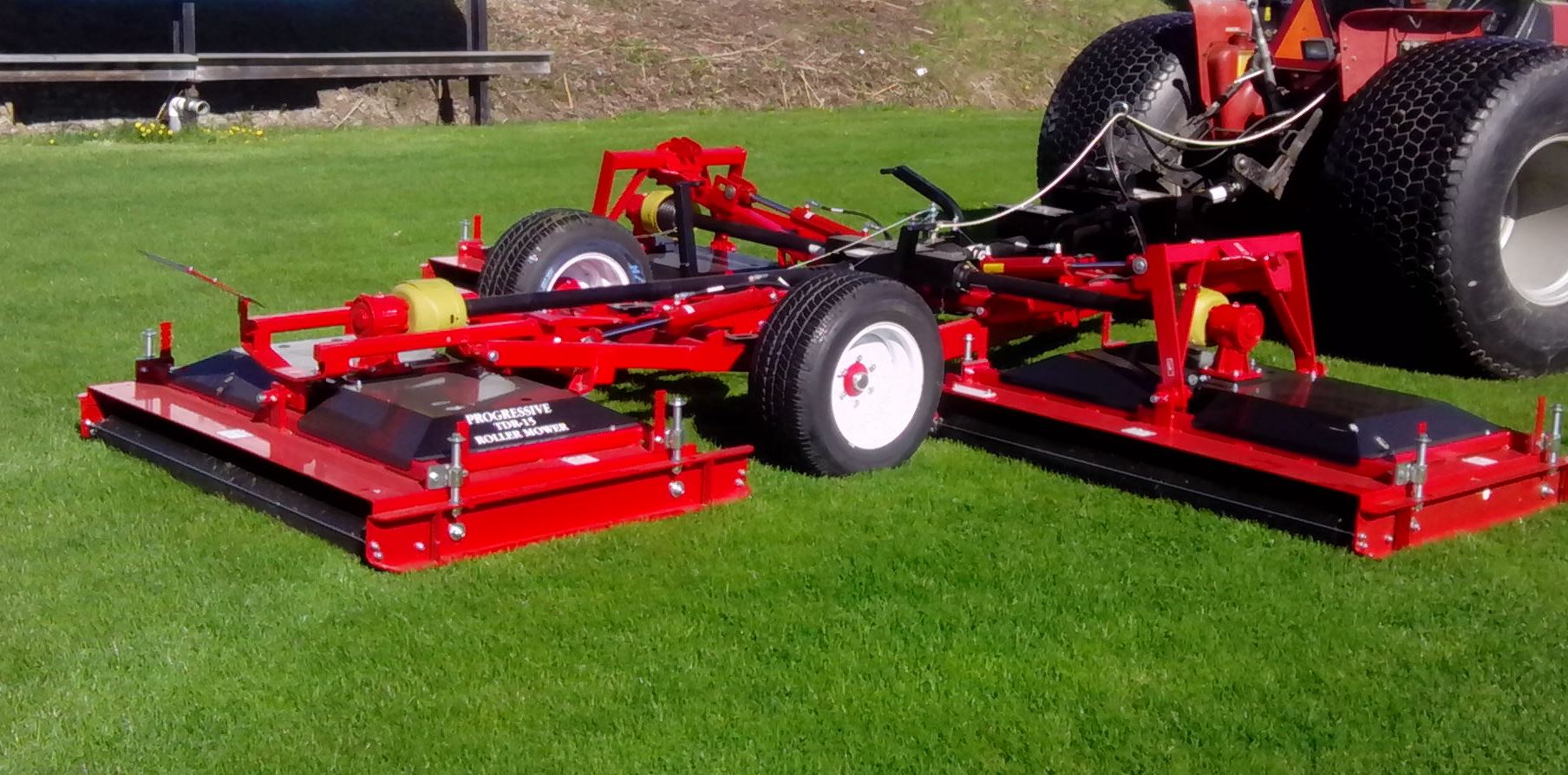

Progressive Turf Equipment Inc. Tri-Deck Roller Finishing Mower | Model TDR-15 | Cutting Width 15' 6" | 30–50 HP | For Tractors
DESCRIPTION
The Progressive Turf Equipment Inc. TDR-15 Tri-Deck Roller Finishing Mower is a premium 15' 6" tri-deck finishing mower engineered to deliver exceptional cut quality, superior striping, and maximum productivity for natural grass producers, sod farms, sports fields, parks, golf facilities, and large commercial properties. Designed for tractors with 30–50 PTO horsepower, the TDR-15 combines high-lift rotary blades, full-width rear rollers, and three independently floating decks to produce a clean, uniform finish in both wet and dry conditions. Its exclusive Pro Lift-N-Turn™ system allows operators to lift the decks during turns while keeping the PTO engaged, reducing turf damage and improving efficiency. Featuring maintenance-free blade spindles, 100-hour greasing intervals, an easy-to-use ½" to 4" cutting height adjustment system, and a CV PTO driveline, this heavy-duty finishing mower minimizes downtime while maximizing performance. Built for durability, precision, and ease of maintenance, the TDR-15 delivers professional-quality mowing results with reliable performance season after season.
Key Features
- 15' 6" Wide Cutting Deck delivers exceptional productivity by covering large mowing areas quickly, reducing operating time while producing a consistent, professional-quality finish.
- Exclusive Pro Lift-N-Turn™ System allows the mower decks to lift slightly during turns while the PTO remains engaged, minimizing turf scuffing and improving maneuverability without driveline damage.
- 30–50 PTO Horsepower Compatibility makes the TDR-15 an ideal finishing mower for compact and utility tractors used by municipalities, sod farms, sports complexes, and commercial landscapers.

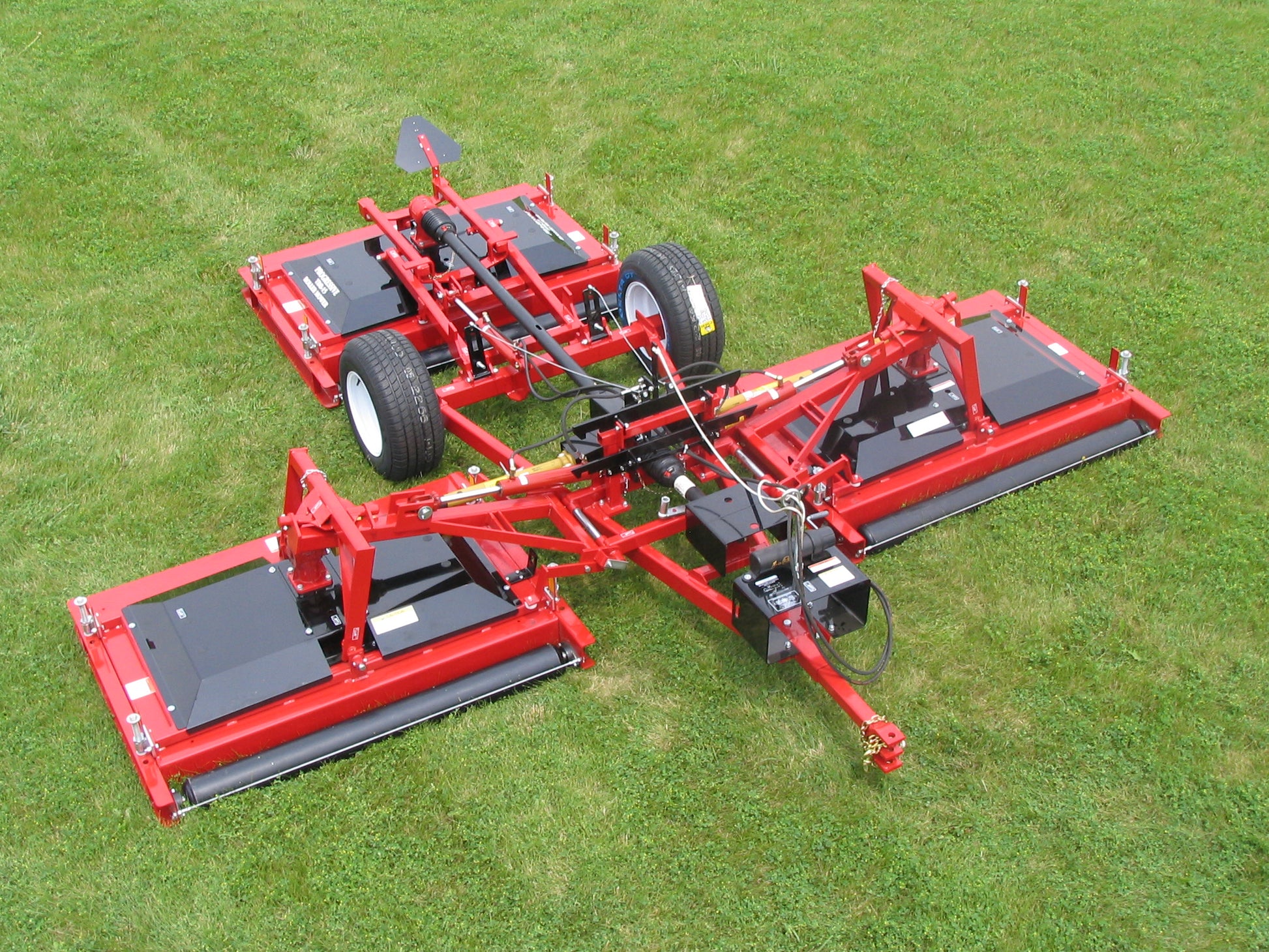

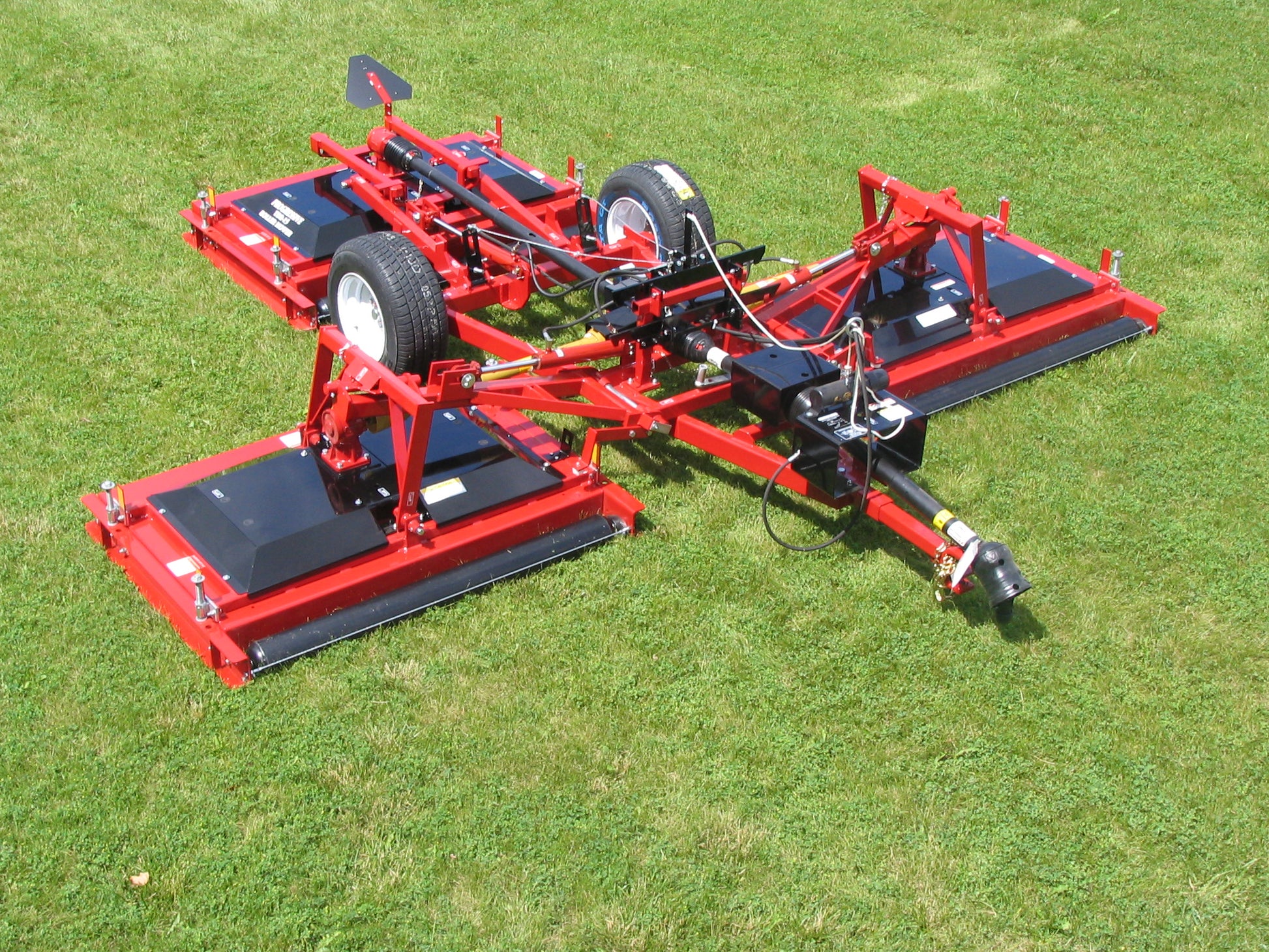

- Three Independently Floating Decks follow ground contours for an even, precision cut across uneven terrain while reducing scalping and maintaining superior turf appearance.
- Adjustable ½"–4" Cutting Height provides quick, accurate height adjustments using a convenient onboard tool, allowing operators to adapt to various mowing applications.
- High-Lift Rotary Blade System generates over 18,287 FPM blade tip speed to lift grass upright for cleaner cutting, improved airflow, and even clipping distribution.
- Full-Width Rear Rollers enhance striping while promoting improved root-to-soil contact and helping retain moisture for healthier turf growth.
- Maintenance-Free Blade Spindles feature sealed bearings with advanced steel seals that keep contaminants out and lubrication in for extended service life.
- 100-Hour Greasing Intervals reduce maintenance requirements, maximize uptime, and improve productivity during demanding mowing schedules.
- Constant Velocity PTO Driveline simplifies tractor hookup by accommodating minor drawbar variations, reducing setup time between different tractors.
- Heavy-Duty Steel Construction provides exceptional durability for continuous commercial mowing operations in challenging field conditions.
- Open Rear Discharge Design evenly disperses grass clippings across the rollers, minimizing clumping while producing a cleaner, healthier finished appearance.
- 6-Inch Diameter Full-Length Rollers create highly defined striping patterns while protecting the mower and improving cutting consistency over varying terrain.

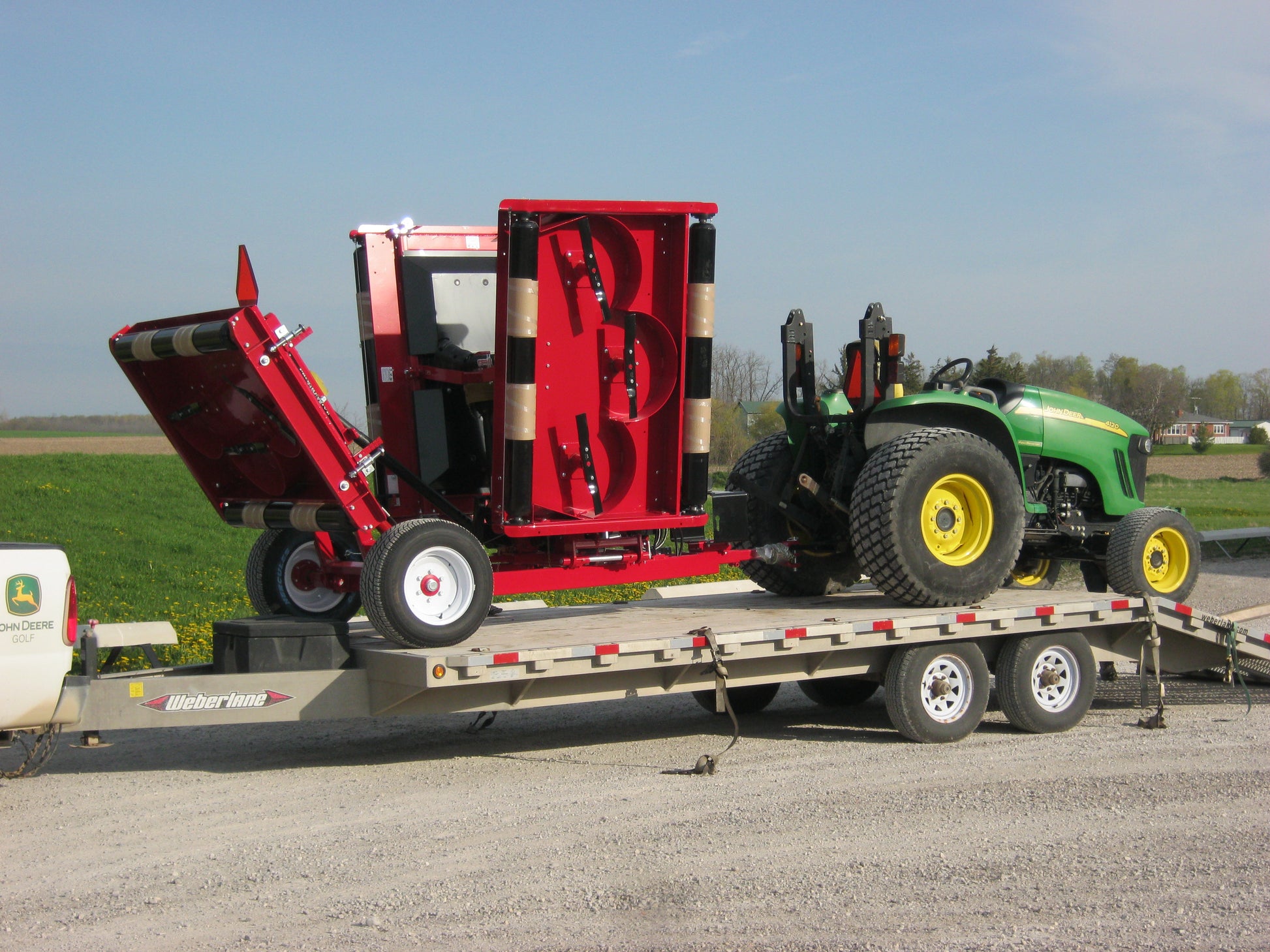

- Commercial-Grade Transport Configuration features automotive radial transport tires and a compact transport width for convenient movement between job sites.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | Progressive Turf Equipment Inc. |
| Model | TDR-15 |
| Product Type | Tri-Deck Roller Finishing Mower |
| Part Number | 528750B (North America) / 528750D (Worldwide) |
| Machine Compatibility | Compact & Utility Tractors |
| Recommended PTO Horsepower | 30–50 HP |
| Cutting Width | 15' 6" |
| Cut Height Range | ½"–4" |
| Deck Configuration | Three Independently Floating Decks |
| Blade Type | High-Lift Rotary Blades |
| Blade Quantity | 9 Heat-Treated High-Lift Blades |
| Blade Tip Speed | 18,287 FPM |
| Roller Diameter | 6" Solid Full-Length Rollers |
| Spindle Type | Maintenance-Free Sealed Blade Spindles |
| Greasing Interval | 100 Hours |
| PTO System | Constant Velocity (CV) Input PTO |
| Discharge Style | Open Rear Discharge |
| Transport Width | 97" |
| Transport Height | 7' 10" |
| Transport Tires | P275/60 R15 Automotive Radials |
| Operating Weight | 3,725 lbs |
| Mowing Capacity @ 2 MPH | 3.75 Acres/Hour |
| Mowing Capacity @ 4 MPH | 7.5 Acres/Hour |
| Mowing Capacity @ 6 MPH | 11.3 Acres/Hour |
| Standard Features | Heavy-duty construction, Pro Lift-N-Turn™, easy height adjustment, full-width rollers, maintenance-free spindles, CV PTO system, high-lift blades |
| Optional Accessories | Fender Kit (528153), High Lift Blade Kit (522603) |
Manuals & Documents
- TDR-15 Operator’s/Parts Manual – Serial #0767001 To #0867037
- TDR-15 Operator’s/Parts Manual – Serial #0915001 To #1315120
- TDR-15 Operator’s/Parts Manual – Serial #1315121 To Current
- Product Brochure 1
- Product Brochure 2
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

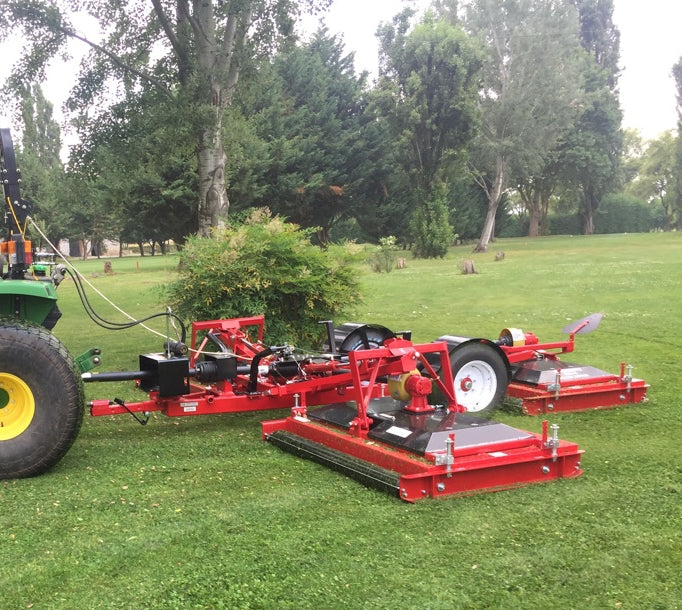

Videos
