Product Description

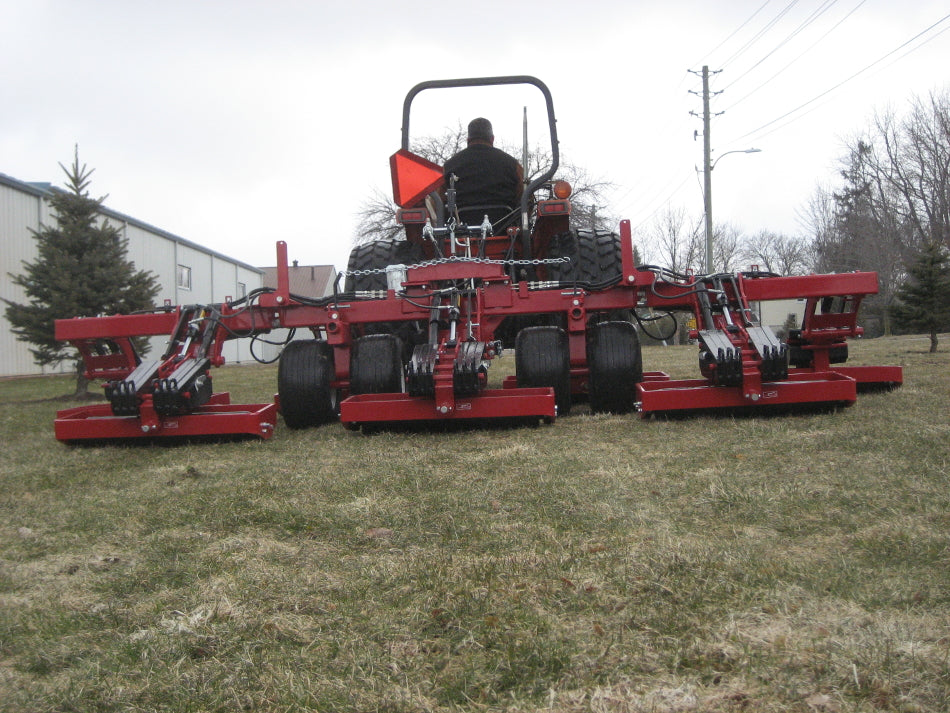

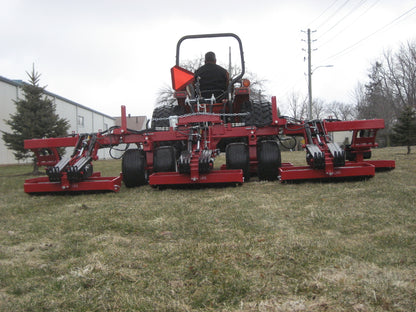

Progressive Turf Equipment Inc. Wide-Area Contour Roller | Model Pro-Roll 15 | Working Width 15' | 30 To 70+ HP | For Tractor & Utility Vehicle
DESCRIPTION
The Progressive Turf Equipment Inc. Pro-Roll 15 Wide-Area Contour Roller is engineered to deliver professional turf compaction, superior contour following, and exceptional performance across golf courses, sports fields, parks, campuses, and commercial landscapes. Featuring a 15' working width and seven independently floating roller assemblies, the Pro-Roll 15 provides consistent ground pressure over uneven terrain while protecting delicate turf. Its exclusive Pro Lift-N-Turn™ system allows operators to make tight turns without scuffing the surface, improving efficiency and productivity. Adjustable solid ballast weights enable precise ground pressure settings from 5.8 to 11.6 PSI, eliminating inconsistencies common with water-ballast systems. The hydraulically folding wings reduce transport width for easy storage and movement, while compatibility with compact tractors and utility vehicles makes operation simple and versatile. Horsepower 30-70+ HP. Designed for durability with heavy-wall steel rollers, oversized maintenance-free bearings, and rugged construction, the Pro-Roll 15 is the ideal solution for maintaining premium-quality turf with reduced mowing frequency, improved surface smoothness, and enhanced playing conditions.
Key Features
- 15' Wide Working Coverage increases productivity by covering large turf areas quickly, making it ideal for golf courses, sports complexes, parks, sod farms, and commercial landscapes.
- Seven Independent Floating Rollers automatically follow ground contours to deliver uniform compaction across uneven terrain while preventing inconsistent pressure and turf damage.
- Exclusive Pro Lift-N-Turn™ System allows sharp turns without scuffing grass, helping operators maneuver easily around bunkers, hazards, athletic fields, and landscape obstacles.

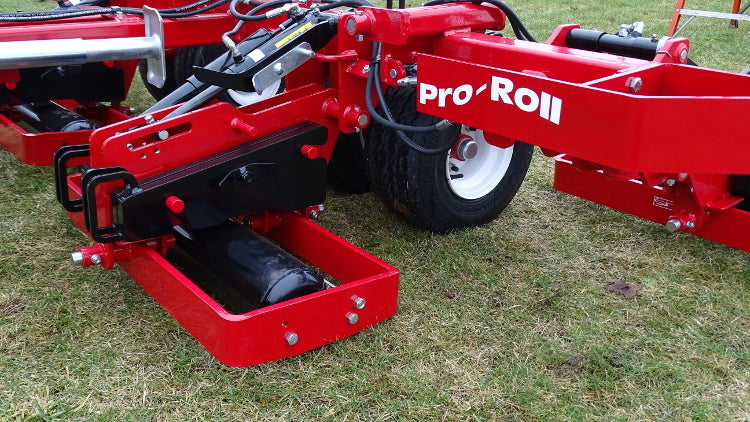

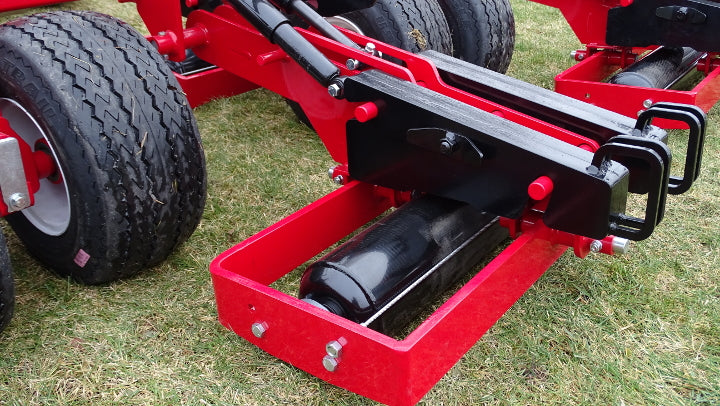

- Adjustable Solid Ballast System provides precise compaction control from 5.8 PSI to 11.6 PSI by simply adding or removing 30 lb ballast weights without specialized tools.
- Consistent Ground Pressure ensures every roller applies equal compaction regardless of terrain, producing professional-quality turf conditions throughout the entire working width.

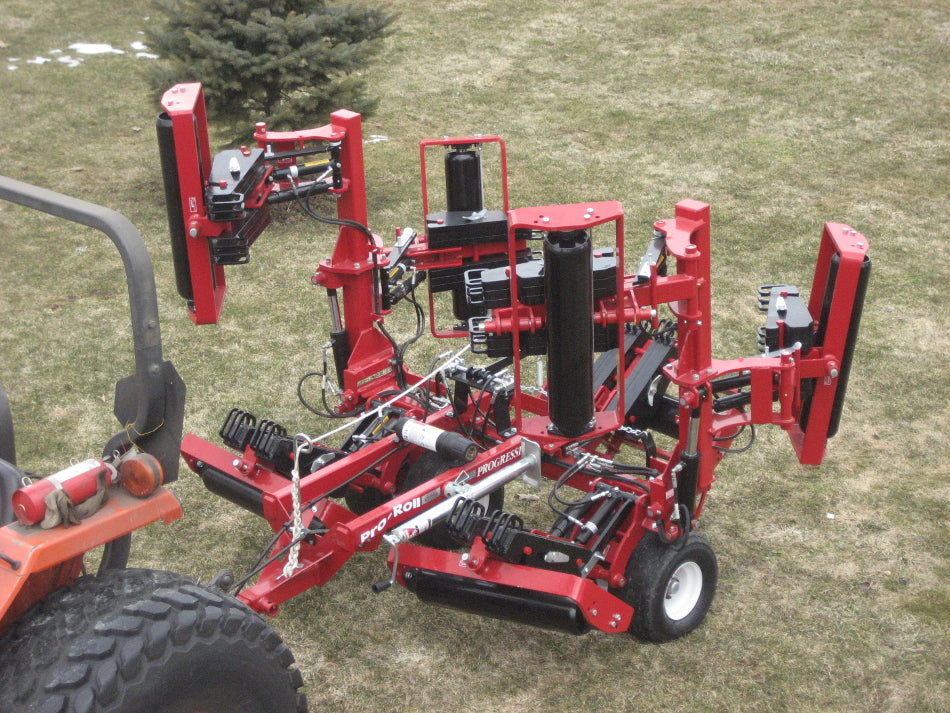

- Hydraulic Folding Wings reduce transport width to just 7'11", allowing easy movement through gates, maintenance buildings, storage facilities, and narrow pathways.

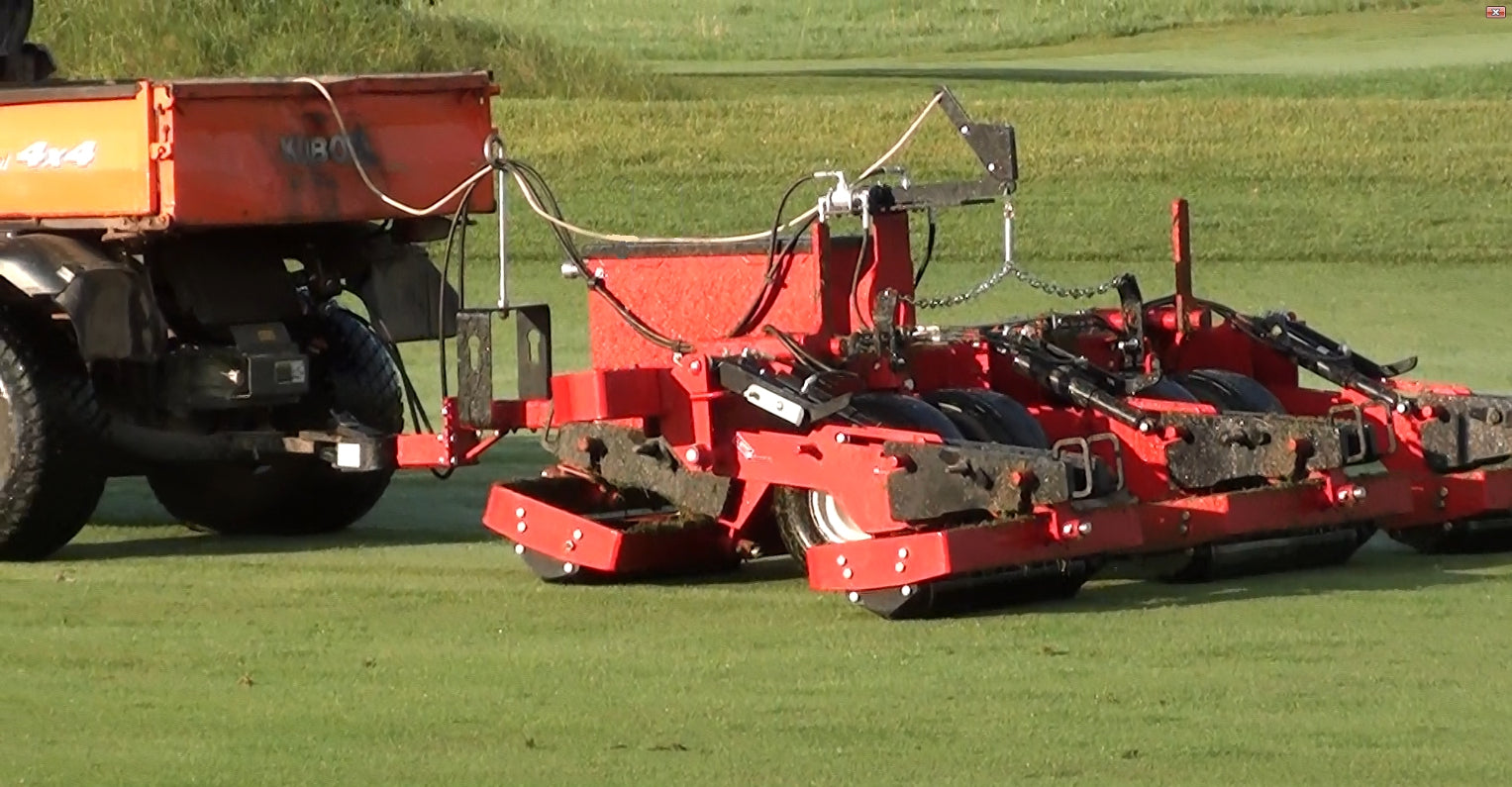

- Compact Tractor Compatibility works efficiently with compact tractors and numerous utility vehicles using a standard 2" ball hitch or optional 4-way swivel hitch. Horsepower 30-70+ HP.

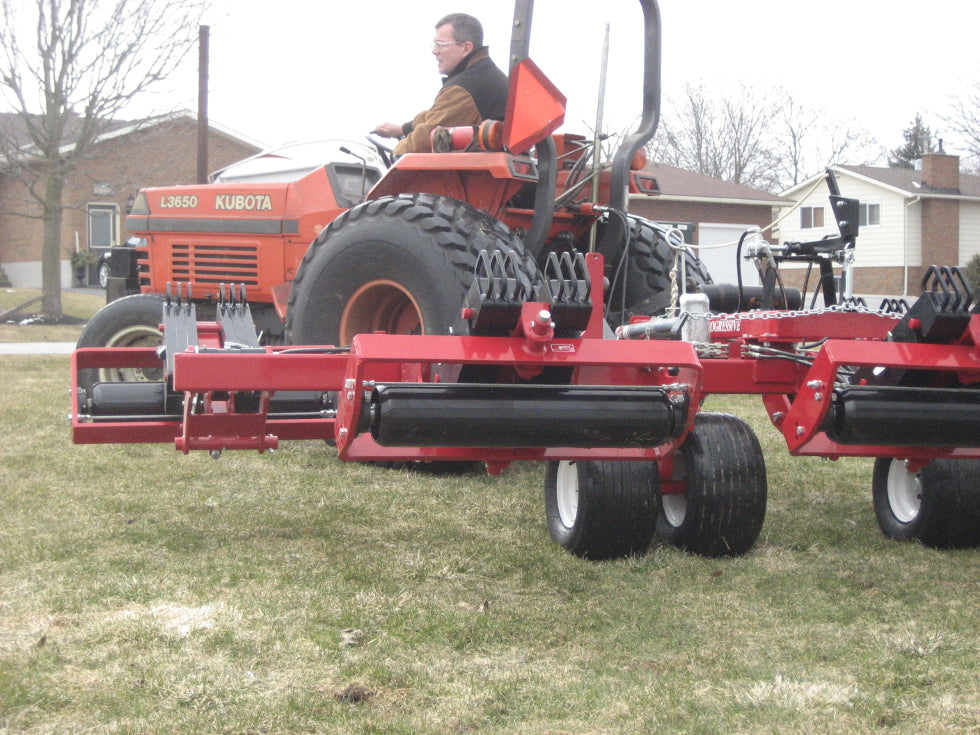

- Heavy-Duty Steel Rollers feature 6" diameter heavy-wall construction with rounded ends that protect turf while providing exceptional durability and long service life.
- Maintenance-Free Bearings utilize oversized flanged bearings that reduce maintenance requirements while delivering smooth, dependable roller performance season after season.
- Four Wide Flotation Tires evenly distribute transport weight, minimizing ground disturbance during transport while protecting finished turf surfaces.

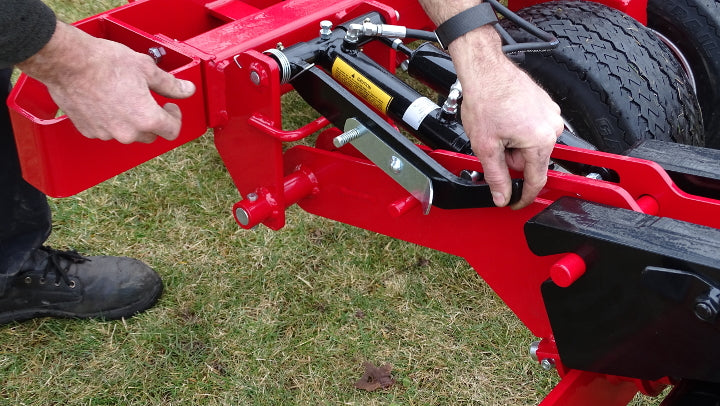

- Mechanical Roller Locks securely hold roller assemblies during transport, improving operator safety and ensuring stable transportation between job sites.
- No Water Ballast Required eliminates filling, draining, freezing concerns, and hydraulic down-pressure systems while maintaining accurate, repeatable compaction levels.
- Built for Professional Turf Management helps reduce mowing frequency, minimize disease pressure, improve playing surfaces, and enhance overall turf appearance.
- Durable Commercial Construction incorporates replaceable bushings, heavy-duty pivot points, shock absorbers, and reinforced frames for reliable long-term operation.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | Progressive Turf Equipment Inc. |
| Product Name | Pro-Roll 15 Wide-Area Contour Roller |
| Model | 670168 |
| Machine Compatibility | Compact Tractors & Utility Vehicles |
| Working Width | 15' |
| Number of Rollers | 7 Independent Floating Roller Assemblies |
| Roller Size | 6" Diameter × 26" Heavy-Wall Steel Rollers |
| Weight (Without Ballast) | 1,910 lbs |
| Weight (With Six Ballast Weights per Roller) | 3,170 lbs |
| Ground Pressure (No Ballast) | 5.8 PSI |
| Ground Pressure (2 Weights per Roller) | 7.7 PSI |
| Ground Pressure (4 Weights per Roller) | 9.7 PSI |
| Ground Pressure (6 Weights per Roller) | 11.6 PSI |
| Horsepower | 30-70+ HP |
| Ballast Type | Removable 30 lb Solid Steel Suitcase Weights |
| Standard Ballast | Four 30 lb Weights Per Roller Assembly |
| Maximum Ballast Capacity | Six 30 lb Weights Per Roller Assembly |
| Production Capacity @ 4 mph | 7.3 Acres/Hour |
| Production Capacity @ 6 mph | 11 Acres/Hour |
| Production Capacity @ 8 mph | 14.5 Acres/Hour |
| Transport Width | 7'11" |
| Transport Height | 6'11" |
| Transport Length | 9'9" |
| Transport Tires | Four 18.5 × 8.5-8, 4-Ply Flotation Tires |
| Standard Hitch | Adjustable 2" Ball Hitch |
| Optional Hitch | 4-Way Swivel Clevis Hitch |
| Hydraulic Functions | Hydraulic Folding Wings with Mechanical Transport Locks |
| Turning System | Pro Lift-N-Turn™ |
| Roller Bearings | Oversized Maintenance-Free Flanged Bearings |
| Frame Construction | Heavy-Duty Wrap-Around Steel Roller Frames |
| Shock Absorbers | Standard on Each Roller Assembly |
| Deck Locks | Mechanical Lift Arm Locks |
| Primary Applications | Golf Courses, Sports Fields, Fairways, Parks, Campuses, Commercial Turf, Sod Farms |
