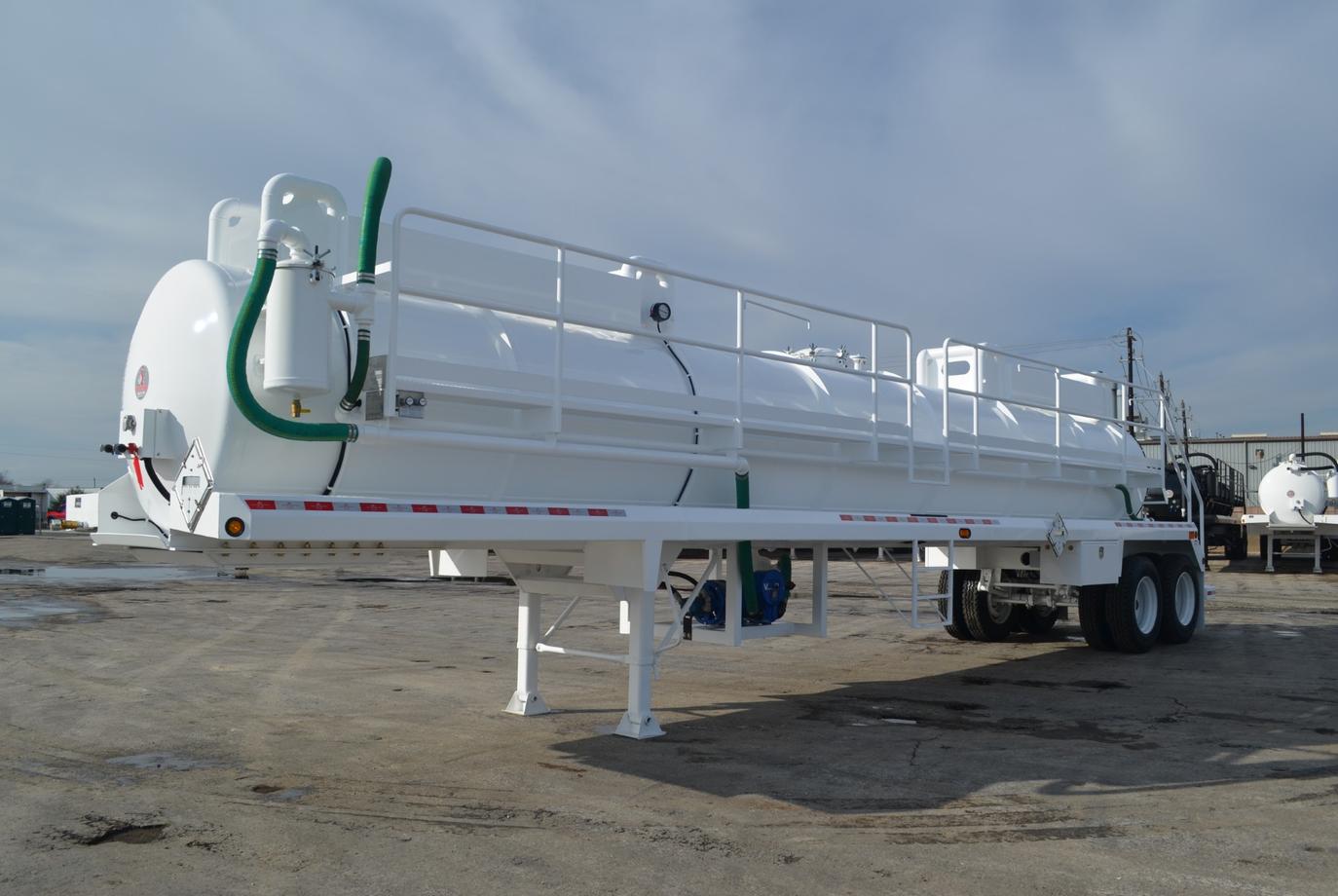

Ranco Heavy-Duty Vacuum Tank Trailer | Model 130 BBL Vac | Capacity 5460 Gallons | USED

Product Description

Ranco Heavy-Duty Vacuum Tank Trailer | Model 130 BBL Vac | Capacity 5460 Gallons | USED

Ripping It is Partnered with Western Truck to provide the best pricing and service for Ranco.

DESCRIPTION

The Ranco 130 BBL Vac is a heavy-duty vacuum tank trailer engineered for oilfield fluid transport and containment. With a 5460-gallon capacity (plus 2%) and a single-compartment design, it’s built to handle unspecified oilfield fluids under demanding conditions. Constructed with a ¼" plate shell and ASME-shaped heads, the tank is reinforced with external stiffener rings and internal baffles for structural integrity. Equipped with dual 4" butterfly valves, multiple manways, and a wedge sump, it ensures efficient loading, unloading, and cleanout. The trailer rides on dual 22,500 lb axles with spring suspension and features full DOT lighting, a driver-side walkway, and a chemical-resistant epoxy-lined interior for long-term durability.

Key Features

• USED & Reliable: Tested durability for heavy-duty performance.
• 5460-Gallon Capacity (130 BBL) + 2% Overfill Single-compartment tank optimized for oilfield fluid transport; compliant with hydrostatic test pressure of 23 PSIG.
• ¼" Plate Shell with ASME-Style Heads Built from ¼" steel with internal root and external submerged-arc welds; reinforced with 3/8" x 2½" rolled stiffener rings.
• Dual Internal Baffles with Reinforcement Rings Two flat flanged and dished baffles reduce surge and enhance structural stability during transit.
• Pressure & Vacuum Relief System Includes 1½" vacuum relief, 2" pressure relief (top front), and 2" rear blowdown line for safe operation.
• Five Domed Manways with Swing Bolts Four top-mounted and one rear manway (21") for easy access, inspection, and maintenance.
• Dual 4" Rear Butterfly Valves with Wedge Sump Efficient discharge system with ball-type shutoffs and 12-gallon secondary drain tank on driver’s side.
• Sight Glass System with Cleanout Tees 2" fittings on both heads and a 1½" rear sight tube with top/bottom ball valves and cleanout access.
• Spring Suspension with Dual 22,500 lb Axles 8-leaf low-arch springs and outboard drums; 16½" x 7" brakes with ABS and auto slack adjusters.
• Heavy-Duty Landing Gear & Adjustable Coupler Two-speed landing legs and bolt-on upper coupler for flexible tractor compatibility.
• Full DOT Lighting & Rear Work Lights Sealed harness with junction box, dual rear work lights with integral switches, and anti-sail mud flaps.
• Driver-Side Walkway with Handrails & Ladder Formed supports and safety features for secure top access and inspection.
• Chemical-Resistant Interior Liner 100% solids epoxy liner (10–15 mil DFT); exterior coated with high-build epoxy primer and polyurethane topcoat.
• Steel Disc Wheels with 11.00 x 24.5 Radials 10-hole hub-piloted wheels for durability and load support in off-road and oilfield conditions.
• Integrated Tool Box 18" x 18" x 36" sealed storage box mounted on driver’s side for hose and tool storage.
