Rankin

Rankin Drag Scrapers/ Box Blade RDS Models 8', 10', and 12 |84" Working Width | 175 HP For Tractor

Rankin Drag Scrapers/ Box Blade RDS Models 8', 10', and 12 |84" Working Width | 175 HP For Tractor

Regular price $8,927.00
Regular price Sale price $8,927.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Working Width: 84″ — Wide coverage for efficient soil leveling and material redistribution
  • Horsepower Requirement: 175 HP — Compatible with high-powered tractors for heavy-duty performance
  • Heavy-Duty Construction: 1/4" thick moldboard and 1/2” x 6” reversible bolt-on cutting edge for durability.
  • Replaceable Skid Shoes: 3/8" x 2-1/2" skid shoes for added protection and easy maintenance.
  • Multiple Sizes Available: Offered in 8 ft, 10 ft, and 12 ft working widths to suit various land leveling and material handling needs.
View full details

Product Description

Rankin Drag Scrapers/ Box Blade RDS  Models  8', 10', and 12 |84" Working Width | 175 HP For Tractor

Included Options:

  • 8 ft Model (RAN-DS-8): Perfect for smaller tasks, offering versatility and efficiency for lower horsepower tractors.
  • 10 ft Model (RAN-DS-10): Ideal for medium to large tractors, providing increased capacity for earthmoving tasks.
  • 12 ft Model (RAN-DS-12): Built for the most demanding jobs, offering maximum capacity and efficiency for larger tractors.

DESCRIPTION

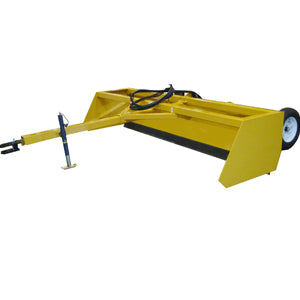

The Rankin RDS Series Drag Scrapers are designed for large-scale land leveling, excavation, and material spreading tasks. Built for tough, heavy-duty applications, these drag scrapers are ideal for tractors with up to 175 horsepower, making them suitable for both agricultural and construction projects. Available in three sizes (8, 10, and 12 feet), these scrapers are equipped with robust features such as a 4" x 4" x 3/8" swivel tongue, 1/4" thick moldboard, and 1/2” x 6” reversible, bolt-on cutting edge. The tilt axle system, reinforced side plates, and greaseable pins ensure durability and performance in even the most challenging conditions.

With replaceable skid shoes and the option to add tires to the 15" wheels, the RDS Series Drag Scrapers offer customizable solutions for efficient earthmoving, leveling, and material handling tasks. These scrapers are an excellent choice for professionals in need of reliable, high-capacity equipment.

Key Features

  • Heavy-Duty Construction: 1/4" thick moldboard and 1/2” x 6” reversible, bolt-on cutting edge for durability and long-lasting use.
  • Efficient Material Handling: Available in 8, 10, and 12-foot working widths, ideal for large-scale land leveling and material spreading tasks.
  • Tilt Axle System: Standard tilt axle allows for precise control of the blade’s angle, improving leveling accuracy.
  • Durable Design: Features a 4" x 4" square axle with hardened, greaseable pins and 3/8" side plates for enhanced strength and longevity.
  • Replaceable Skid Shoes: Equipped with 3/8" x 2-1/2" replaceable skid shoes for added protection and easy maintenance.
  • Hydraulic Lift & Tilt System: Requires two 3" x 8" double-acting hydraulic cylinders (sold separately) for easy adjustment of lift and tilt functions

Detailed Specifications

Rankin Box Scraper Model Specifications

Specification 8 ft Model (RAN-DS-8)
SKU RAN-DS-8
Weight 1625 lbs
Horsepower Recommended 75 HP Minimum (55.9 KW)
Capacity, Maximum 2-1/2 Cubic Yard
Overall Width 84" (7 Feet; 213 cm)
Working Width 84" (7 Feet; 213 cm)
Axle 4" x 4" Square Axle
Moldboard 1/4" Thick Moldboard
Cutting Edge 1/2” x 6” Bolt-On / Reversible
Skid Shoes 3/8" x 2-1/2" Replaceable
Color Yellow
Hydraulic Cylinders Optional (Sold Separately)



Specification 10 ft Model (RAN-DS-10)
SKU RAN-DS-10
Weight 1825 lbs
Horsepower Recommended Up to 175 HP (130.5 KW)
Capacity, Maximum 3-1/8 Cubic Yard
Overall Width 120" (10 Feet; 305 cm)
Working Width 120" (10 Feet; 305 cm)
Axle 4" x 4" Square Axle
Moldboard 1/4" Thick Moldboard
Cutting Edge 1/2” x 6” Bolt-On / Reversible
Skid Shoes 3/8" x 2-1/2" Replaceable
Color Yellow
Hydraulic Cylinders Optional (Sold Separately)



Specification 12 ft Model (RAN-DS-12)
SKU RAN-DS-12
Weight 2000 lbs
Horsepower Recommended Up to 175 HP (130.5 KW)
Capacity, Maximum 3-3/4 Cubic Yard
Overall Width 144" (12 Feet; 366 cm)
Working Width 144" (12 Feet; 366 cm)
Axle 4" x 4" Square Axle
Moldboard 1/4" Thick Moldboard
Cutting Edge 1/2” x 6” Bolt-On / Reversible
Skid Shoes 3/8" x 2-1/2" Replaceable
Color Yellow
Hydraulic Cylinders Optional (Sold Separately)

In Packages

  • Drag Scraper Unit (Available in 8, 10, or 12-foot models)
  • Reversible 1/2" x 6" Bolt-On Cutting Edge (Pre-installed)
  • Tilt Axle with 15" Wheels (less tires)
  • 3/8" x 2-1/2" Replaceable Skid Shoes
  • Operator's Manual and Maintenance Instructions

Manuals & Documents

Product Brochure

Assembly Instructions
