Rankin Rotary Tiller | Model SPR-185-CR | Working Width 72" | Engine Horsepower 60Hp | With Cage Roller | For Tractors
Rankin Rotary Tiller | Model SPR-185-CR | Working Width 72" | Engine Horsepower 60Hp | With Cage Roller | For Tractors
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Rankin Rotary Tiller | Model SPR-185-CR | Working Width 72" | Engine Horsepower 60Hp | With Cage Roller For Tractors
DESCRIPTION

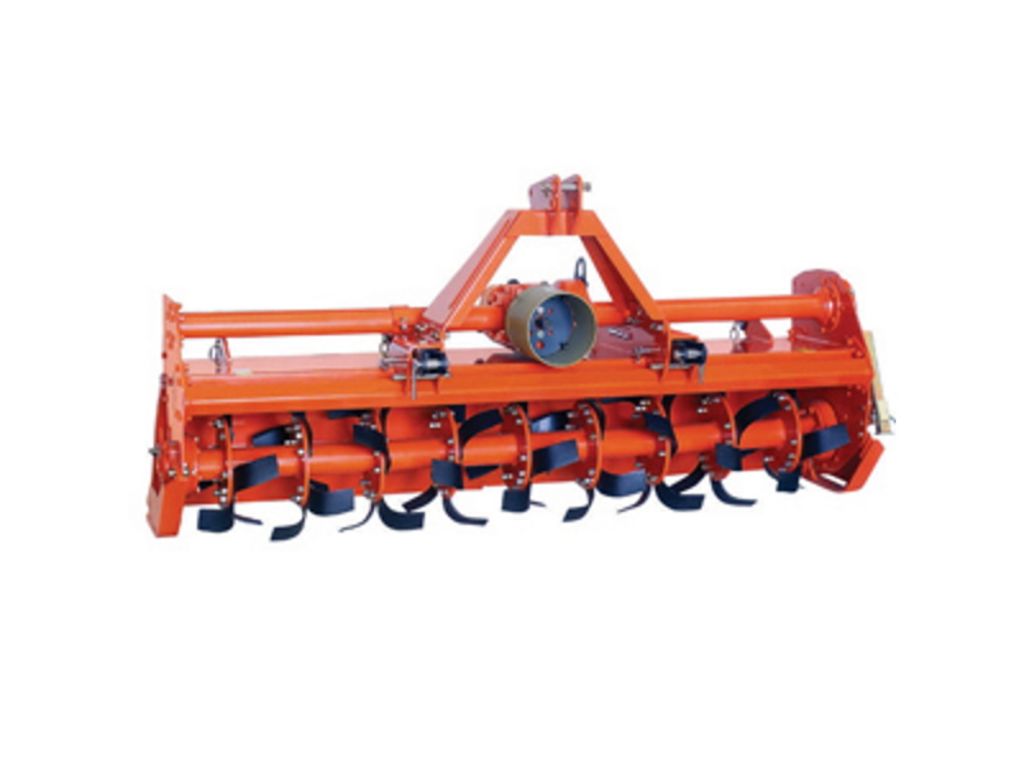

The Rankin SPR-185-CR Rotary Tiller is a high-performance, gear-driven tiller, designed for tractors with a minimum of 60 HP. With a wide 72-inch working width, this tiller is ideal for preparing large fields, ensuring a smooth, even seedbed for planting.
Equipped with a cage roller, it enhances soil preparation, improves leveling, and promotes better crop growth. The gear-driven system ensures maximum durability in demanding conditions, while the deep 8-inch tilling depth enables effective soil aeration and weed control.
Built for versatility and power, the four-speed gearbox allows 540 RPM for standard operations and 1000 RPM for intensive tilling. The adjustable skid shoes provide precise control over tilling depth, while the heavy-duty PTO shaft with slip clutch protection ensures smooth & safe operation.
Key Features
- Working Width: 72 inches, ideal for large areas.
- Engine Horsepower Required: 60 HP, ensuring robust performance.
- Hitch Connection Type: Category 1 & 2, 3-Point Hitch for secure attachment.
- Weight: 1210 lbs, providing stability during operation.
- Features: Equipped with a cage roller for improved soil preparation and leveling.
- 8" Maximum Tillage Depth: Allows deep soil penetration, ensuring better crop growth.
- 4 Speeds: 540 RPM for standard operation.
- 2 Speeds: 1000 RPM for more intensive work.
- Drive Shaft with Slip Clutch: Protects the drive mechanism and ensures smooth operation.
- 6 Blades Per Flange: Provides efficient soil tilling with 48 blades in total across 8 flanges.
- Gear Drive: Ensures durability and reliable performance in tough conditions.
- Some Assembly Required
Detailed Specifications
| SKU | RAN-SPR-185-CR |
|---|---|
| Weight | 1252 lbs |
| Identifier | RAN-3576 |
| Model | SPR-185 |
| Horsepower Recommended | 60 HP Minimum (44.7 KW) |
| Width - Overall | 83" (211 cm) |
| Width - Working | 73" (185 cm) |
| Tines / Rods | 42 Total - 6 Blades per Flange; 7 Flanges |
| Tilling Depth | Up to 8" (20 cm) |
| Unit Drive Type | 540 RPM Rear Tractor PTO |
| PTO Shaft | Included, with Heavy Duty Slip Clutch Protection |
| Rotor Shaft Drive Type | Gear Driven |
| Skid Shoes | Adjustable and Replaceable, Included |
| Parking Stand | Included Standard |
| Hitch Connection Type | Category 2, 3-Point Hitch |
| Color | Orange |
| Manufacturer | Rankin Equipment |
