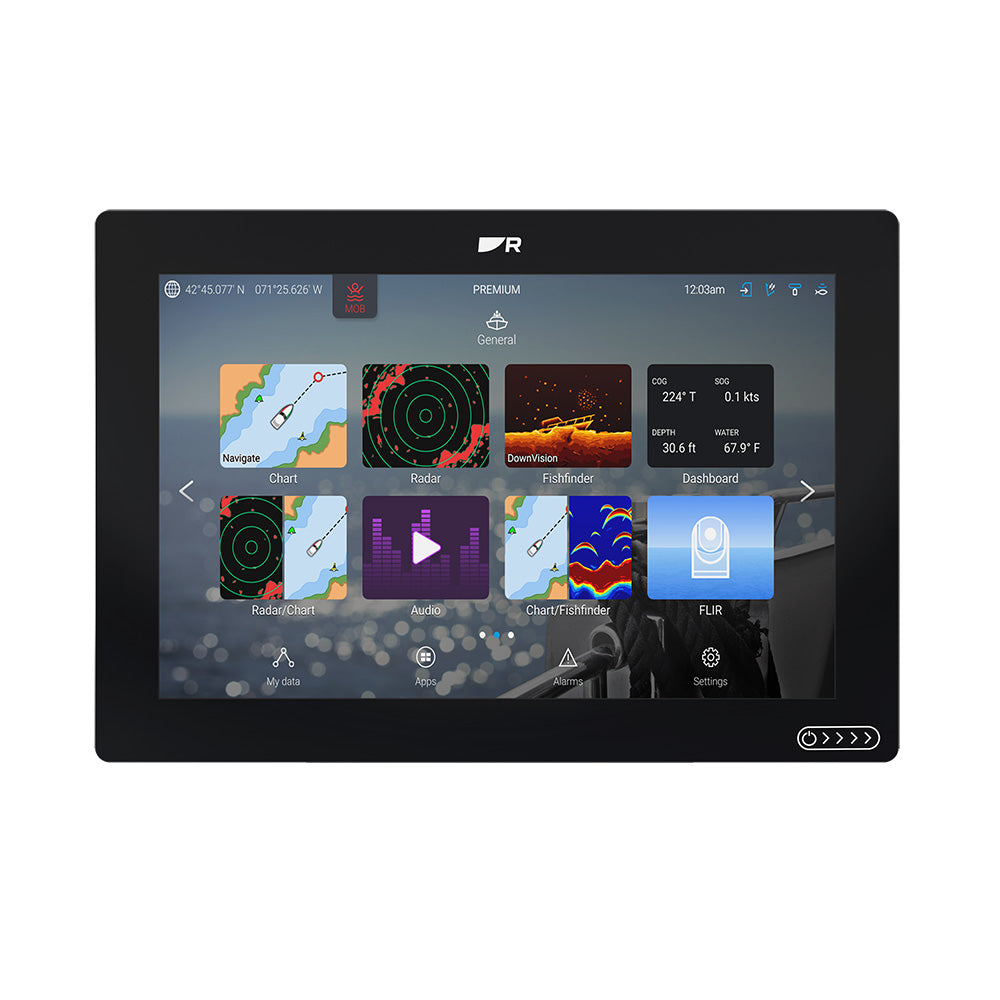

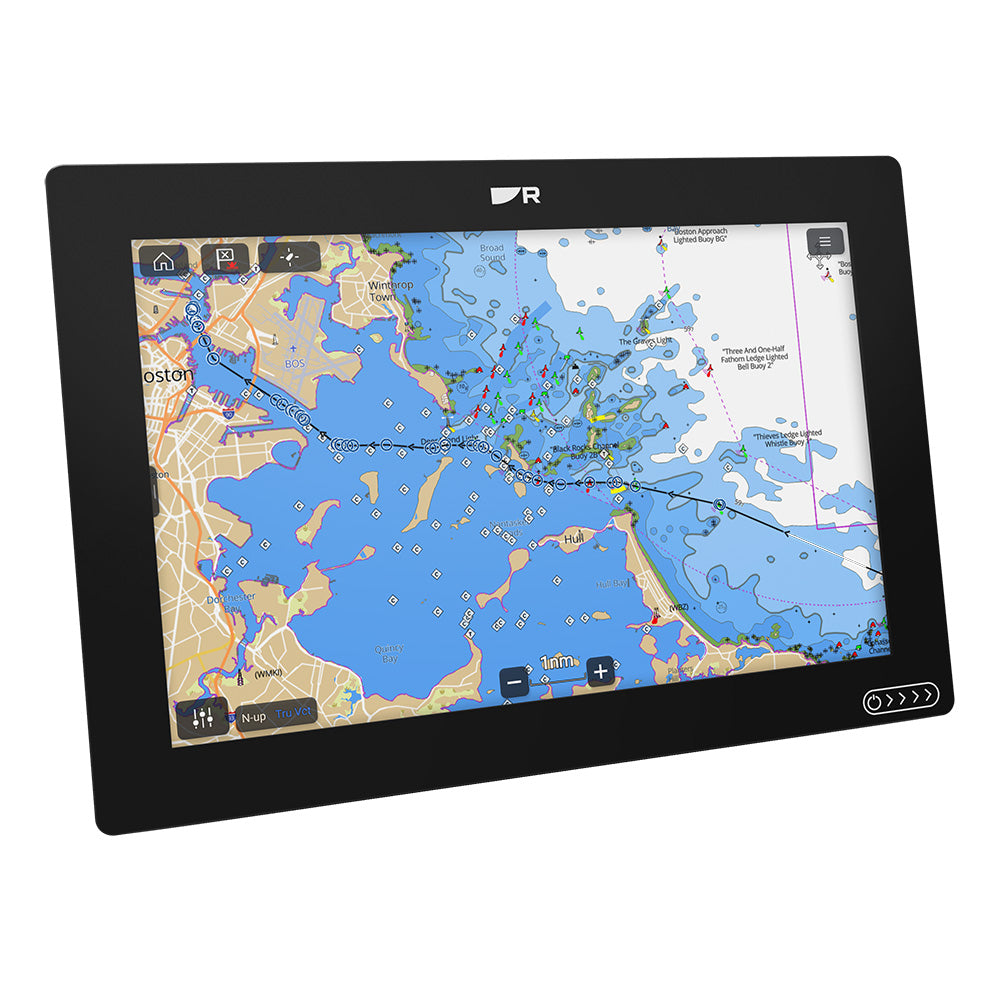

Raymarine Axiom 2 12" Multifunction Display [E70724]

Raymarine Axiom 2 12" Multifunction Display [E70724]

Regular price $2,999.99
Regular price $0.00 Sale price $2,999.99
Sale Sold out
Customizable
Fast
24/7 Support

Axiom 2 12" Multifunction Display

Axiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough™ displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarine’s signature durability and ease of use.

Features:

  • Rugged all-weather, marine-ready design backed by a 3-year warranty.
  • 6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance.
  • 7, 9, and 12-inch HydroTough™ IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility.
  • Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps.
  • RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices.
  • 64 GByte of onboard storage for apps, charts, video, and user data.
  • Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more.
  • Built-in high-performance GPS / GNSS with fast 10 Hz position updates.
  • Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support.

Technical Specifications:

  • Dimensions (Trunnion mounted) - 12.36" (W) x 8.93" (H) x 7.01" (D)
  • Dimensions (Surface / Flush mounted) - 12.36" (W) x 8.54" (H) x 7.01" (D)
  • Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC
  • Power Consumption (max) - 15.48W
  • Inline fuse / thermal breaker rating - 7A
  • Size & Type - 12.1" (diagonal), IPS
  • Resolution - WXGA 1280 x 800
  • Brightness/luminance - 1800 bits / 1800 cd/m²
  • Protective Coating - HydroTough™ (Oleophobic)
  • NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1)
  • Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0
  • GNSS - Internal GNSS receiver: GPS / GLONASS / BeiDou (incl. SBAS) (Cold start: <2 minutes) (10 Hz refresh rate)
  • Internal Storage - 64 GByte (Solid State)
  • External MicroSD storage - 1x MicroSDXC card slot

Specifications:

  • Cartography Brand: Navionics/C-Map
  • Screen Size: 12"
  • Touchscreen: Yes
