Raymarine

Raymarine Axiom+ 7 RV 7" Chartplotter/Fishfinder w/RV-100 T/M Transducer Lighthouse North America Chart [E70635-03-102]

Raymarine Axiom+ 7 RV 7" Chartplotter/Fishfinder w/RV-100 T/M Transducer Lighthouse North America Chart [E70635-03-102]

Regular price $1,399.99
Regular price $0.00 Sale price $1,399.99
Sale Sold out
Customizable
Fast
24/7 Support

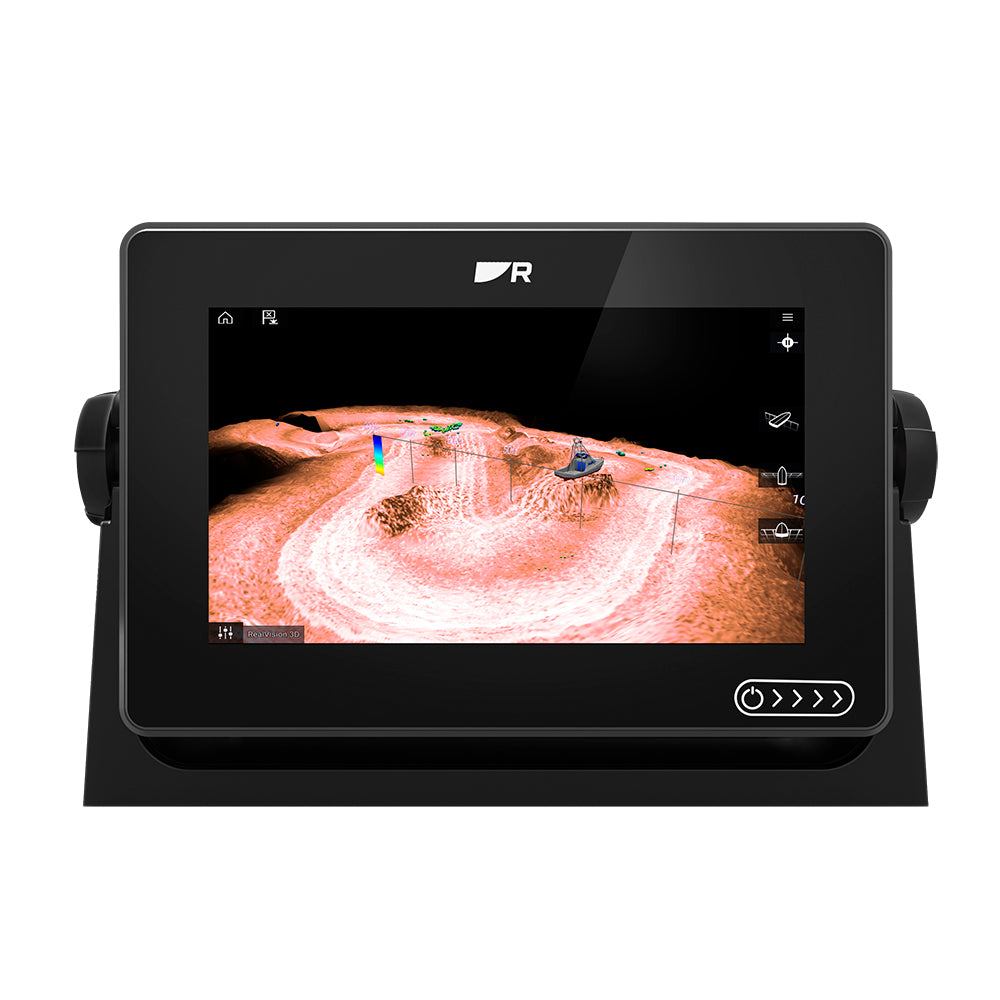

Axiom+™ 7 RV - 7"  Chartplotter/Fishfinder with RV-100 Transom Mount & Lighthouse North America Chart

The performance-tuned Axiom® Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar. New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.

PERFORMANCE TUNED

Designed for speed, responsiveness, and future expansion.

•    Powerful quad-core processor, plus increased onboard storage for personal data and apps

•    Fluid and fast chart redraw of new Raymarine LightHouse Charts, plus Navionics and C-MAP

•    ClearCruise™ Augmented Reality-capable for smarter navigation decisions

•    Smart and intuitive LightHouse 3 OS makes navigating easy

MAXIMUM VISIBILITY

Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color.

•    IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays

•    7-, 9-, and 12-inch all-weather displays are 25 percent brighter (up to 1,800 nits)

•    HydroTough™ Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls

•    Improved viewing with new LightHouse 3 color themes, including light, dark, and night mode

The Axiom+ 7 RV includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions, RV-100 Transom Mount Transducer  and Lighthouse North America Chart.

Features:

  • IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
  • LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating
  • RealVision 3D™ Sonar Built-In - Go fishing like never before with life-like 3D imagery of structures and fish - an unprecedented view of the underwater world
  • Powerful 4 Channel Sonar supports RealVision 3D, CHIRP DownVision, SideVision, High Frequency CHIRP, and 600 Watt (50/200 kHz) sonar
  • Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish targeting
  • Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning
  • Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue =Latitude, and more
  • Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras
  • Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short range
  • Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate
  • Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more
  • Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile app

RV-100 - RealVision 3D™ All-In-One Transom Mount Transducer

Raymarine’s RV-100 All-In-One Transom Mount Transducer lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells and while maneuvering. The RV-100 also has a built-in fast response water temperature sensor for quick, accurate readings.The RV-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.The RV-100 can also be removed from the transom bracket and attached to the stainless Jack-Plate mounting bracket (sold separately) which is ideal for bass boats, flats boats and skiffs. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless steel step-mounting bracket (sold separately)

What’s in the Box?

  • RV-100 All-In-One Transom Mount Transducer with 8-meter (26-foot) cable
  • Transom bracket
  • Mounting hardware
  • Installation instructions

Specifications:

  • Transducer Included: Yes
  • Touchscreen: Yes
  • Screen Size: 7"
  • Included Transducer: A80464
  • Cartography Brand: Navionics/C-Map
  • Box Dimensions: 1"H x 4"W x 5"L WT: 12.1 lbs

Owner's Manual (pdf)
Brochure (pdf)
