Product Description

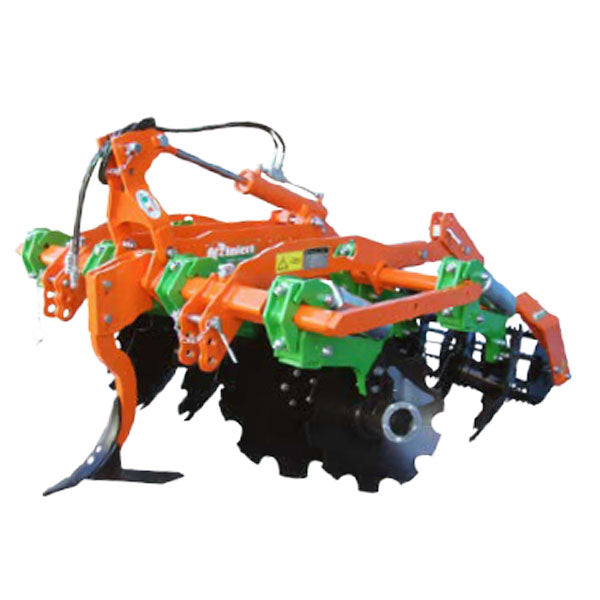

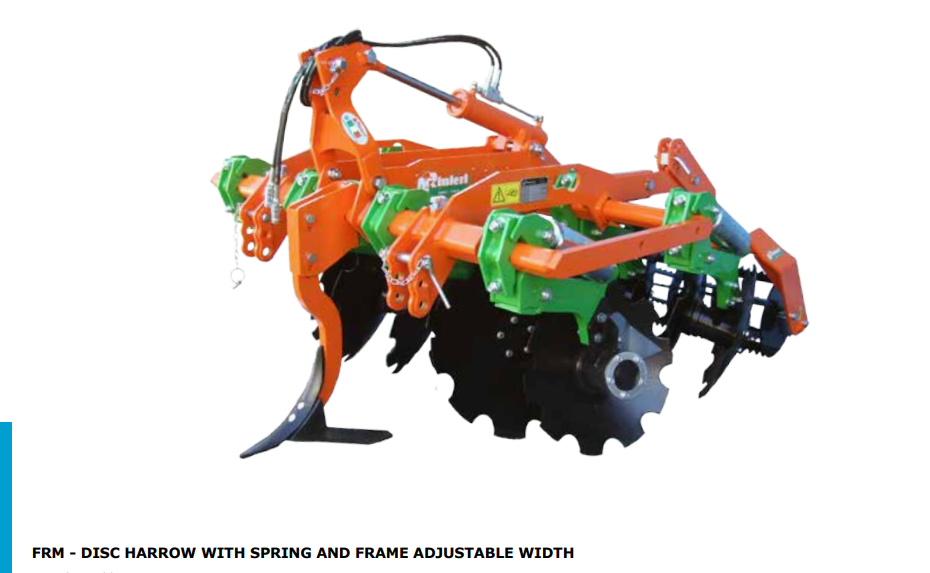

The FRM Disc Harrow is designed for tough agricultural tasks, equipped with Stone-Jumper supports and anti-shock springs to protect the disc groups during operation. Available in five models, with options ranging from 8 to 20 discs, the FRM disc harrow allows you to adjust the frame width manually for versatile field applications.
The manual frame adjustment ensures flexibility, while the optional hydraulic vertical lifting cylinder makes the machine easier to transport and operate. The rear roller can adjust the working depth between 7 cm and 15 cm (3" - 6"), offering precise control over the tillage process.
Key Features
- Stone-Jumper Supports: Protects discs from damage during use in stony soil.
- Disc Sizes (24" and 20"): Available in Ø61 cm (24") and Ø51 cm (20") disc sizes for efficient soil cutting.
- Manual Frame Width Adjustment: Allows for flexibility in various field conditions.
- Rear Roller: Adjusts working depth from 7 cm to 15 cm (3" - 6") for precise tillage control.
- Hydraulic Vertical Lifting Cylinder (Optional): Reduces overall height for easier transport.
Model Specifications
Models 7FMS08 and 7FMS10
| Specification |
7FMS08 (FRM 8D) |
7FMS10 (FRM 10D) |
|---|---|---|
| Description | Without rear roller | Without rear roller |
| No. of Discs | 8 | 10 |
| Required HP | 50 - 70 | 55 - 75 |
| Working Width (in) | 47" - 61" | 59" - 73" |
| Machine Weight (lbs) | 937 | 1,246 |
7FMS12 and 7FMS16
| Specification |
7FMS12 (FRM 12D) |
7FMS16 (FRM 16D) |
|---|---|---|
| Description | Without rear roller | Without rear roller |
| No. of Discs | 12 | 16 |
| Required HP | 60 - 75 | 75 - 90 |
| Working Width (in) | 63" - 77" | 79" - 93" |
| Machine Weight (lbs) | 1,554 | 1,631 |
Models 7FMS20
| Specification |
7FMS20 (FRM 20D) |
|---|---|
| Description | Without rear roller |
| No. of Discs | 20 |
| Required HP | 90 - 100 |
| Working Width (in) | 98" - 112" |
| Machine Weight (lbs) | 1,918 |
Available Accessories
| Code | Accessory Description |
|---|---|
| 37177 | N. 2 Adjustable depth shanks |
| 37130 | Price increase for central shank with spring |
| 37172 | Spade set to be used instead of discs |
Manuals & Documents
The Product Manual
Machine Configuration Guide
