Product Description

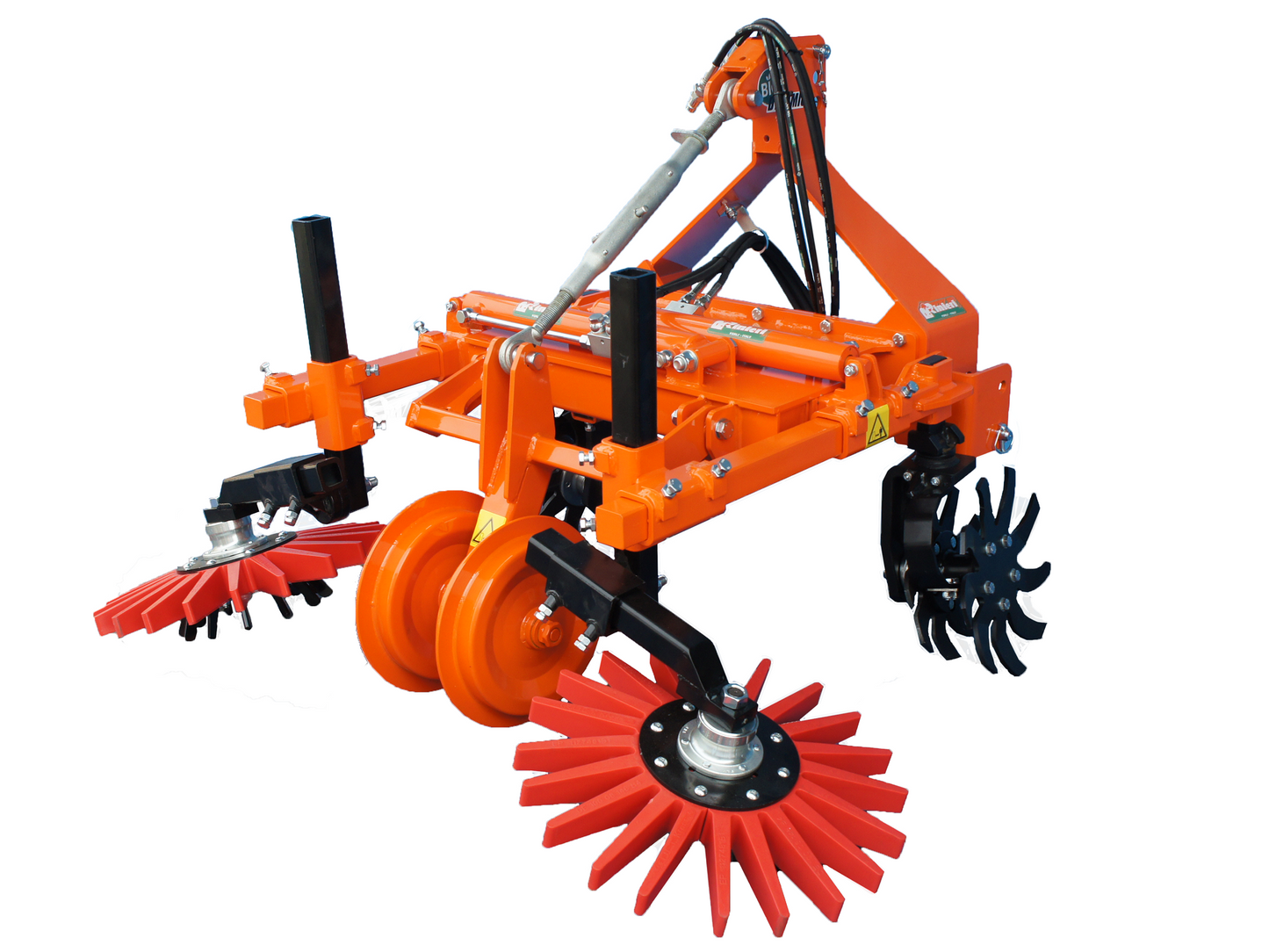

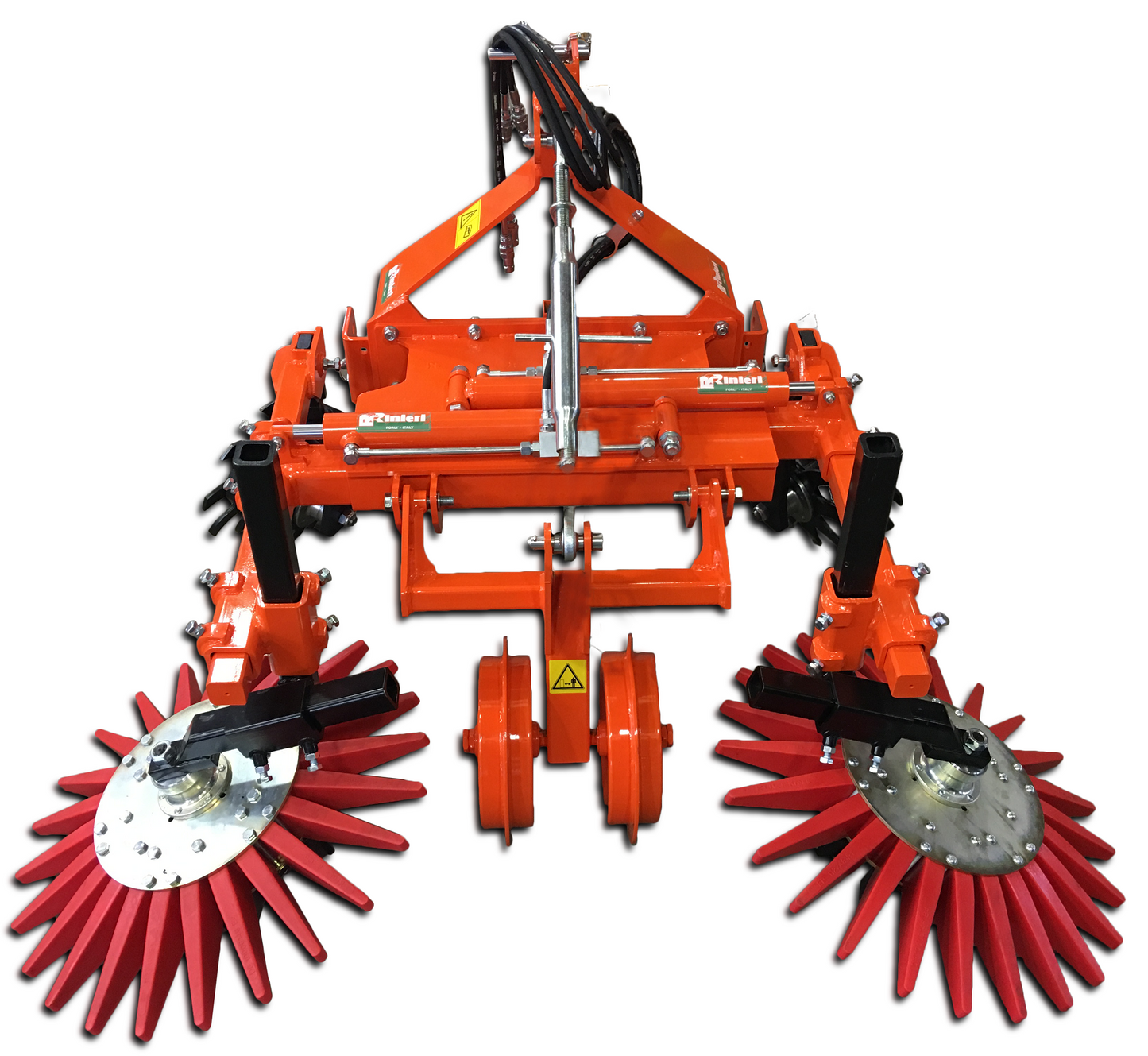

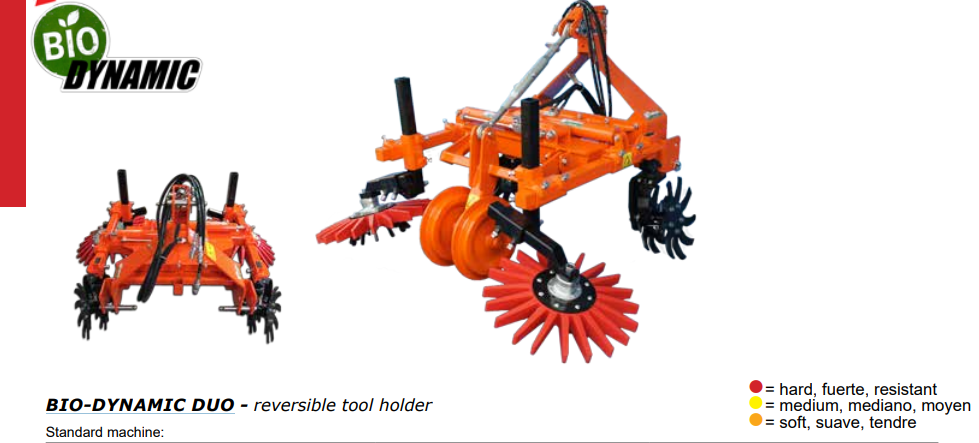

Rinieri Bio-Dynamic Duo Tool Holder | 55" - 142" Row Width for Tractor
DESCRIPTION
The Tool Holder Bio-Dynamic Duo is engineered for fast and efficient mechanical inter-row weeding, reaching speeds of up to 15 km/h without requiring hydraulics. This versatile tool carrier features Bio-Disc and Bio-Star components for optimal soil management and weed elimination near plants. The Bio-Star, a patented rubber star, is available in various sizes (54 cm/21" , 70 cm/28" , 95 cm/37") and colors (Red, Yellow, Orange). The frame comes in narrow or wide versions, available for front or rear mounting, and can accommodate vineyards as small as 140 cm (55") and orchards up to 360 cm. Equipped with adjustable gauge wheels, hydraulic side shifting, and an optional manual or hydraulic tilting mechanism, the Bio-Dynamic Duo offers maximum flexibility for a variety of terrains and row sizes.
Key Features
- No Hydraulics Required: Performs fast weeding at speeds of up to 15 km/h.
- Bio-Disc & Bio-Star Tools: Equipped with 2-4 discs and Bio-Star (Ø 54-95 cm) for efficient soil management.
- Versatile Frame Options: Available in narrow or wide, reversible frames for front or rear mounting.
- Adjustable Gauge Wheels: Offers flexibility to suit different terrains.
- 3-Point Hitch (CAT 1-2): Easy mounting on most tractors.
Detailed Specification
Frame
- 3-point hitch CAT.1-2
- Hydraulic side shift
- Adjustable gauge wheels
- Manual or hydraulic tilting (on request)
- Reversible frame
Working Tools
- Bio-Disc: Available with 2, 3, or 4 discs

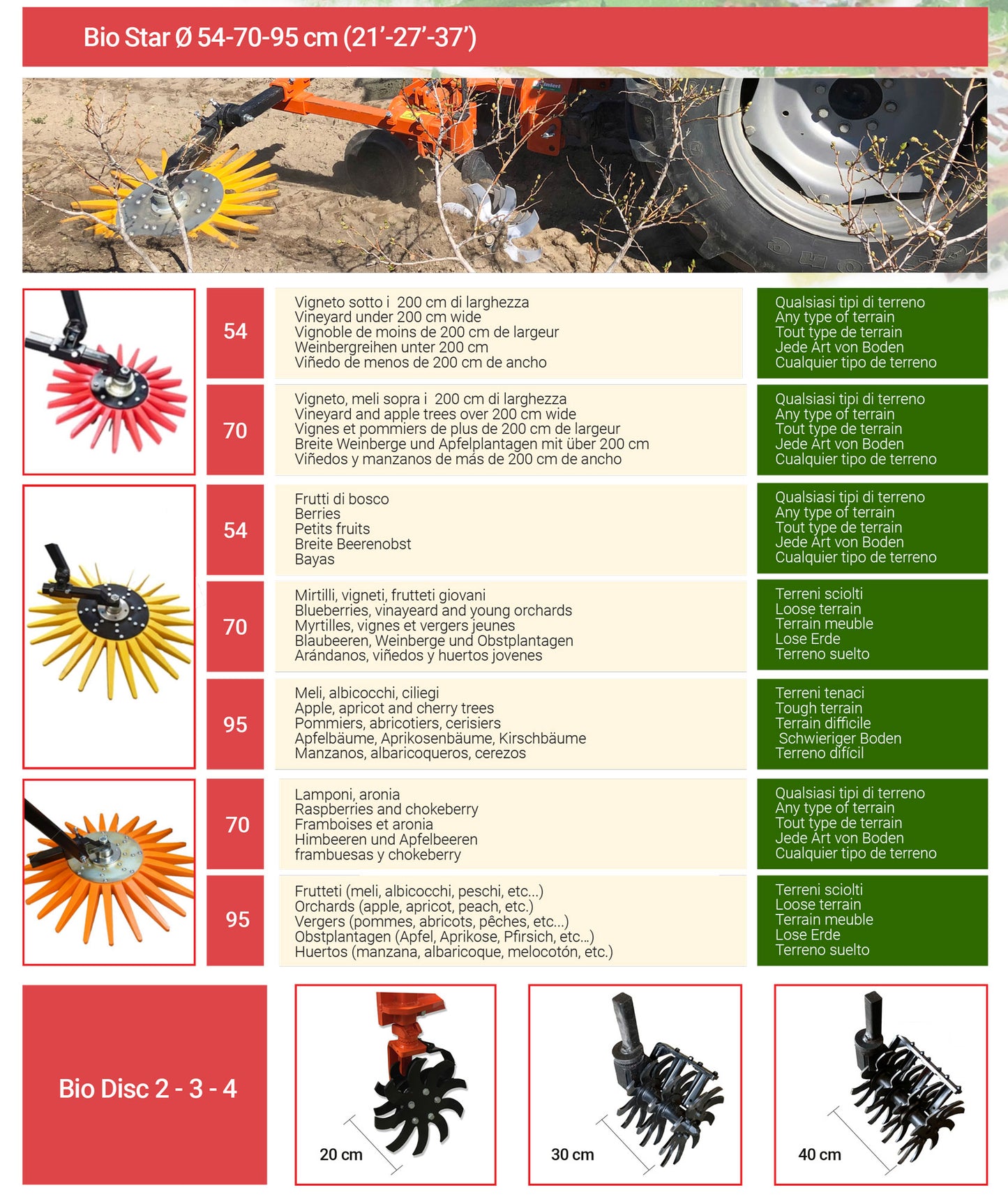

- Bio-Star: Ø 54 cm (Red), Ø 70 cm (Yellow or Red), Ø 95 cm (Orange)
On the Tractor
- N.2 double-acting distributors

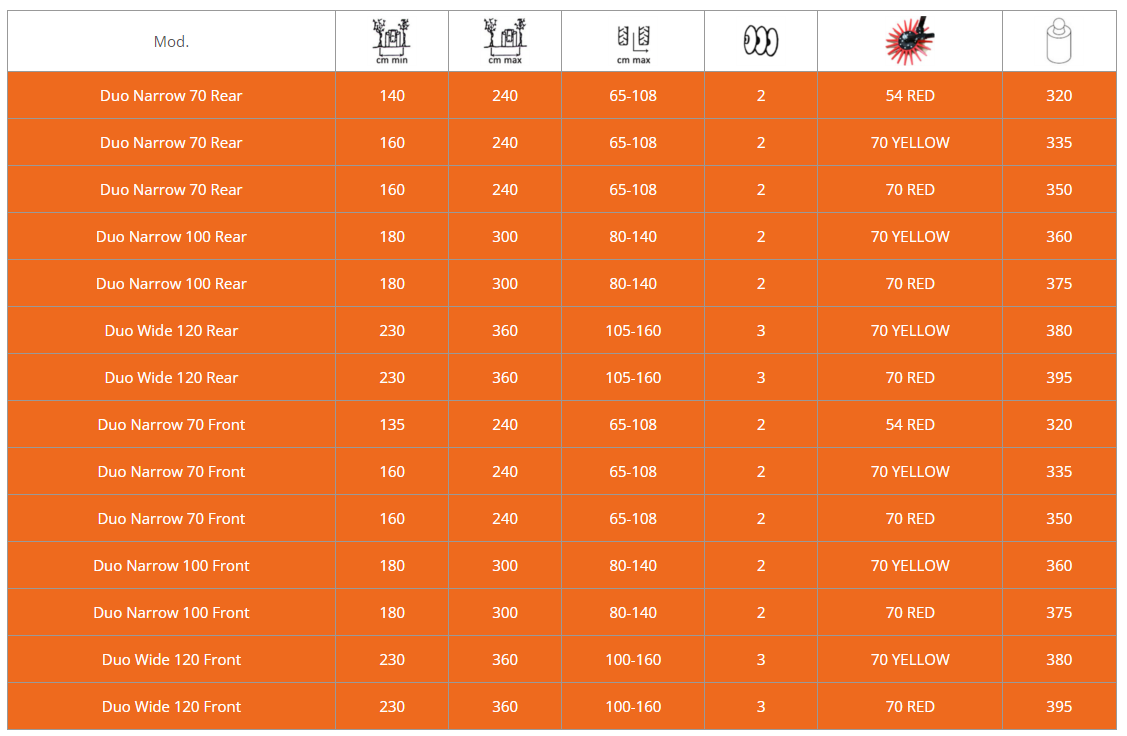

Model Specifications
Duo Narrow 70 Rear (Red) and Duo Narrow 70 Rear (Yellow)
| Specification | Duo Narrow 70 Rear (Red) | Duo Narrow 70 Rear (Yellow) |
|---|---|---|
| Min Row (in) | 55 | 63 |
| Max Row (in) | 94 | 94 |
| Displacement (in) | 26-42 | 26-42 |
| Discs No. | 2 | 2 |
| Bio-Star Ø (cm) | 54 (Red) | 70 (Yellow) |
| Machine Weight (lbs) | 705 | 738 |
Duo Narrow 70 Rear(Red) and Duo Narrow 100 Rear (Yellow)
| Specification | Duo Narrow 70 Rear (Red) | Duo Narrow 100 Rear (Yellow) |
|---|---|---|
| Min Row (in) | 55 | 71 |
| Max Row (in) | 94 | 118 |
| Displacement (in) | 26-42 | 31-55 |
| Discs No. | 2 | 2 |
| Bio-Star Ø (cm) | 54 (Red) | 70 (Yellow) |
| Machine Weight (lbs) | 772 | 793 |
Duo Narrow 100 Rear (Red) and Duo Wide 120 Rear (Yellow)
| Specification | Duo Narrow 100 Rear (Red) | Duo Wide 120 Rear (Yellow) |
|---|---|---|
| Min Row (in) | 71 | 91 |
| Max Row (in) | 118 | 142 |
| Displacement (in) | 31-55 | 41-63 |
| Discs No. | 2 | 3 |
| Bio-Star Ø (cm) | 70 (Red) | 70 (Yellow) |
| Machine Weight (lbs) | 827 | 838 |
Duo Wide 120 Rear (Red) and Duo Narrow 70 Front (Red)
| Specification | Duo Wide 120 Rear (Red) | Duo Narrow 70 Front (Red) |
|---|---|---|
| Min Row (in) | 91 | 53 |
| Max Row (in) | 142 | 94 |
| Displacement (in) | 41-63 | 26-42 |
| Discs No. | 3 | 2 |
| Bio-Star Ø (cm) | 70 (Red) | 54 (Red) |
| Machine Weight (lbs) | 871 | 705 |
Duo Narrow 70 Front (Yellow) and Duo Narrow 70 Front (Red)
| Specification | Duo Narrow 70 Front (Yellow) | Duo Narrow 70 Front (Red) |
|---|---|---|
| Min Row (in) | 63 | 63 |
| Max Row (in) | 94 | 94 |
| Displacement (in) | 26-42 | 26-42 |
| Discs No. | 2 | 2 |
| Bio-Star Ø (cm) | 70 (Yellow) | 70 (Red) |
| Machine Weight (lbs) | 738 | 772 |
Duo Narrow 100 Front (Yellow) and Duo Narrow 100 Front (Red)
| Specification | Duo Narrow 100 Front (Yellow) | Duo Narrow 100 Front (Red) |
|---|---|---|
| Min Row (in) | 71 | 71 |
| Max Row (in) | 118 | 118 |
| Displacement (in) | 31-55 | 31-55 |
| Discs No. | 2 | 2 |
| Bio-Star Ø (cm) | 70 (Yellow) | 70 (Red) |
| Machine Weight (lbs) | 793 | 827 |
Duo Wide 120 Front (Yellow) and Duo Wide 120 Front (Red)
| Specification | Duo Wide 120 Front (Yellow) | Duo Wide 120 Front (Red) |
|---|---|---|
| Min Row (in) | 91 | 91 |
| Max Row (in) | 142 | 142 |
| Displacement (in) | 39-63 | 39-63 |
| Discs No. | 3 | 3 |
| Bio-Star Ø (cm) | 70 (Yellow) | 70 (Red) |
| Machine Weight (lbs) | 838 | 871 |
In Package
- Tool Holder Bio-Dynamic Duo Frame
- Bio-Disc (2, 3, or 4 discs)
- Bio-Star (Ø 54, 70, or 95 cm, depending on model)
- Adjustable gauge wheels
- Hydraulic side-shifting mechanism
- Optional manual or hydraulic tilting system
