Product Description

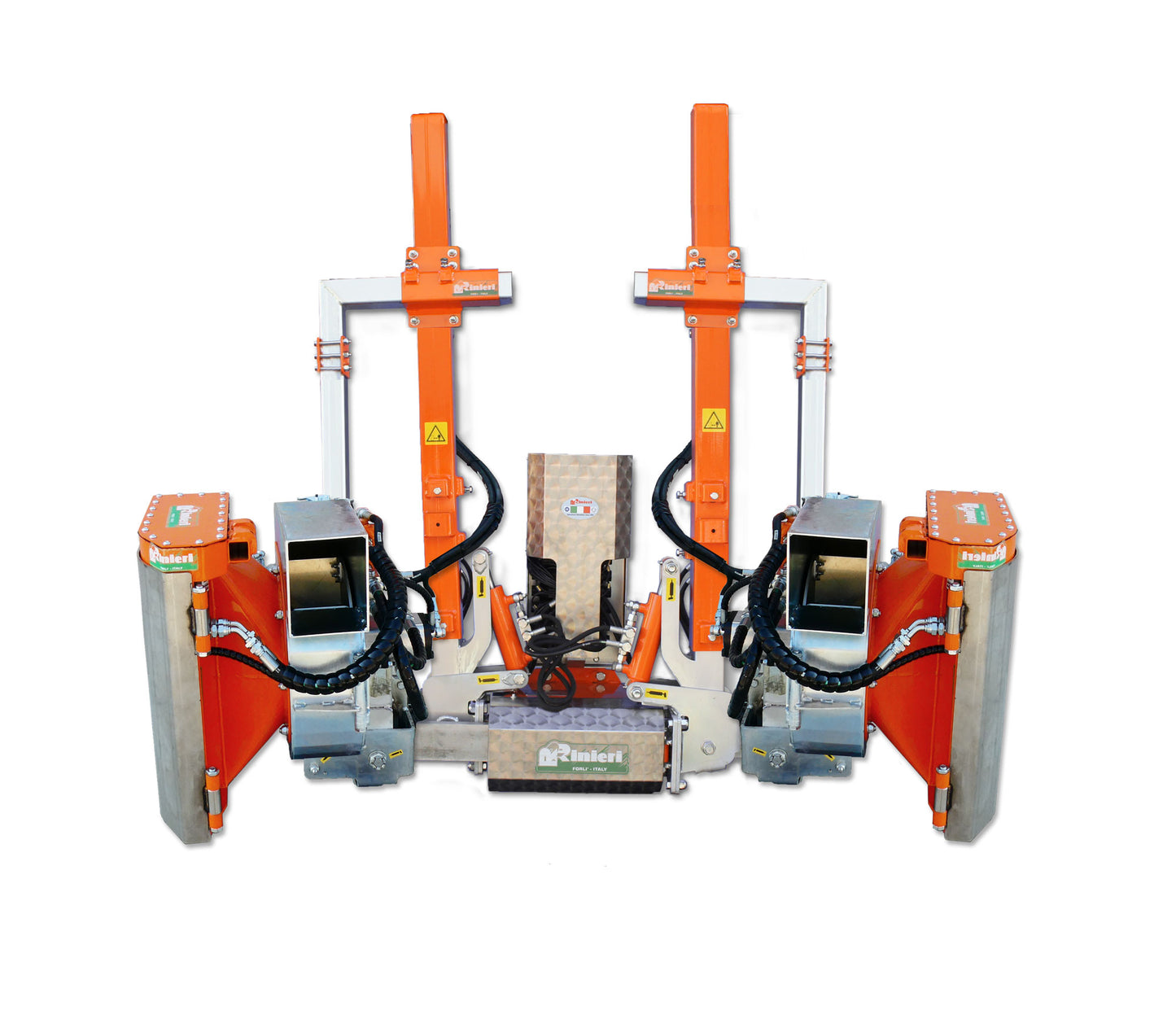

Rinieri Double Barrel Leaf Remover DRF on VISION-2 Frame with Dual Rollers | 59" - 94" Working Width For Tractor

DESCRIPTION

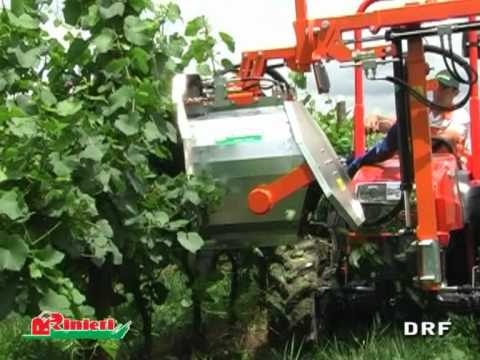

The DOUBLE BARREL LEAF REMOVER DRF is specifically designed to meet the demands of modern vineyards. It efficiently removes leaves from the grape zone, increasing maturation and aeration while minimizing the need for chemical sprays. This model is equipped with two opposite rollers—one with holes and the other made of rubber—ensuring precise leaf removal without damaging the grapes. A stainless steel protection shield ensures the rollers follow the vine walls closely, providing a safe and thorough leaf removal process.

This is a double-sided machine, meaning it can remove leaves from both sides of the vineyard simultaneously, saving time and boosting productivity. The VISION-2 FRAME provides operators with excellent front visibility, making the process smoother and more efficient. Powered by a hydraulic motor, the fan ensures effective aspiration for leaf removal.

Key Features

• Hydraulic Lifting: 23.6" (60 cm) independent hydraulic lifting for better control.
• Vertical Frame Tilting: +/- 15° hydraulic tilting for adaptable cutting angles.
• Side Shift: 9.8" (25 cm) hydraulic and 7.8" (20 cm) manual side shift for precise positioning.
• Speed Control Valve: Allows fine-tuning of roller speed to suit different vineyard conditions.
• Double-Sided Operation: Removes leaves from both sides of the vineyard simultaneously.
• Safety Features: Includes maximum pressure valves for motor protection, floating heads with gas springs, and a hydraulic stand for storage.

Detailed Specification

• Hydraulic Lifting: 23.6" (60 cm)
• Vertical Frame Tilting: +/- 15° hydraulic
• Side Shift: 9.8" (25 cm) hydraulic, 7.8" (20 cm) manual

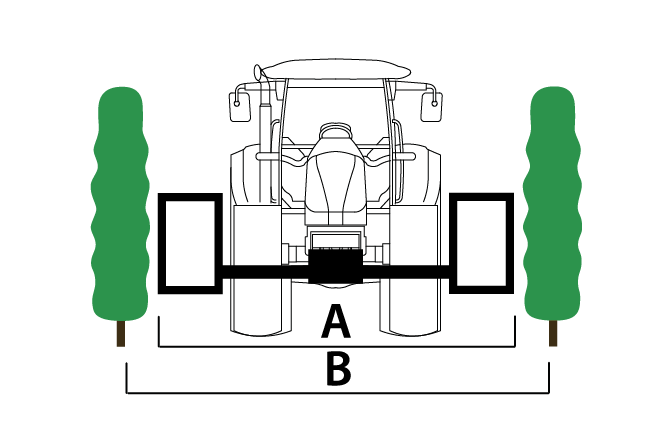

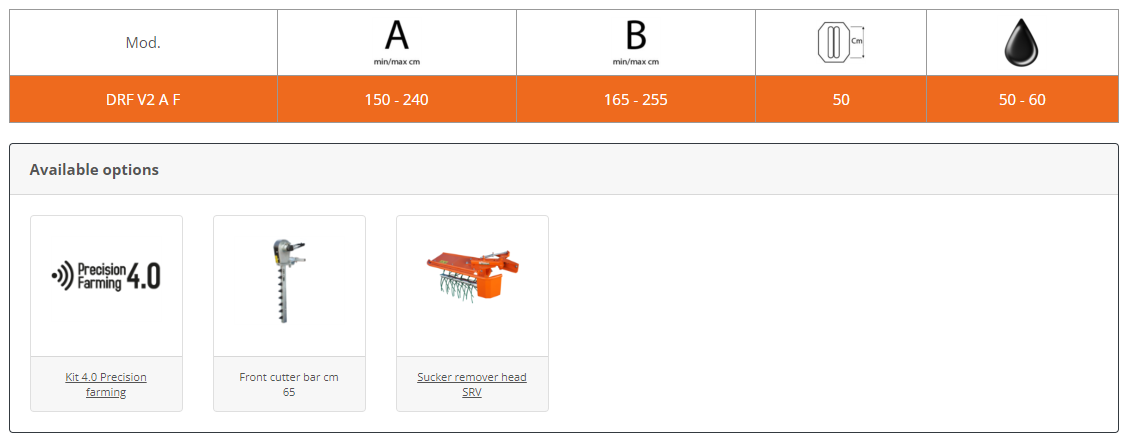

• Roller Height: 59" - 94.4" (150 - 240 cm) for A, 65" - 100.3" (165 - 255 cm) for B
• Oil Demand: 50-60 liters/min
• Electrical Requirements: 12V socket

Available options:

1. Kit 4.0 Precision Farming
2. Front Cutter Bar (65 cm)
3. Sucker Remover Head (SRV)
