Product Description

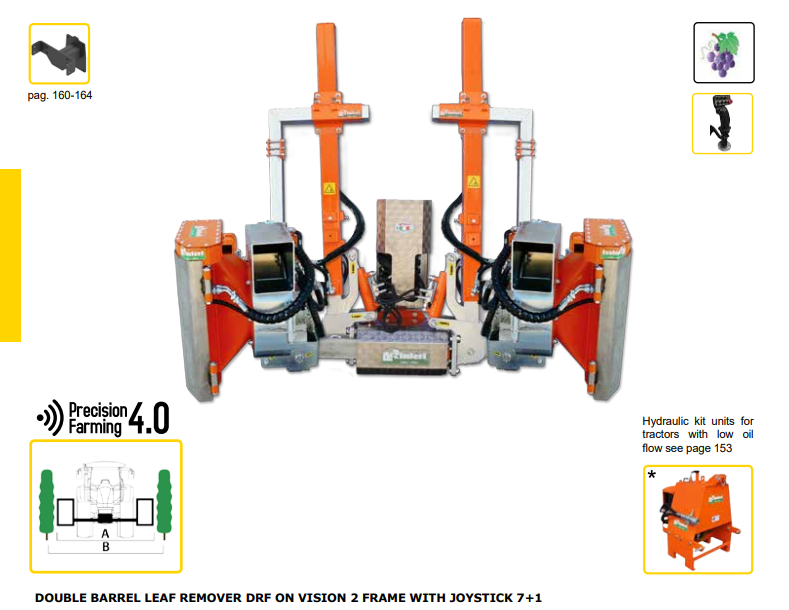

Rinieri Double Barrel Leaf Remover DRF on Vision 2 Frame With Joystick 7+1 | 59" - 94" Roller Height for Tractor
DESCRIPTION

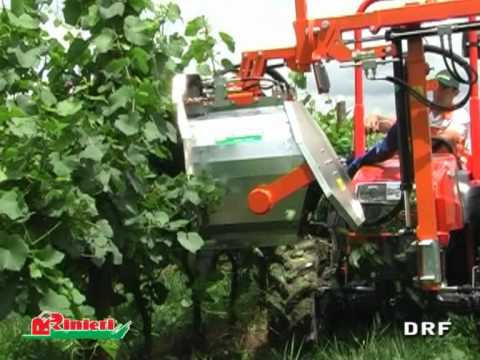

The DOUBLE BARREL LEAF REMOVER DRF is a state-of-the-art solution for modern vineyards, designed to efficiently remove leaves from the grape zone. This enhances the maturation and aeration of grapes while reducing the need for chemical sprays. The machine features two opposite rollers—one with holes and one rubber-coated—ensuring precise and safe leaf removal without damaging the grapes. Additionally, the stainless steel shield follows the vine wall closely, ensuring precise and gentle trimming.

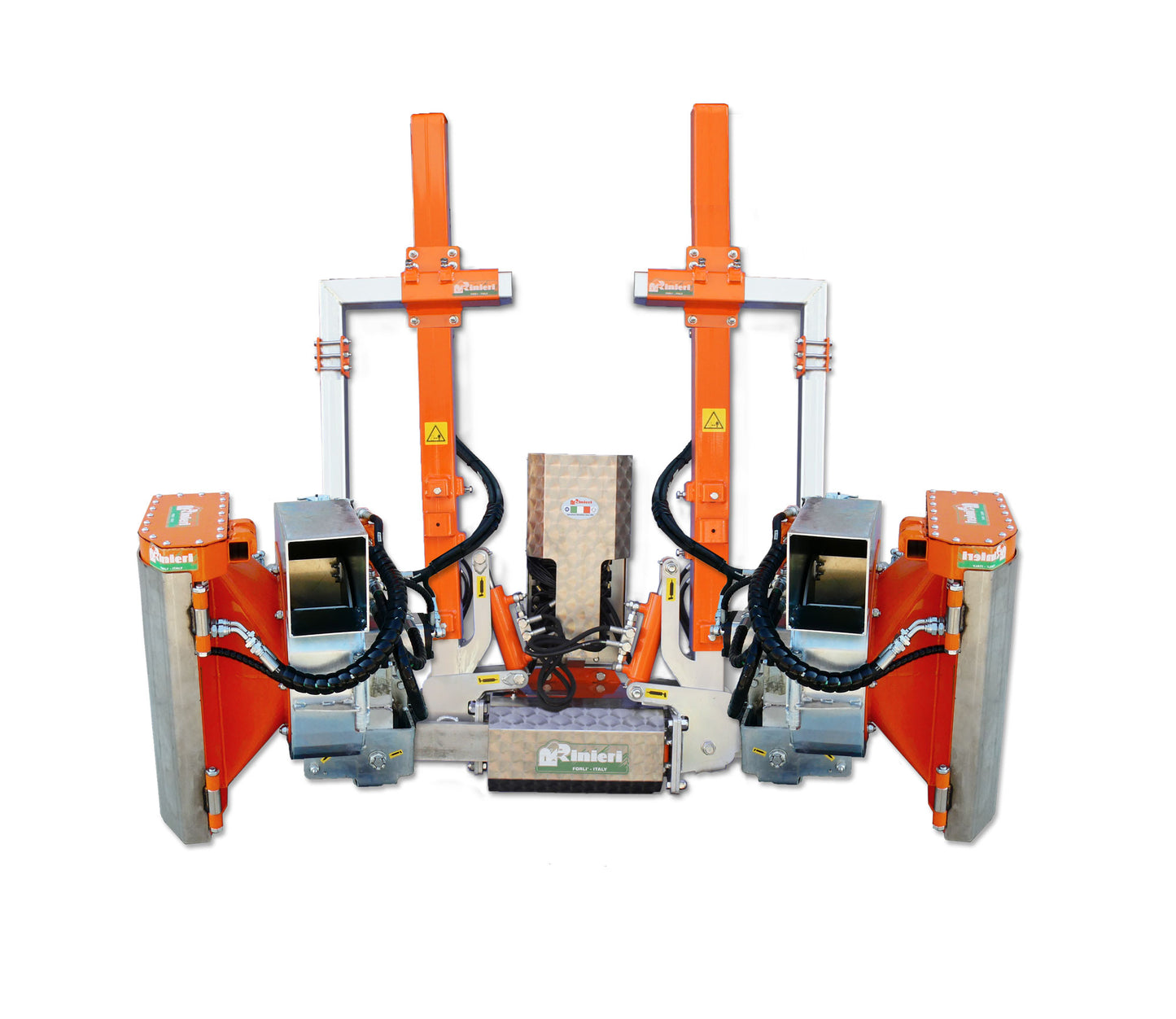

This model is mounted on the VISION 2 FRAME, which provides excellent front visibility, independent hydraulic lifting and tilting, and side shifting to accommodate varying vineyard conditions. Equipped with a Joystick 7+1, the system offers precise control over the leaf removal process. Powered by a hydraulic motor, the fan ensures strong aspiration for efficient and effective leaf removal on both sides of the vineyard simultaneously, increasing productivity and reducing operating time.
Key Features
- Hydraulic Lifting: 23.6" (60 cm) independent hydraulic lifting for height adjustments.
- Vertical Frame Tilting: +/- 15° hydraulic tilting for adaptability on sloped terrains.
- Side Shift: 9.8" (25 cm) hydraulic and 7.8" (20 cm) manual side shift for accurate positioning.
- Speed Control Valve: Adjust roller speed for optimal performance based on vineyard conditions.
- Double-Sided Operation: Works on both sides of the vineyard simultaneously for greater efficiency.
- Joystick 7+1 Control: Provides smooth and precise control over hydraulic operations.
- Safety Features: Includes maximum pressure valves for motor protection, floating heads with gas springs, and a hydraulic stand for easy storage.
Detailed Specification
| Specification | Value |
|---|---|
| Hydraulic Lifting | 23.6" (60 cm) |
| Vertical Frame Tilting | +/- 15° hydraulic |
| Side Shift | 9.8" (25 cm) hydraulic, 7.8" (20 cm) manual |

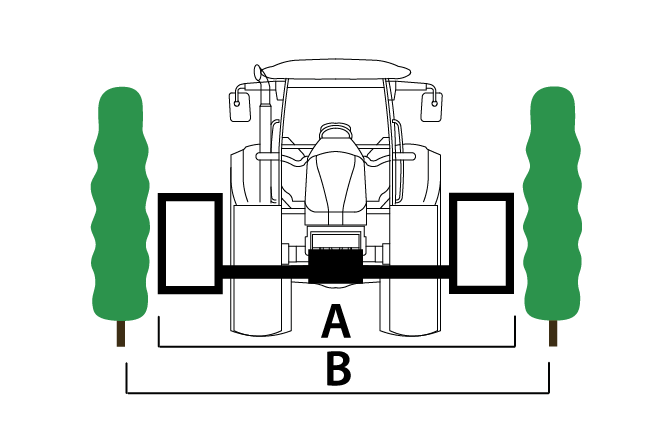

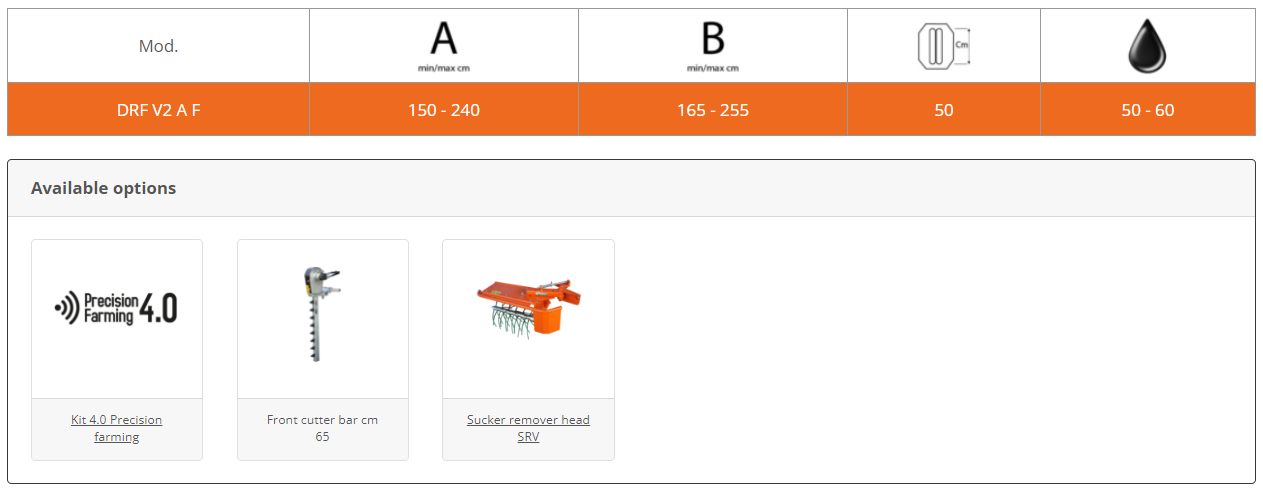

| Roller Height | 59" - 94.4" (150 - 240 cm) for A, 65" - 100.3" (165 - 255 cm) for B |
| Oil Demand | 50-60 liters/min |
| Electrical Requirements | 12V socket |
In Package:
- DRF V2 A F Model: Equipped with a roller height of 59" - 94.4", oil demand of 50-60 liters/min, hydraulic-powered fan, speed control valve, and stainless steel protection shield.
Available Options:
- Precision Farming Kit 4.0
- Front cutter bar 25.5" (65 cm)
- Sucker remover head SRV
Manuals & Documents
The Product Manual
Machine Configuration Guide
