Product Description

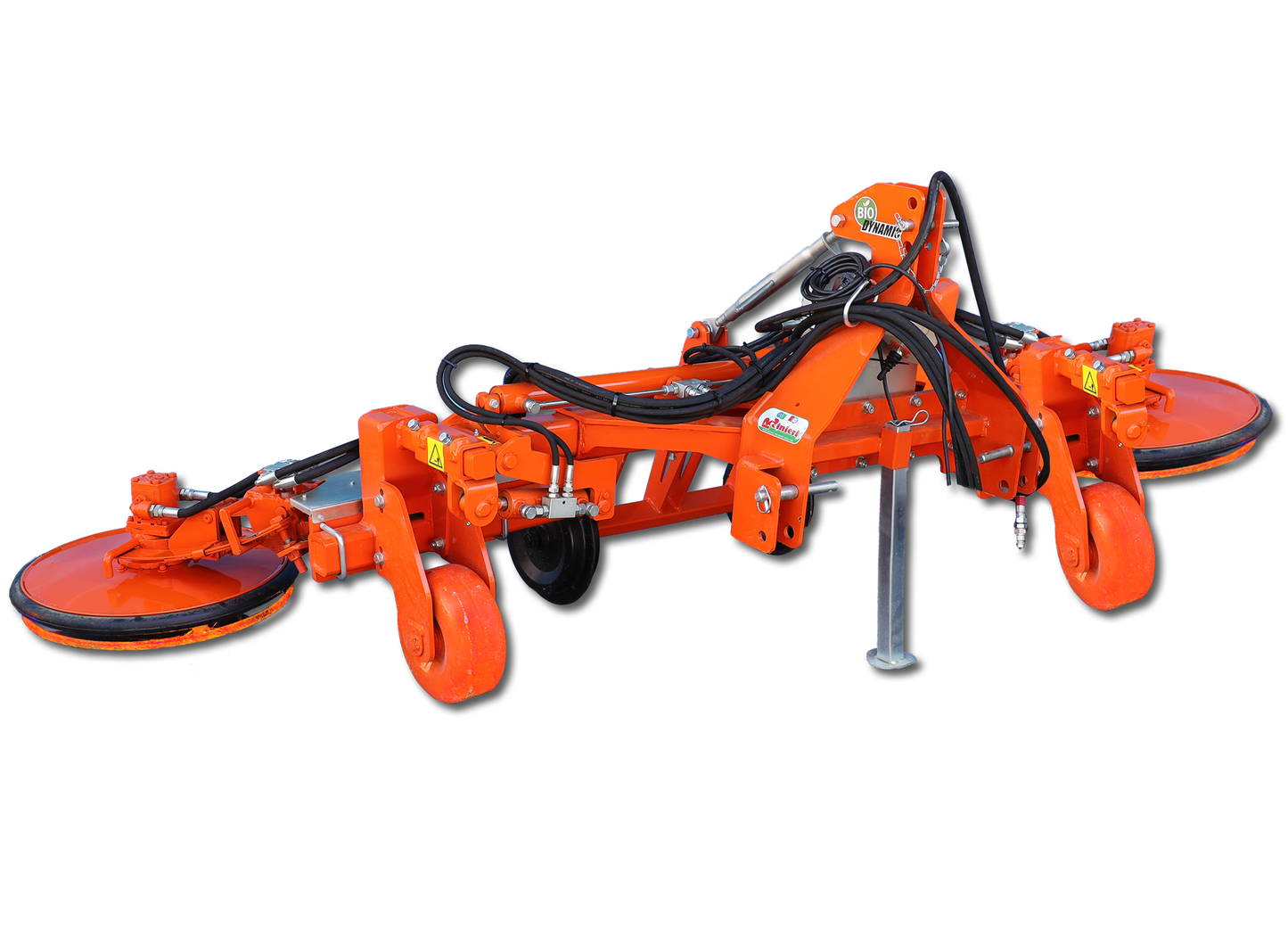

Rinieri Double In And Out Mowing Wheel On Bio-Dynamic Duo Frame | 79"-142" Row Width For Tractor
DESCRIPTION
The Double In and Out Mowing Wheel on the Bio-Dynamic Duo Frame is designed for superior mowing performance in vineyards and orchards. This model features double mowing wheels with independent hydraulic side shift for easy adjustments to suit different row sizes. The spring-loaded support ensures smooth in-and-out movement, making the unit ideal for mowing in tight spaces or around obstacles. Available with manual or hydraulic tilting for enhanced control, the unit is built to provide flexibility and efficiency in all conditions. Equipped with robust safety features like an independent electro-hydraulic control, anti-cavitation valve, and max pressure valve, this mower is designed to perform safely under various conditions.
Key Features
- Independent Hydraulic Side Shift: Allows for easy positioning to match varying row widths.
- Double In and Out Mowing Wheels: Provides efficient cutting with enhanced flexibility.
- Spring Load Support: Ensures smooth operation with in-and-out movement.
- Manual or Hydraulic Tilting: Available upon request for additional control during operation.
- Safety Features: Includes independent electro-hydraulic control, anti-cavitation valve, and max pressure valve.
Detailed Specification
Standard Equipment
- 3-point hitch CAT.1-2
- Independent hydraulic side shift
- Adjustable front gauge wheels
- Spring load support for in and out movement
- Manual or hydraulic tilting on request
Safety Features
- Independent electro-hydraulic control
- Anti-cavitation valve
- Max pressure valve
On the Tractor
- N.2 double-acting distributors
- N.1 single-acting distributor
- N.1 pressure-free return

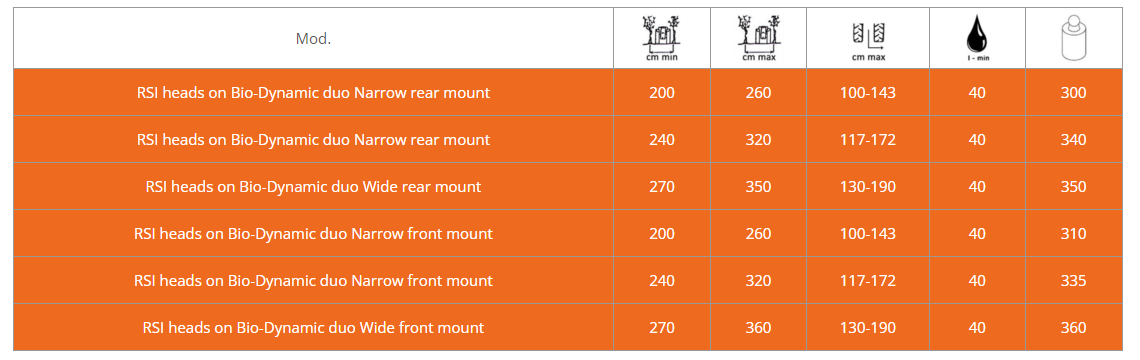

Model Specifications
RSI Heads on Bio-Dynamic Duo Narrow Rear Mount
| Attribute | 79-102 | 94-126 |
|---|---|---|
| Min Row (in) | 79 | 94 |
| Max Row (in) | 102 | 126 |
| Displacement from Tractor (in) | 39 - 56 | 46 - 68 |
| Oil Demand (L/min) | 40 | 40 |
| Machine Weight (lbs) | 661 | 749 |
RSI Heads on Bio-Dynamic Duo Wide Rear Mount & Narrow Front Mount
| Attribute |
Wide Rear Mount |
Narrow Front Mount |
|---|---|---|
| Min Row (in) | 106 | 79 |
| Max Row (in) | 138 | 102 |
| Displacement from Tractor (in) | 51 - 75 | 39 - 56 |
| Oil Demand (L/min) | 40 | 40 |
| Machine Weight (lbs) | 772 | 683 |
RSI Heads on Bio-Dynamic Duo Narrow Front Mount & Wide Front Mount
| Attribute |
Narrow Front Mount |
Wide Front Mount |
|---|---|---|
| Min Row (in) | 94 | 106 |
| Max Row (in) | 126 | 142 |
| Displacement from Tractor (in) | 46 - 68 | 51 - 75 |
| Oil Demand (L/min) | 40 | 40 |
| Machine Weight (lbs) | 739 | 794 |
In Package
- Double In and Out Mowing Wheel on Bio-Dynamic Duo Frame: Comes with dual mowing heads, hydraulic side shift, adjustable gauge wheels, and spring-loaded support. Available in narrow and wide configurations for both front and rear mounting.
Manual & Documents
The Product Manual
Machine Confiiguration Guide
