Rinieri Double Orchard Pruner CRB-X2 3-4 Discs for Skirting | 16" Disc Diameter for Tractor
Description

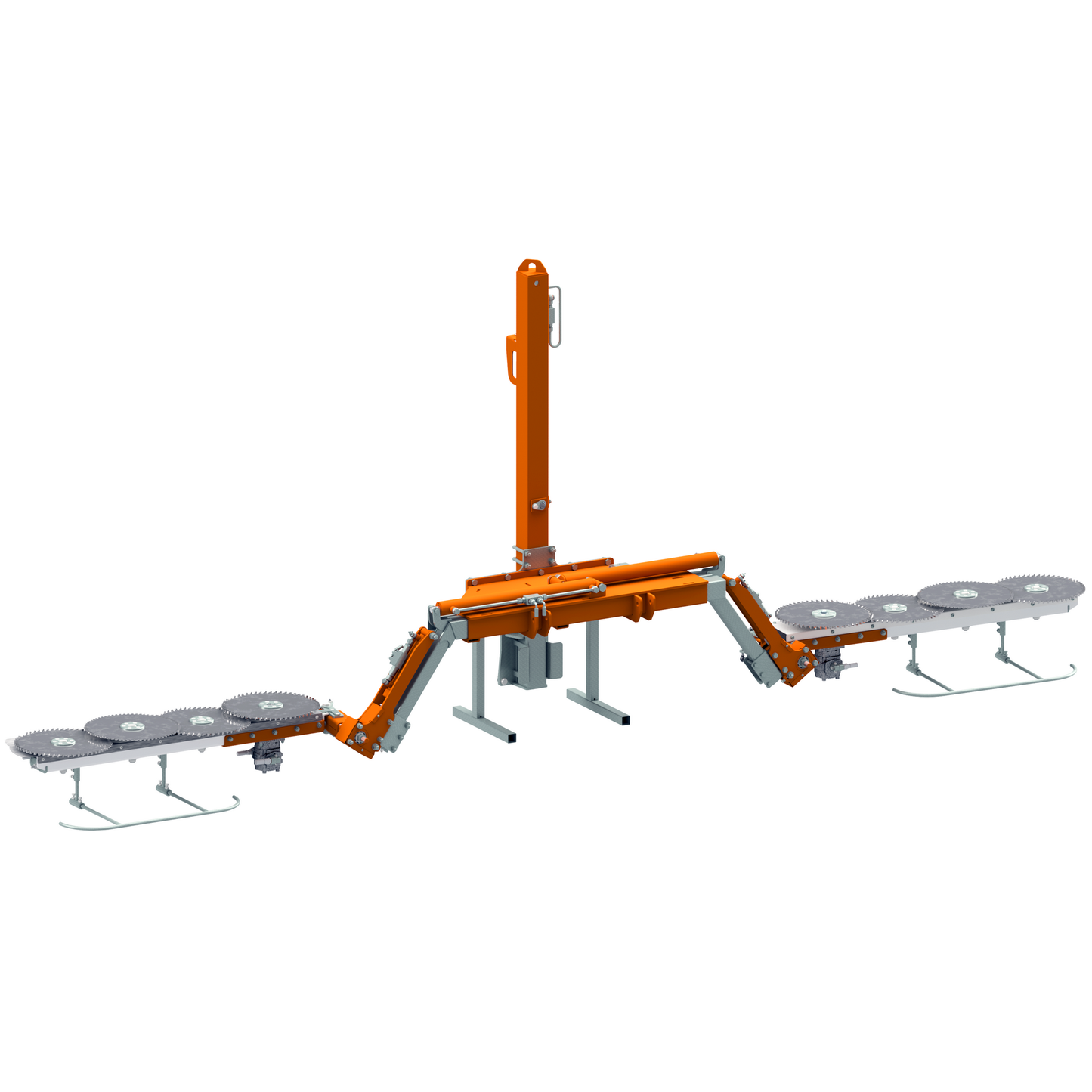

The CRB-X2 Double Orchard Pruner is a powerful, dual-disc pruning machine designed specifically for trimming branches under the canopy or in low areas of the orchard. Mounted on the front of the tractor, this robust machine ensures efficient skirting and under-canopy pruning, helping orchard owners maintain healthy, well-kept trees.
Features
- Double Disc Cutting Bars: Equipped with two disc cutting bars for enhanced pruning efficiency.
- Front-Mounted Design: Easily mounts on the front of the tractor for improved visibility and maneuverability.
- Hydraulic Adjustments: Features hydraulic lifting and side shift, along with manual tilting cutting bars for optimal performance.
- Precision Cutting Discs: Each cutting bar is equipped with Ø 15.7-inch discs, ideal for pruning branches under the canopy.
- Safety Features: Includes a flow divider with maximum pressure valve and safety joint with spring for protection during use.
- Easy Storage: Comes with stands for safe and convenient storage.
Specifications
| Component | Details |
|---|---|
| Hydraulic Lifting | 27.6 inches |
| Hydraulic Side Shift | 23.6 inches |
| Cutting Bar with Discs | 15.7 inches |
| Cutting Bar Tilting | Manual |
| Flow Divider | With maximum pressure valve for motors |
| Safety Joint | Spring-loaded for cutting bar safety |
| Tractor Requirements | 3 double-acting hydraulic distributors, 1 single-acting hydraulic distributor, 1 pressure-free return, 45-50 liters/min flow |

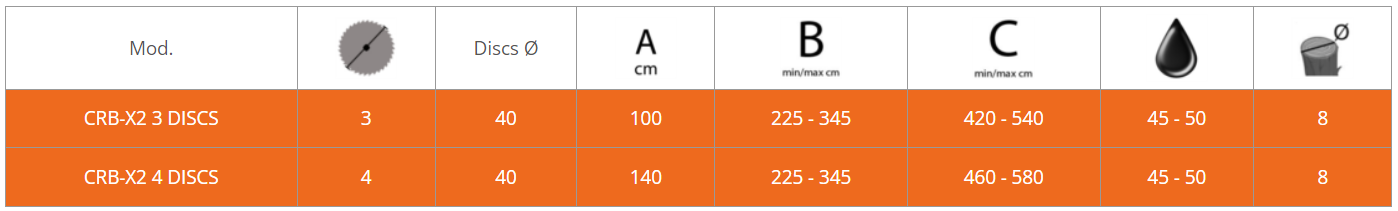

Model & Performance Chart
|
Specification |
Model |
|
|
CRB-X2 3 Discs |
CRB-X2 4 Discs |
|
|
Number of Discs |
3 |
4 |
|
Disc Diameter |
15.7 |
15.7 |
|

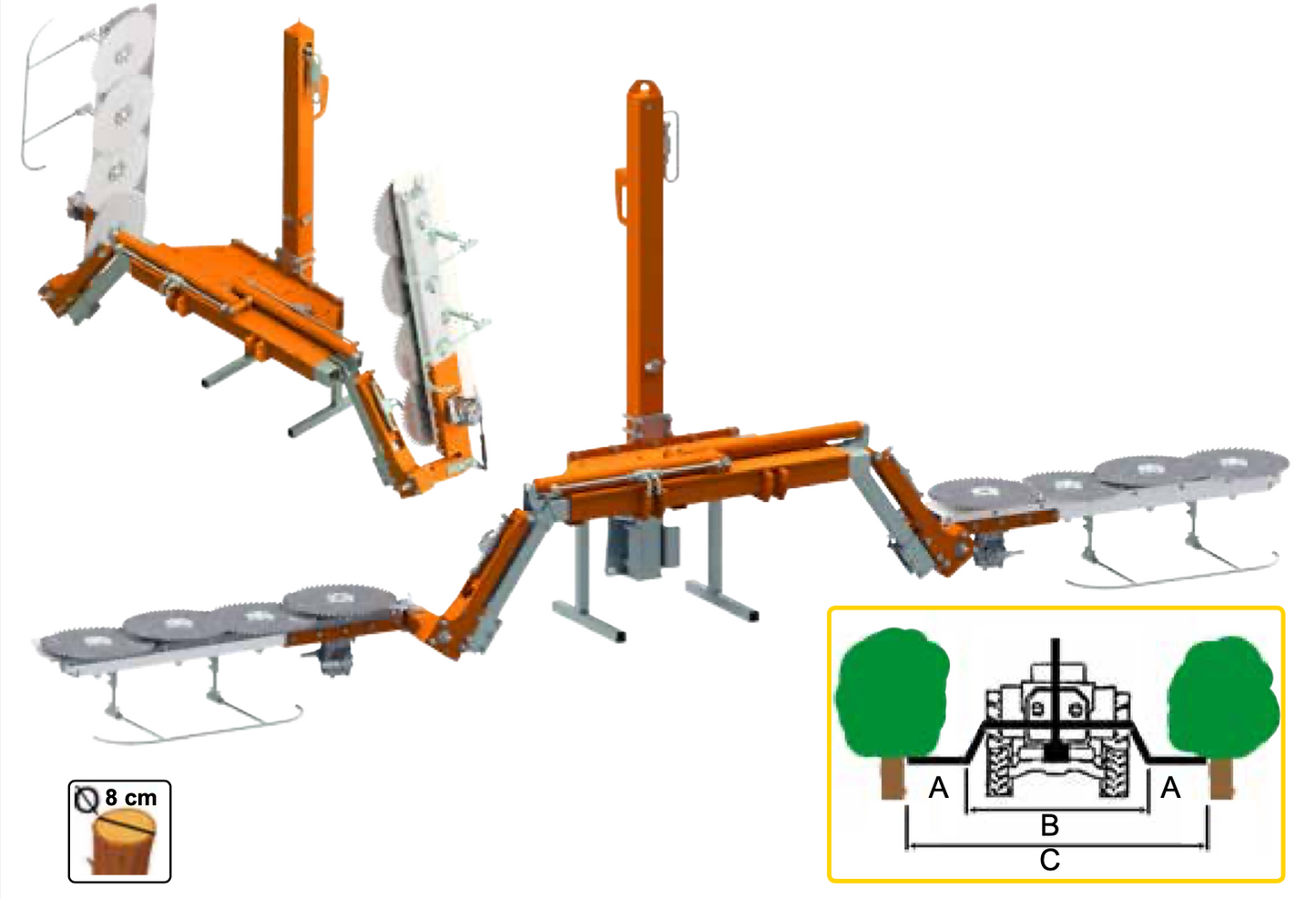

Dimensions A (inches) |
39.4 |
55.1 |
|
Dimensions B (inches) |
88.6 - 135.8 |
88.6 - 135.8 |
|
Dimensions C (inches) |
165.4 - 212.6 |
181.1 - 228.3 |
|
Oil Demand (Liters/min) |
11.9 - 13.2 |
11.9 - 13.2 |
|
Cutting Power (kW) |
8 |
8 |
What's Included
- CRB-X2 Double Orchard Pruning Machine
- Hydraulic lifting, side shift, and manual tilting cutting bars
- Flow divider with maximum pressure valve
- Safety joint spring for cutting bar protection
- Stands for safe storage
- User Manual & Setup Guide
Note:
All models are equipped as standard with 1.5m long hydraulic hoses from the coupling plate. For longer hoses a price increase of $1800 per meter per hose will be added.
Maximize your orchard maintenance efficiency with the CRB-X2 Double Orchard Pruner. With its dual-disc cutting bars and front-mounted design, this machine ensures optimal performance for pruning under-canopy and low-lying branches. Order now and keep your orchard in pristine condition with ease and precision!
