Product Description

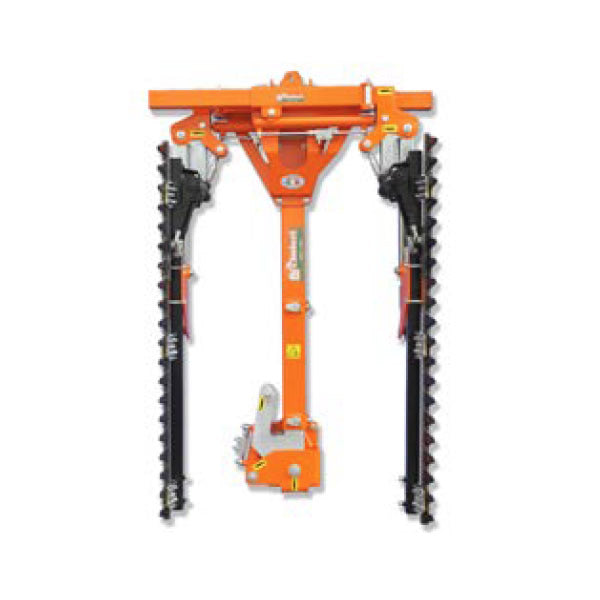

Rinieri Double Sickle Bar Pruning Machine CRL Tower-2 I | 59"-83" Cutting Width for Tractor
DESCRIPTION
DOUBLE SICKLE BAR PRUNING MACHINE CRL TOWER-2 I The new frames TOWER are characterized by the central structure very resistant equipped with tilt and hydraulic lifting to which is coupled an upper part with a displacement or double displacement depending on the model. This particular design makes the machines to be modified after the purchase. Cutting bars are protected by spring safety controls and the horizontal bars also have a manual closure for transport. The double blade cutting bars CRL are very sturdy and allow a very accurate cut thanks to the double blade- tooth movement.
Key Features
- Hydraulic Lifting & Tilting: Offers 28" vertical lift and +/-20° hydraulic tilting for ease of use and flexibility.
- Safety Mechanisms: Includes spring-loaded safety controls and a maximum pressure valve to ensure safe operation.
- Versatile Adjustment: Hydraulic side shift and manual tilting vertical bar for precision in different pruning tasks.
- Heavy-Duty Build: Durable construction to handle tough environments and frequent use in various agricultural settings.
- Storage & Transport: Comes with a hydraulic stand for easy storage and safety during transportation.
T2 FRAME
- Hydraulic lifting 28"
- Vertical frame hydraulic tilting +/-20°
- Hydraulic side shift
- Manual tilting vertical bar +/-11°
SAFETY ON
- Maximum pressure valve for motors
- Spring safety for vertical bars
- Hydraulic stand for storage
THE TRACTOR
- N.3 double-acting hydraulic distributor
- N.1 single-acting hydraulic distributor
- N.1 pressure free return
- 20-30 Liter/min

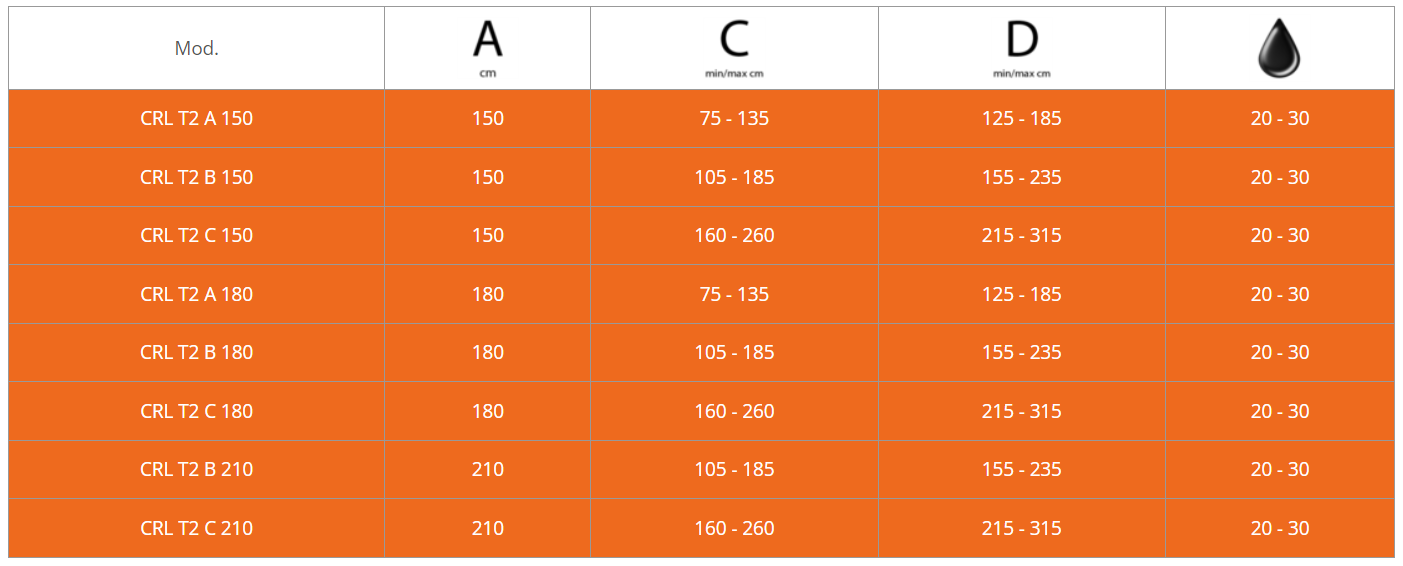

Detailed Specifications
CRL T2 A 150 & CRL T2 B 150

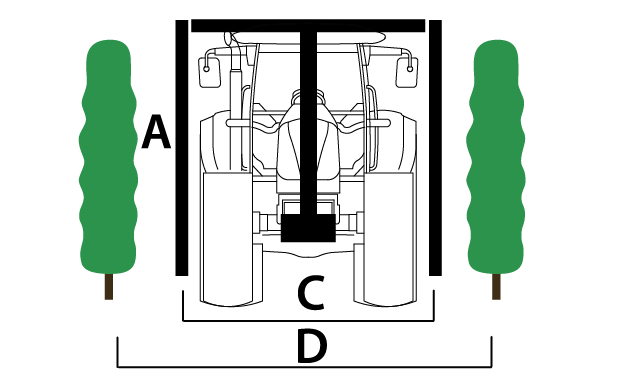

| Attribute | CRL T2 A 150 | CRL T2 B 150 |
|---|---|---|
| A (in) | 59 | 59 |
| C (in) | 30" - 53" | 41" - 73" |
| D (in) | 49" - 73" | 61" - 93" |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 |
CRL T2 C 150 & CRL T2 A 180
| Attribute | CRL T2 C 150 | CRL T2 A 180 |
|---|---|---|
| A (in) | 59 | 71 |
| C (in) | 63" - 102" | 30" - 53" |
| D (in) | 85" - 124" | 49" - 73" |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 |
CRL T2 B 180 & CRL T2 C 180
| Attribute | CRL T2 B 180 | CRL T2 C 180 |
|---|---|---|
| A (in) | 71 | 71 |
| C (in) | 41" - 73" | 63" - 102" |
| D (in) | 61" - 93" | 85" - 124" |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 |
CRL T2 B 210 & CRL T2 C 210
| Attribute | CRL T2 B 210 | CRL T2 C 210 |
|---|---|---|
| A (in) | 83 | 83 |
| C (in) | 41" - 73" | 63" - 102" |
| D (in) | 61" - 93" | 85" - 124" |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 |
In Package
- Double Sickle Bar Pruning Machine CRL Tower-2 I
- Spring-loaded safety controls for vertical bars
- Hydraulic lifting and tilting functions
- Manual and hydraulic side shifts
- Hydraulic stand for safe storage
Available Options
- Kit 4.0 Precision Farming
- Hydraulic Distributor 4+1 with Levers
- Joystick 4+1 and Electrovalve
- Top Sickle Bar (31.5")
- Shoots Conveyor for Pruning Machine
- Sucker Remover Head (SRV)
Manuals & Documents
The Product Manual
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

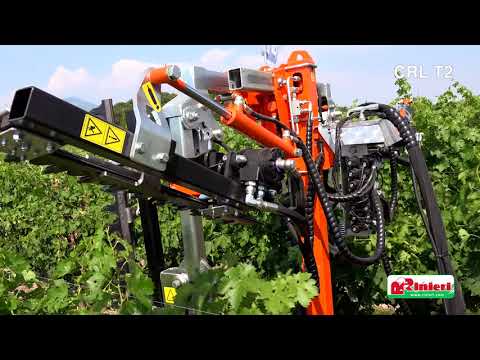

Videos
