Product Description

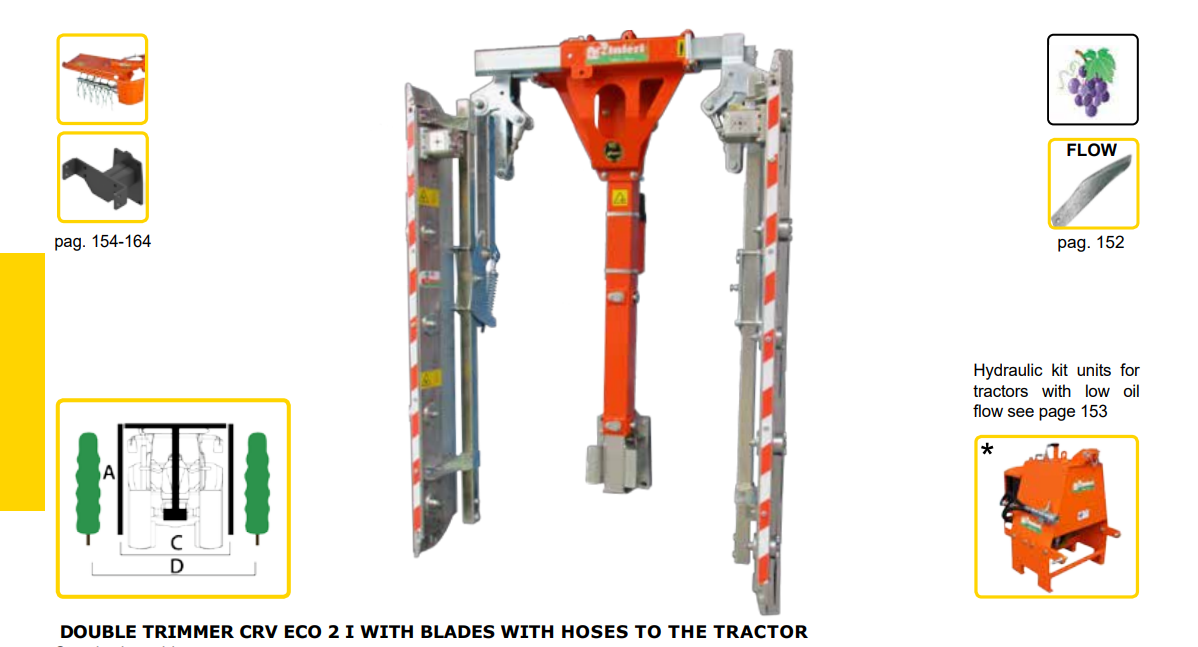

Rinieri Double Trimer CRV ECO 2 I With Blades-Hoses | 41"-83" Cutting Width for Tractor
DESCRIPTION

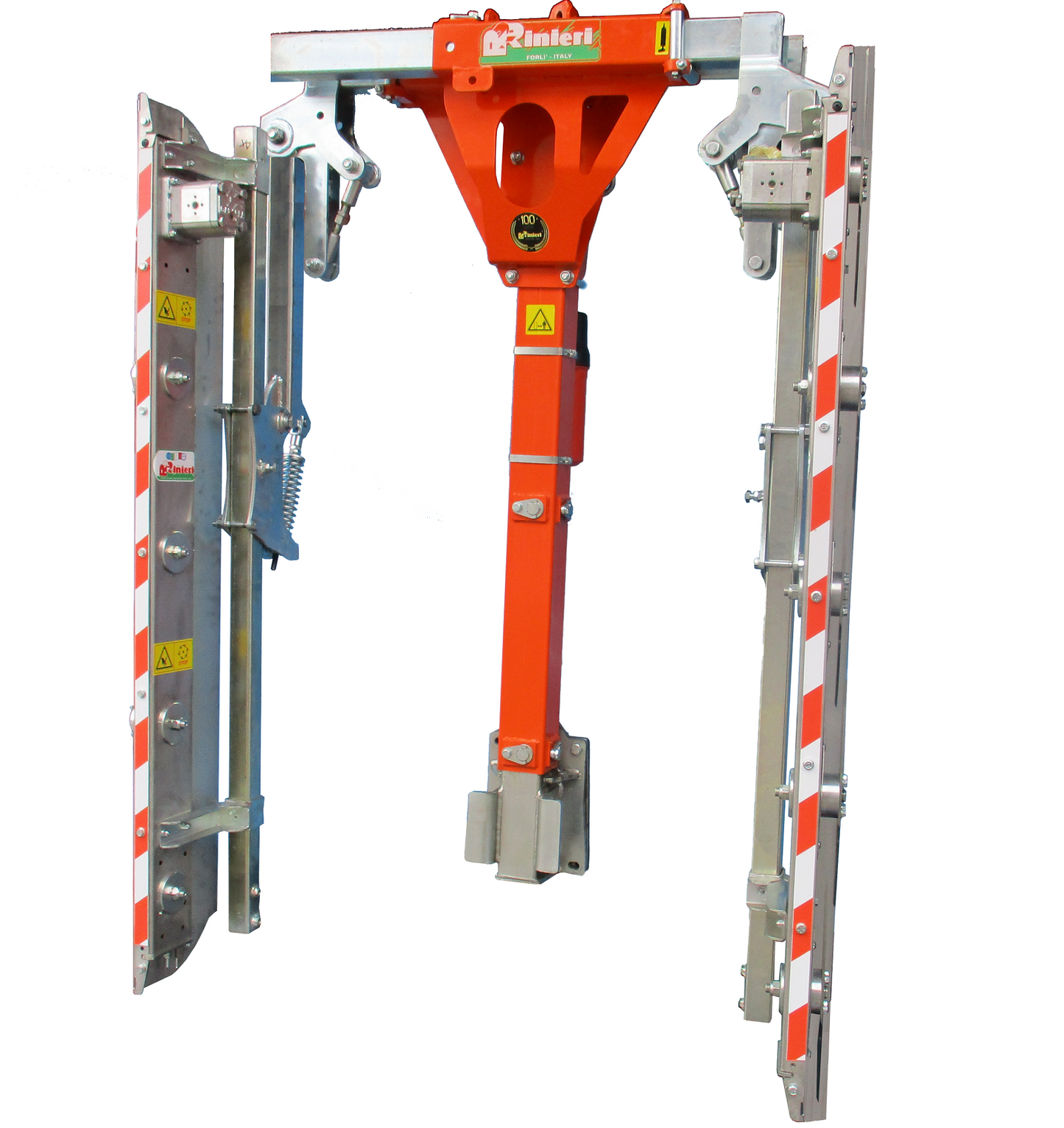

The DOUBLE TRIMMER CRV ECO-2 I with Blades is a versatile pruning machine built for effective and efficient trimming operations. Designed with an ECO 2 frame, this trimmer offers both hydraulic lifting and manual side shift capabilities, making it ideal for a variety of agricultural applications. Equipped with precision blades and spring safety controls, the CRV ECO-2 I ensures safe and smooth operation, providing a professional solution for maintaining orchards, vineyards, and more.
Key Features
- Hydraulic Lifting: Vertical lift of 27.5" (70 cm) for precise height adjustments.
- Manual Side Shift: Allows for manual control of side movement for flexible positioning.
- Manual Vertical Bar Tilt: Adjustable vertical bar with a manual tilt of +/- 11° for increased cutting accuracy.
- Safety Features: Includes maximum pressure valve and flow divider for motor protection, as well as spring-loaded safety mechanisms for the vertical bar.
- Hydraulic Stand for Storage: Ensures easy and safe storage when not in use.
Detailed Specifications
| Specification | Details |
|---|---|
| Hydraulic Lifting | 27.5" (70 cm) |
| Manual Vertical Bar Tilt | +/- 11° |
| Manual Side Shift | Yes |
| Hydraulic Requirement | 20-35 L/min |
Models
CRV E2 A 3 & CRV E2 B 3

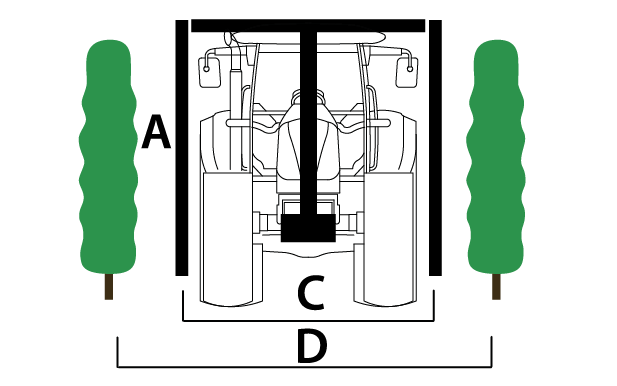

| Attribute | CRV E2 A 3 | CRV E2 B 3 |
|---|---|---|
| A (inches) | 41.34" | 41.34" |
| C Min - Max (inches) | 35.43" - 59.06" | 47.24" - 78.74" |
| D Min - Max (inches) | 55.12" - 78.74" | 66.93" - 98.43" |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 |
CRV E2 A 4 & CRV E2 B 4
| Attribute | CRV E2 A 4 | CRV E2 B 4 |
|---|---|---|
| A (inches) | 55.12" | 55.12" |
| C Min - Max (inches) | 35.43" - 59.06" | 47.24" - 78.74" |
| D Min - Max (inches) | 55.12" - 78.74" | 66.93" - 98.43" |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 |
CRV E2 C 4 & CRV E2 B 5
| Attribute | CRV E2 C 4 | CRV E2 B 5 |
|---|---|---|
| A (inches) | 55.12" | 68.90" |
| C Min - Max (inches) | 68.90" - 108.27" | 47.24" - 78.74" |
| D Min - Max (inches) | 90.55" - 129.92" | 66.93" - 98.43" |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 |
CRV E2 C 5 & CRV E2 B 6
| Attribute | CRV E2 C 5 | CRV E2 B 6 |
|---|---|---|
| A (inches) | 68.90" | 82.68" |
| C Min - Max (inches) | 68.90" - 108.27" | 47.24" - 78.74" |
| D Min - Max (inches) | 90.55" - 129.92" | 66.93" - 98.43" |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 |
CRV E2 C 6
| Attribute | CRV E2 C 6 |
|---|---|
| A (inches) | 82.68" |
| C Min - Max (inches) | 68.90" - 108.27" |
| D Min - Max (inches) | 90.55" - 129.92" |
| Oil Demand (L/min) | 20 - 30 |
In Package
- DOUBLE TRIMMER CRV ECO-2 I with Blades
- Hydraulic and manual controls for all frame adjustments
- Spring-loaded safety systems for vertical bars
- Hydraulic stand for storage

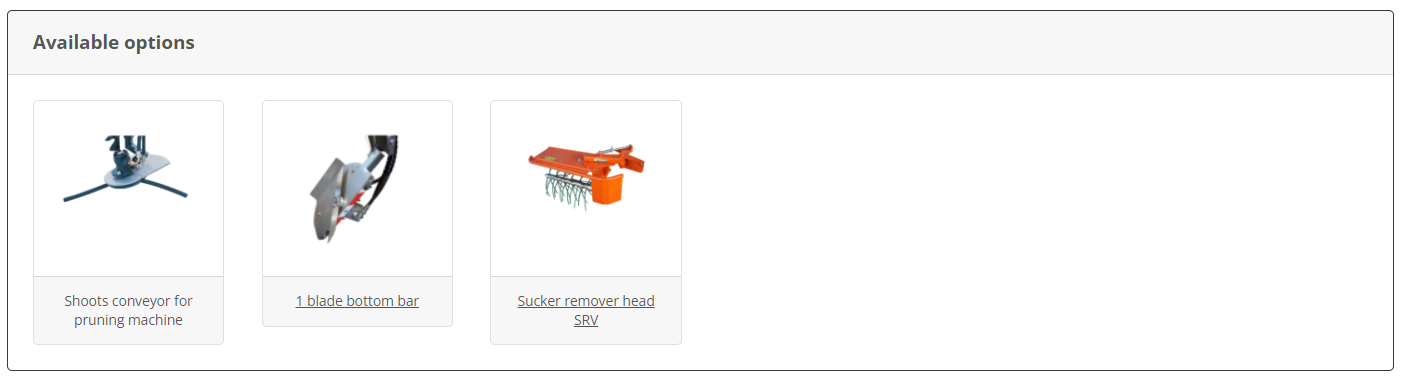

Available Options
- Shoots conveyor for pruning machine
- 1 blade bottom bar
- Sucker remover head SRV
Boost your trimming efficiency with the DOUBLE TRIMMER CRV ECO-2 I with Blades. Contact us today for a custom quote and explore how this versatile tool can enhance your agricultural operations!
