Product Description

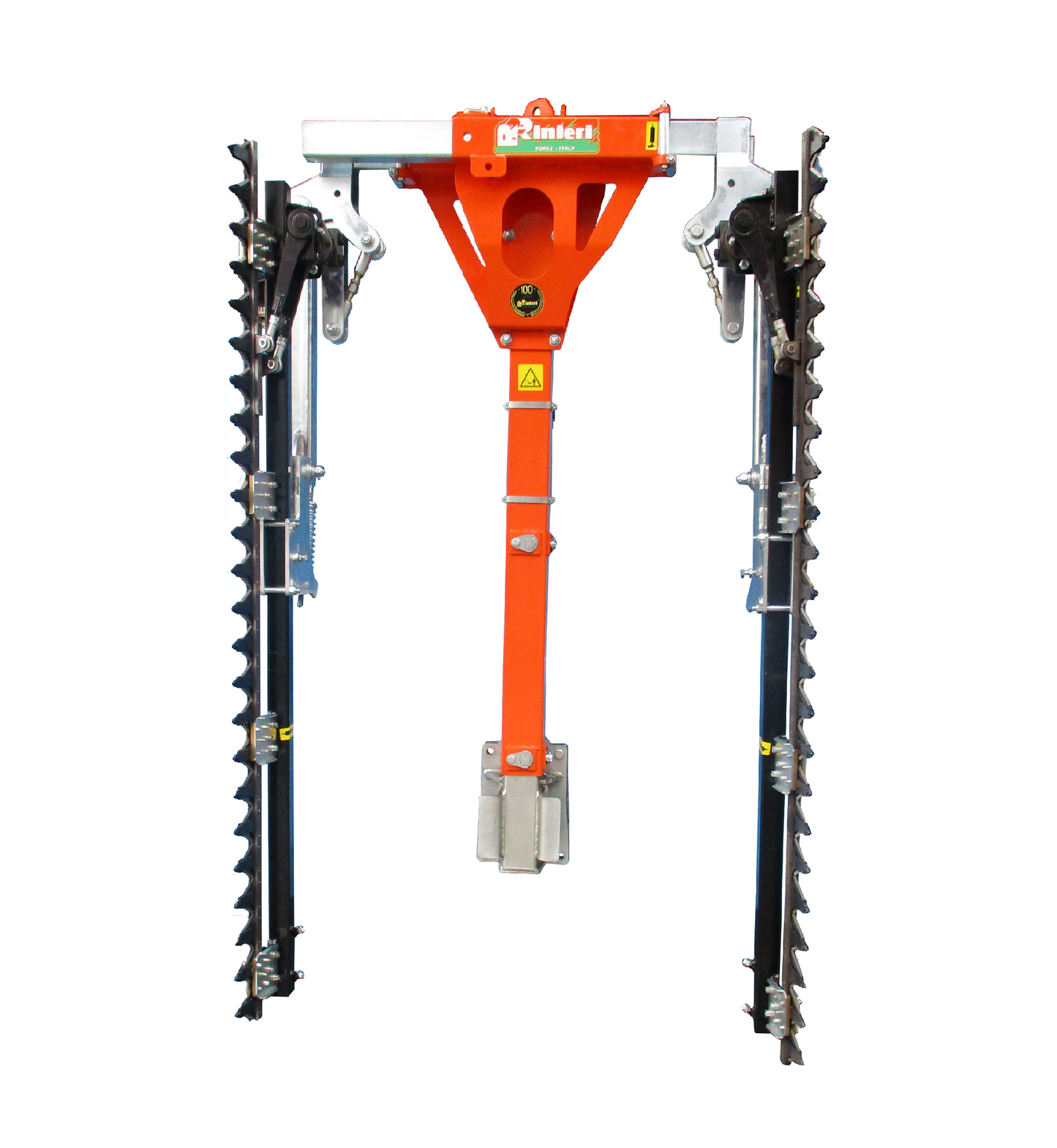

Rinieri Double Trimmer CRL ECO 2 I With Double Sickle Bar With Hoses to the Tractor | 59"-83" Cutting Width for Tractor
DESCRIPTION
The Double Trimmer CRL ECO-2 I is designed for efficient and precise vineyard trimming. This eco model features a robust central structure with double vertical sickle bars, offering exceptional durability and performance for vineyard maintenance.
Key Features
- Frame: Eco 2 frame with hydraulic lifting (27.6 inches) and manual side shift for optimal control.
- Safety: Equipped with a maximum pressure valve and flow divider for motors to prevent overloading. Spring safety for vertical bars ensures reliable operation.
- Storage: Comes with a hydraulic stand for convenient storage and easy handling.
Detailed Specifications
| Component | Details |
|---|---|
| Hydraulic Lifting | 27.6 inches (70 cm) |
| Manual Side Shift | Yes |
| Manual Tilting (Vertical Bar) | +/-11° |
| Oil Demand | 20 - 30 L/min |
| On the Tractor Requirements | 1 double-acting hydraulic distributor, 1 simple-acting hydraulic distributor, 1 pressure-free return |

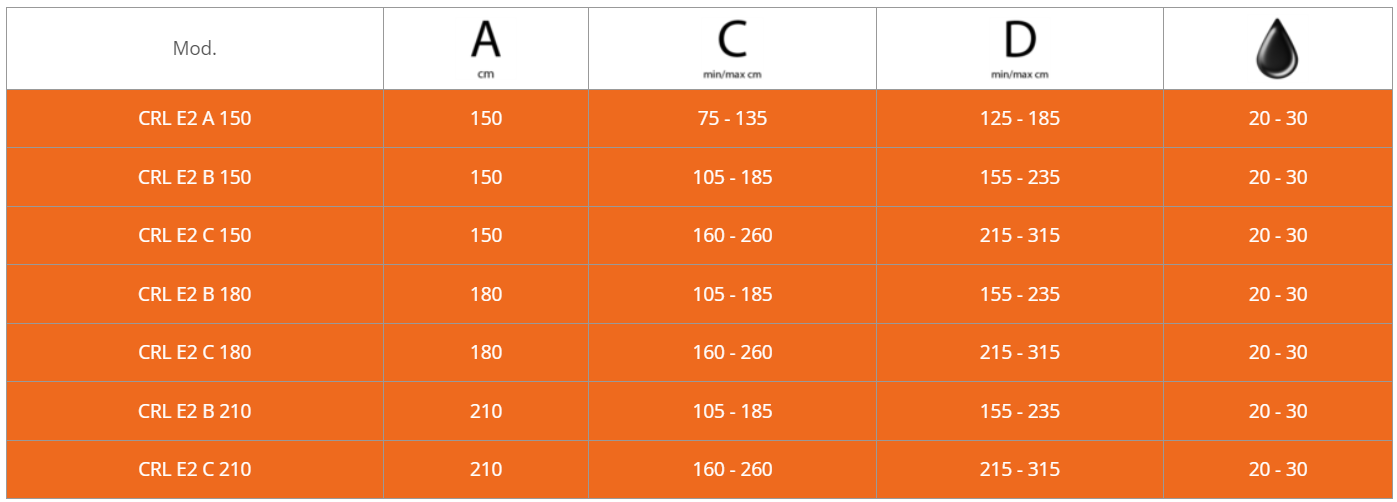

Model Specs
| Model | Dimensions (inches) | Oil Demand |
|---|---|---|
| CRL E2 A 150 | A: 59.1, C: 29.5 - 53.1, D: 49.2 - 72.8 | 20 - 30 L/min |
| CRL E2 B 150 | A: 59.1, C: 41.3 - 72.8, D: 61.0 - 92.5 | 20 - 30 L/min |
| CRL E2 C 150 | A: 59.1, C: 63.0 - 102.4, D: 84.6 - 124.0 | 20 - 30 L/min |
| CRL E2 B 180 | A: 70.9, C: 41.3 - 72.8, D: 61.0 - 92.5 | 20 - 30 L/min |
| CRL E2 C 180 | A: 70.9, C: 63.0 - 102.4, D: 84.6 - 124.0 | 20 - 30 L/min |
| CRL E2 B 210 | A: 82.7, C: 41.3 - 72.8, D: 61.0 - 92.5 | 20 - 30 L/min |
| CRL E2 C 210 | A: 82.7, C: 63.0 - 102.4, D: 84.6 - 124.0 | 20 - 30 L/min |
In Package
- Double Trimmer CRL ECO-2 I with double sickle bar
- Hydraulic stand for storage
- Standard 1.5m-long hydraulic hoses from the coupling plate (additional cost for longer hoses)

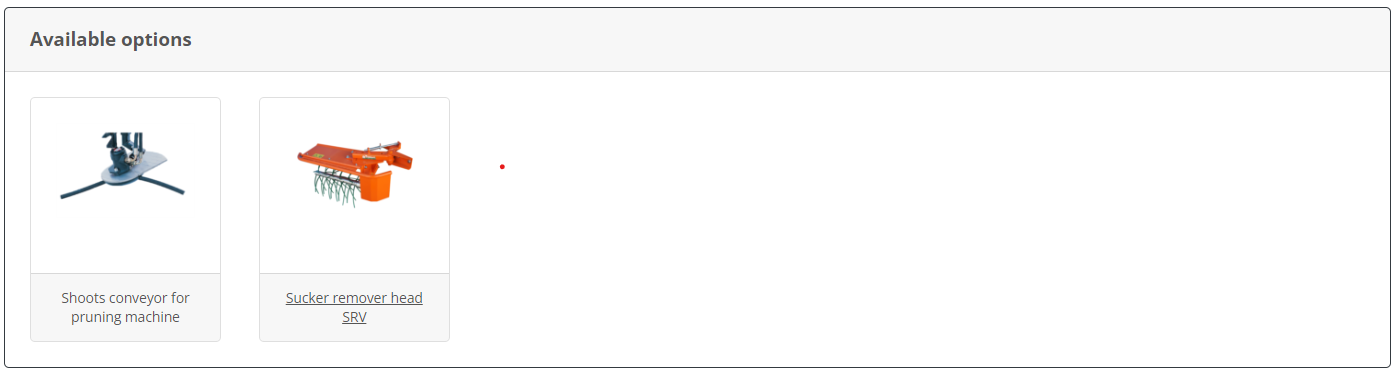

Available Options
- Sucker remover head SRV
Manuals & Documents
The Product Manual
