Description

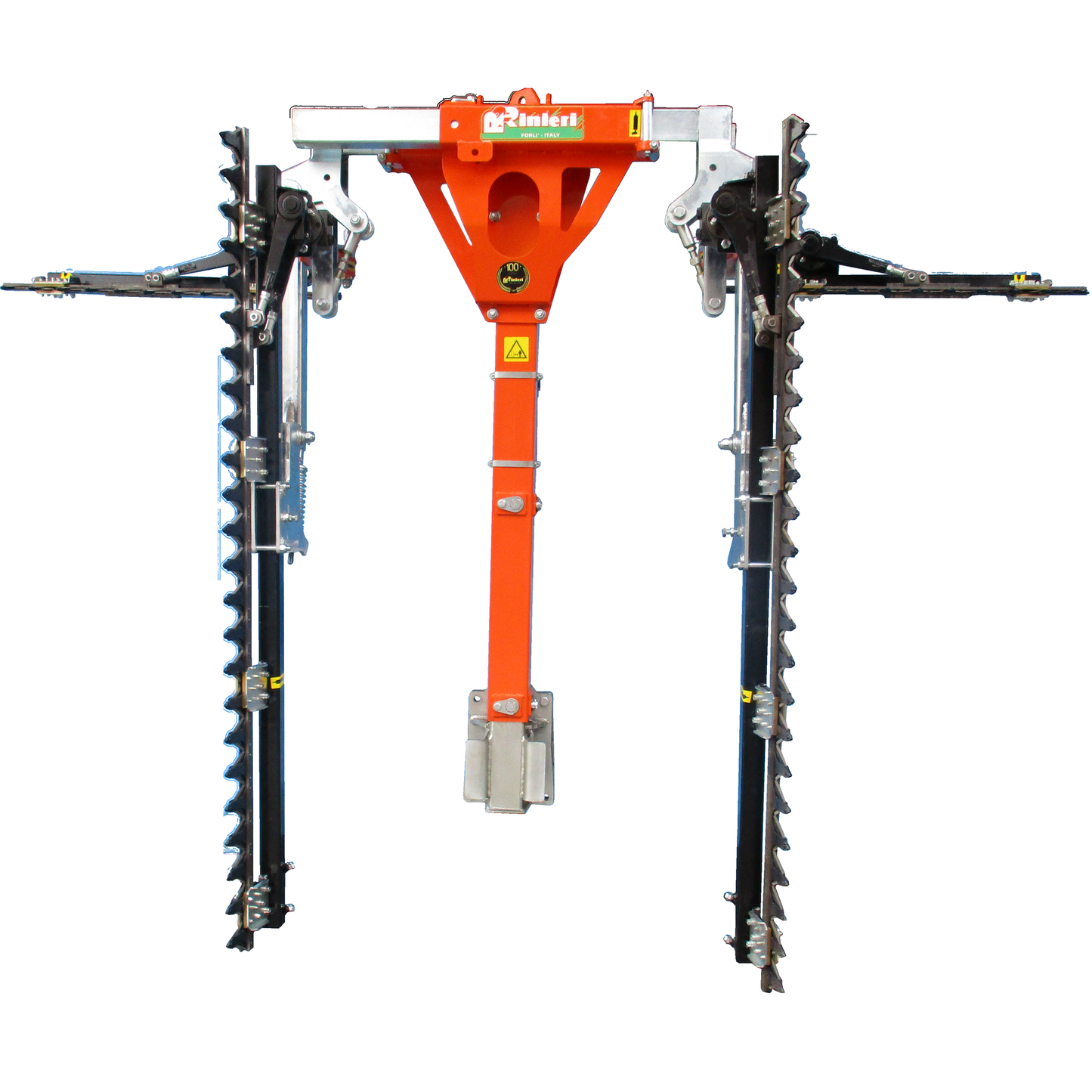

The Double Trimmer CRL ECO 2 L features a durable central frame with tilt lifting, offering flexibility for future modifications. Its double blade cutting bars deliver precise cuts using a sturdy double blade-tooth movement, ensuring optimal performance in vineyard trimming.
The new frames ECO are characterized by the central structure very resistant equipped with tilt lifting to which is coupled an upper part with a displacement or double displacement depending on the model. This particular design makes the machines to be modified after the purchase. Cutting bars are protected by spring safety controls and the horizontal bars also have a manual closure for transport. The double blade cutting bars CRL are very sturdy and allow a very accurate cut thanks to the double blade- tooth movement.
Features
- Frame: ECO 2 with hydraulic lifting (27.6 inches), manual side shift, and tilting bars.
- Safety: Includes maximum pressure valve, spring safety for vertical bar, and storage stands.
- Transport Ready: Manual closure for horizontal bars during transport.
- Hoses: Standard 1.5m hydraulic hoses (additional length available for €15/meter).
Specifications
Component | Details |
---|---|
Hydraulic Lifting | 27.6 inches |
Manual Tilting (Vertical Bar) | +/-11° |
Manual Tilting (Horizontal Bar) | 90° |
Manual Height Adjustment | 13.8 inches (horizontal bar) |
Oil Demand | 25-35 L/min |
On the Tractor Requirements | 1 double-acting hydraulic distributor, 1 single-acting hydraulic distributor, 1 pressure-free return |

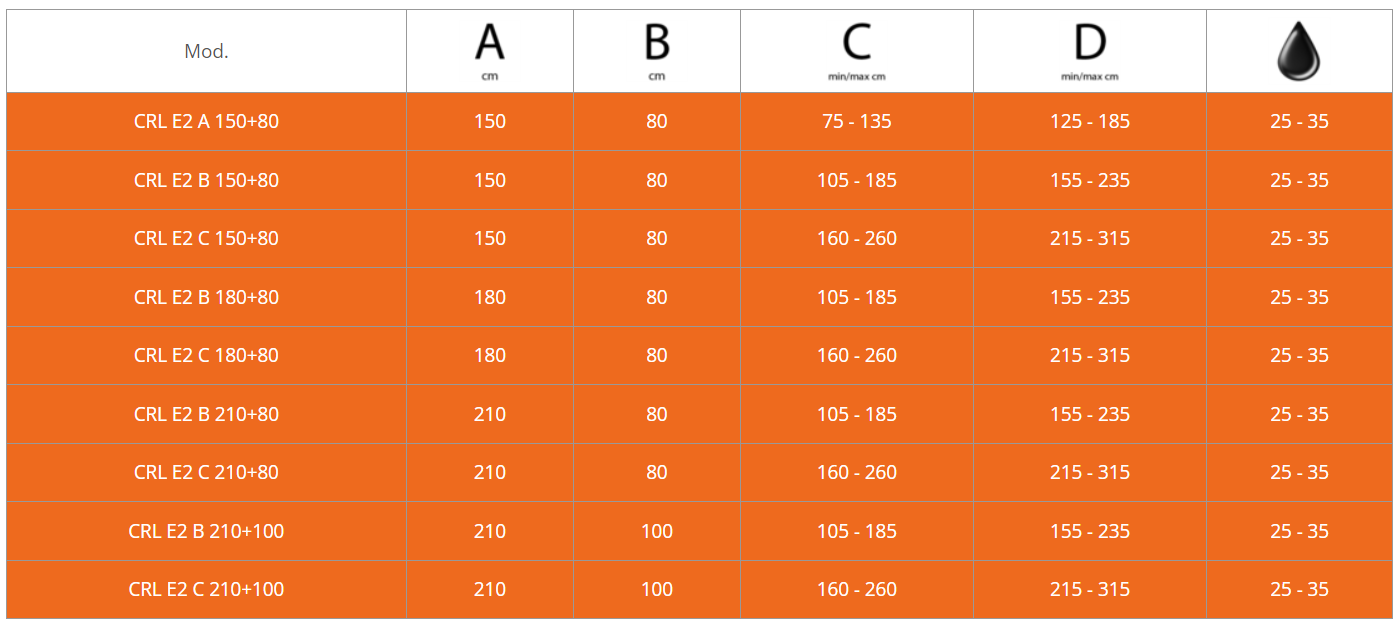

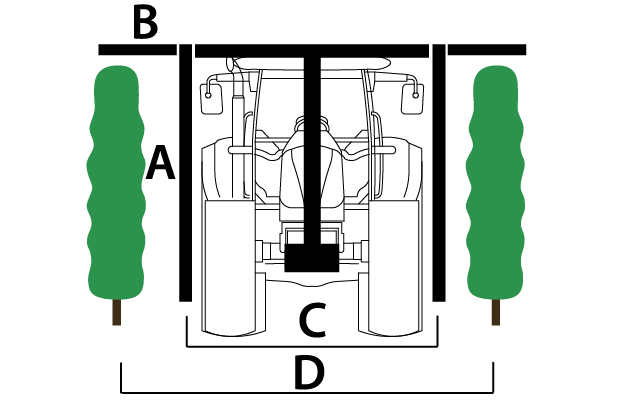

Model Chart
Model | Dimensions (inches) | Oil Demand |
---|---|---|
CRL E2 A 150+80 | A: 59.1, B: 31.5, C: 29.5 - 53.1, D: 49.2 - 72.8 | 25 - 35 L/min |
CRL E2 B 150+80 | A: 59.1, B: 31.5, C: 41.3 - 72.8, D: 61.0 - 92.5 | 25 - 35 L/min |
CRL E2 C 150+80 | A: 59.1, B: 31.5, C: 63.0 - 102.4, D: 84.6 - 124.0 | 25 - 35 L/min |
CRL E2 B 180+80 | A: 70.9, B: 31.5, C: 41.3 - 72.8, D: 61.0 - 92.5 | 25 - 35 L/min |
CRL E2 C 180+80 | A: 70.9, B: 31.5, C: 63.0 - 102.4, D: 84.6 - 124.0 | 25 - 35 L/min |
CRL E2 B 210+80 | A: 82.7, B: 31.5, C: 41.3 - 72.8, D: 61.0 - 92.5 | 25 - 35 L/min |
CRL E2 C 210+80 | A: 82.7, B: 31.5, C: 63.0 - 102.4, D: 84.6 - 124.0 | 25 - 35 L/min |
CRL E2 B 210+100 | A: 82.7, B: 39.4, C: 41.3 - 72.8, D: 61.0 - 92.5 | 25 - 35 L/min |
CRL E2 C 210+100 | A: 82.7, B: 39.4, C: 63.0 - 102.4, D: 84.6 - 124.0 | 25 - 35 L/min |
What's Included
- Double Trimmer CRL ECO 2 L
- Standard 1.5m hydraulic hoses
- Safety features and stands for storage
Boost your vineyard efficiency with the Double Trimmer CRL ECO 2 L. Designed for precision and adaptability, this machine is the perfect solution for vineyard pruning. Order today and streamline your operations!
