Product Description
Rinieri Double Trimmer CRV ECO-2L With Blades/Hoses | 55"-83" Cuttig Width for Tractor
DESCRIPTION
The DOUBLE TRIMMER CRV ECO-2 L with Blades with Hoses to the Tractor is a high-performance pruning machine designed for efficiency and speed. Built with a strong, resistant ECO frame, this trimmer offers tilt lifting, side shift, and tilting horizontal bars for precise cuts. The stainless steel cutting bars with rotating knives ensure a fast and clean cut at speeds up to 15 km/h, making it ideal for large-scale agricultural applications. The machine’s modular design allows for easy modifications after purchase, ensuring long-term adaptability.
Key Features
- Hydraulic Lifting: Vertical lift of 27.5" (70 cm) for easy height adjustments.
- Manual Side Shift: Allows for manual control of side movement for flexible positioning.
- Manual Vertical Bar Tilt: Adjustable vertical bar with a tilt of +/- 11° for increased cutting precision.
- Manual Horizontal Bar Tilt: 90° manual tilting of horizontal bars for optimal control.
- Manual Horizontal Bar Height Adjustment: Adjustable up to 13.8" (35 cm) for better reach.
- Stainless Steel Cutting Bars: Equipped with lightweight and durable rotating knives for a fast and clean cut.
- Safety Features: Includes spring-loaded safety for vertical and topping bars, as well as maximum pressure valves for motor protection.
- Stands for Storage: Hydraulic stands provide convenient storage.
Detailed Specifications
Specification |
Details |
|---|---|
| Hydraulic Lifting | 27.5" (70 cm) |
| Manual Vertical Bar Tilt | +/- 11° |
| Manual Horizontal Bar Tilt | 90° |
| Manual Horizontal Bar Height Adjustment | 13.8" (35 cm) |
| Hydraulic Requirement | 25-35 L/min |
Models:
CRV E2 A 4+2 & CRV E2 B 4+2
| Attribute | CRV E2 A 4+2 | CRV E2 B 4+2 |
|---|---|---|
| A (inches) | 55.12" | 55.12" |
| B (inches) | 29.53" | 29.53" |
| C Min - Max (inches) | 35.43" - 59.06" | 47.24" - 78.74" |
| D Min - Max (inches) | 55.12" - 78.74" | 66.93" - 98.43" |
| Oil Demand (L/min) | 25 - 35 | 25 - 35 |
CRV E2 C 4+2 & CRV E2 B 5+2
| Attribute | CRV E2 C 4+2 | CRV E2 B 5+2 |
|---|---|---|
| A (inches) | 55.12" | 68.90" |
| B (inches) | 29.53" | 29.53" |
| C Min - Max (inches) | 68.90" - 108.27" | 47.24" - 78.74" |
| D Min - Max (inches) | 90.55" - 129.92" | 66.93" - 98.43" |
| Oil Demand (L/min) | 25 - 35 | 25 - 35 |
CRV E2 C 5+2 & CRV E2 B 5+3
| Attribute | CRV E2 C 5+2 | CRV E2 B 5+3 |
|---|---|---|
| A (inches) | 68.90" | 68.90" |
| B (inches) | 29.53" | 41.34" |
| C Min - Max (inches) | 68.90" - 108.27" | 47.24" - 78.74" |
| D Min - Max (inches) | 90.55" - 129.92" | 66.93" - 98.43" |
| Oil Demand (L/min) | 25 - 35 | 25 - 35 |
CRV E2 C 5+3 & CRV E2 B 6+2
| Attribute | CRV E2 C 5+3 | CRV E2 B 6+2 |
|---|---|---|
| A (inches) | 68.90" | 82.68" |
| B (inches) | 41.34" | 29.53" |
| C Min - Max (inches) | 68.90" - 108.27" | 47.24" - 78.74" |
| D Min - Max (inches) | 90.55" - 129.92" | 66.93" - 98.43" |
| Oil Demand (L/min) | 25 - 35 | 25 - 35 |
CRV E2 C 6+2 & CRV E2 B 6+3
| Attribute | CRV E2 C 6+2 | CRV E2 B 6+3 |
|---|---|---|
| A (inches) | 82.68" | 82.68" |
| B (inches) | 29.53" | 41.34" |
| C Min - Max (inches) | 68.90" - 108.27" | 47.24" - 78.74" |
| D Min - Max (inches) | 90.55" - 129.92" | 66.93" - 98.43" |
| Oil Demand (L/min) | 25 - 35 | 25 - 35 |
CRV E2 C 6+3
| Attribute | CRV E2 C 6+3 |
|---|---|
| A (inches) | 82.68" |
| B (inches) | 41.34" |
| C Min - Max (inches) | 68.90" - 108.27" |
| D Min - Max (inches) | 90.55" - 129.92" |
| Oil Demand (L/min) | 25 - 35 |
In Package
- DOUBLE TRIMMER CRV ECO-2 L with Blades with Hoses to the Tractor
- Hydraulic and manual controls for all frame adjustments
- Stainless steel cutting bars with rotating knives
- Spring-loaded safety systems for vertical and topping bars
- Hydraulic stand for storage

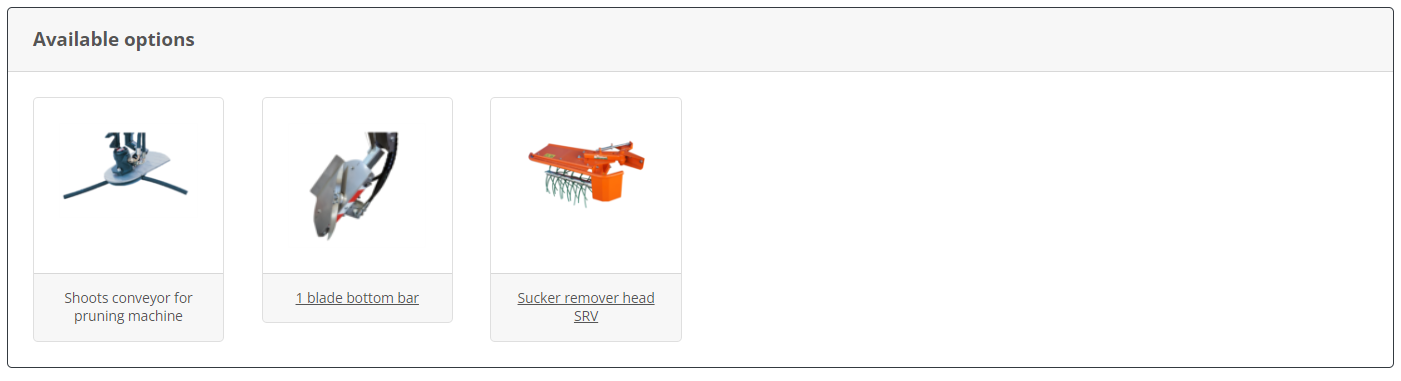

Available Options
- Shoots conveyor for pruning machine
- 1 blade bottom bar
- Sucker remover head SRV
