Product Description
Rinieri Double Trimmer CRV Tower 2 I With Blades | 41"-69" Cutting Width for Tractor
DESCRIPTION
The DOUBLE TRIMMER CRV TOWER-2 I with Blades is built for high-efficiency pruning operations, featuring a durable T2 frame with hydraulic lifting, tilting, and side shift capabilities. This machine is designed to deliver precise cuts while maintaining flexibility in different working conditions. The TOWER-2 model includes vertical bar adjustments, ensuring optimal performance for varying plant heights. Safety features like the spring-loaded safety mechanisms and pressure valves provide protection during operation, making it a reliable tool for agricultural use.
Key Features
- Hydraulic Lifting: Vertical lift of 27.5" (70 cm) for height adjustments.
- Vertical Frame Tilt: Hydraulic tilting of +/- 20° for precise trimming control.
- Hydraulic Side Shift: Allows for smooth side adjustments.
- Manual Vertical Bar Tilt: +/- 11° manual tilt for vertical bar adjustments.
- Safety Features: Includes a spring-loaded safety system for vertical bars and a maximum pressure valve to protect motors.
- Hydraulic Stand for Storage: Ensures safe and easy storage of the machine.
Detailed Specifications
Specification |
Details |
|---|---|
| Hydraulic Lifting | 27.5" (70 cm) |
| Vertical Frame Tilt | +/- 20° |
| Hydraulic Side Shift | Yes |
| Manual Vertical Bar Tilt | +/- 11° |
| Hydraulic Requirement | 25-35 L/min |
Models:
CRV T2 A 3 & CRV T2 B 3
| Attribute | CRV T2 A 3 | CRV T2 B 3 |
|---|---|---|
| A (inches) | 41.34" | 41.34" |
| C Min - Max (inches) | 35.43" - 59.06" | 47.24" - 78.74" |
| D Min - Max (inches) | 55.12" - 78.74" | 66.93" - 98.43" |
| Oil Demand (L/min) | 25 - 35 | 25 - 35 |
CRV T2 C 3 & CRV T2 A 4
| Attribute | CRV T2 C 3 | CRV T2 A 4 |
|---|---|---|
| A (inches) | 41.34" | 55.12" |
| C Min - Max (inches) | 68.90" - 108.27" | 35.43" - 59.06" |
| D Min - Max (inches) | 90.55" - 129.92" | 55.12" - 78.74" |
| Oil Demand (L/min) | 25 - 35 | 25 - 35 |
CRV T2 B 4 & CRV T2 C 4
| Attribute | CRV T2 B 4 | CRV T2 C 4 |
|---|---|---|
| A (inches) | 55.12" | 55.12" |
| C Min - Max (inches) | 47.24" - 78.74" | 68.90" - 108.27" |
| D Min - Max (inches) | 66.93" - 98.43" | 90.55" - 129.92" |
| Oil Demand (L/min) | 25 - 35 | 25 - 35 |
CRV T2 A 5 & CRV T2 B 5
| Attribute | CRV T2 A 5 | CRV T2 B 5 |
|---|---|---|
| A (inches) | 68.90" | 68.90" |
| C Min - Max (inches) | 35.43" - 59.06" | 47.24" - 78.74" |
| D Min - Max (inches) | 55.12" - 78.74" | 66.93" - 98.43" |
| Oil Demand (L/min) | 25 - 35 | 25 - 35 |
CRV T2 C 5
| Attribute | CRV T2 C 5 |
|---|---|
| A (inches) | 68.90" |
| C Min - Max (inches) | 68.90" - 108.27" |
| D Min - Max (inches) | 90.55" - 129.92" |
| Oil Demand (L/min) | 25 - 35 |
In Package
- DOUBLE TRIMMER CRV TOWER-2 I with Blades
- Hydraulic and manual controls for all frame adjustments
- Spring-loaded safety systems for vertical bars
- Hydraulic stand for storage

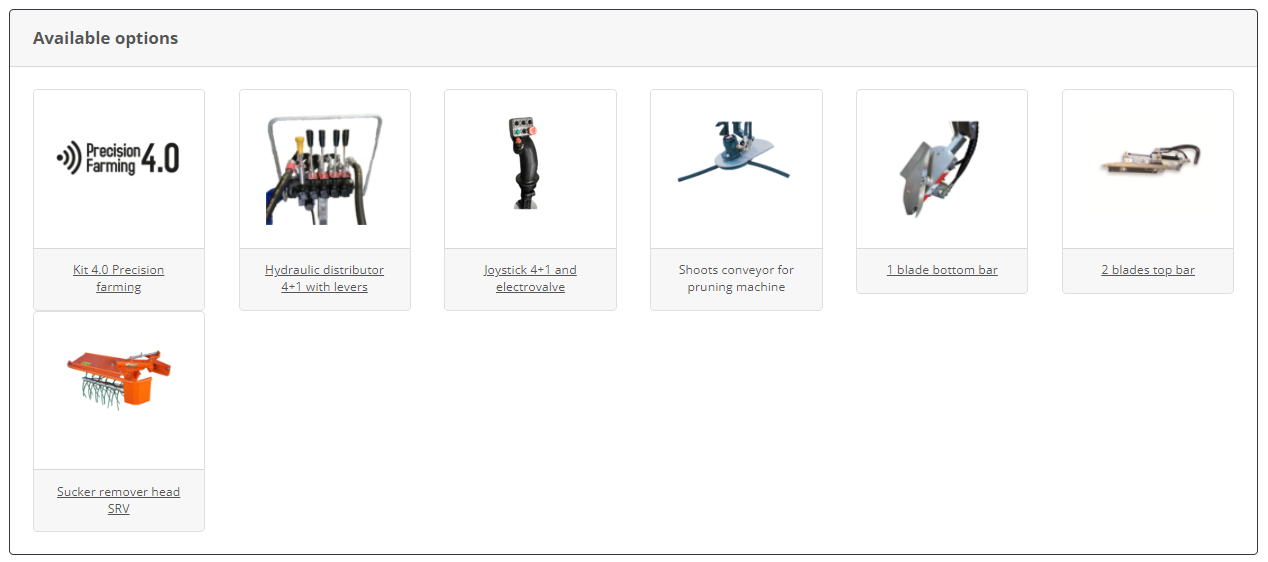

Available Options
- Kit 4.0 Precision farming
- Hydraulic distributor 4+1 with levers
- Joystick 4+1 and electrovalve
- Shoots conveyor for pruning machine
- 1 blade bottom bar
- 2 blades top bar
- Sucker remover head SRV
