Product Description

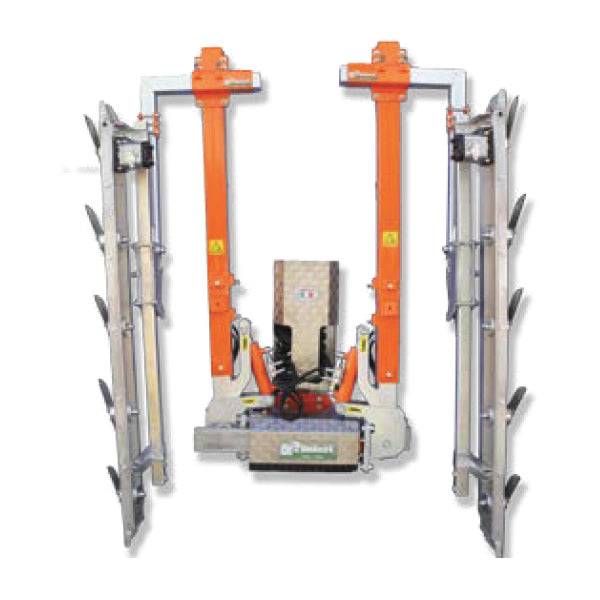

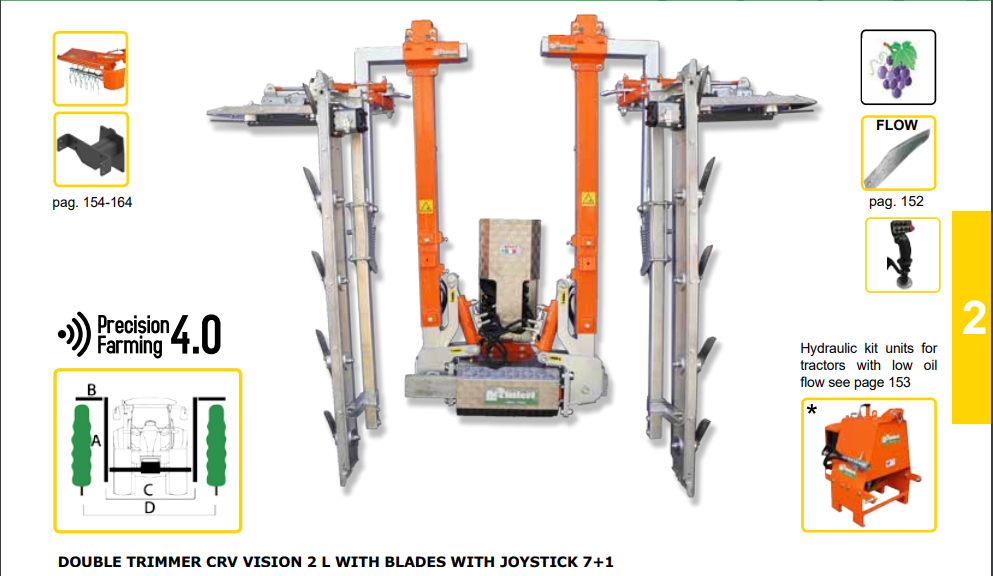

Rinieri Double Trimmer CRV Vision 2 L With Blades | 41"-83" Cutting Width for Tractor
DESCRIPTION
The DOUBLE TRIMMER CRV VISION-2 L with Blades is engineered for vineyards and agricultural settings with challenging terrains, such as hillsides. Its advanced design offers superior front visibility and hydraulic tilting of the vertical bars to ensure precision in sloped environments. Equipped with a durable frame and side displacement on bearings, this trimmer delivers long-lasting reliability. The model Vision 2 L provides independent hydraulic adjustments for both vertical and horizontal bars, allowing for customized trimming heights and angles.
Key Features
- Hydraulic Lifting: Independent vertical lift of 23.6" (60 cm) for height adjustments.
- Vertical Bar Tilt: Hydraulic tilting of vertical bars +/- 15° for trimming on slopes.
- Hydraulic Side Shift: Side shift of 9.8" (25 cm) and manual side shift of 7.87" (20 cm) for flexible positioning.
- Horizontal Bar Tilt: Horizontal bar tilts 90° for optimal trimming angles.
- Manual Horizontal Bar Height Adjustment: Adjustable up to 13.8" (35 cm) for precision.
- Safety Features: Includes spring-loaded safety mechanisms for both vertical and topping bars and a maximum pressure valve for motor protection.
- Hydraulic Stand for Storage: Ensures convenient and safe storage.
Detailed Specifications
Specification |
Details |
|---|---|
| Hydraulic Lifting | 23.6" (60 cm) |
| Vertical Bar Tilt | +/- 15° |
| Hydraulic Side Shift | 9.8" (25 cm) |
| Manual Side Shift | 7.87" (20 cm) |
| Hydraulic Horizontal Bar Tilt | 90° |
| Manual Horizontal Bar Height Adjustment | 13.8" (35 cm) |
| Hydraulic Requirement | 25-35 L/min |

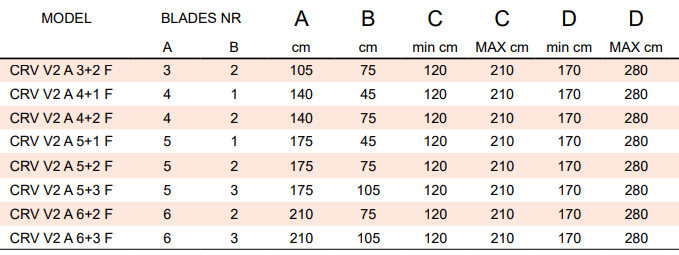

Models:
CRV V2 A 3+2 F & CRV V2 A 4+1 F
| Attribute | CRV V2 A 3+2 F | CRV V2 A 4+1 F |
|---|---|---|
| A (inches) | 41.34" | 55.12" |
| B (inches) | 29.53" | 17.72" |
| C Min - Max (inches) | 47.24" - 82.68" | 47.24" - 82.68" |
| D Min - Max (inches) | 66.93" - 110.24" | 66.93" - 110.24" |
| Oil Demand (L/min) | 25 - 35 | 25 - 35 |
CRV V2 A 4+2 F & CRV V2 A 5+1 F
| Attribute | CRV V2 A 4+2 F | CRV V2 A 5+1 F |
|---|---|---|
| A (inches) | 55.12" | 68.90" |
| B (inches) | 29.53" | 17.72" |
| C Min - Max (inches) | 47.24" - 82.68" | 47.24" - 82.68" |
| D Min - Max (inches) | 66.93" - 110.24" | 66.93" - 110.24" |
| Oil Demand (L/min) | 25 - 35 | 25 - 35 |
CRV V2 A 5+2 F & CRV V2 A 5+3 F
| Attribute | CRV V2 A 5+2 F | CRV V2 A 5+3 F |
|---|---|---|
| A (inches) | 68.90" | 68.90" |
| B (inches) | 29.53" | 41.34" |
| C Min - Max (inches) | 47.24" - 82.68" | 47.24" - 82.68" |
| D Min - Max (inches) | 66.93" - 110.24" | 66.93" - 110.24" |
| Oil Demand (L/min) | 25 - 35 | 25 - 35 |
CRV V2 A 6+2 F & CRV V2 A 6+3 F
| Attribute | CRV V2 A 6+2 F | CRV V2 A 6+3 F |
|---|---|---|
| A (inches) | 82.68" | 82.68" |
| B (inches) | 29.53" | 41.34" |
| C Min - Max (inches) | 47.24" - 82.68" | 47.24" - 82.68" |
| D Min - Max (inches) | 66.93" - 110.24" | 66.93" - 110.24" |
| Oil Demand (L/min) | 25 - 35 | 25 - 35 |
In Package
- DOUBLE TRIMMER CRV VISION-2 L with Blades
- Hydraulic and manual controls for all frame adjustments
- Spring-loaded safety systems for vertical and topping bars
- Hydraulic stand for storage
Available Options:
- Kit 4.0 Precision Farming
- Joystick 9+1 and electrovalve
- Shoots conveyor for pruning machine
- Sucker remover head SRV
