Product Description
Rinieri Double Trimmer With Sickle Bar CRL Tower 2L Joystick 7+1 |59"-83" Cutting Width for Tractor
DESCRIPTION

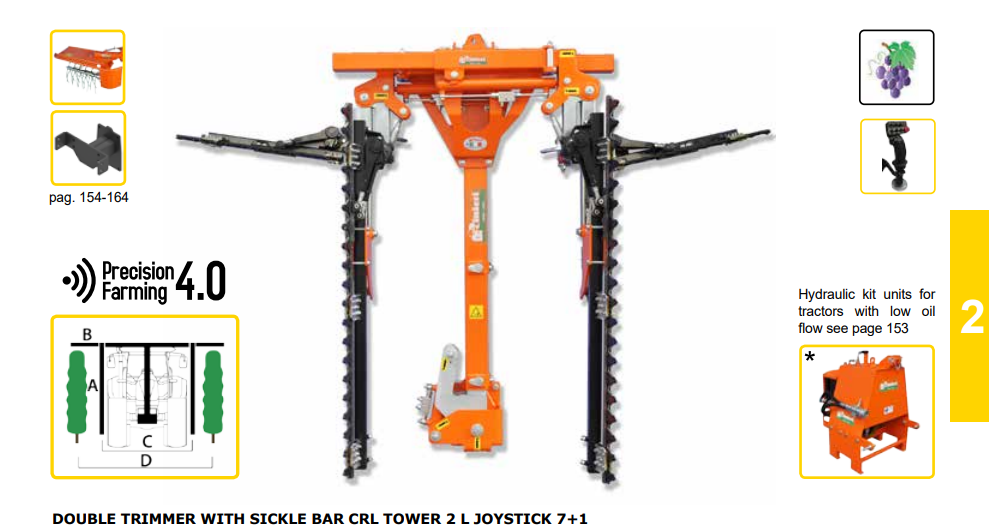

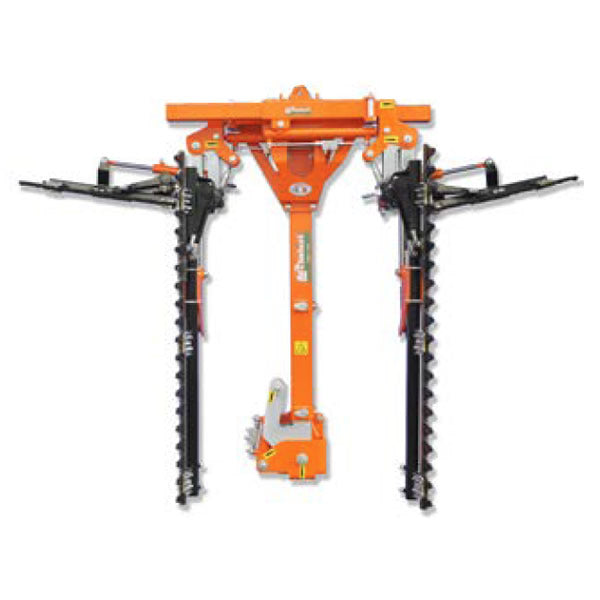

DOUBLE SICKLE BAR PRUNING MACHINE CRL TOWER-2 L is a highly efficient and versatile pruning machine, designed for professional use in vineyards, orchards, and agricultural operations. Built with a strong central frame and equipped with hydraulic lifting and tilting, the TOWER-2 L ensures precision and flexibility in pruning tasks. The double blade cutting bars offer clean and accurate cuts, while spring safety controls protect the bars during operation and transport. With customizable joystick and hydraulic controls, this machine can be modified post-purchase, making it adaptable for various pruning needs.
Key Features
- Hydraulic Lifting: Provides a vertical lift of 27.5" (70 cm) for easy height adjustments.
- Vertical Frame Tilt: Hydraulic vertical tilt +/- 20° for precise pruning angles.
- Side Shifting: Hydraulic side shift for flexible pruning.
- Horizontal Bar Tilt: Hydraulic 90° tilt for optimal cutting angles.
- Manual Height Adjustment: Horizontal bars can be manually adjusted up to 13.8" (35 cm).
- Safety Features: Includes spring-loaded safety controls for the vertical and topping bars, with manual closure for transport.
- Modular Design: Can be easily modified after purchase for additional versatility.
- Durable Construction: Built with a robust central structure for long-term use in tough environments.
Detailed Specifications
Specification |
Details |
|---|---|
| Hydraulic Lifting | 27.5" |
| Vertical Frame Tilt | +/- 20° |
| Hydraulic Side Shift | Yes |
| Horizontal Bar Tilt | 90° (Hydraulic) |
| Manual Adjustment Height | 13.8" |
| Manual Vertical Bar Tilt | +/- 11° |
| Hydraulic Requirement | 20-30 L/min |

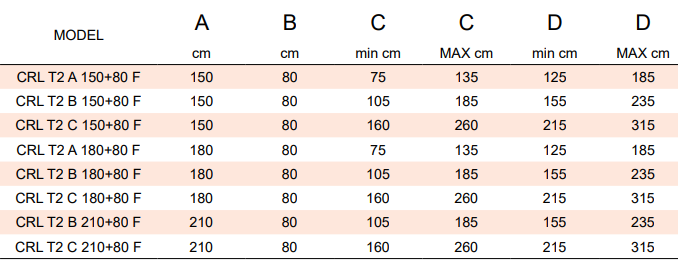

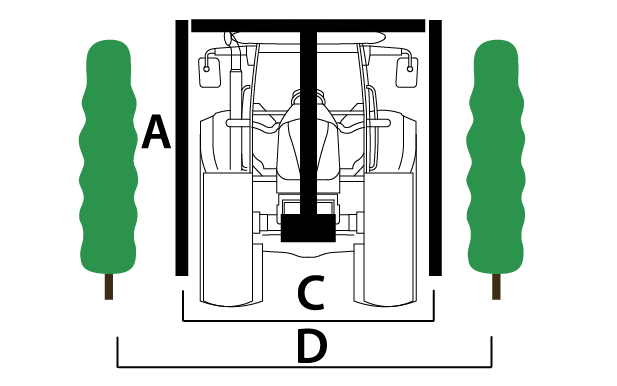

| (CRL T2 A 150+80 F) | 59.06" x 31.5" |
| (CRL T2 B 150+80 F) | 59.06" x 41.3"-72.8" |
| (CRL T2 C 150+80 F) | 59.06" x 63"-102.4" |
| (CRL T2 A 180+80 F) | 70.87" x 29.5"-53.1" |
| (CRL T2 B 180+80 F) | 70.87" x 41.3"-72.8" |
| (CRL T2 C 180+80 F) | 70.87" x 63"-102.4" |
| (CRL T2 B 210+80 F) | 82.68" x 41.3"-72.8" |
| (CRL T2 C 210+80 F) | 82.68" x 63"-102.4" |
| Hydraulic Distributors Required | 5 double-acting, 1 single-acting distributor |
| Pressure Free Return | Yes |
| Electrical Requirement | 12-volt socket |
In Package
- DOUBLE SICKLE BAR PRUNING MACHINE CRL TOWER-2 L
- Joystick or hydraulic distributor control (depending on model)
- Spring safety systems for vertical and topping bars
- Hydraulic stand for easy storage
- Double blade cutting bars
Available Options
- Kit 4.0 Precision Farming
- Joystick 9+1 and Electrovalve
- Shoots Conveyor for Pruning Machine
- Sucker Remover Head (SRV)
