Product Description

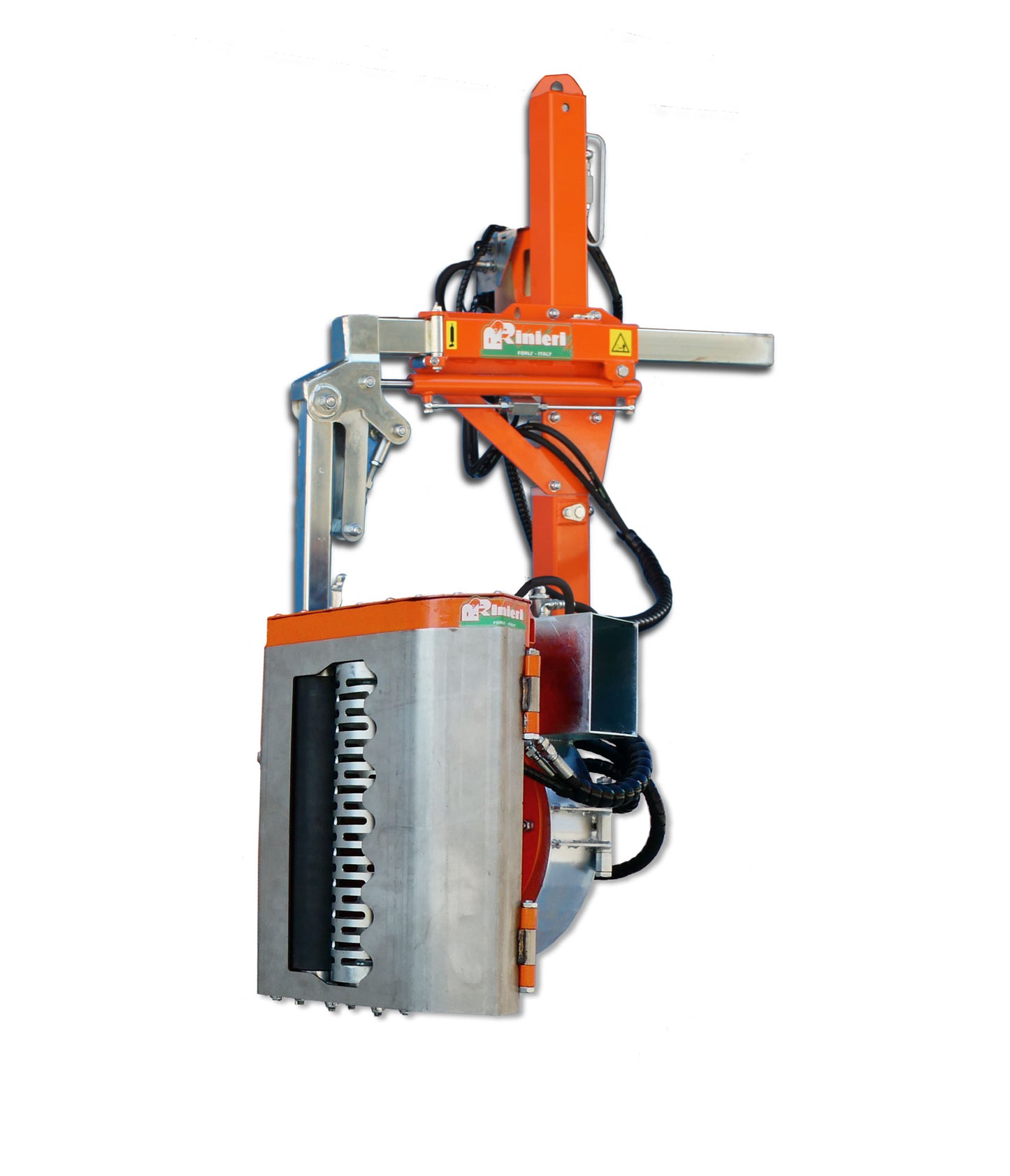

Rinieri DRF Barrel Leaf Remover On Tower 1 Frame With Hoses | 28" - 47" Roller Height for Tractor

DESCRIPTION

The DRF – BARREL LEAF REMOVER is designed to meet the needs of modern vineyards by efficiently removing leaves from the grape zone, promoting better maturation and aeration while reducing the need for chemical sprays. The machine uses two opposite rollers—one with holes and the other made of rubber—ensuring safe leaf removal without damaging the grapes. A stainless steel protection shield ensures precise trimming by closely following the vine walls.

The DRF is powered by a hydraulic motor that drives a fan for strong leaf aspiration. This model is equipped with the TOWER-1 FRAME, which allows two DRF heads to be mounted for maximum productivity. Additionally, a double blade cutter bar can be attached in front of the DRF head to cut branches outside the wires, preventing roller blockages and ensuring smooth operation.

Key Features

• Hydraulic Lifting: 27.5" (70 cm) hydraulic lifting for precise control during vineyard operations.
• Vertical Frame Tilting: +/- 20° hydraulic tilting for adaptability on uneven terrain.
• Side Shift: Hydraulic side shift for easy positioning along the vine rows.
• Tilting of Working Heads: +/- 11° hydraulic tilting for flexible head positioning.
• Speed Control Valve: Allows regulation of roller speed for optimal performance.
• Double Head Compatibility: Supports two DRF heads for increased efficiency.
• Safety Features: Includes maximum pressure valves for motors, floating heads with gas springs, and a hydraulic stand for safe storage.

Detailed Specification

In Package:

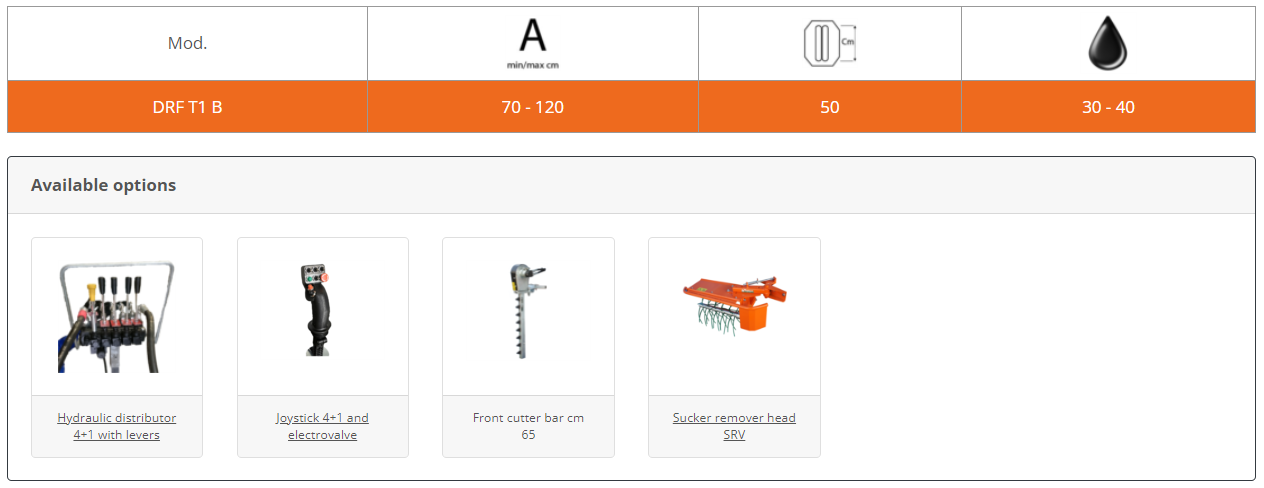

• DRF T1 B Model: Equipped with a 27.5" - 47.2" roller height, oil demand of 30-40 liters/min, speed control valve, and stainless steel protection shield.

Available Options:

• Hydraulic distributor 4+1 with levers
• Joystick 4+1 with electrovalve
• Front cutter bar 25.5" (65 cm)
• Sucker remover head SRV

Manuals & Documents

The Product Manual

Machine Configuration Guide

General Warranty Info:

• Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information needed about products and parts you can’t find!

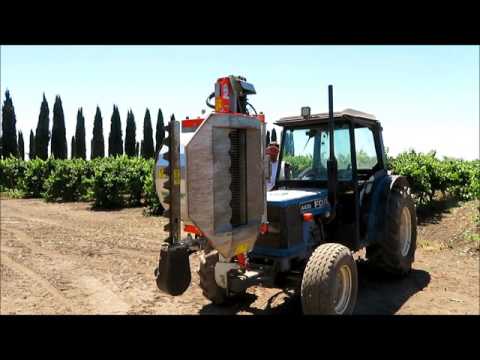

Videos
